$1,999.99
You Save: (%)
Aerpro AMHGM1K AERA10D INFOTAINMENT TO SUIT
AERA10D INFOTAINMENT TO SUIT
Model: AMHGM1K
Brand: AERPRO
Category: 9 AND 10 INCH COMPLETE KITS
Type: AERA10D KITS

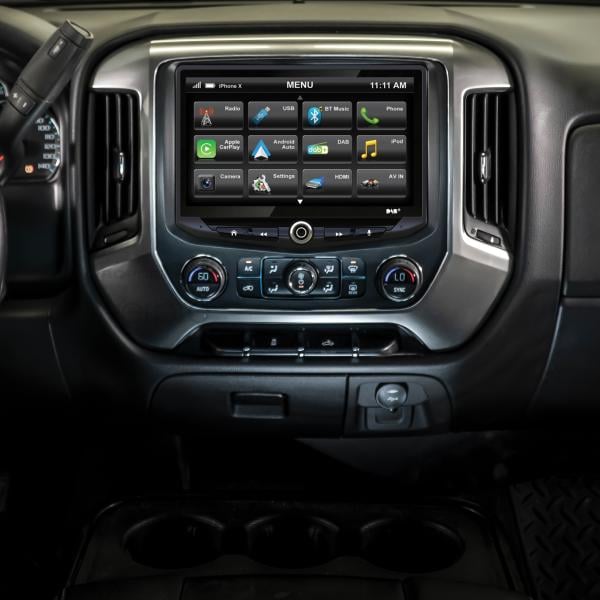

Looking to upgrade your Chevrolet Silverado or GMC Sierra's audio system? Look no further than the Aerpro AMHGM1K Head Unit Upgrade Kit! This comprehensive solution includes an Aerpro AERA10D 10" Multimedia Receiver with DAB+, Apple CarPlay & Android Auto and an Aerpro AMHGM1 Total Installation Kit to suit Chevrolet Silverado & GMC Sierra:1500 (2014-2018), 2500 (2015-2019) and 3500 (2015-2019).
Key Features:
- A complete solution with Aerpro AERA10D 10" Multimedia Receiver and AMHGM1 Total Installation Kit
- Seamless integration with the vehicle interior, maintaining a flush, factory look and feel
- Large 10" anti-glare touchscreen with 16.7 million colours for an immersive visual experience
- Latest in-car technology including Apple CarPlay, Android Auto, DAB+ Radio, Bluetooth, Dual USB Inputs and HDMI
- 4 Camera video inputs with wired triggers for maximum visibility
- Retains warning chimes, steering-wheel mounted radio controls, factory WiFi, front and rear park assist, factory reverse camera and vehicle-to-radio connectivity
- Secure flush-fitted mounting system withstands bumps, dips, vibrations, and shaking, even when towing or carrying heavy loads in your truck bed
- Dash-mounted dual USB cable included to connect and charge multiple devices
- Complete plug & play system simplifies installation
Specifications:
- Aerpro AERA10D 10" Multimedia Receiver Specifications:
- General:
- Operating Voltage: 9.0VDC to 18VDC
- Grounding system: Negative Ground
- Max current consumption: 10A fused
- Dimensions:
- Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
- Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)
- Display:
- Size: 10-inch Diagonal
- Aspect Ratio: 16:9
- Resolution: 1024 x 600
- Pixels: 1,843,200
- Active Area: 222.72 (W) x 125.28 (H) mm
- Operating Temperature (C) -20 to 70
- Audio:
- Peak Power Output: 50W x 4ch/4Ohm
- Load Impedance: 4OHM nominal / 2OHM allowable
- Continuous Power Output: 25W x 4ch/4OHM 20Hz to 20KHz,
- THD: 1 Per Cent THD at 14.4V
- Audio output level (max): 4.0V preout
- EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
- Gain: +/- 12dB (2dB/step)
- HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
- Subwoofer Preout:
- LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
- Gain: -14dB to 7dB (1dB/step)
- Phase: 0 or 180
- Speaker Level: +/- 9dB (1dB/step)
- Time Alignment: 0 to 133 step (inch/ms)
- USB:
- USB: 2.0
- Max Current Supply: 1.5A
- USB Class: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
- File System: FAT32, NTFS
- Bluetooth:
- Version: V4.2 dual
- Class: 4dBm Class2
- Frequency: 2.4GHz to 2.48GHz
- Tuner:
- FM Frequency Range: 87.9MHz to 107.9MHz
- AM Frequency Range: 530KHz to 1710KHz
- Camera(s) Video Inputs:
- Format: NTSC OR PAL video formats
- HDMI Input:
- Supported HDMI Resolutions: 640480p, 720480p, 1280720p, 19201080i, 1920*1080p
- Toslink (Optical):
- Output: 48khz Variable
- Background Image (User):
- File Format: JPG / PNG
- Resolution: 1024 x 600
- File Size: Not Limited
- Audio / Video Formats:
- Audio: MPEG-1 Audio Layer-3 (.mp3), FLAC (.flac), MPEG-2 Advanced Audio (.aac), MPEG-4 Audio (.m4a), Windows Audio (.wav), OGG Audio (.ogg)
- Video: QuickTime (.mov), MPEG-4 Video (.mp4), Microsoft AVI (.avi), MPG Video (.mpg), MPEG Video 1/2 (.mpeg), VOB DVD (.vob), Flash Video (.flv)
- Image: JPEG (.jpg), CompuServe GIF (.gif), PNG (.png), JPEG (.jpeg), Bitmap (.bmp)
- Aerpro AMHGM1 Total Installation Kit Specifications:
- Application: Suits Aerpro AERA10D Multimedia Receiver
- Vehicle Feature Retention:
- Warning Chimes
- Steering-Wheel Mounted Radio Controls
- Factory Wifi (if equipped)
- Front Park Assist
- Rear Park Assist
- Factory Reverse Camera (if equipped)
- Vehicle-To-Radio Connectivity (vehicle speed, illumination, reverse, and parking brake signals)
- Kit Inclusions:
- Vehicle Specific Facia Kit for AERA10D
- Vehicle Integration Module
- Complete Plug & Play Installation Harness
- Dash Mounted Dual USB Cable
- Antenna Adaptor
- Camera Harness
- Chime Retention Module
- Cable Ties
- Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This head unit is sold as a kit which includes:
- Aerpro AERA10D 10" Multimedia Receiver
- Aerpro AMHGM1 Total Installation Kit
- Suitable for the following vehicle models with either 7″ or 8″ OEM infotainment system:
- Chevrolet Silverado / GMC Sierra 1500 (2014-2018)
- Chevrolet Silverado / GMC Sierra 2500 (2015-2019)
- Chevrolet Silverado / GMC Sierra 3500 (2015-2019)
- Not compatible for with BOSE amplified audio systems, will require amplifier bypass.
