D POWER DPOWER1 MONO AMPLIFIER

Ask about this product

Full Description
Reviews

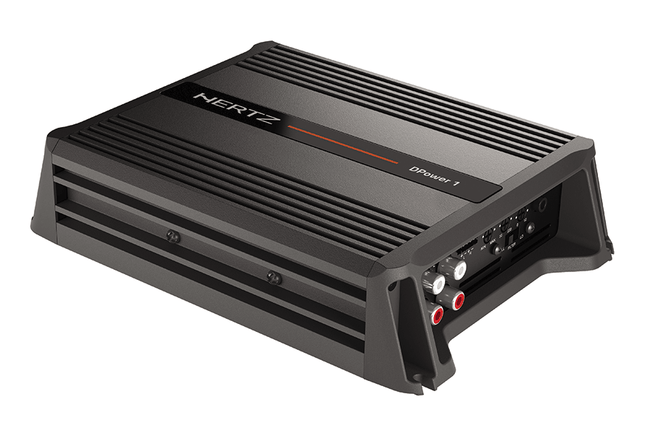

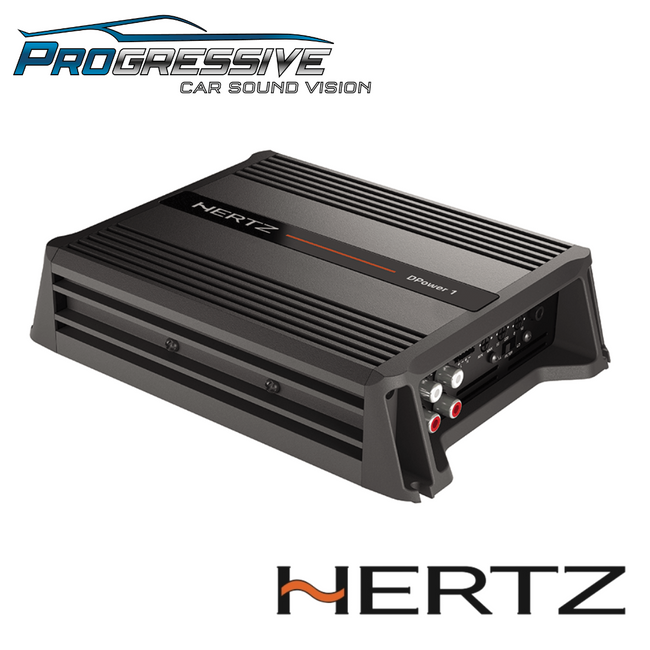

DPower 1

D CLASS MONO AMPLIFIER

Excellent for OEM systems upgrade, the Hertz DPower1 mono car audio amplifiers is an ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area. The efficient D Class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration. The bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch. The double SPEAKER & RCA INPUTS allows the DPower1 to connect to any type of source, be it OEM or aftermarket. For an excellent integration with OEM systems DPower1 is equipped with a smart automated turn on and off circuit according to the factory radio.

Owner's Manual

Technical Datasheet

Accessories

HRC BM

Hertz Bass Management

The remote control HRC BM - Bass Management, optional for DPower 1, provides the ability to adapt the subwoofer level (-20 / + 6 dB) to any personal preference and favorite music genre.

Data table

Channel mode	1
Output Power (RMS) @ 14.4 VDC	1 Ch 180 W x 1 (4Ω) 1 Ch 300 W x 1 (2Ω)
Filters Bypass Hi-Pass Lo-Pass Band-Pass Subsonic	Yes Not available 50 ÷ 220 Hz @ 12 dB/Oct. Not available Not available
Distortion - THD (100Hz @ 4Ω)	0.1 %
S/N Ratio (A weighted @ 1V)	105 dB
Damping factor (100Hz @ 4Ω)	100
Size W x D x H mm (in.)	222,2 x 160 x 50,5 / 8,75 x 6,3 x 1,99

Technologies

ULTRA-COMPACT
Excellent for OEM systems upgrade, the DPower amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area.
HIGH POWER/SIZE RATIO
The efficient D class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration.
VERSATILE X-OVER
DPower1 bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch.
SPEAKER & RCA INPUTS
The double SPEAKER & RCA INPUTS allows the DPower amplifiers to connect to any type of source, be it OEM or aftermarket.
ART AUTO TURN-ON/OFF
For an excellent integration with OEM systems the DPower amplifiers are equipped with a smart automated turn on and off circuit according to the factory radio.
