Morel HYBRID
Hybrid
Embracing Morel’s legendary craftsmanship, engineering and innovation, the latest Hybrid systems define our ever-evolving concept of high-fidelity speaker design. Now in their fifth generation, the new Hybrid systems provide a further refined listening experience. Their subtle balance of resolution, power and efficiency has been optimized to evoke raw emotions, regardless of the music genre.
The Hybrid line is available in 2-way, 3-way and Integra point source solutions, creating optimal sound coherency regardless of your speaker requirements.

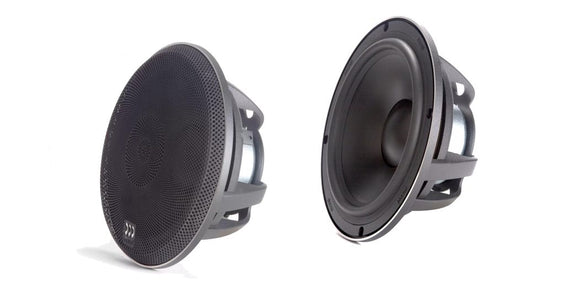

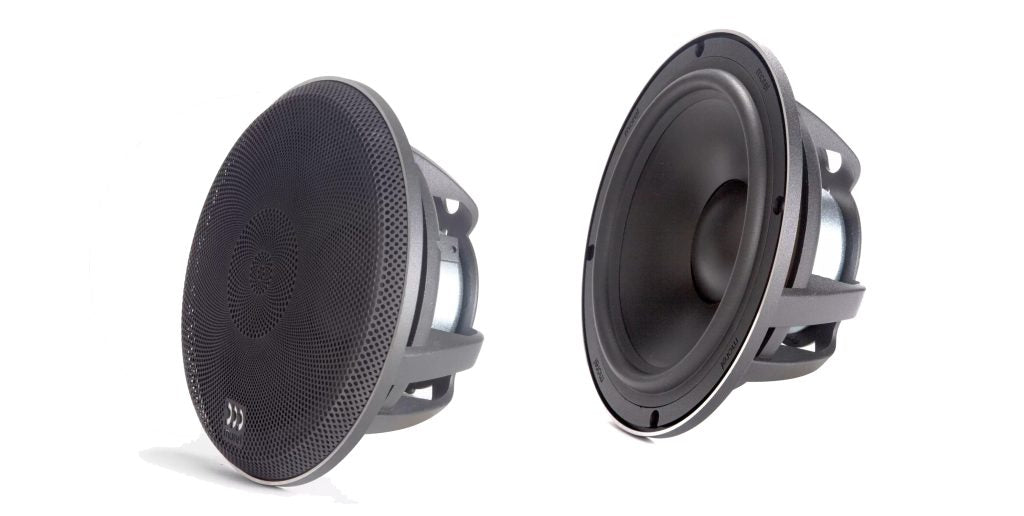

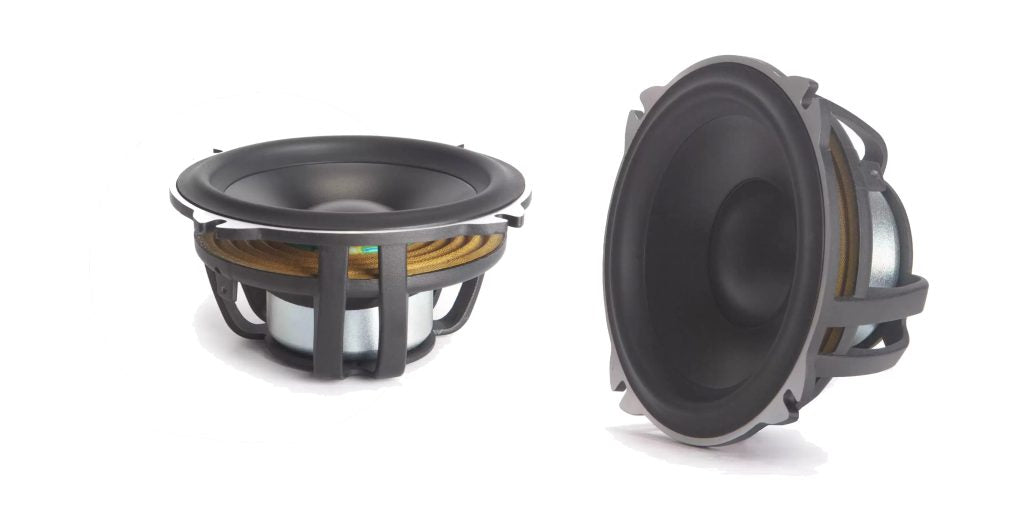

Hybrid continues to provide top level Morel technology. Each midrange and woofer comes equipped with a 2.1” (54mm) Hexatech™ aluminum EVC, a DPC one-piece cone architecture, hybrid and double magnet motors. A new handcrafted MT300 soft dome tweeter employs our innovative Acuflex™ technology, producing a natural, non-fatiguing listening experience. In 3-way systems, our new CDM700 is a perfect midrange compliment, designed to work flawlessly with the MT300 and Hybrid woofers. The line is styled with a beautiful brushed aluminum trim,
an external aesthetic which compliments its elegant internal componentry.
The Integra, Morel’s point source system, is an innovative landmark in speaker design. It utilizes point-source topology to eliminate acoustic problems inherent in conventional coaxial systems. By creating a single sound source on the same axis, the tweeter and woofer seamlessly integrate, generating omni-directional time alignment, heightened imaging and sound dispersion.
Going eighteen years strong, the Hybrid line continues to exceed expectations. This latest evolution showcases how far we intend on taking it.
Information Centre
Data Sheet – Split Syst.

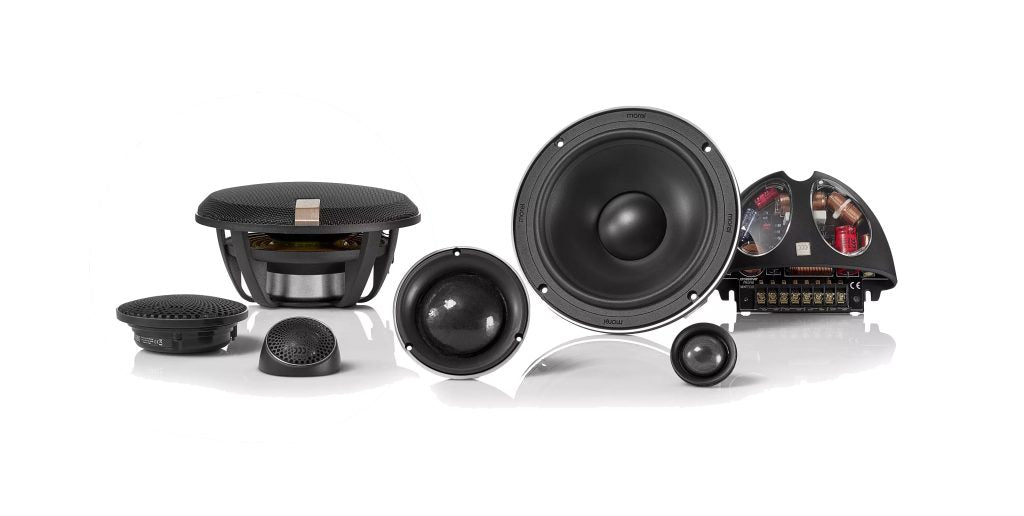

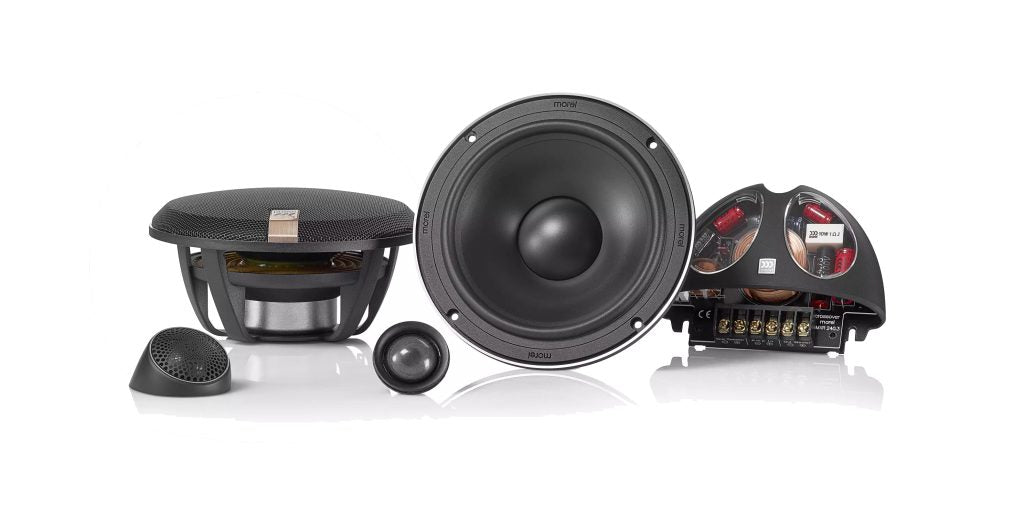

| Reference Series | Hybrid 42 | Hybrid 52 | Hybrid 62 | Hybrid 63 |
| MSRP (Aust.) | $1,838 | $1,838 | $1,838 | $2,798 |
| Midbass Size | 100 mm | 133 mm | 165 mm | 165 mm |
| Midbass VC | 54 mm | 54 mm | 54 mm | 54 mm |
| CDM 700 Midrange | - | - | - | 89 mm |
| Midrange VC | - | - | - | 54 mm |
| MT-300 Tweeter | 43 mm | 43 mm | 43 mm | 43 mm |
| Tweeter VC | 28 mm | 28 mm | 28 mm | 28 mm |
| Freq. Resp. | 50 Hz - 25 kHz | 45 Hz - 25 kHz | 35 Hz - 25 kHz | 35 Hz - 25 kHz |
| Crossover Included | MXR 240.2 | MXR 240.2 | MXR 240.2 | MXR 300.4 |
| RMS Power | 100 | 120 | 140 | 140 |
| Peak Power | 300 | 500 | 600 | 600 |
| Sensitivity dB | 89 | 90 | 91 | 91 |
| Impedance | 4 ohm | 4 ohm | 4 ohm | 4 ohm |
| Grills Included | Yes | Yes | Yes | Yes |
Data Sheet – Integra

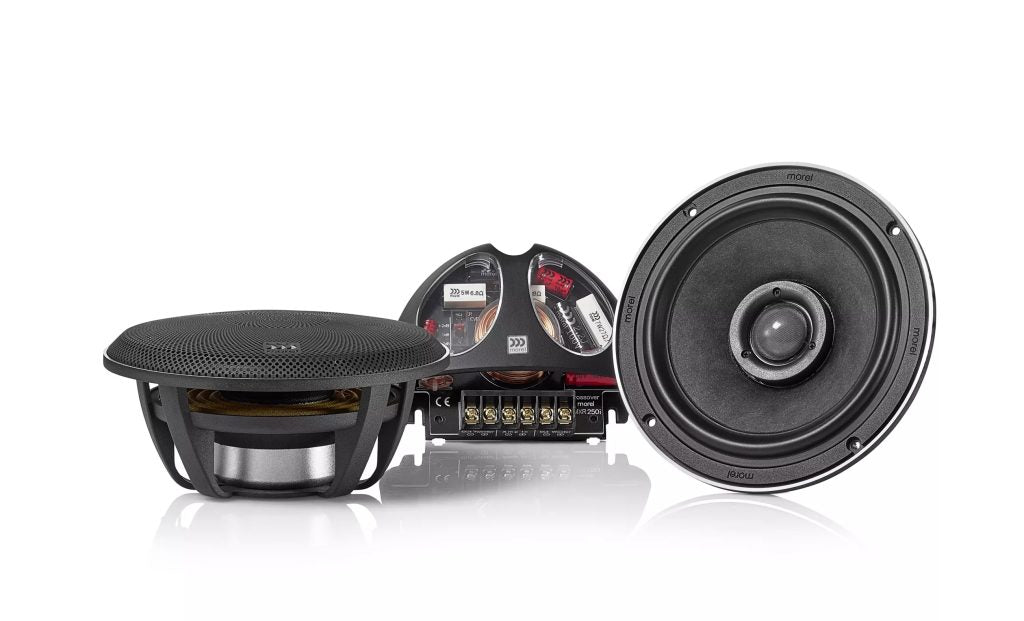

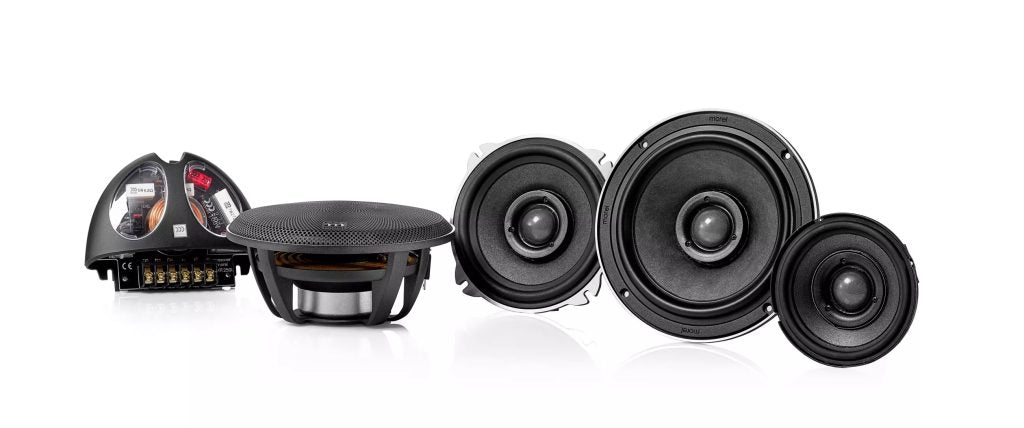

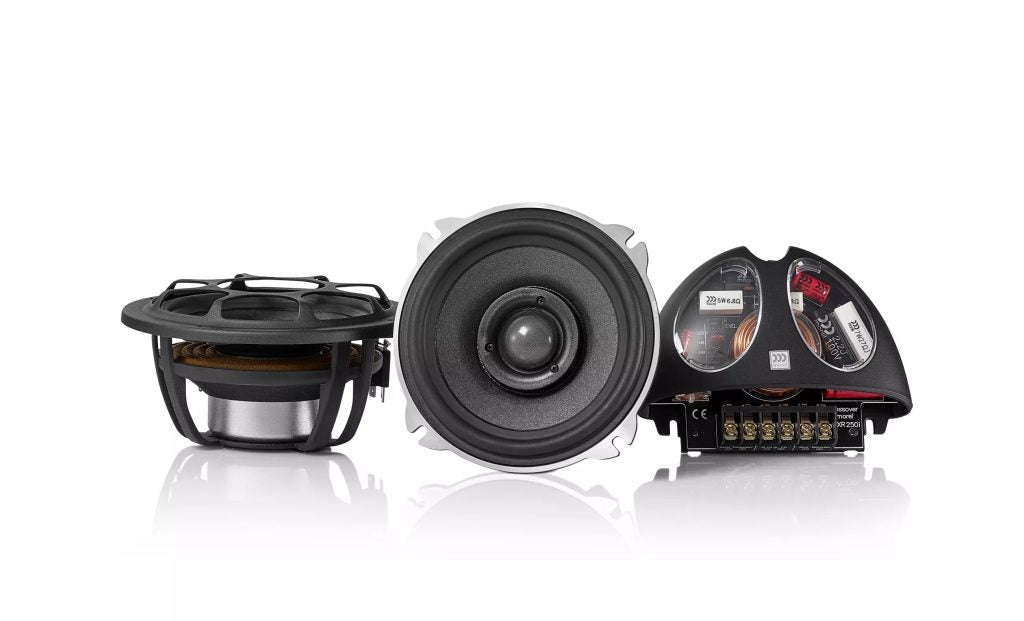

| Reference Series | Hybrid Integra 62 | Hybrid Integra 52 | Hybrid Integra 42 |
| MSRP (Aust.) | $1,488 | $1,488 | $1,488 |
| Configuration | 2-way Integra | 2-Way Integra | 2-Way Integra |
| External Crossover | MXR 250.4i | MXR 250.4i | MXR 250.4i |
| Driver Size | 165 mm | 133 mm | 100 mm |
| Voice Coil Size | 54 mm (W) 28 mm (T) | 54 mm (W) 28 mm (T) | 54 mm (W) 28 mm (T) |
| Frequency Resp. | 35 - 25 kHz | 45 -25 kHz | 80 - 25 kHz |
| RMS Power | 140 | 120 | 80 |
| Peak Power | 600 | 500 | 250 |
| Sensitivity | 91 dB | 92 dB | 90 dB |
| Impedance | 4 ohm | 4 ohm | 4 ohm |
| Grills Incluided | Yes | Yes | Yes |
Data Sheet – Components

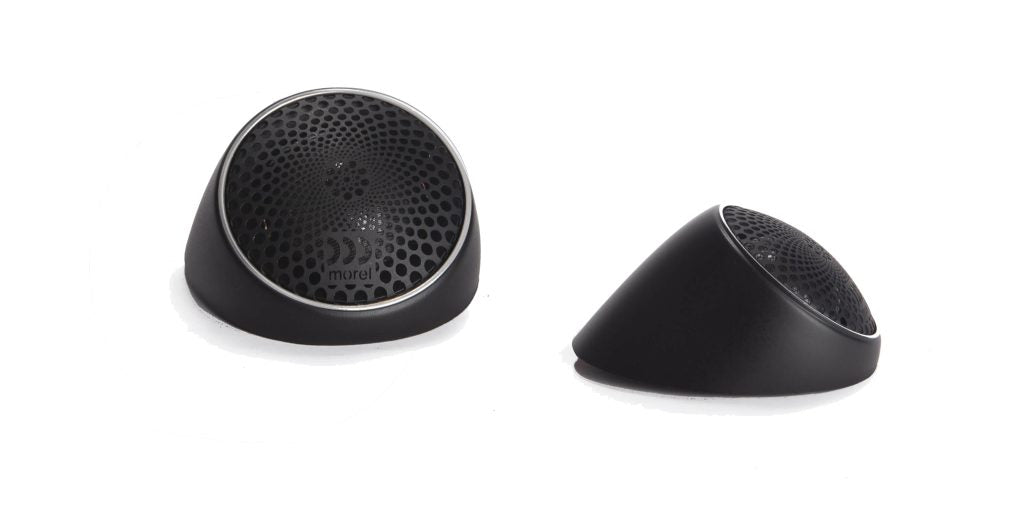

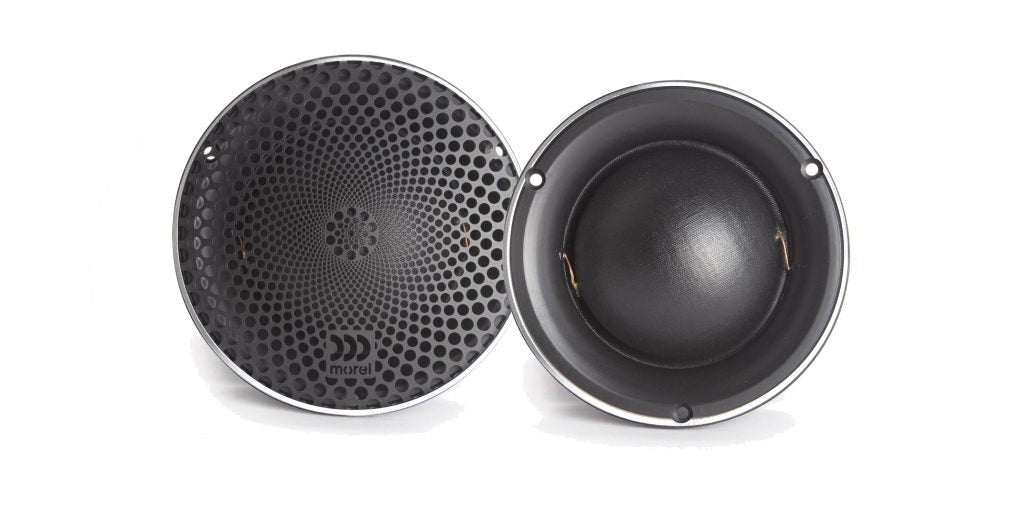

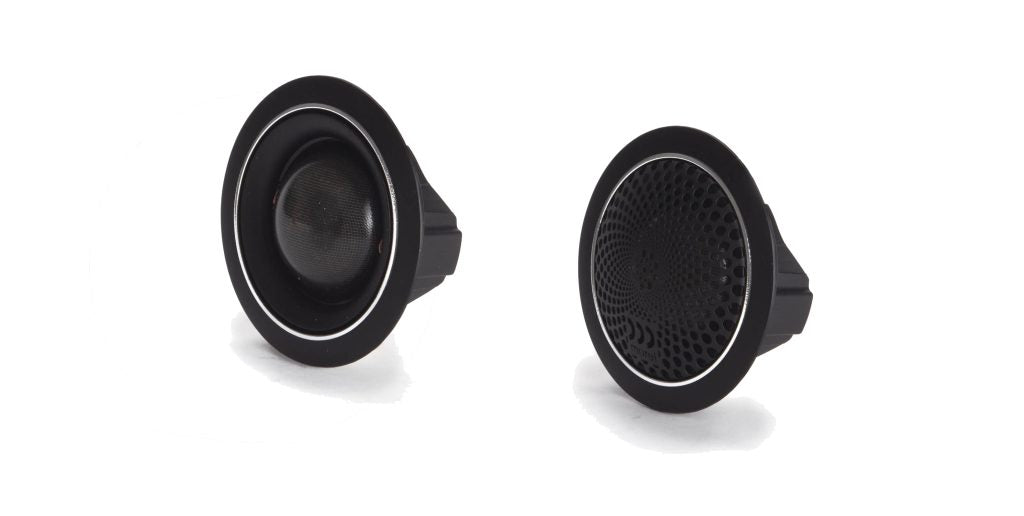

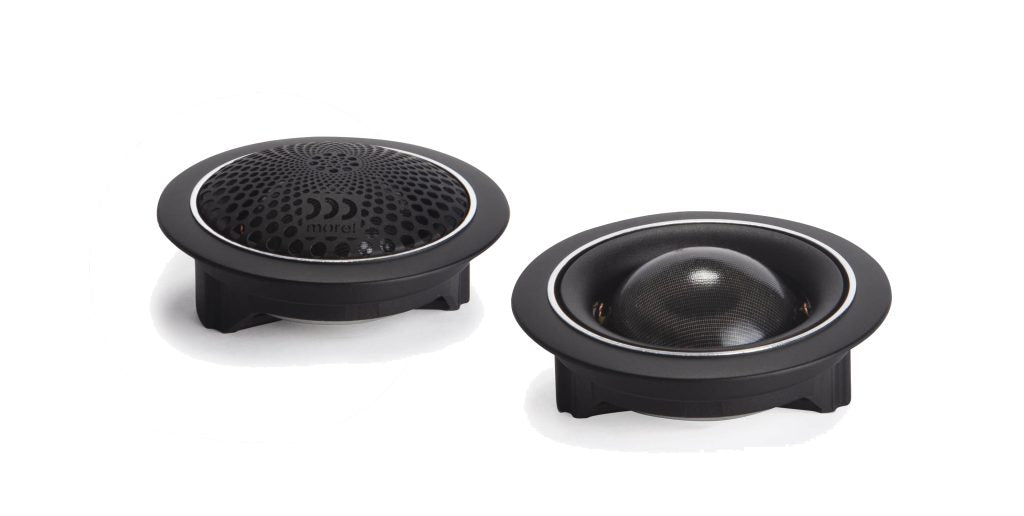

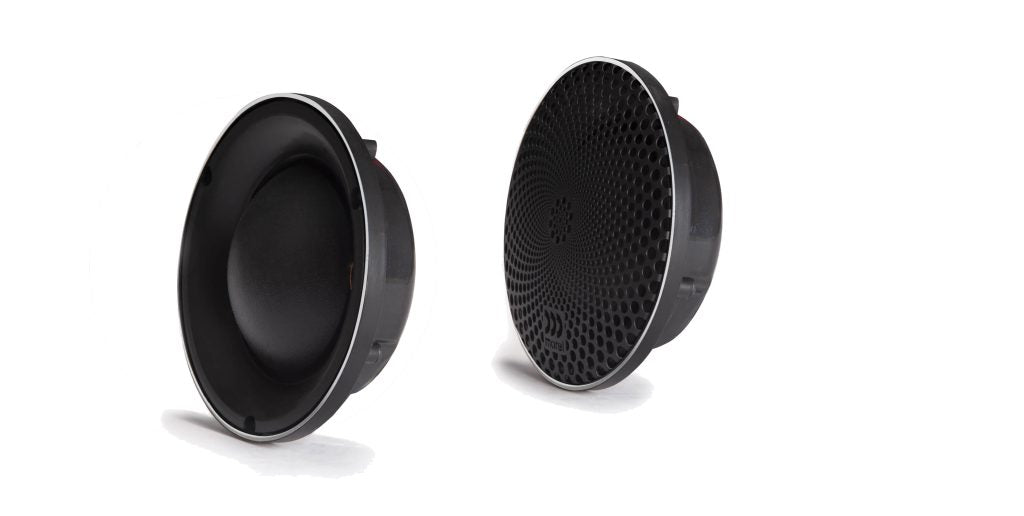

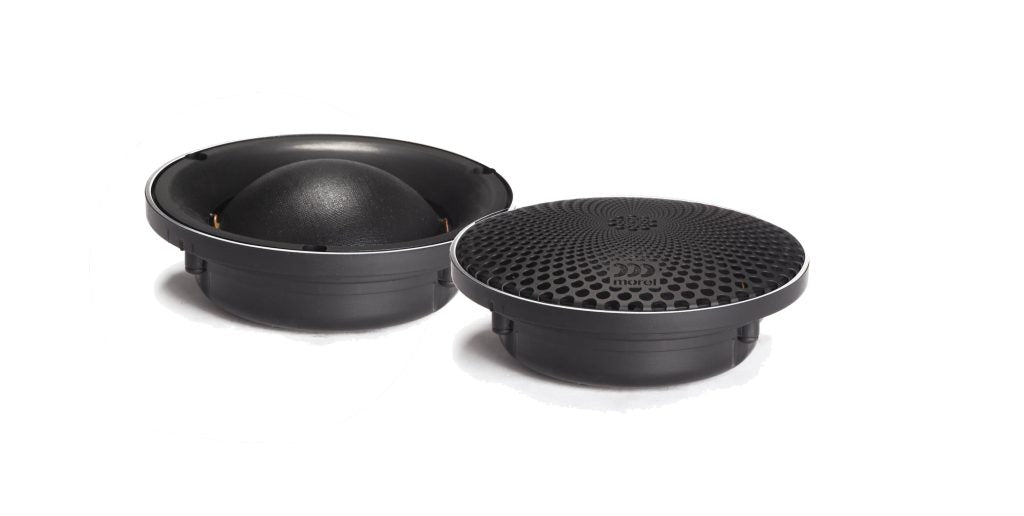

| Reference Series | MT300 | CDM700 |
| MSRP (Aust.) | $818 | $958 |
| Configuration | Tweeter | Midrange |
| Driver Size | 43 mm | 88 mm |
| Voice Coil Size | 28 mm | 54 mm |
| Frequency Resp. | 1600 - 25 kHz | 600 - 6 kHz |
| RMS Power | 130 | 100 |
| Peak Power | 350 | 300 |
| Sensitivity | 93 dB | 90 dB |
| Impedance | 6 ohm | 8 ohm |
| Grills Included | Yes | Yes |
