$249.99
You Save: (%)

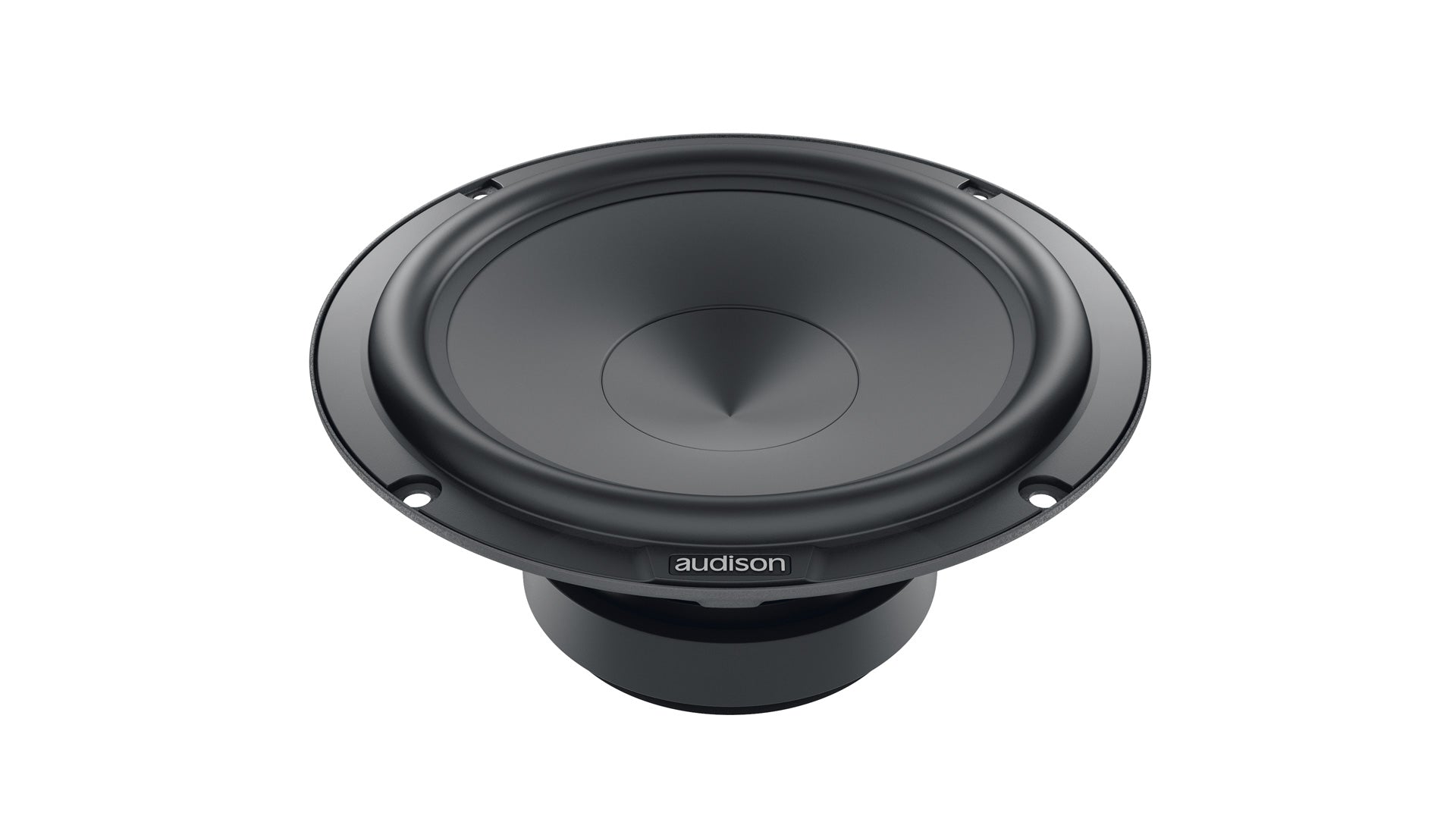

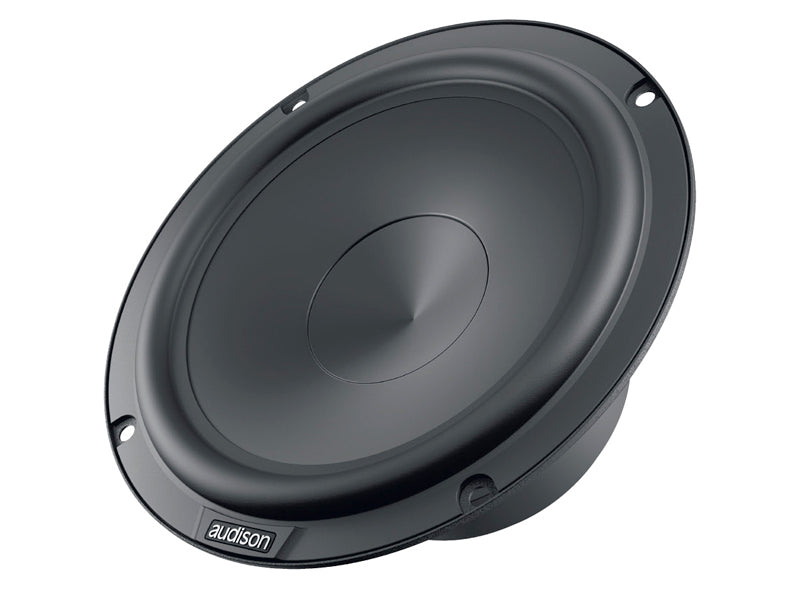

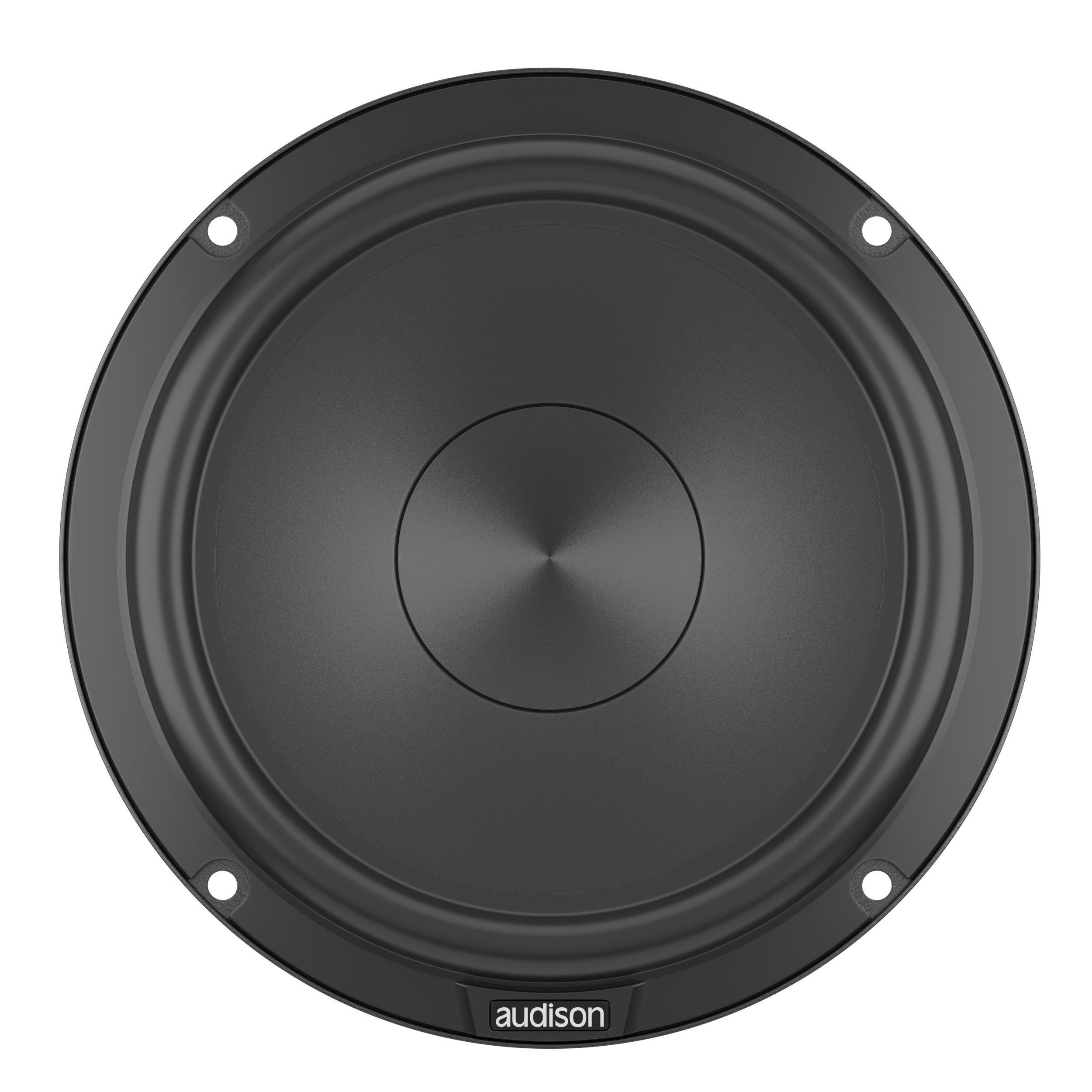

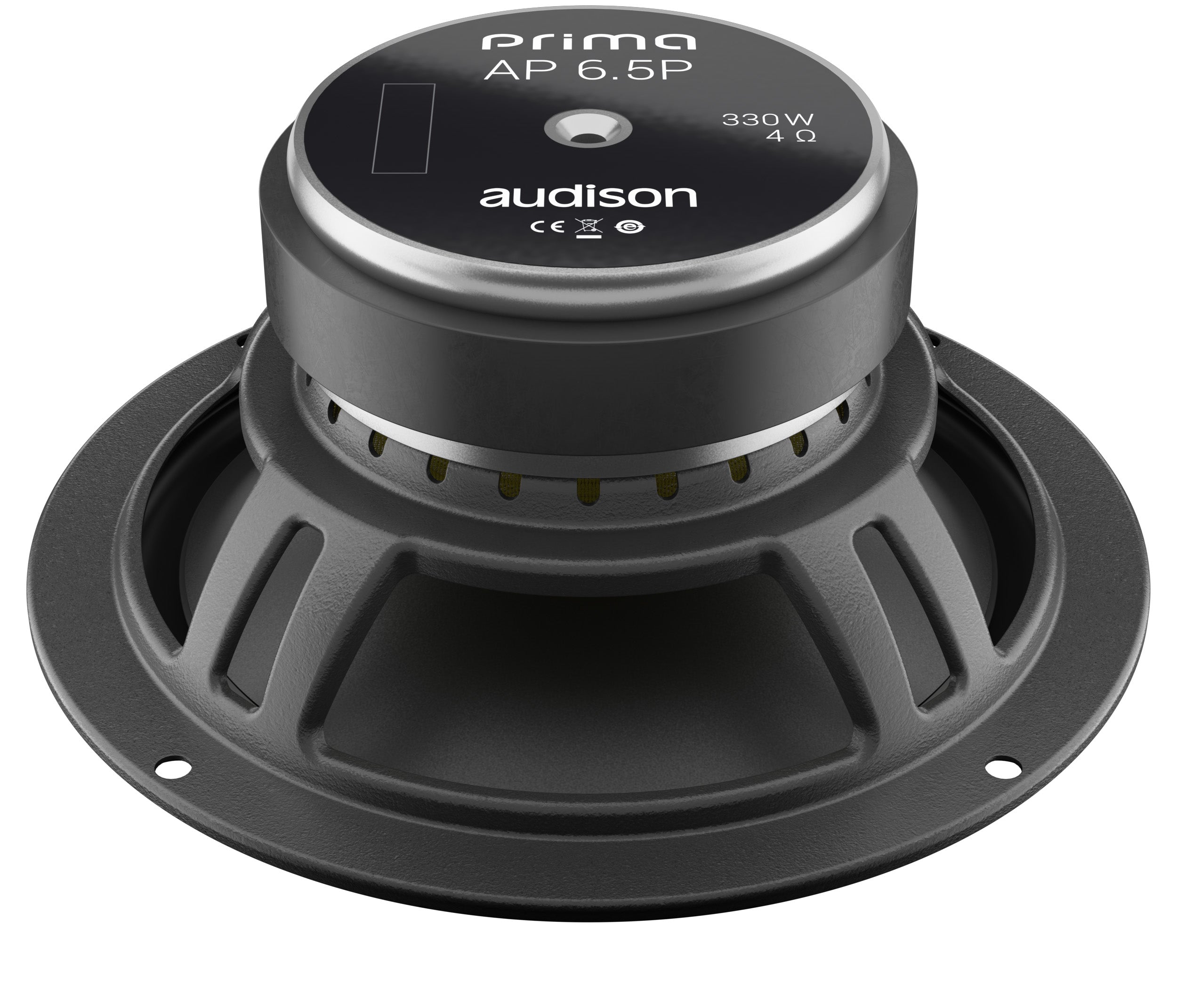

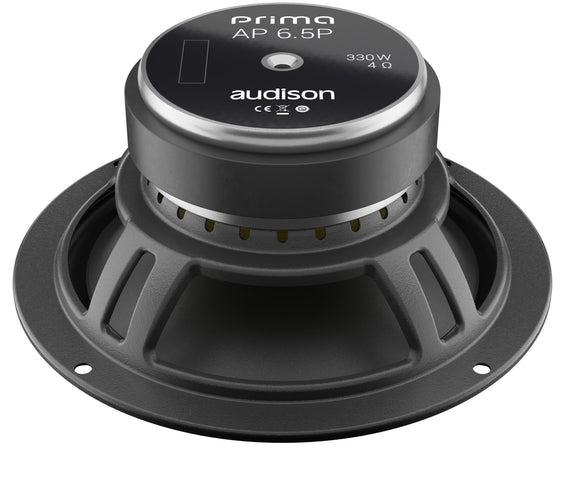

audison AP 6.5P

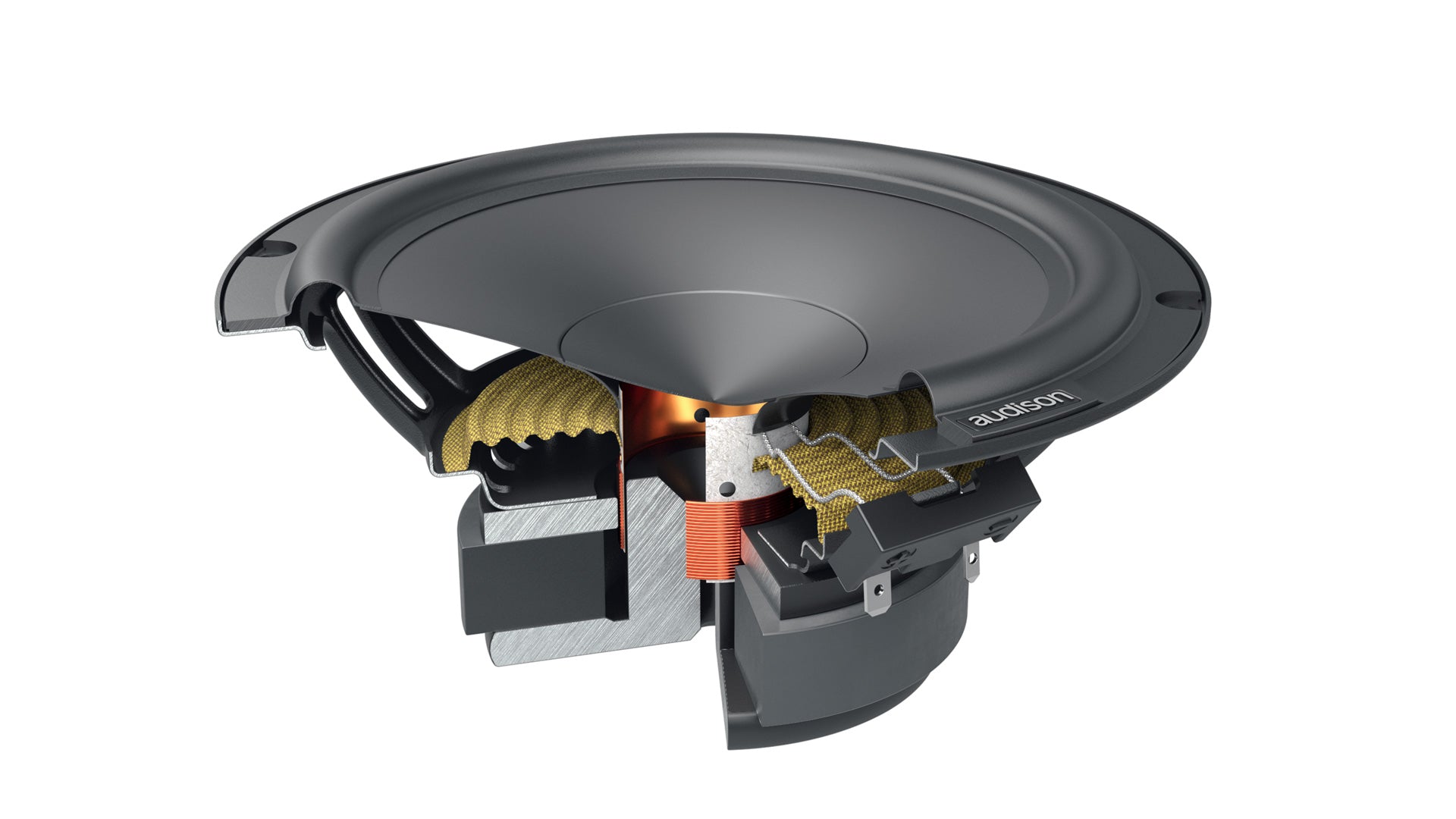

AP 6.5P woofer component has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency featuring a very wide excursion to cope with the most important dynamic peaks without any compression. Its impressive magnetic assembly provides the energy needed for perfect control even during limit excursions. The CCAW (Copper Clad Aluminium Wire) voice coil (32 x 14 mm, 1.25 x 0.55 in) optimally manages the greater applied power. The basket was completely redesigned with the aid of simulations to lower the resistance of air flows, while maintaining compact sizes to facilitate the installation.
Technical Specs
| Nominal diameter | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 330 W |
| Power Handling - Continuous | 110 W |
| Sensitivity | 92.5 dB |
| Frequency Response | 50 - 5k Hz |
| Voice Coil Ø | 32 mm |
| Magnet size D x d x h | 100 x 40 x 18 mm (in.) |
| Voice Coil Material | CCAW |
| Cone Material | WATER-REPELLENT TREATED PAPER CONE |
| Xmax | 5.6 mm (0.22 in) |
Electric-acoustic Specs
| Re | 3.1 Ohm |
| Fs | 60 Hz |
| Le | 0.29 mH |
| Vas | 11.4 l (0.403 ft) |
| Mms | 14.6 g (0.515 oz) |
| Cms | 0.47 mm/N |
| BL | 5.35 T•m |
| Qts | 0.55 |
| Qes | 0,6 |
| Qms | 7.6 |
General
| Weight | 1.45 kg |
Features
- Increased excursion of the mobile group for a superior dynamic
response - Optimized electro-acoustic parameters to maximize performance for
OEM placements - Magnetic group sized for perfect control even at maximum cone
excursion - CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to
optimally manage the greater applied power - Compact size basket for easy OEM installations
