Aerpro APVTY15C REVERSE CAMERA TO SUIT HILUX
REVERSE CAMERA TO SUIT HILUX
Model: APVTY15C
Brand: AERPRO
Category: ADD CAMERA TO VEHICLE KITS
Type: VEHICLE SPECIFIC KITS

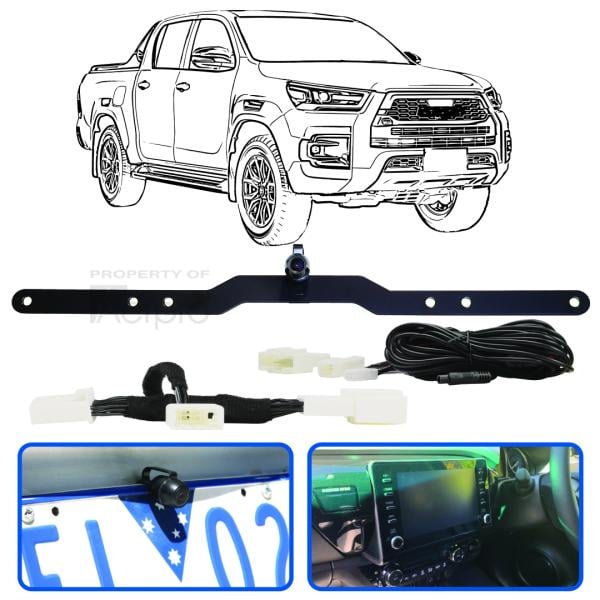

The Aerpro APVTY15C Vehicle Specific Reverse Camera Kit connects to the OEM factory display in Toyota Hilux (2020-on) models with a 26 pin OEM camera connection. Simple to install, the kit comes supplied with a vehicle specific t-harness that connects in line with the factory wiring harness (OEM plug/socket is located behind passenger kick panel trim). The included IP67 rated stealth registration plate mount reverse camera fits discreetly to the rear numberplate, making it suitable for tray or tub style ute backs. Optional parking guidelines assist with reverse parking and the 90 degree lens angle significantly reduces blindspots. The Aerpro APVTY15C Vehicle Specific Reverse Camera for Toyota Hilux is the perfect safety addition for your vehicle.
Key Features:
- Suitable for Toyota Hilux (2020-on) models with 26 pin OEM connection
- Stealth registration plate mount reverse camera for discreet installation
- Vehicle specific harness connects in line with the factory wiring harness (behind passenger kick panel trim)
- 90 Degree horizontal lens angle minimises blindspots
- CMOS Image sensor for clear picture quality
- Equipped with optional parking guidelines (loop setting on installation)
- Standard / Mirror image switchable (loop setting on installation)
- PAL/NTSC switchable (NTSC option must be set to work with factory display - cut blue loop)
- IP67 Waterproof / dustproof camera
Specifications:
- Vehicle Connection: 26 Pin (T-Harness)
- Camera Mount: Stealth Registration Plate Mount
- Lens Angle: 90 Degrees (Horizontal)
- Image Sensor: CMOS
- Cable Length: 6 Metres
- Camera IP Rating: IP67
- Camera Settings (Loop System):
- BLUE: Default setting PAL, cut the loop for NTSC (loop must be cut to work with factory display)
- GREEN: Default setting Parking Guidelines, cut the loop to remove Parking Guidelines
- WHITE: Default setting Mirror Image, cut the loop for Forward Facing Image
- Important Notes:
- T-Harness connection, access OEM plug/socket behind passenger kick panel trim.
- Blue loop wire must be cut on camera loom to switch from PAL to NTSC to enable camera to work with factory display.
