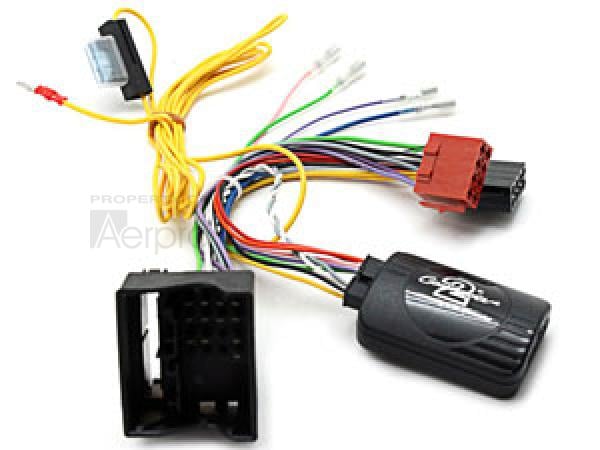

Aerpro CHMC9C STEERING WHEEL CONTROL HARNESS
STEERING WHEEL CONTROL HARNESS
Model: CHMC9C
Brand: AERPRO
Category: HARNESSES
Type: SWC HARNESS TYPE C
The Aerpro CHMC9C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit Mercedes A-Class W176 (2013-2018) vehicles with QUADLOCK connector, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse, Illumination and Amp Remote. It also includes a yellow constant power cable that needs to be wired directly to the vehicles battery.
Key Features:
- Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
- Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
- Supports OEM Phone Button when connected to compatible aftermarket bluetooth headunits
- CAN-BUS integration compatible, no additional modules required
- Provides output feeds for reverse trigger, park brake, speed pulse, illumination and amp remote
- Includes yellow power cable that needs to be wired directly to the vehicle battery
- Allows time and date settings to be adjusted by the steering wheel controls
- Fitted with a vehicle specific plug, no cutting of wires required
- Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)
- Requires SWC patch lead to provide compatibility with the aftermarket headunit (sold separately)
Specifications:
- INTERFACE TYPE: CANBUS
- PATCH LEAD TYPE: C
- PHONE BUTTON COMPATIBILITY: YES (WHEN ENABLED FROM FACTORY)
- VOICE ASSISTANT SUPPORT AVAILABLE: YES
- For Voice Assistant support the interface requires firmware version xx.3. To update the firmware please contact your Authorised Aerpro Dealer
- If your steering wheel control does not have a Voice Assistant button, the answer button will function as voice support instead
- Aftermarket headunit and phone must also support Voice Assistant feature for this feature to work
- OUTPUTS:
- REVERSE TRIGGER: YES (PURPLE/WHITE)
- PARK BRAKE: YES (GREEN)
- SPEED PULSE: YES (PINK)
- ILLUMINATION: YES (ORANGE)
- AMP REMOTE: YES (BLUE)
- TELEPHONE MUTE: NO
- OTHER RETENTION:
- OEM AMPLIFIED SYSTEM: NO
- NOTES:
- Aftermarket headunit must be SWC compatible.
- SWC patch lead is also required to enable SWC (sold separately).
- Yellow constant power cable that needs to be wired directly to the vehicles battery.
- Blue wire needs to be connect to antenna power.
- Retains date and time change from the steering wheel.
