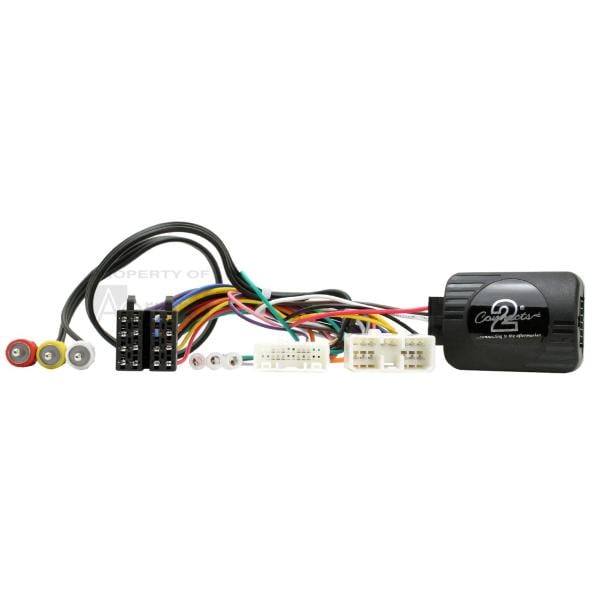

Aerpro CHSU4C STEERING WHEEL CONTROL HARNESS
STEERING WHEEL CONTROL HARNESS
Model: CHSU4C
Brand: AERPRO
Category: HARNESSES
Type: SWC HARNESS TYPE C
The Aerpro CHSU4C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Subaru vehicles with OEM Navigation, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface provides various outputs including Reverse Trigger, Park Brake and Speed Pulse. It also retains the OEM AV socket (not reverse camera), when connected to compatible aftermarket headunits.
Key Features:
- Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
- Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
- Supports OEM Phone Button when connected to compatible aftermarket bluetooth headunits
- Voice Assistant Button support available with software update (please contact your Authorised Aerpro Dealer for update)
- RCA connectors retain OEM AV socket (not reverse camera), when connected to compatible aftermarket headunit
- Provides output feeds for park brake, reverse gear and speed pulse
- Fitted with a vehicle specific plug, no cutting of wires required
- Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)
- Requires SWC patch lead to provide compatibility with the aftermarket headunit (sold separately)
Specifications:
- INTERFACE TYPE: ANALOGUE
- PATCH LEAD TYPE: C
- PHONE BUTTON COMPATIBILITY: YES
- VOICE ASSISTANT BUTTON SUPPORT: YES
- For Voice Assistant support the interface requires firmware version xx.3. To update the firmware please contact your Authorised Aerpro Dealer.
- If your steering wheel control does not have a Voice Assistant button, the answer button will function as voice support instead.
- Aftermarket headunit and phone must also support Voice Assistant feature for this feature to work
- OUTPUTS:
- REVERSE TRIGGER: YES (PURPLE)
- PARK BRAKE: YES (GREEN)
- SPEED PULSE: YES (PINK)
- ILLUMINATION: NO
- AMP REMOTE: NO
- TELEPHONE MUTE: NO
- OTHER RETENTION:
- OEM AMPLIFIED SYSTEM: NO
- OEM AV SOCKET: YES
- NOTES:
- Aftermarket headunit must be SWC compatible.
- SWC patch lead is also required to enable SWC (sold separately).
- Suitable for listed vehicles that have OEM Navigation head units.
- Aftermarket headunit requires AV inputs at the rear to retain the OEM AV socket in the vehicle.
- Does not retain OEM Reverse Camera.
