Aerpro G158VC AFTERMARKET CAMERA TO SUIT
AFTERMARKET CAMERA TO SUIT
Model: G158VC
Brand: AERPRO
Category: VEHICLE SPECIFIC CAMERAS
Type: REVERSE CAMERAS

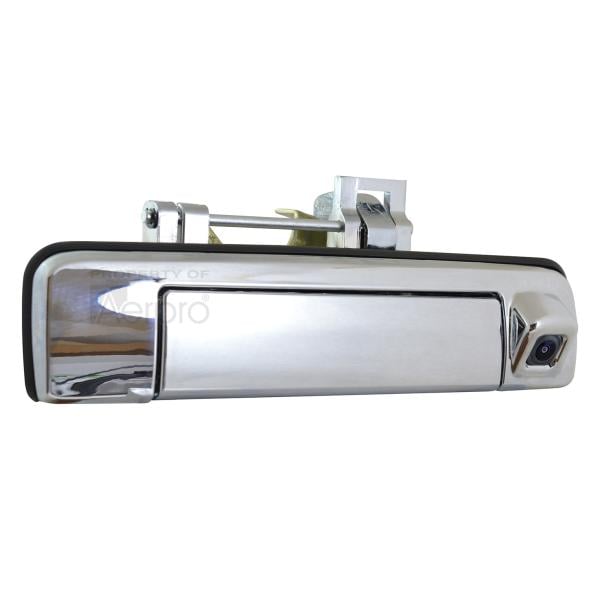

The Aerpro G158VC is a chrome vehicle specific reverse camera built for your Isuzu D-Max Ute, models without factory locking tailgate. The tailgate handle replacement design provides a discreet installation solution without the need to drill any additional holes into the vehicle.
Key Features:
- Designed to replace the factory tailgate handle providing a discreet and professional rear camera solution
- No additional holes need to be drilled into the vehicle, only suitable for models without factory locking tailgate
- High quality image sensor produces clear images and enhanced low light performance
- 150 Degree field of view minimises blind spots at the rear of the vehicle
- IP68 Rating and wide operating temperature range makes it suitable for use in the harsh Australian conditions
- Parking guidelines to assist with reverse parking (guidelines to be removed at time if installation)
- Mirror image option allows camera to be utilised as a reverse camera or rear view camera (must be set at time if installation)
- 8m extension cable length to run between the front and back of the vehicle
- PAL/NTSC compatible with RCA connection makes it suitable for use with all aftermarket display monitors
Specifications:
- VEHICLE COMPATIBILITY: ISUZU D-MAX 2012-2015 (ALL BADGES), 2016-2020 (SX ONLY)
- CAMERA TYPE: REVERSE / REAR-VIEW
- HOUSING COLOUR: CHROME
- LENS ANGLE: 150 DEGREE
- PAL/NTSC: BOTH
- PARKING GUIDELINES: SWITCHABLE
- MIRROR IMAGE: SWITCHABLE
- MONITOR CONNECTION TYPE: RCA
- LUX RATING: 0.2 LUX
- OPERATING VOLTAGE: 12V
- IP RATING: IP68
- OPERATING TEMPERATURE: -20C to +70C
- INCLUSIONS:
- CAMERA IN TAILGATE HANDLE HOUSING
- 8M CAMERA EXTENSION CABLE
- INSTRUCTIONS
- NOTES:
- Parking guidelines are set to ON as default, to remove parking guidelines cut the GREEN loop on the camera cable at time of installation.
- Normal image is set to ON as default, to MIRROR the image cut the WHITE loop on the camera cable at time of installation.
