Radio / DAB Tuner

• Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
• Memory: Auto Memory
• Seek Mode: Local, DX, Pre-Set, Service
• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function

BLUETOOTH®

• Built-in BLUETOOTH® Module V4.2
• HFP (Hands-Free Profile) Compatible
• A2DP (Advanced Audio Distribution Profile) Compatible
• AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Phone Book Synchronisation
• Speed Dial: 4 Preset Memory (per phone)
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Redial Function
• Speech Volume Level Adjustment: (Outgoing and Incoming)
• 24 Menu Languages
• Microphone Included

Works with iPhone®

• Compatible with iPhones featuring a lightning connector
• Various search functions and Album Artwork Display
• Battery Charging

Connectivity

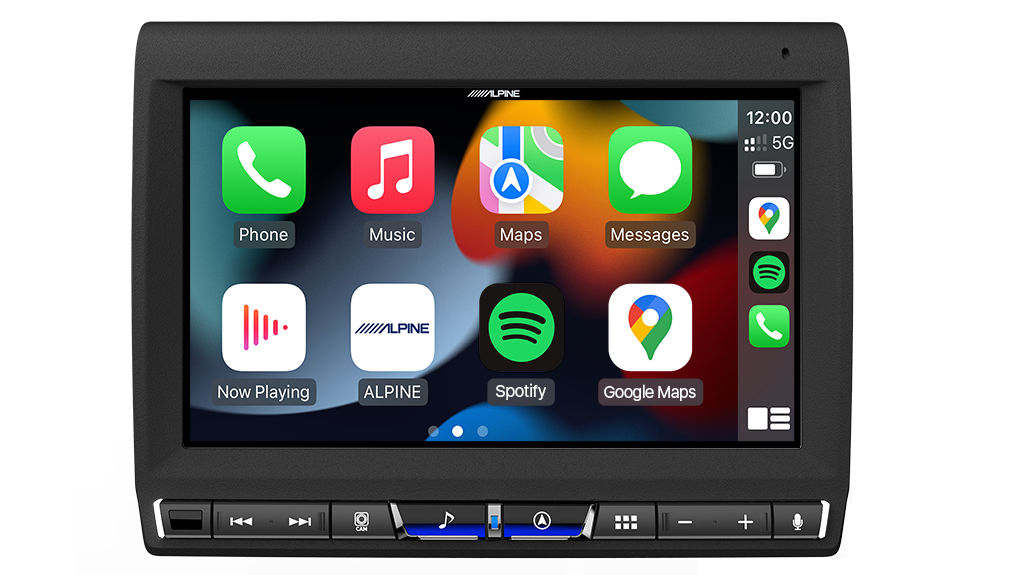

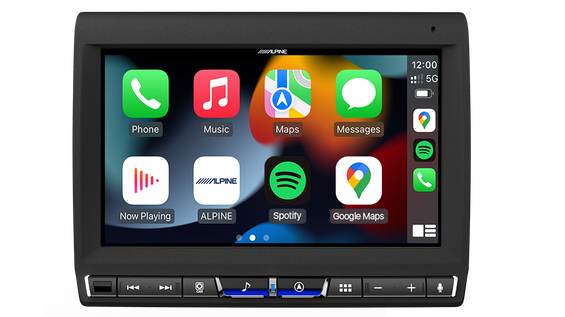

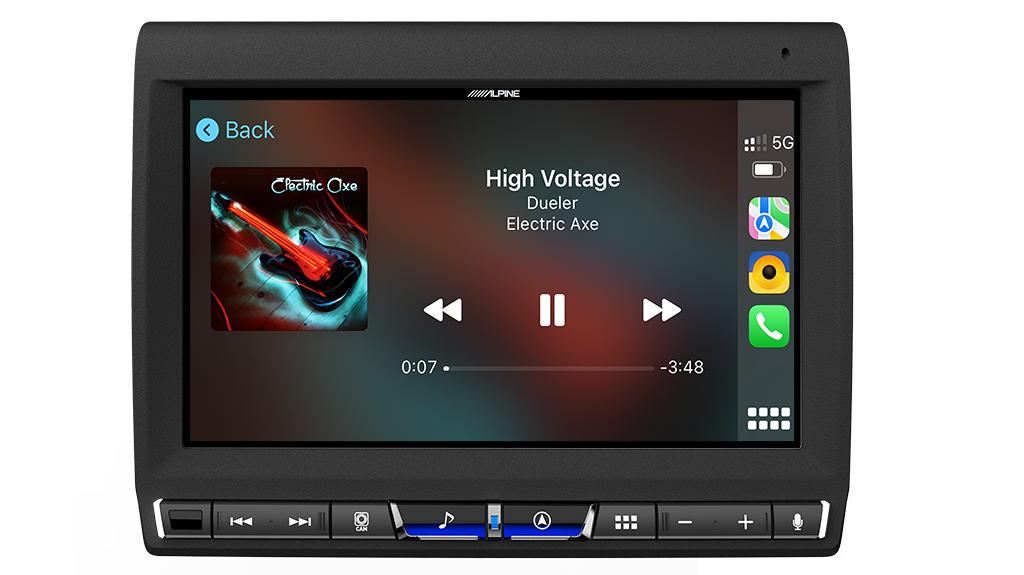

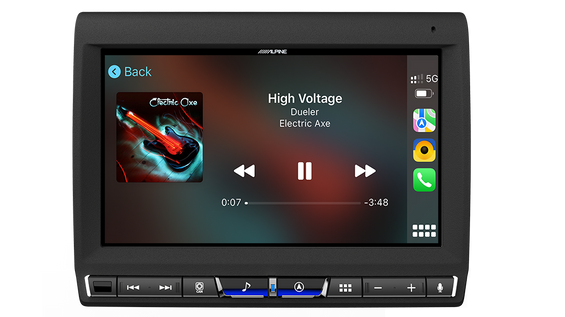

• Works with **Apple CarPlay wirelessly** (requires CarPlay enabled iPhone)
• Works with **Android Auto** (requires Android Auto enabled handset connected through USB)   **Not all handsets supported

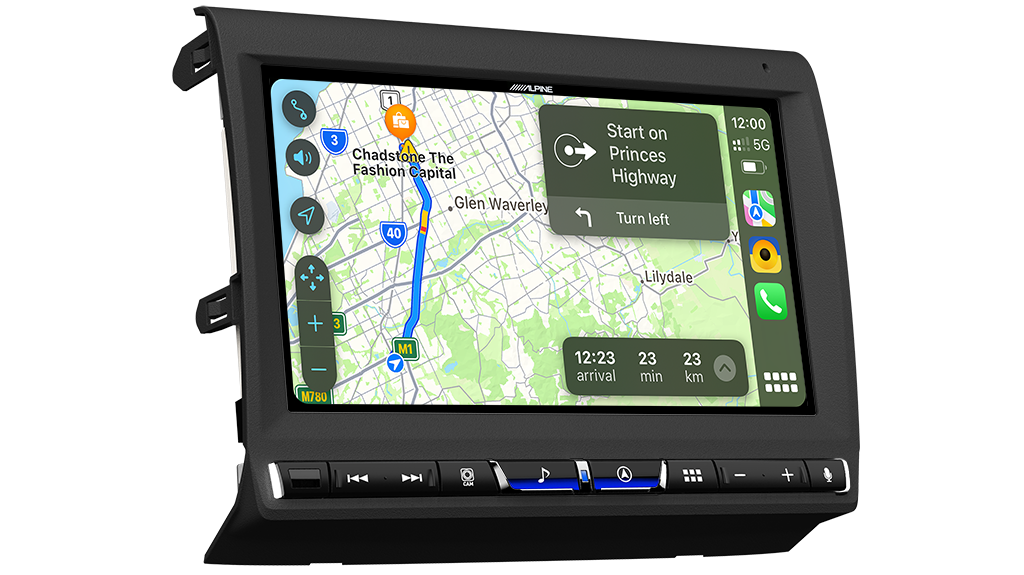

Navigation Function

• Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
• Includes GPS / Glonass enabled navigation antenna

USB Media Connection

• 2x USB cable included
• USB port 1: data port / USB port 2: charging port
• Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
• Video Playback: MP4, MOV, FLV, MKV compatible
• Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
• Various search functions included

Sound Tuning

• Bass Engine SQ and Bass Engine PRO sound tuning
• Subwoofer Level Adjustment
• 4 V PreOut
• 10 Equalizer PreSets
• 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
• 6-Channel Digital Time Correction
• 2-way Digital Crossover
• Independent Source Volume Level Setting

General

• 4x 50 Watts Class-D High Power Amplifier

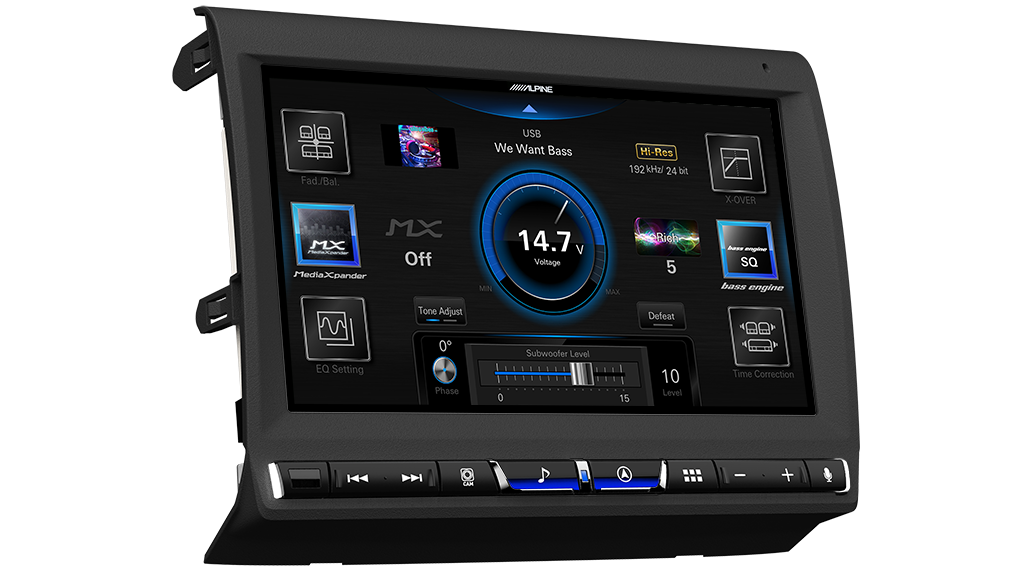

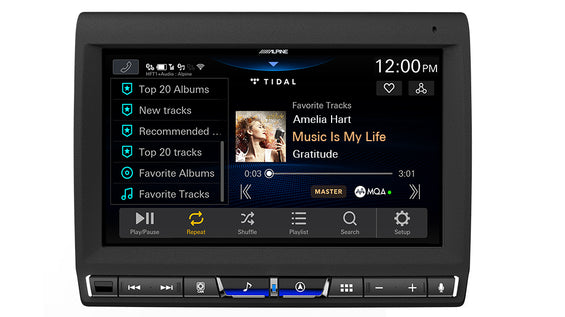

• 9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
• 3 PreOuts (4 V, Front / Rear / Subwoofer)
• 1 A/V AUX Input (3.5 mm micro jack)
• 1 HDMI input / 1 HDMI output
• 2 USB Ports (1x USB data port / 1x USB charging)
• Steering Wheel Remote Control Ready
• iDatalink Maestro Compatible
• Remote Control Ready
• 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
• Camera Distance Guides (adjustable)
• Live Contrast Adjustment
• Menu Language: 24 Languages
• Auto Dimmer
• Anti-theft security code
• Engine Start-Stop unaffected
• 3-Year Warranty when installed by Authorised Alpine Dealer

General

• Power Requirement – 14.4V DC (11-16V allowable)
• Operating Temperature – $-20^\circ\text{C to } +60^\circ\text{C}$
• Power Output – 50W x 4
• Maximum Current Consumption – 15A

Audio Output Level

• Preout (Front, Rear): $4\text{V}/10\text{k ohms (max.)}$
• Preout (Subwoofer): $4\text{V}/10\text{k ohms (max.)}$

Weight

• 2.3kg

Screen

• Screen Size: 9 inch Laminated WXGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

FM Tuner

• Tuning Range – $87.5 -105\text{MHz}$
• Mono Usable Sensitivity – $8.1\text{ dBf } (0.7\mu\text{V}/75\text{ ohms})$
• 50dB Quieting Sensitivity – $12\text{dBf } (1.1\mu\text{V}/75\text{ ohms})$
• Alternate Channel Selectivity – $80\text{dB}$
• Signal-to-Noise Ratio – $65\text{dB}$
• Stereo Seperation – $35\text{dB}$

AM Tuner

• Tuning Range – $531-1701\text{ kHz}$
• Usable Sensitivity – $25.1\mu\text{V}/28\text{ dBf}$

DAB Tuner

• Tuning Range – $174 – 240\text{ MHz}$
• Usable Sensitivity – $-100\text{dBm}$
• Signal-to-Noise Ratio – $90\text{dB}$

USB (1)

• USB Requirements: USB 2.0
• Max. Power Consumption: $2,400\text{ mA (CDP Support)}$
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32, exFAT
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: $5 – 40\text{k Hz} \pm 1\text{ dB}$ *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): $0.005\%$
• DynamicRange(at 1kHz): $95\text{ dB}$
• Signal-to-Noise Ratio: $95\text{ dB}$
• Channel Separation (at 1kHz): $90\text{ dB}$

USB (2)

• USB Class: Charge Only
• Max. Power Consumption: $1,500\text{ mA (CDP Support)}$

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V4.2 ($2,402 – 2,480\text{ MHz}$)
• Output Power: $+4\text{ dBm}/2.51\text{ mW Ave. (Power Class 2)}$
• HFP: HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

HDMI Section

• Input Format: 720p/480p/VGA
• Output Format: 720p/480p

GPS

• Reception Frequency $1575.42 \pm 1.023\text{ MHz}$
• Reception Sensitivity (Search) $-136\text{dB max.}$

Wi-Fi

Frequency Ranges

• IEEE 802.11 b/g/n ($2.4\text{ GHz}$)

Channels

• 1 -13 ch ($2.4\text{ GHz}$)

Security Protocols

• WPA3/WPA2-PSK (TKIP, AES)

Dimensions

• Din Size: 1DIN chassis and 9” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: $178 \text{ x } 50 \text{ x } 149.6\text{mm}$
• Display Size (W x H x D) mm: $268.9 \text{ x } 178 \text{ x } 54.7\text{mm}$

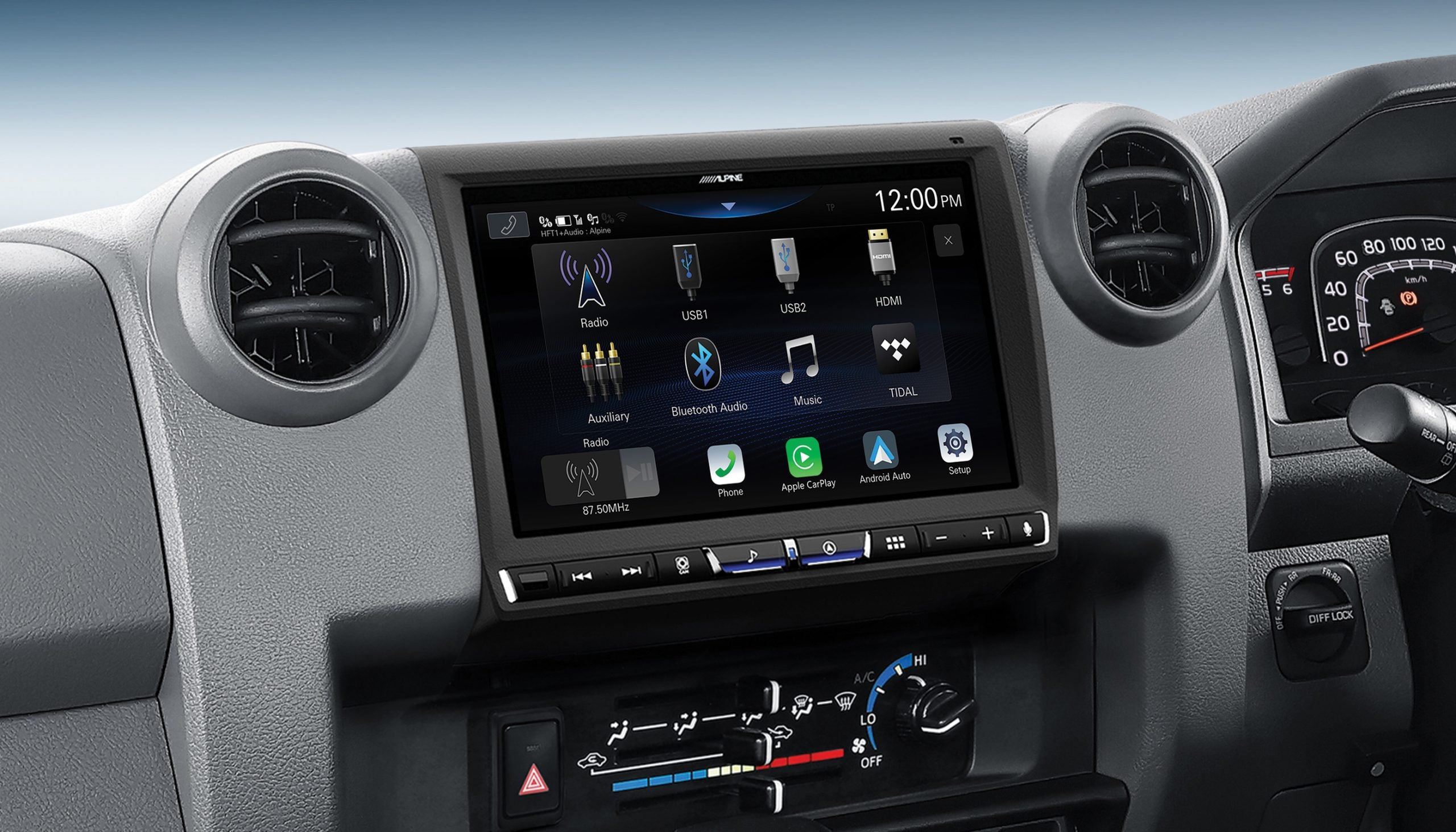

Compatible with **LandCruiser 70 Series 2024>**
