B-CON HI-RES BLUETOOTH RECEIVER
B-CON
HI-RES BLUETOOTH RECEIVER

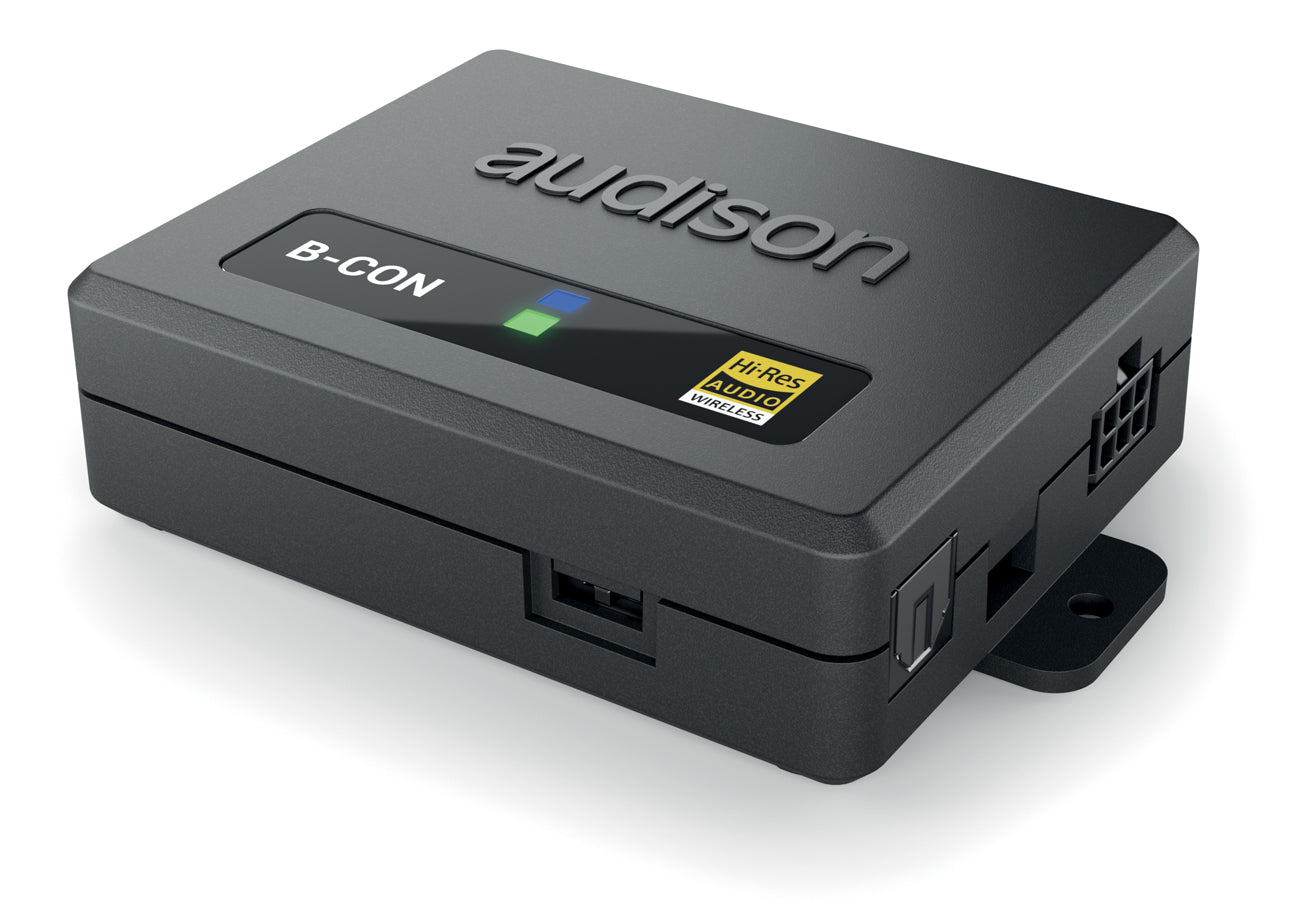

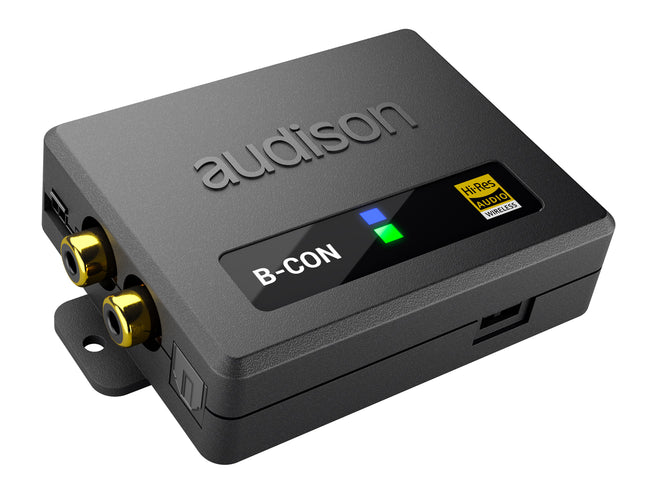

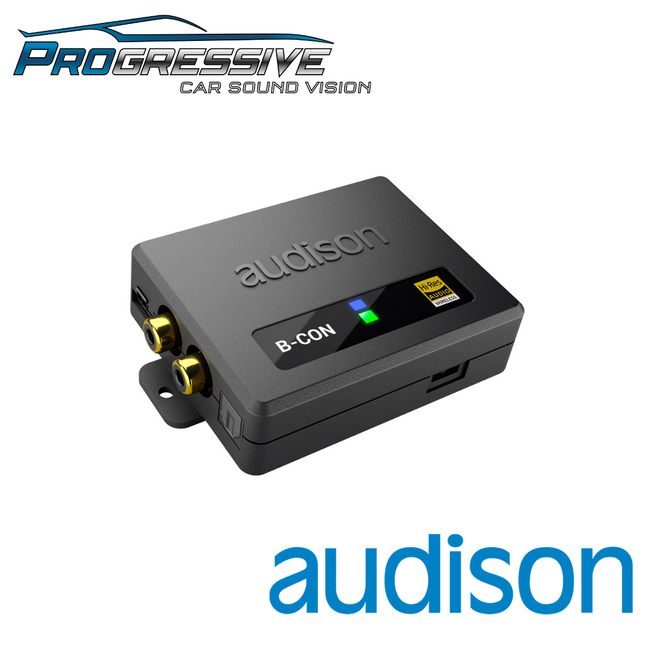

The Audison B-CON is the only Bluetooth 5.0® receiver designed for automotive use that has obtained the “Hi-Res audio wireless” certification from JAS (Japan Audio Society). B-CON is the ideal choice for streaming audio from a Hi-Res player (FIIO, Sony Walkman…) and from the latest generation Android/Apple mobile devices, fully supporting the car’s Hands-Free Bluetooth profile.
B-CON is compatible with all audio formats and reaches maximum performance with uncompressed BT streaming (max 96kHz / 24bit, only with Android LDAC devices), both playing local files and with Apps that provide Hi-Res streaming (Tidal, Qobuz…)
| POWER SUPPLY | |
| Voltage: | 6 ÷ 24 VDC |
| Idling current: | 70 mA @ 12 V |
| Remote IN voltage: | 3 ÷ 12 VDC (0.5 mA) |
| + 12 Remote IN voltage:/td> | 6 ÷ 12 VDC (70 mA) |
| USB Micro | 5 V (500 mA) |
| BLUETOOTH | |
| Type: | Bluetooth 5.0 + EDR |
| Codec: | LDAC, AAC, SBC |
| Profile: | Bluetooth A2DP 1.3, AVRCP 1.6 |
| INPUT | |
| Optical digital: | S/PDIF Optical (Max 24 bit/192 kHz) |
| INPUT/ OUTPUT MANAGEMENT | |
| Digital IN delay switch: | 1 sec. |
| Power Connector: | AUX SEL wire, MASTER ENABLE wire |
| ADC: | Serial RS232, to manage other Audison devices that support this standard |
| Mode Switch: | Absolute volume ON/OFF, upgrade mode |
| OUTPUT | |
| Optical digital: |
From Optical input: 24 bit/192 kHz From Streaming Bluetooth: 24 bit 96 kHz max. |
| Analog: |
Bandwith (MAX) 20 ÷ 48 kHz Output Level 2 VRMS Distortion – THD @1 kHz, 1 VRMS 0.003% S/N RATIO (A weighted) 100 dBA |
| SIZE | |
| W x H x D mm / In. | 90 x 60,4 x 23 / 3.54 x 2.38 x 0.91 |
| Weight | 0,054 / 0.119 |
Pure digital signal transfer with a resolution up to 24 bit / 96 kHz
According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), B-CON achieves the 24 bit / 96 kHz digital to analog conversion processing requirement.
