Aerpro AP1782H PRIMARY HARNESS TO SUIT HOLDEN

Ask about this product

Full Description
Reviews

PRIMARY HARNESS TO SUIT HOLDEN

Model: AP1782H

Brand: AERPRO

Category: HARNESSES

Type: AP SERIES

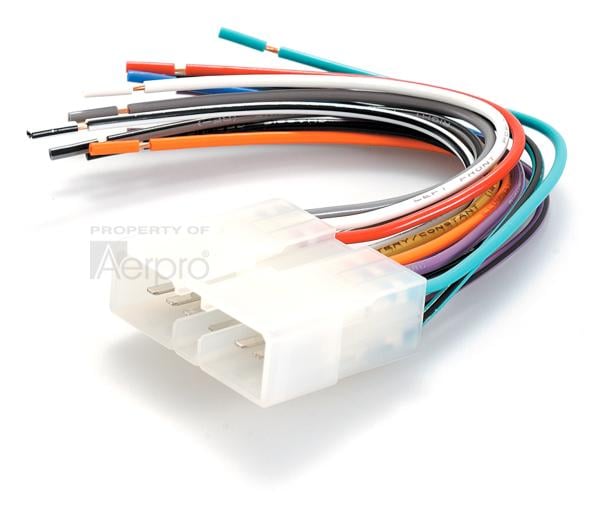

This Aerpro Harness plugs into your Holden Commodore VN, VP and Toyota Lexcen VN, VS factory headunit wiring system. Allowing for the installation of an aftermarket headunit without the need to remove the factory plug from the vehicle, AP1782H provides colour-coded bare end wires to match standard aftermarket radio wiring looms. Simply match the wire colours between the AP1782H and your aftermarket headunit wiring loom (supplied with the aftermarket headunit) and hard-wire them together. To hard-wire we recommend using a soldering iron and solder (sold separately) and ensure they are insulated correctly once connected.

Key Features:

Connects to vehicle's factory wiring, providing bare end wires
No need to unmount the factory stereo plug from the vehicle
Colour coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation
Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (solder) them together
Solder (or crimps) and heat shrink (or insulation tape) required for installation, not included

Specifications:

PLUG TYPE:
1 x 13 PIN
INSTALLATION TYPE: BARE WIRE, REQUIRES SOLDERING
NOTES: N/A
Alternatively, Aerpro APP060 can be used which converts the vehicle plug to ISO connector system
