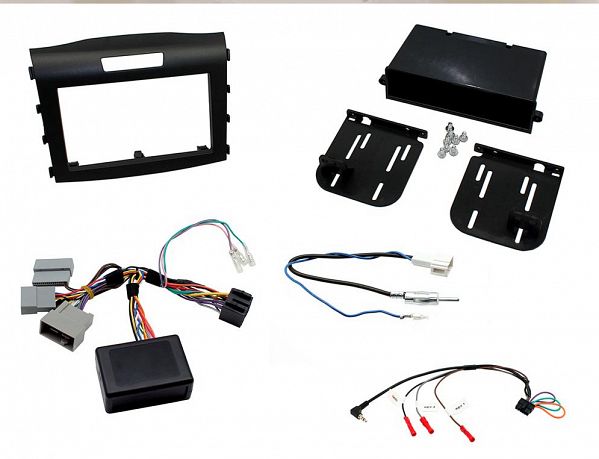

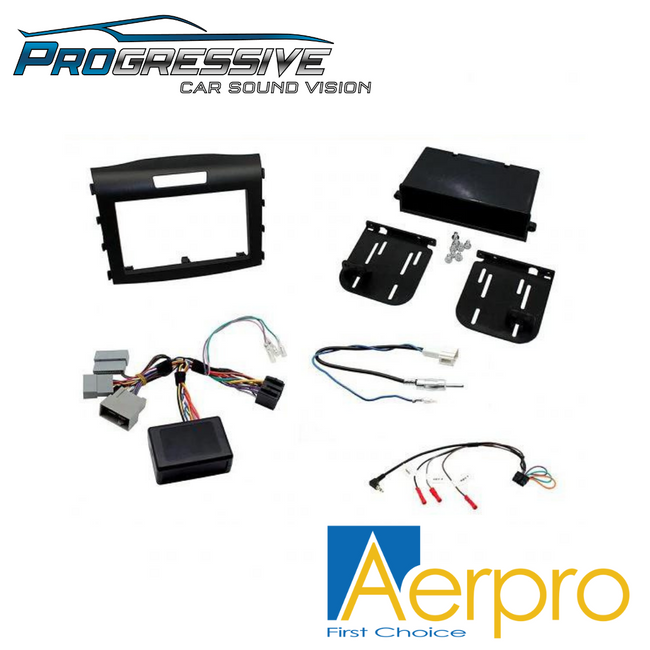

Complete a full aftermarket single or double din headunit installation in your Honda CRV RM (2012-2017), from start to finish with this Aerpro vehicle specific headunit installation kit, containing everything you need for a perfect upgrade in one box. This kit includes: charcoal double din facia kit, pocket (for single din installation), mounting brackets, steering wheel control interface, antenna adaptor and universal SWC patch lead. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. The included interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse and Illumination. The interface also enables adjustment to the vehicle time and date settings via the steering wheel controls (on selected models).

• Please Note:
  • Total Installation Kits can vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
  • Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
  • Headunit ISO harness not included in the kit. Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately).
  • Suits non-amplified vehicles without navigation.

• APPLICATION: SINGLE OR DOUBLE DIN
• COLOUR: CHARCOAL
• INTERNAL DIMENSIONS: 176mm (W) x 97mm (H)
• EXTERNAL DIMENSIONS: N/A
• INCLUSIONS:
  • DOUBLE DIN FACIA KIT
  • POCKET (FOR SINGLE DIN INSTALLATION)
  • MOUNTING BRACKETS
  • STEERING WHEEL CONTROL INTERFACE
  • ANTENNA ADAPTOR
  • UNIVERSAL SWC PATCH LEAD
• NOTES:
  • Headunit ISO harness not included in the kit. Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately).
  • Aftermarket headunit must be SWC compatible.
  • Steering wheel control interface will retain the use of the factory Bluetooth buttons when connected to a compatible aftermarket head unit.
  • This control harness requires a connection to the Honda Bluetooth module harness which is located under the gear shift towards the firewall.
  • Suits non-amplified vehicles without navigation.

• The kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
• Suitable for single or double din aftermarket headunit installation
• High quality charcoal finish on facia kit to suit the style of the dashboard in the vehicle
• Retains steering wheel control functionality in the vehicle including phone button
• CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
• Retains OEM vehicle settings
• Provides output feeds for park brake, speed pulse, reverse gear and illumination
• Fitted with a vehicle specific plug, no cutting of wires required
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)

• Honda CRV 2012-2017 RM
