Aerpro AMHJP1K 10" HEAD UNIT TO SUIT JEEP
10" HEAD UNIT TO SUIT JEEP
Model: AMHJP1K
Brand: AERPRO
Category: 9 AND 10 INCH COMPLETE KITS
Type: AERA10D KITS

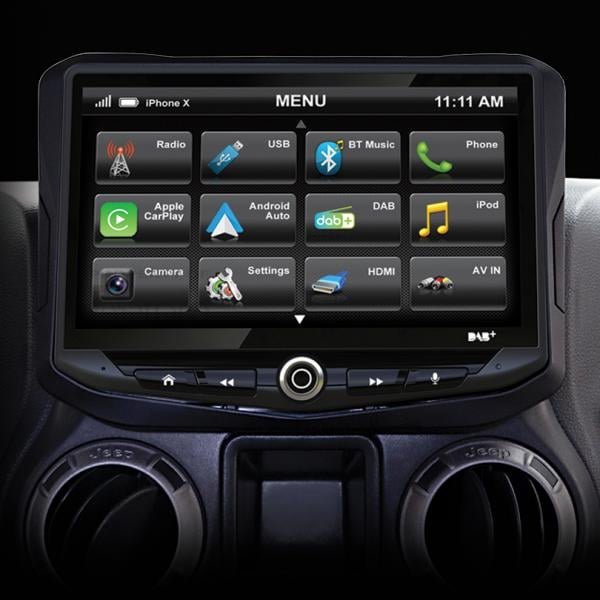

Looking to upgrade your Jeep Wrangler JK’s audio system? Look no further than the Aerpro AMHJP1K Head Unit Upgrade Kit! This comprehensive solution includes an Aerpro AERA10D 10" Multimedia Receiver with DAB+, Apple CarPlay & Android Auto and an Aerpro AMHJP1 Total Installation Kit to suit Jeep Wrangler JK (2011-2018).
Key Features:
- A complete solution with Aerpro AERA10D 10" Multimedia Receiver and AMHJP1 Total Installation Kit
- Seamless integration with the vehicle interior, maintaining a flush, factory look and feel
- Large 10" anti-glare touchscreen with 16.7 million colours for an immersive visual experience
- Latest in-car technology including Apple CarPlay, Android Auto, DAB+ Radio, Bluetooth, Dual USB Inputs and HDMI
- 4 Camera video inputs with wired triggers for maximum visibility
- Retains steering-wheel controls, factory amplifier, factory reverse camera (if equipped) and vehicle-to-radio connectivity
- View and adjust vehicle information through customised screens: complete climate controls, real-time performance gauges, tyre pressures, door status, engine status, other vehicle information
- Secure flush-fitted mounting system withstands bumps, dips, vibrations and shaking, even when driving off-road.
- Complete plug & play system simplifies installation
Specifications:
- Aerpro AERA10D 10" Multimedia Receiver Specifications:
- General:
- Operating Voltage: 9.0VDC to 18VDC
- Grounding system: Negative Ground
- Max current consumption: 10A fused
- Dimensions:
- Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
- Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)
- Display:
- Size: 10-inch Diagonal
- Aspect Ratio: 16:9
- Resolution: 1024 x 600
- Pixels: 1,843,200
- Active Area: 222.72 (W) x 125.28 (H) mm
- Operating Temperature (C) -20 to 70
- Audio:
- Peak Power Output: 50W x 4ch/4Ohm
- Load Impedance: 4OHM nominal / 2OHM allowable
- Continuous Power Output: 25W x 4ch/4OHM 20Hz to 20KHz,
- THD: 1 Per Cent THD at 14.4V
- Audio output level (max): 4.0V preout
- EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
- Gain: +/- 12dB (2dB/step)
- HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
- Subwoofer Preout:
- LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
- Gain: -14dB to 7dB (1dB/step)
- Phase: 0 or 180
- Speaker Level: +/- 9dB (1dB/step)
- Time Alignment: 0 to 133 step (inch/ms)
- USB:
- USB: 2.0
- Max Current Supply: 1.5A
- USB Class: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
- File System: FAT32, NTFS
- Bluetooth:
- Version: V4.2 dual
- Class: 4dBm Class2
- Frequency: 2.4GHz to 2.48GHz
- Tuner:
- FM Frequency Range: 87.9MHz to 107.9MHz
- AM Frequency Range: 530KHz to 1710KHz
- Camera(s) Video Inputs:
- Format: NTSC OR PAL video formats
- HDMI Input:
- Supported HDMI Resolutions: 640480p, 720480p, 1280720p, 19201080i, 1920*1080p
- Toslink (Optical):
- Output: 48khz Variable
- Background Image (User):
- File Format: JPG / PNG
- Resolution: 1024 x 600
- File Size: Not Limited
- Audio / Video Formats:
- Audio: MPEG-1 Audio Layer-3 (.mp3), FLAC (.flac), MPEG-2 Advanced Audio (.aac), MPEG-4 Audio (.m4a), Windows Audio (.wav), OGG Audio (.ogg)
- Video: QuickTime (.mov), MPEG-4 Video (.mp4), Microsoft AVI (.avi), MPG Video (.mpg), MPEG Video 1/2 (.mpeg), VOB DVD (.vob), Flash Video (.flv)
- Image: JPEG (.jpg), CompuServe GIF (.gif), PNG (.png), JPEG (.jpeg), Bitmap (.bmp)
- Aerpro AMHJP1 Total Installation Kit Specifications:
- Application: Suits Aerpro AERA10D Multimedia Receiver
- Vehicle Feature Retention:
- Steering Wheel Controls
- Factory Amplifier (see important information section)
- Factory Reverse Camera (if equipped)
- Vehicle-To-Radio Connectivity (vehicle speed, illumination, reverse, parking brake signals and turn signals)
- View and Adjust Vehicle Information Through Customised Screens:
- Complete Climate Controls
- Real-Time Performance Gauges
- Tyre Pressures
- Door Status
- Engine Status
- Other Vehicle Information
- Access to Over 70 Customisable Vehicle Settings (when equipped)
- Kit Inclusions:
- Vehicle Specific Facia Kit for AERA10D
- Vehicle Integration Module
- Complete Plug & Play Installation Harness
- Link Adapter
- Antenna Adaptor
- USB Retention Cables
- High-Definition Factory Camera Retention Module
- Important Information:
- Suitable for Aerpro AERA10D Multimedia Receiver only. Sold separately or can be purchased in a package Aerpro AMHJP1K.
- Compatible with factory amplified and non-amplified models. In premium amplified systems, only two input channels can be used from the aftermarket radio, therefore there will be no fading capability of the aftermarket stereo.
- Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This head unit is sold as a kit which includes:
- Aerpro AERA10D 10" Multimedia Receiver
- Aerpro AMHJP1 Total Installation Kit
- Compatible with factory amplified and non-amplified models. In premium amplified systems, only two input channels can be used from the aftermarket radio, therefore there will be no fading capability of the aftermarket stereo.
