$299.00
You Save: (%)

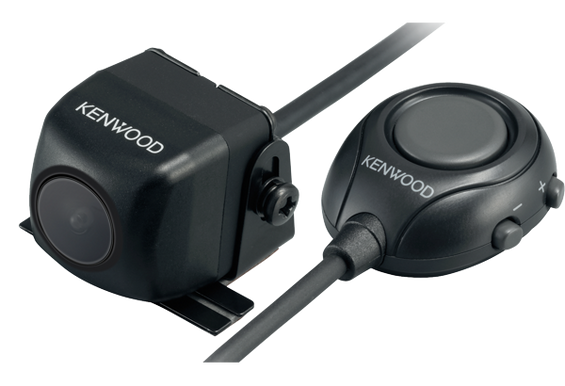

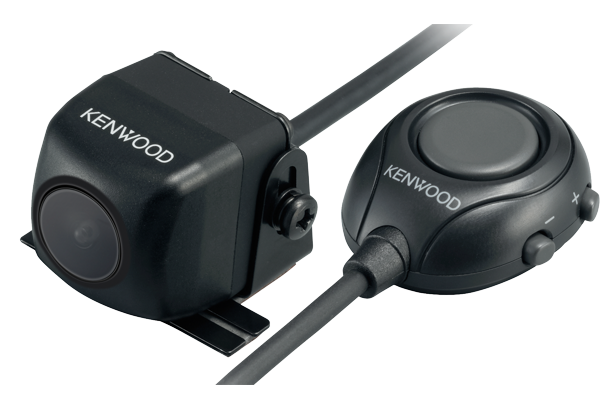

kenwood cmos-320 Universal Multi View Camera
The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles including super wide view, overhead view, PinP view, corner view and adding graphic guidelines to the camera image. The sensitive CMOS sensor in combination with the high-quality lens provide a good, sharp image, even at night or dark places like a parking garage. Easily switch between the many viewing options using the touch screen from a compatible KENWOOD AV-receiver.
Key Features
| Universal Multi View Camera |
| Night, Normal, Wide, Corner & Overhead View |
| Switch Unit Included |
| 1/3.6" Colour CMOS sensor |
| Waterproof unit with flexible mount base |
| NTSC Video Signal Out (RCA) |
| Can be installed on the front or rear side of the car |
Camera Unit
| Camera Type | 1/3.6" colour CMOS sensor |
| Colour type | Yes |
| Effective number of pixels roughly | 330000 |
| High sensitivity Pixels | Yes |
| Output video | Wide-angle Mirror Image (for rearview)/Wide-Angle normal Image (for Front View |
| Waterproof chassis | Yes |
| Mounting system | Fexible mount base |
| Installation positions | Rear |
| Camera ID setting | Yes |
| Rear view switching | Reverse line |
| Front view switching | by remote or Kenwood unit |

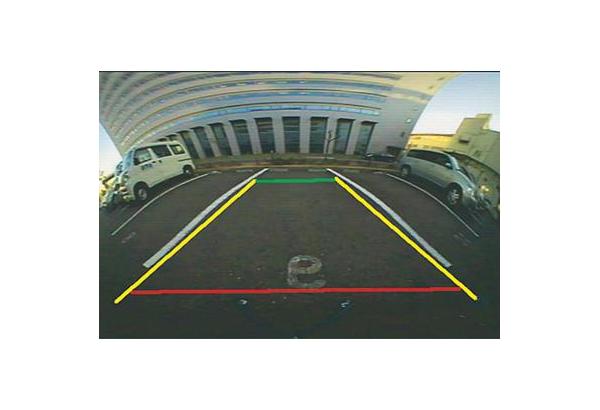

| Guideline view | Yes |
| Guideline Adjustments | Size, Horizontal Direction, Red Line Position |
| Image Adjustments | Centering, Right-and-Left, Up-And-Down Angle |
| High voltage protection | Yes |
| Wide angle lens | Yes |
| Focal length | f: 1.05mm, F value 2 |
| Field of View (Horizontal) | +/- 195° |
| Field of View (Vertical) | +/- 145° |
| Illumination range | approx. 0.9 to 100000 lux |
| Iris System | Electronic |
| White balance | Automatically |
| Scanning System | Interlace |
| Synchronizing System | Internal |
| Video output level | 1Vpp, 75? |
| Video signal format | NTSC (Mirror view) |
| Connection cable (DC+video) | 9 m |
General Specifications
| Operating voltage | 14.5V (9 ~ 16V Allowable) |
| Maximum Current Consumption | 0.1A |
| Dimensions Switch Unit (WxHxD) | 27.5 x 32.8 x 12 mm |
| Weight Switch Unit | 10 gr. |
| Dimensions (WxHxD) | 23.4 x 23.4 x 26.1mm |
| Weight | 23 gr. |
| Operation Temperature Range | -30°C ~ 70°C |
| Storage Temperature Range | -40°C ~ 80°C |
