Specifications:

• Application: Double DIN
• Colour: Black
• Internal Dimensions: 200 mm W x 100 mm H (wings reduce width to 172mm)
• External Dimensions:

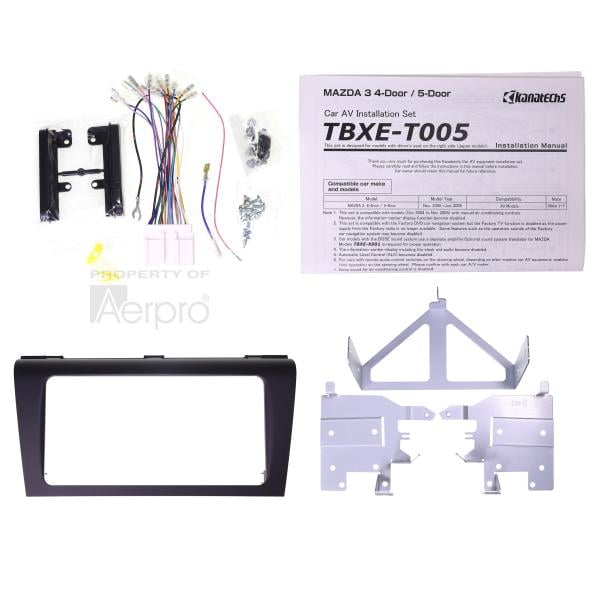

• Inclusions: Facia Kit, Metal Brackets, Speaker and power harness, Detailed Instructions.
• Notes:
• "FP9805S" includes a silver panel (fluorescent under black light).
• "FP9805GB" includes a piano black panel.
• This model is compatible with the Factory DVD car navigation system although the TV function is disabled.However, the TV function on the aftermarket car navigation system can operate.
• The information-center-display including the clock and audio become disabled.
• Automatic Level Control (ALC) becomes disabled.
• For models without the Factory navigation system, there is no speed pulse signal from the vehicle side. For installation of a car navigation system, it is necessary to connect the speed pulse signal cord included in this set.
• This set is compatible with model (Oct.2004-Nov.2005) with manual air conditioning controls. However, the information-center-display function becomes disabled.
• Car models with the BOSE sound system use a separate amplifier. Optional sound system translator for MAZDA Models FP9811 is required for proper operation.
• As cars with remote audio control switches on the steering wheel are disabled, installation of optional parts APUNISW5 enables the operation of an audio remote control switch on the steering wheel.
• Beep sound for air conditioning control is disabled.
