$649.99
You Save: (%)

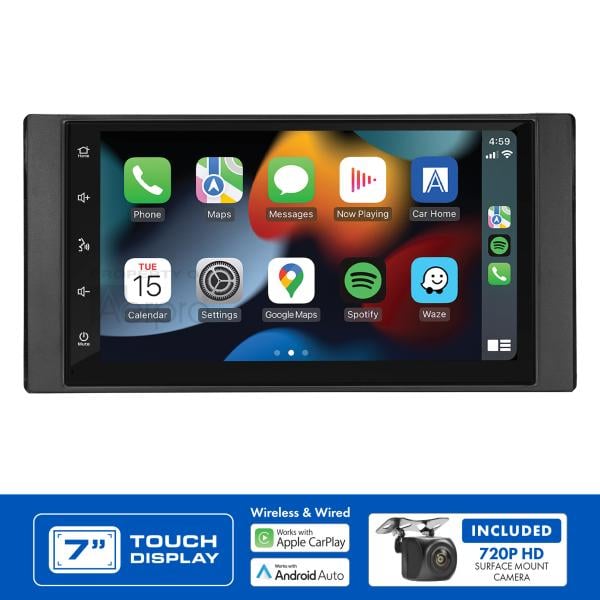

Aerpro AM8580K1 7" HEAD UNIT SUITS SUBARU
7" HEAD UNIT SUITS SUBARU
Model: AM8580K1
Brand: AERPRO
Category: 7 INCH COMPLETE KITS
Type: AERPRO COMPLETE KITS
The Aerpro AM8580K1 package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed specifically for various Subaru vehicles, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.
Key Features:
- Includes all the parts required to complete the installation
- Retains important vehicle features including steering wheel controls when applicable
- 7" Capacitive touch display
- Works with Apple CarPlay (wireless and wired)
- Supports Android Auto (wireless and wired)
- Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Dual rear USB inputs (1.5A + 1.5A max charging)
- Dual camera input with 1 Aerpro 720P AHD Camera included
- Rear A/V input (RCA)
- 4V / 6CH RCA Preout
- MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
- 8 Band graphic EQ
- 8 EQ Presets
- Subwoofer level control
- 45W x 4 Max built-in amplifier
- Shallow 2-DIN chassis mounting design
- External microphone included
Specifications:
- Aerpro AM7X Specifications:
- LCD Display:
- Size: 7"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 45W
- Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
- Device Ports
- USB (Rear) Playback Formats: CPAA & Media
- USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input: Yes
- 4.2CH Audio Out Cable: Yes
- External Microphone: Included
- Vehicle Specific Installation Kit Specifications:
- Inclusions:
- Facia Kit (Black)
- Steering Wheel Control Interface
- Antenna Adapter
- Universal Patch Lead
- AHD Camera Specifications:
- Inclusions:
- 720P AHD Surface Mount Camera (wired)
- 6m of Video Cable (RCA) with in-line Reverse Trigger
- Mount Type: Surface Mount
- Camera Type: Front, Rear Or Reverse
- Image Sensor: Sony 225, 1/3 CMOS AHD
- Lens Angle 150 Degree
- Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This head unit is sold as a kit which includes:
- Aerpro AM7X 7" Multimedia Receiver with Wireless CarPlay and Android Auto
- Vehicle Specific Installation Kit
- 720P AHD Surface Mount Camera
