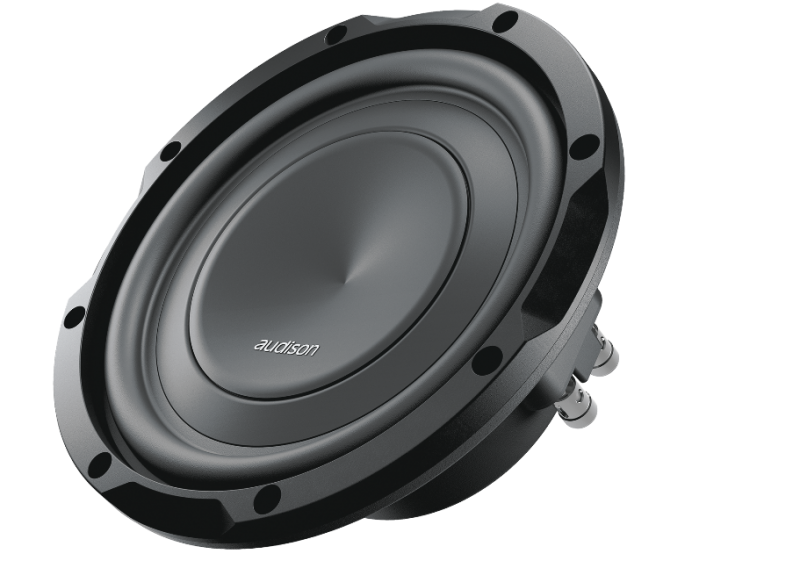

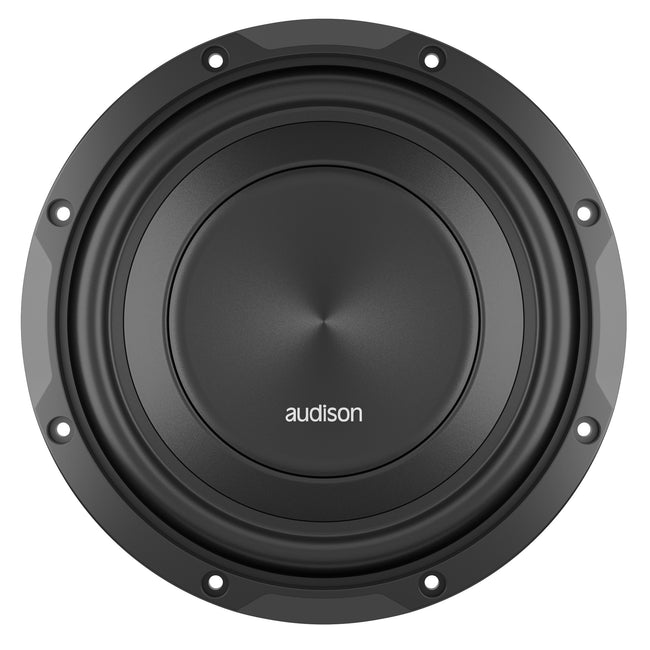

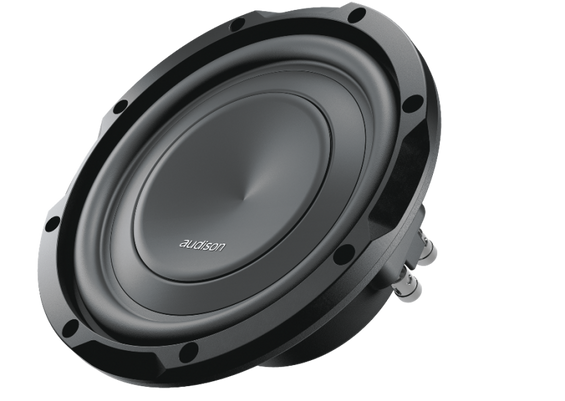

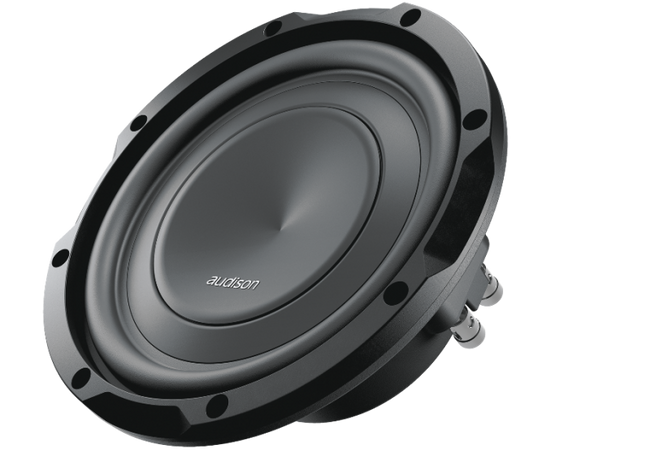

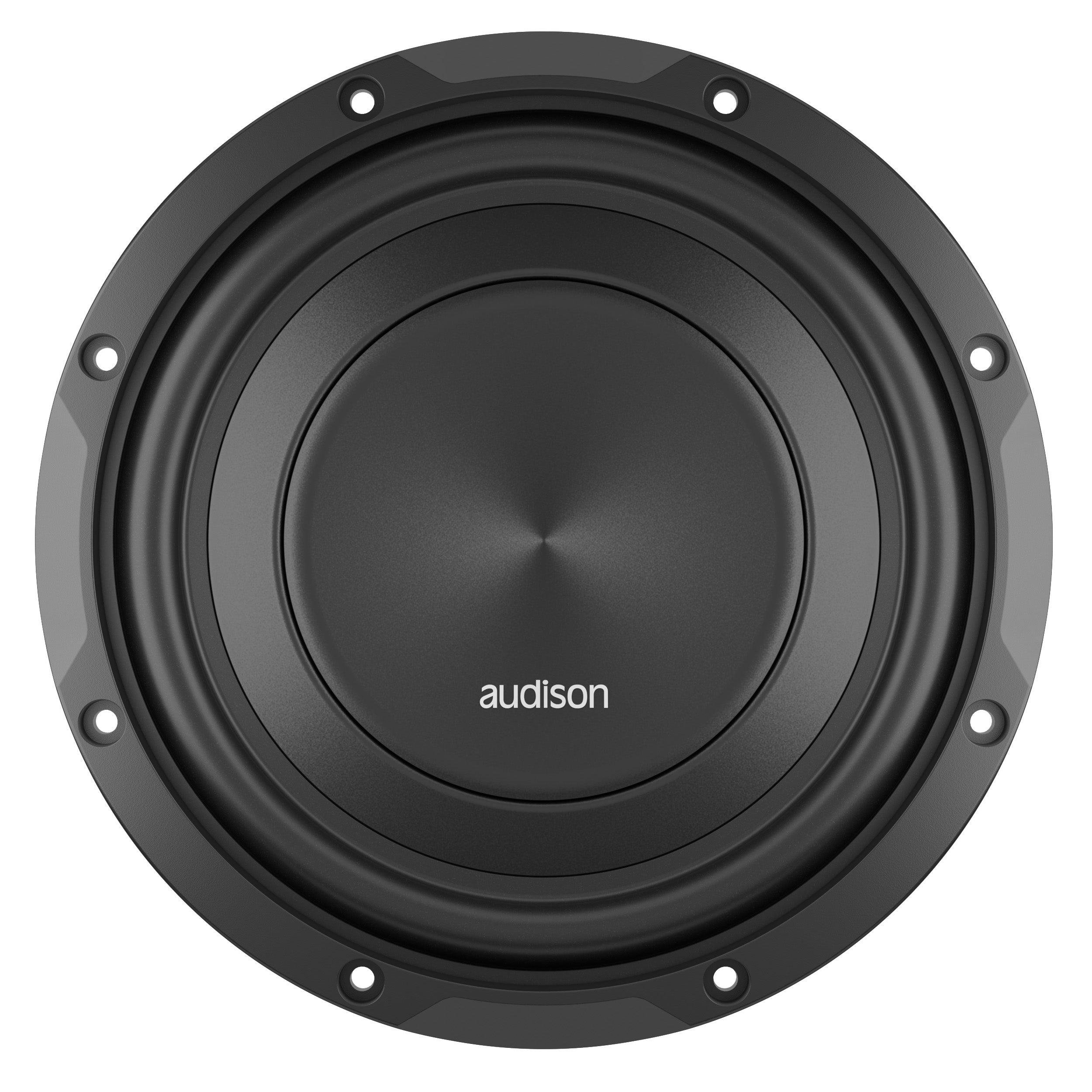

audison APS 8 D

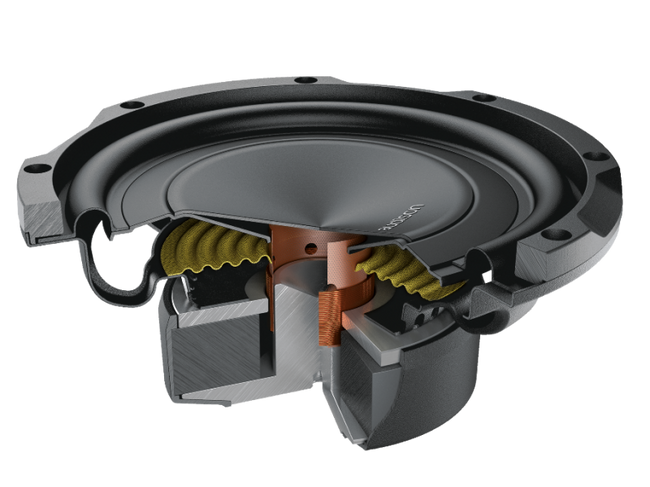

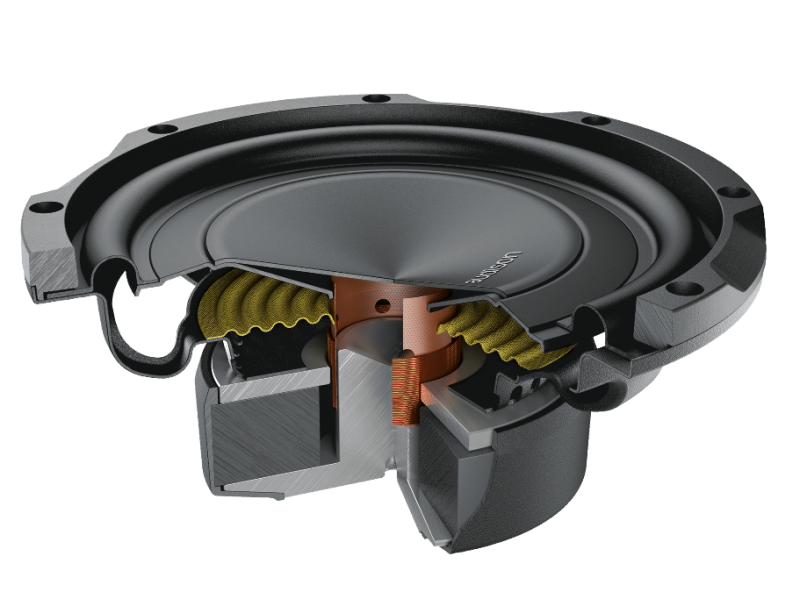

The APS 8 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes from 7.5 lt. to 8.5 lt. It features push connectors for ease of wiring and configurations and has been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the rocking-mode phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.
Technical Specs
| Nominal diameter | 200 mm (8 in) |
| Impedance | 4+4 Ohm |
| Power Handling - Peak | 500 W |
| Power Handling - Continuous | 250 W |
| Sensitivity | 83.5 dB |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 120 x 50 x 28 mm (in.) |
| Cone Material | WATER REPELLENT PRESSED PAPER |
| Xmax | 8.8 mm (0.35 in) |
| Xmech | 16.5 mm (0.65 in) |
| Voice Coil Winding Height | 40 mm (1.57 in) |
| Driver Displacement Volume | 0.67 l (0.024 ft) |
Electric-acoustic Specs
| Re | 2.1 Ohm |
| Fs | 30 Hz |
| Le | 1.1 mH |
| Vas | 25.5 l (0.901 ft) |
| Mms | 85 g (2.998 oz) |
| Cms | 0.3 mm/N |
| BL | 8.8 T•m |
| Qts | 0.44 |
| Qes | 0,46 |
| Qms | 5.1 |
General
| Weight | 3.1 kg |
Features
- Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure
starting from 7.5 lt. - Special designed cone-dustcap-basket geometry which guarantees a
long linear excursion capability (almost 9 mm, one-way) while keeping

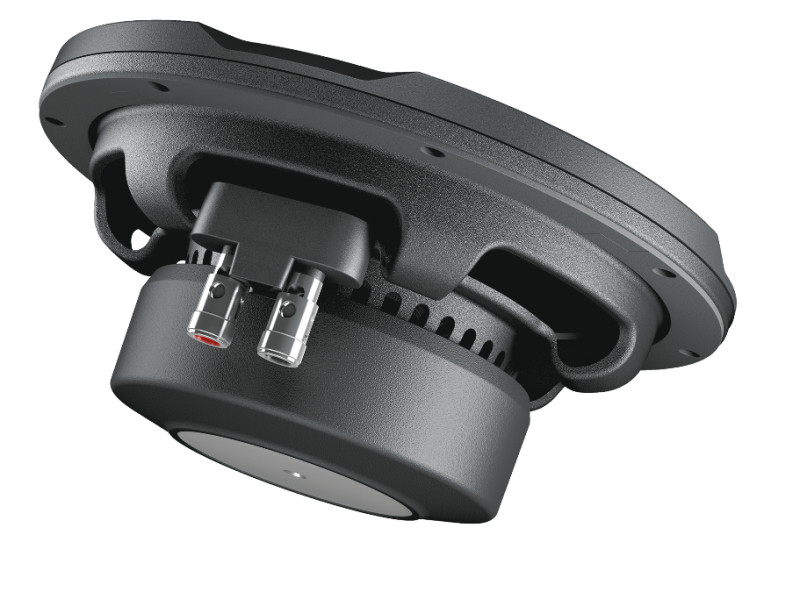

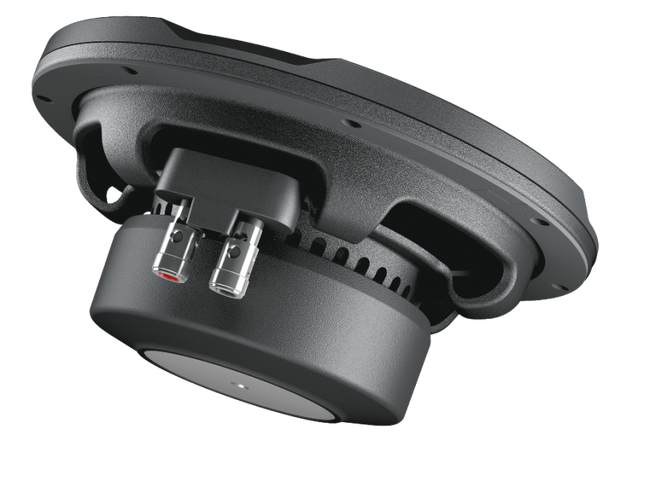

the mounting depth to minimum. - Air vents on the basket underneath the spider, eliminating the need for
the central pole vent allowing mounting close to rear wall of enclosure. - Massive motor assembly optimized with FEM (Finite Element Modeling)
for perfect control under high power, high excursion conditions. - Water-repellent pressed paper 8 in. cone featuring a profile developed
with simulation and optimized with the Klippel Scan Vibrometer. - Dual voice coil design specifically developed to be combined with either

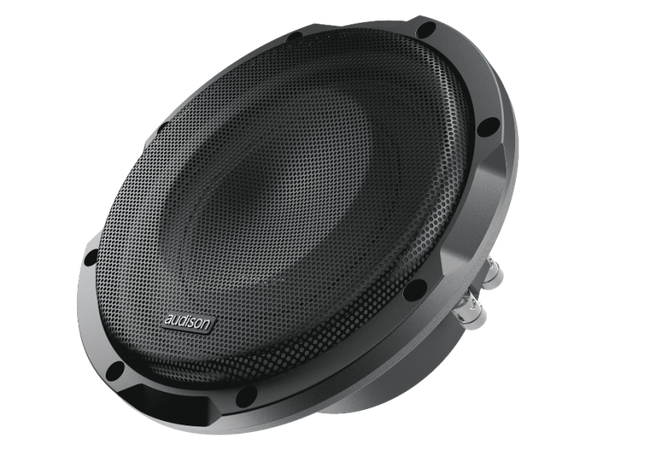

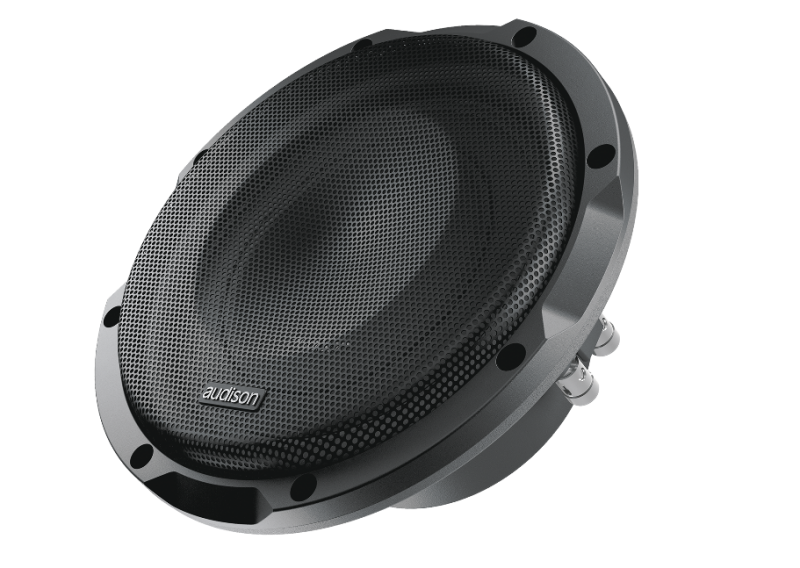

AF C8.14 bit (2 CH + 2 CH bridged), AF M5.11 bit (Sub CH) or AF C4.11 bit/AF C4D/AF M4D (2 CH bridged) amplifiers. - Steel mesh grille and plastic gasket included.
