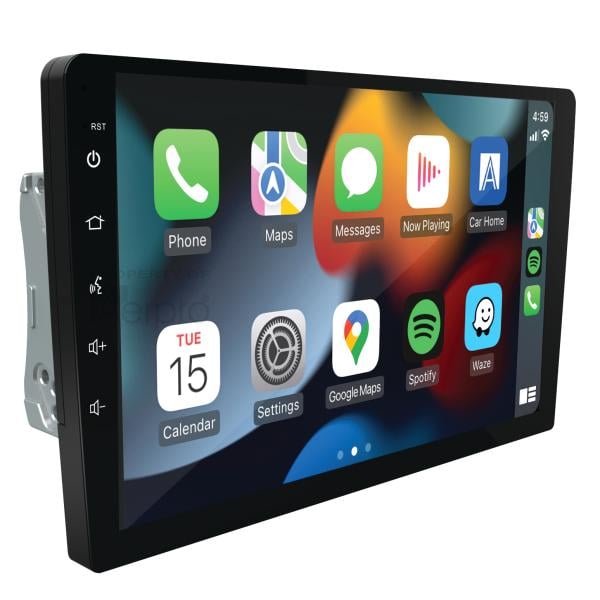

Aerpro AM10X 10" MULTIMEDIA RECEIVER
10" MULTIMEDIA RECEIVER
Model: AM10X
Brand: AERPRO
Category: 9 AND 10 INCH COMPLETE KITS
Type: AM9 AM10 KITS
The Aerpro AM10X Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 10" capacitive touch screen display. The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal clear communications. It has a rear USB input which works with Apple CarPlay and Android Auto, as well as a built in AM/FM tuner with RDS and presets. Sound quality is superb with a built in 50W x 4 amplifier, 8 band graphic EQ and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/5CH RCA preouts (front + rear + subwoofer). The unit is OEM steering wheel remote ready and has a dual reverse camera input (2 x 720P AHD compatible).
Key Features:
- Large 10" capacitive touchscreen LCD (1024 x 600)
- Works with Apple CarPlay (wireless or wired)
- Supports Android Auto (wireless or wired)
- Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Dual Reverse camera input (AHD 720P compatible)
- Rear A/V input
- 4V / 5CH RCA Preout
- MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
- Rear USB input (1.5A max charging)
- 8 Band graphic EQ
- 8 EQ Presets
- Time alignment capabilities
- Subwoofer level control
- 50W x 4 Max built-in amplifier
- Shallow 2-DIN chassis mounting design
- Steering wheel control ready
- External microphone included
Specifications:
- LCD Display:
- Size: 10"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 50W
- Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
- Device Ports
- USB (Rear) Playback Formats: CPAA & Media
- USB (Rear) Power - Voltage/Amps: 5V/1.5A
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Composite Video Outputs: Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: Built-in & External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO/3.5mm jack
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input (with 12V power supply to the camera): Yes
- 4.1CH Audio Out Cable: Yes
- External Microphone: Included
- Important Information:
- This head unit is not sold separately, it is sold as part of a complete vehicle specific installation kit.
- This head unit is a short chassis double din unit with fixed face design. It is compatible for use with Aerpro 10" Facia Kits only. It is not designed to fit into a standard double din facia kit.
