$699.99
You Save: (%)
Aerpro AM9037K2 7" HEAD UNIT SUITS
7" HEAD UNIT SUITS
Model: AM9037K2
Brand: AERPRO
Category: 7 INCH COMPLETE KITS
Type: AERPRO COMPLETE KITS

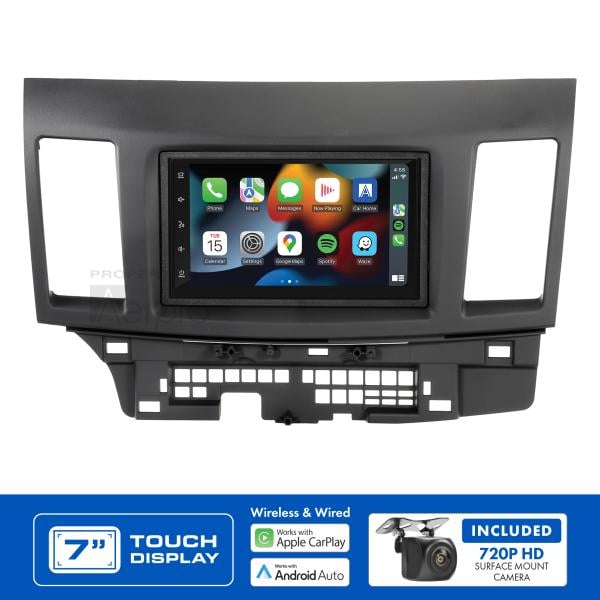

The Aerpro AM9037K2 package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed specifically for Mitsubishi Lancer 2010-2013 vehicles, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.
Key Features:
- Includes all the parts required to complete the installation
- Retains important vehicle features including steering wheel controls when applicable
- 7" Capacitive touch display
- Works with Apple CarPlay (wireless and wired)
- Supports Android Auto (wireless and wired)
- Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Dual rear USB inputs (1.5A + 1.5A max charging)
- Dual camera input with 1 Aerpro 720P AHD Camera included
- Rear A/V input (RCA)
- 4V / 6CH RCA Preout
- MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
- 8 Band graphic EQ
- 8 EQ Presets
- Subwoofer level control
- 45W x 4 Max built-in amplifier
- Shallow 2-DIN chassis mounting design
- External microphone included
Specifications:
- Aerpro AM7X Specifications:
- LCD Display:
- Size: 7"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 45W
- Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
- Device Ports
- USB (Rear) Playback Formats: CPAA & Media
- USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input: Yes
- 4.2CH Audio Out Cable: Yes
- External Microphone: Included
- Vehicle Specific Installation Kit Specifications:
- Inclusions:
- Facia Kit (Black)
- Steering Wheel Control Interface
- Universal Patch Lead
- AHD Camera Specifications:
- Inclusions:
- 720P AHD Surface Mount Camera (wired)
- 6m of Video Cable (RCA) with in-line Reverse Trigger
- Mount Type: Surface Mount
- Camera Type: Front, Rear Or Reverse
- Image Sensor: Sony 225, 1/3 CMOS AHD
- Lens Angle 150 Degree
- Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This head unit is sold as a kit which includes:
- Aerpro AM7X 7" Multimedia Receiver with Wireless CarPlay and Android Auto
- Vehicle Specific Installation Kit
- 720P AHD Surface Mount Camera
