$1,049.99
You Save: (%)

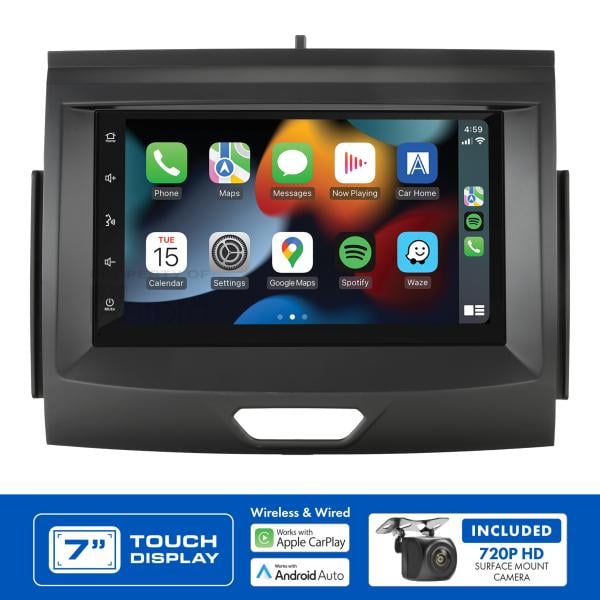

Aerpro AM9129CT 7" HEAD UNIT TO SUIT
7" HEAD UNIT TO SUIT
Model: AM9129CT
Brand: AERPRO
Category: 7 INCH COMPLETE KITS
Type: AERPRO COMPLETE KITS
The Aerpro AM9129CT package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed specifically for Ford Everest UA (2015-2017) and Ranger PX2-PX3 (2015-2021) vehicles with factory 8" SYNC3 display, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.
Key Features:
- Includes all the parts required to complete the installation
- Retains important vehicle features including:
- Steering wheel controls
- Re-creates the climate control system, uses the previous dashboard control (volume knob) to control all via the new head unit display
- Retains the factory camera feed or allows the addition of a new aftermarket camera
- Re-creates the original Park Pilot system, with ability to control view alongside the factory camera
- Retains and re-creates the original Park Assist system
- Allows adjustment of vehicle settings including: ambient lighting, time/date, enhanced park pilot, climate control overlap timeout, climate control screen timeout, camera delay, reverse priority and time format
- 7" Capacitive touch display
- Works with Apple CarPlay (wireless and wired)
- Supports Android Auto (wireless and wired)
- Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Dual rear USB inputs (1.5A + 1.5A max charging)
- Dual camera input with 1 Aerpro 720P AHD Camera included
- Rear A/V input (RCA)
- 4V / 6CH RCA Preout
- MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
- 8 Band graphic EQ
- 8 EQ Presets
- Subwoofer level control
- 45W x 4 Max built-in amplifier
- Shallow 2-DIN chassis mounting design
- External microphone included
Specifications:
- Aerpro AM7X Specifications:
- LCD Display:
- Size: 7"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 45W
- Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
- Device Ports
- USB (Rear) Playback Formats: CPAA & Media
- USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input: Yes
- 4.2CH Audio Out Cable: Yes
- External Microphone: Included
- Vehicle Specific Installation Kit Specifications:
- Inclusions:
- Facia Kit (Black)
- Infodaptor Interface
- Vehicle Specific Harness
- USB/AUX/HDMI Input Panel Mount
- Antenna Adaptor
- Universal Patch Lead
- AHD Camera Specifications:
- Inclusions:
- 720P AHD Surface Mount Camera (wired)
- 6m of Video Cable (RCA) with in-line Reverse Trigger
- Mount Type: Surface Mount
- Camera Type: Front, Rear Or Reverse
- Image Sensor: Sony 225, 1/3 CMOS AHD
- Lens Angle 150 Degree
- Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Not suitable for base model 8" screens seen on series XL, XL Hi-Rider 2020-
- To use the included USB/AUX/HDMI input panel mount the aftermarket head unit requires USB, AUX (RCA) and HDMI rear inputs. The panel is designed as an exact replica for select Ford vehicles. For vehicles which don’t feature a passenger airbag button aperture, this will need to be placed within the glovebox.
- Use of eject button gives access to the configuration menu.
- Rear climate control in Ford Everest will not be retained.
- This head unit is sold as a kit which includes:
- Aerpro AM7X 7" Multimedia Receiver with Wireless Carplay and Android Auto
- Vehicle Specific Installation Kit
- 720P AHD Surface Mount Camera
