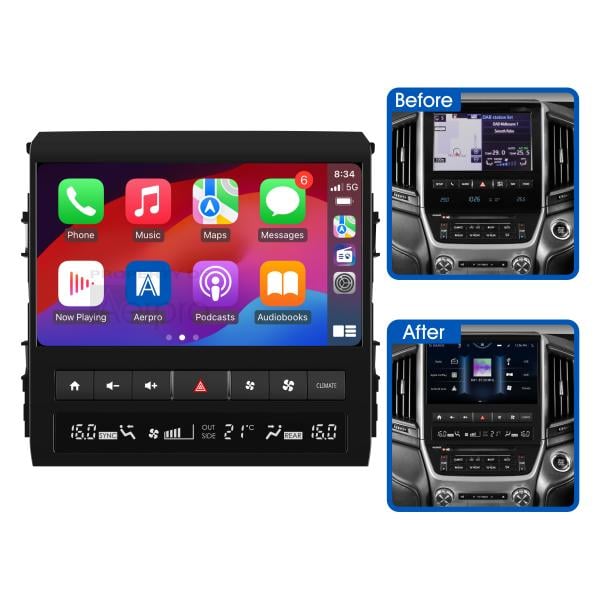

Aerpro AMUTO53 HEADUNIT REPLACEMENT TO SUIT

Ask about this product

Full Description
Reviews

HEADUNIT REPLACEMENT TO SUIT

Model: AMUTO53

Brand: AERPRO

Category: 9 AND 10 INCH COMPLETE KITS

Type: AMU KITS

First to Market Solution – Powered with Linux

Key Features:

Australian Designed & Engineered: Developed to suit Toyota Landcruiser 200 Series VX & Sahara (2016-2021), ensuring a precise fit, premium finish and unmatched reliability.
Linux OS with Quad-Core CPU: Powered by the stable and efficient Linux operating system, featuring a robust quad-core processor and 1GB DDR memory for smooth performance.
Wireless Apple CarPlay & Android Auto Compatibility: Enjoy seamless smartphone integration with both wireless and wired connections, allowing effortless access to apps, navigation and media on the go.
10.1" HD IPS Capacitive Touchscreen: A stunning 10.1-inch high-definition display with IPS technology delivers vivid visuals and responsive touch for an immersive in-car experience.
Factory Features Retention: Maintains essential vehicle functions such as the 360 Camera System (if equipped), parking sensors TPMS via MFD and climate control for a flawless factory integration.
Built-in Bluetooth: Experience hands-free calling and wireless audio streaming for safer, more enjoyable driving.
DAB+ Digital Radio: Tune in to crystal-clear digital radio stations with 18 presets, bringing you a broader selection of channels in superior sound quality.
Dual HD Camera Inputs: Supports two 720P high-definition cameras, enhancing your visibility and safety with clearer imaging.
USB Port Retention: Keeps existing USB ports active, ensuring ongoing connectivity for charging and data transfer.
16-Band Graphic EQ: Fine-tune your audio with 10 EQ presets and advanced adjustment options for a custom listening experience.
Time Alignment: Perfectly synchronises sound output from all speakers, optimising audio clarity and spatial balance.
Multiple Media Format Support: Plays a variety of file formats including MP3, AAC, FLAC, Xvid and MP4, providing flexibility for your media collection.

Specifications:

Radio Specifications
Display LCD
Size: 10.1"
Resolution: 1280*720
Touch Screen
Capacitive: G+G
System Specification
OS system: Linux 5.10
CPU: 8368-P(Quad cores with A55)
DDR: 1GB
FLASH: 512MB
Power Output
Power Stage Type: Class D
4ohm @ 14.4 V, 1 kHz, THD 10 Percent: 4Ch x 20W
4ohm Max: 4Ch x 45W
Maximum Power: 4Ch x 50W
RCA Preamp Outputs
2-Pair RCA Preamp Output: Yes
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage: 4V
Audio Control
Equaliser Bands: 16 Bands (50/80/125/200/320/500/800/1k/1.2k/2k/3k/5k/7k/9k/12k/15k)
Loudness: Yes
Time Alignment: Yes
Low Pass Filter: Yes
High Pass Filter: Yes
10 EQ Presets: Default, Classic, Rock, Jazz, Electric, Pop, Soft, Custom 1, Custom 2, Custom 3
Media Playback
Audio Formats: MP3, AAC, FLAC
Video Formats: MP4, Xvid
Device Ports
USB1 Playback formats: CPAA & Media
USB2 Playback formats: Media
USB Power: 5V/1.5A
USB Max capability: 64GB
Aux Inputs / Outputs
Composite Video Output: Yes
Back-up Camera Input: Yes (Support AHD 720p)
GNSS
GPS Built-in: Yes
Frequency: 1.515G
Gyro Sensor: Yes
WiFi
WiFi Built-in: Yes (For CP/AA only)
Frequency: 5Ghz
Bluetooth
Bluetooth Built-in (HPF, A2DP, AVRCP): Yes
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile: HFP 1.6
Bluetooth version: V5.0
FM/AM Tuners
AM/FM (Number of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (Step Frequency 100KHz)
AM Frequency Span (KHz): 529-1629KHz (Step Frequency 9KHz)
RDS: Yes
FM antenna connector impedance: 75ohm
FM tuner connector: Standard DIN, with cable adaptor to factory harness
DAB Tuners
DAB Tuner Band: Band III (174-240MHz)
DAB Tuner Text: Service Label (SL), Dynamic Label (DL), Dynamic Label Plus (DL+)
DAB Tuner Slideshow: MOT Slideshow
DAB Tuner Memory + Station list: Yes
DAB Tuner Phantom Power: 12V max 200mA
DAB Tuner connector: SMB, with cable adaptor to factory harness
Colour Customisation
LED buttons/keys: White
Selectable Backgrounds: 6
Aerpro AMUTO53 Vehicle Intergration:
Application: Suits Toyota Landcruiser 200 Series Sahara
Vehicle Feature Retention:
Factory 360 Camera if equipped
Front and Rear parking sensors
Steering Wheel Controls
Factory Amplifier and Setting controls
Factory Microphone
Antenna retntions (AM/FM, DAB+, GPS)
USB Port
Trip Computer and Vehicle settings
Vehicle-To-Radio Connectivity (vehicle speed, illumination, reverse, parking brake signals and turn signals)
Vehicle Feature Additions:
Climate Control status display
Inclinometer (Tilt and Roll)
View and Adjust Vehicle Information Through Customised Screens:
Sound Settings
Door Lock Settings
Climate Settings
Lights Settings
Park Assist Settings
Other Vehicle Information
Kit Inclusions:
Vehicle Specific Facia Kit to suit Toyota Landcruiser 200 Series Sahara 2016-2021
10" Headunit
Complete Plug & Play Installation Harness
720p AHD Surface Mount Camera
LVDS Cable
360 Camera Retention Adaptor Harness
MOST Retention Harness
GPS Retention Harness
DAB Retention Harness
USB Retention Harness
Important Information - The following factory features will be lost upon installation:
VFD Clock - Clock relocated to aftermarket head unit home screen
Climate Shortcut Button- Factory button was unable to be retained so a climate button on the aftermarket head unit was added.
DVD Player and Associated Buttons/Dials - Has no function and will not be able to play DVDs or adjust volume with the dials.
Audio Control from Head Unit to Rear Entertainment Screens - Rear entertainment system and its functionality cannot be retained
Auxiliary jack next to USB port - Unable to be retained
Audio source control from MFD - Cannot change audio source of headunit using the MFD
Vehicle maintenance setting (previously accessed from factory screen)
720p AHD Camera Specifications:
Inclusions:
720P AHD Surface Mount Camera (wired)
6m of Video Cable (RCA) with in-line Reverse Trigger
Mount Type: Surface Mount
Camera Type: Front, Rear Or Reverse (Loops design)
Image Sensor: Sony 225, 1/3 CMOS AHD
Lens Angle 150 Degree
Important Information:
Vehicles without factory 360 camera will not be able to retain their factory reverse camera system. Instead, we have included a 720p AHD Surface Mount camera to utilise as a replacement. This camera needs a cable to be run through the vehicle as it cannot intergrate with factory harnessing.
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
