PRIMA APBX10AS2 10" ACTIVE SUBWOOFER
Short description

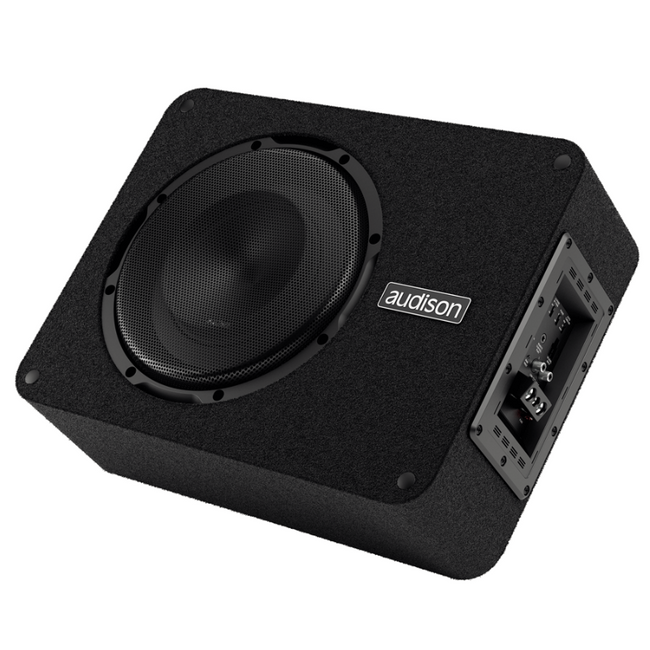

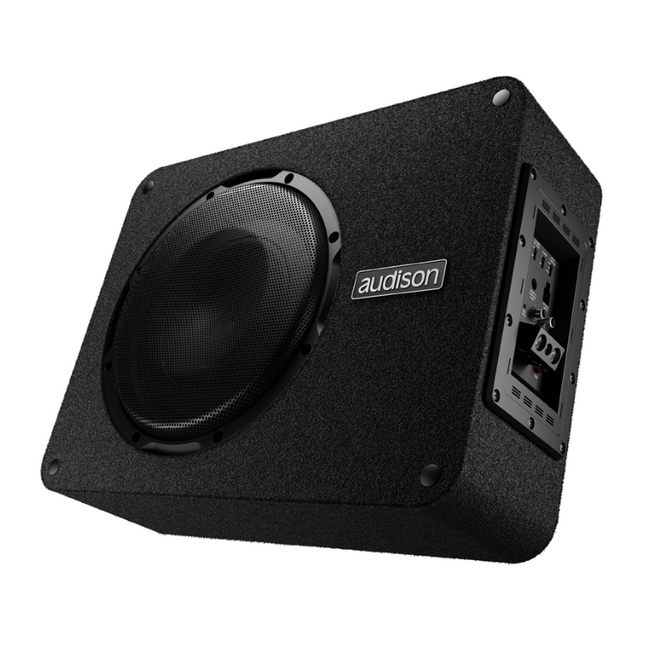

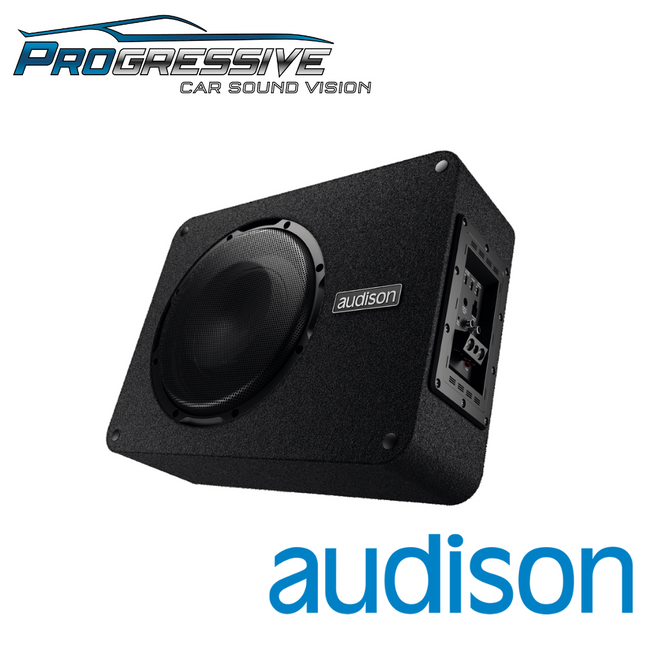

The Prima APBX 10 AS2 active subwoofer, with 10-inch driver,features a dedicated high performance amplification module which enhances all the passive box technologies, such as the 2S² (2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size.
THIS PRODUCT IS NOT AVAILABLE ONLINE.
PURCHASE AT STORE ONLY.
Prima Subwoofer Manual | APBX 10 AS2 Tech Sheet | Prima subwoofer Press Info
The Prima APBX 10 AS2 active subwoofer, with 10-inch driver,features a dedicated high performance amplification module which enhances all the passive box technologies, such as the 2S² (2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size.
The amplification module, with power outputs of 400W RMS is developed with he-li technology (high efficiency / low impedance), which thanks to the absence of the DC-DC voltage booster reaches the impressive 90% efficiency level, very close to the theoretical limit of the D-Class. New input stage DBT (Dynamic Bass Tracking) technology allows 100% use of the he-li (High Efficiency Low Impedance) amplifier power and to enjoy a tense and dynamic bass even at very high listening volumes.
Eliminating the voltage booster was made possible thanks to the development of the new dual coil drivers, which inherit all the technological background of the Prima subwoofers, but differ for the ultra low impedance (0.16 ohms for APBX 10 AS).
This feature ensures a perfect synergy with the he-li (High Efficiency Low Impedance) technology, maximizing the combination of amplifier, speakers and sealed box, to obtain low, powerful and crisp frequencies.

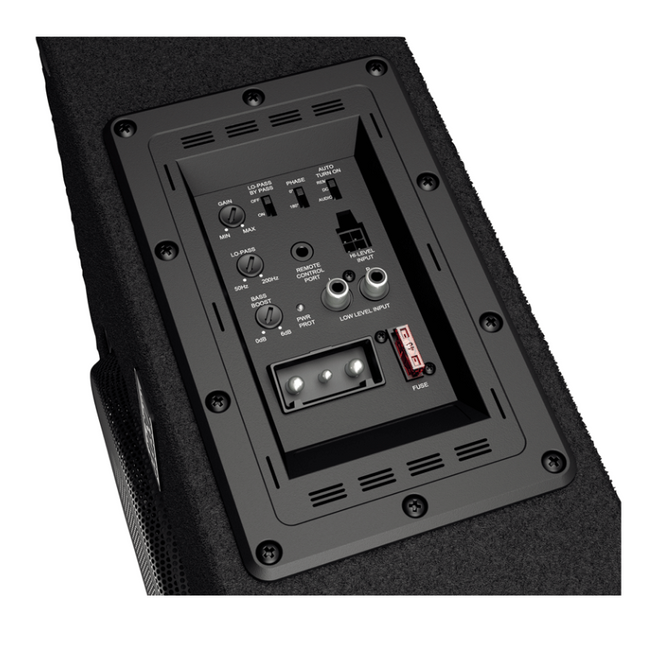

The controls section is complete and provides an optimal regulation of the low frequency emission in the car cabin. The Butterworth low pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be bypassed, when used with an AP bit processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response in the lower side of the spectrum.
The high-level speaker-in input on multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after market sources. The subwoofer automatic turn on/off function ART (Automatic Remote Turn-On) can be configured to be controlled by the source’s remote signal, by the voltage variation on the high-level input or by the audio signal on both inputs. Phase control (0 – 180 °) completes the equipment.
The SSP (Sub Smart Plug) terminal block is provided with a single Plug&Play connector to be able to disconnect the box easily and safely.
Accessories:
HRC AP remote control provided
Provides the ability to adjust the output level directly from the driver’s seat.
Technical Data:
| Comp | ACTIVE SUB BOX |
| Subwoofer size mm (in.) | 250 (10) |
| Subwoofer Voice coil Ø mm (in.) | 60 (2.36) |
| Output power (RMS) | 400 W Continuous Power 800 W Peak Power |
| Impedance Ω | 0,16 |
| Sub box size mm (in.) | 460 (18.11) x 158 (6.22) x 338 (13.31) |
| Magnet | High density flux ferrite |
| Cone | Water-repellent pressed paper |
| Weight of one component kg (lb) | 9,4 (29.72) |
Features:
He-Li technology
High efficiency / Low impedance amplifier without switching power supply, for a performance next to ideal.
2S² (2 Sides / 2 Sounds) design
Provides the ability to select between Down-Firing positioning to increase the low frequency extension and Up-Firing install to obtain more punch and definition.
SSP (Sub Smart Plug) terminal block
Provided with a Plug&Play connector to be able to disconnect the box easily and safely.
Dynamic Bass Tracking
DBT monitors the input signal in real time by detecting in advance
the peaks which, if not processed, will bring the amplifier /
subwoofer system into uncontrolled distortion, when it is pushed
to maximum power.
