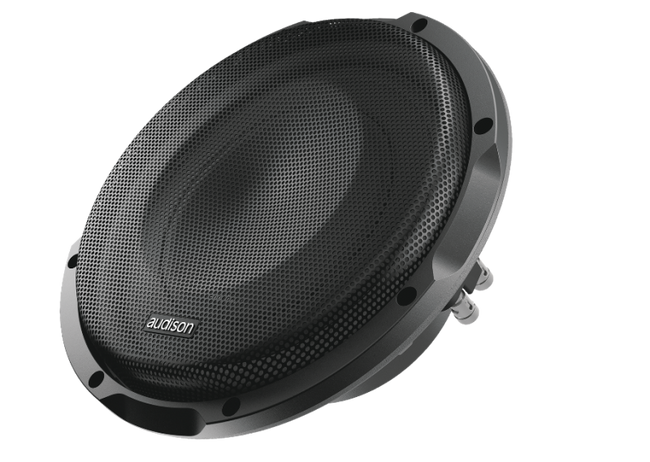

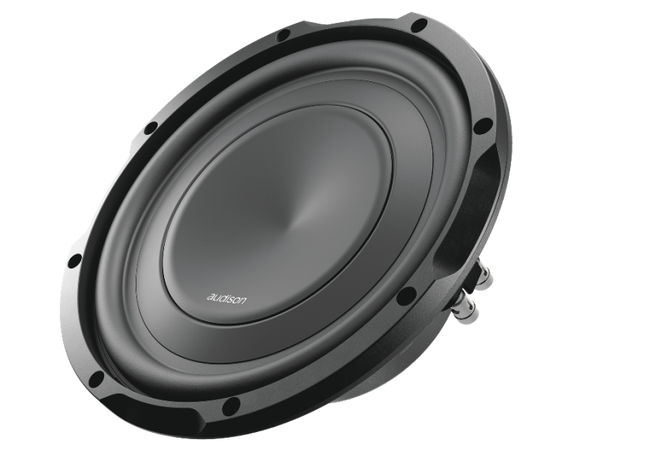

audison APS 10 S4S
$344.99
You Save: (%)
This product was viewed 38 times within last hour
Unfortunately, left 0 in stock
Prima compact subwoofer family expands with the introduction of the new 25 cm (10 in.) APS 10 S4S, optimized for enclosures with a reduced volume starting from 10 liters. The configuration of the single 4 ohm voice coil makes it ideal to be driven by the new AP F8.9 bit amplifier with built-in DSP that delivers an outstanding 260 W RMS with two channels bridged. Also interesting is the possibility to create custom enclosures with two APS 10 S4S driven by the AF M1D amplifier using the 540 W RMS delivered on the 2 ohm load resulting from the drivers connection in parallel.
Technical Specs
| Nominal diameter | 250 mm (10 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 800 W |
| Power Handling - Continuous | 400 W |
| Sensitivity | 83.5 dB |
| Voice Coil Ø | 60 mm |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 140 x 70 x 30 mm (in.) |
| Cone Material | WATER REPELLENT PRESSED PAPER |
| Xmax | 12.6 mm (0.5 in) |
| Xmech | 18 mm (0.71 in) |
| Driver Displacement Volume | 1.12 l (0.04 ft) |
Electric-acoustic Specs
| Re | 3.7 Ohm |
| Fs | 28.5 Hz |
| Le | 1.9 mH |
| Vas | 39.62 l (1.399 ft) |
| Mms | 160 g (5.644 oz) |
| Cms | 0.2 mm/N |
| BL | 12.9 T•m |
| Qts | 0.68 |
| Qes | 0,75 |
| Qms | 6.9 |
General
| Weight | 5.24 kg |
Features
- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
- Special-designed cone-dust cap-basket geometry guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to a minimum.
- Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to the rear wall of the enclosure.
- Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
- Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
- Single voice coil design specifically developed to be combined with either AF M8.4 bit (2 CH bridged 260 W RMS) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
- Steel mesh grille and plastic gasket included. –
