AUDISON THESIS TH 3.0 II VOCE 3" MID RANGE SPEAKERS

Availability: Call to Order

Collection: Top Brands

Sku: TH3.0II

Brand: AUDISON


THIS PRODUCT IS NOT AVAILABLE ONLINE.
PURCHASE AT STORE ONLY.

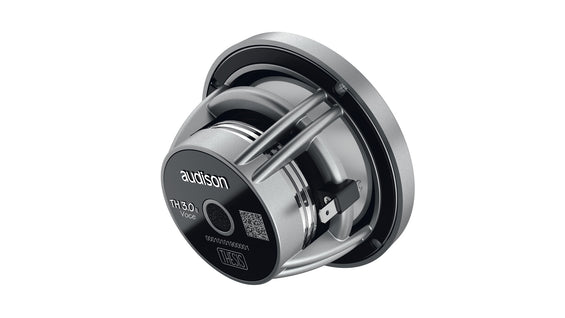

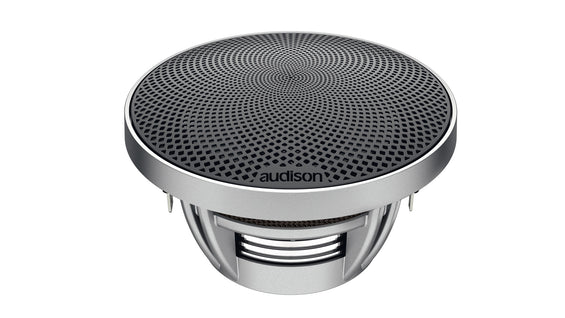

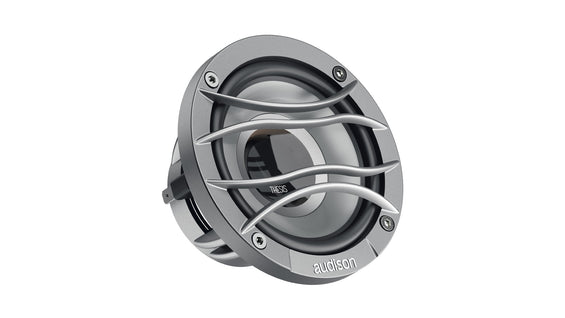

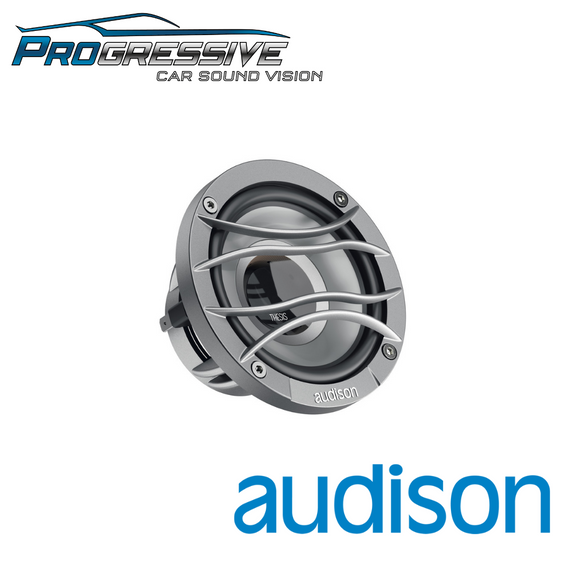

TH 3.0 II Voce

MIDRANGE

The human auditory system processes the range of medium frequencies with maximum sensitivity and selectivity because it makes the voice intelligible from the rest of the audio spectrum.

The R&D team started from this simple principle to design from scratch the TH 3.0 II VOCE, dedicated to this fundamental range of frequencies, with the simple as well as ambitious target of extreme linearity, in order not to add or hide anything of the signal reproduced, enhancing in this way every nuance.

ULTRA HIGH CONTROL

The extremely powerful custom N38 “H-grade” Neodymium magnet ensures unmatched control of the mobile group and the aluminium ring nullifies the intermodulation distortion otherwise generated at peak excursions.

EXTREME LINEARITY

Through finite element simulation (FEM) the Audison R&D team has optimized the break-up point between cone/surround, obtaining an ultra-linear frequency response in the mid-range.

The generous 30 mm CCAR (Copper Clad Aluminum Ribbon) voice coil wound with flat wire gives the TH 3.0 II Voce an extraordinary excursion and minimizes at the same time the cone non-linearity.

TPX® CONE

TH 3 II Voce membrane is made of TPX®, a transparent material that ensures frequency response linearity leaving the speaker interior in full view.



Show Less

Docs

Thesis speakers manual

TH 3.0 II Voce Tech Sheet

Thesis Press Info

Technical Data

Technical Data



Comp

Midrange

Size

70 mm (3″)

Power Handling

55 W Continuous Power
110 W Peak Power

Impedance

4 Ω

Frequency Response

110 ÷ 5700 Hz

Sensitivity

85,6 dB/Spl

Magnet

N38 “H-grade” Neodymium

Cone

TPX®
