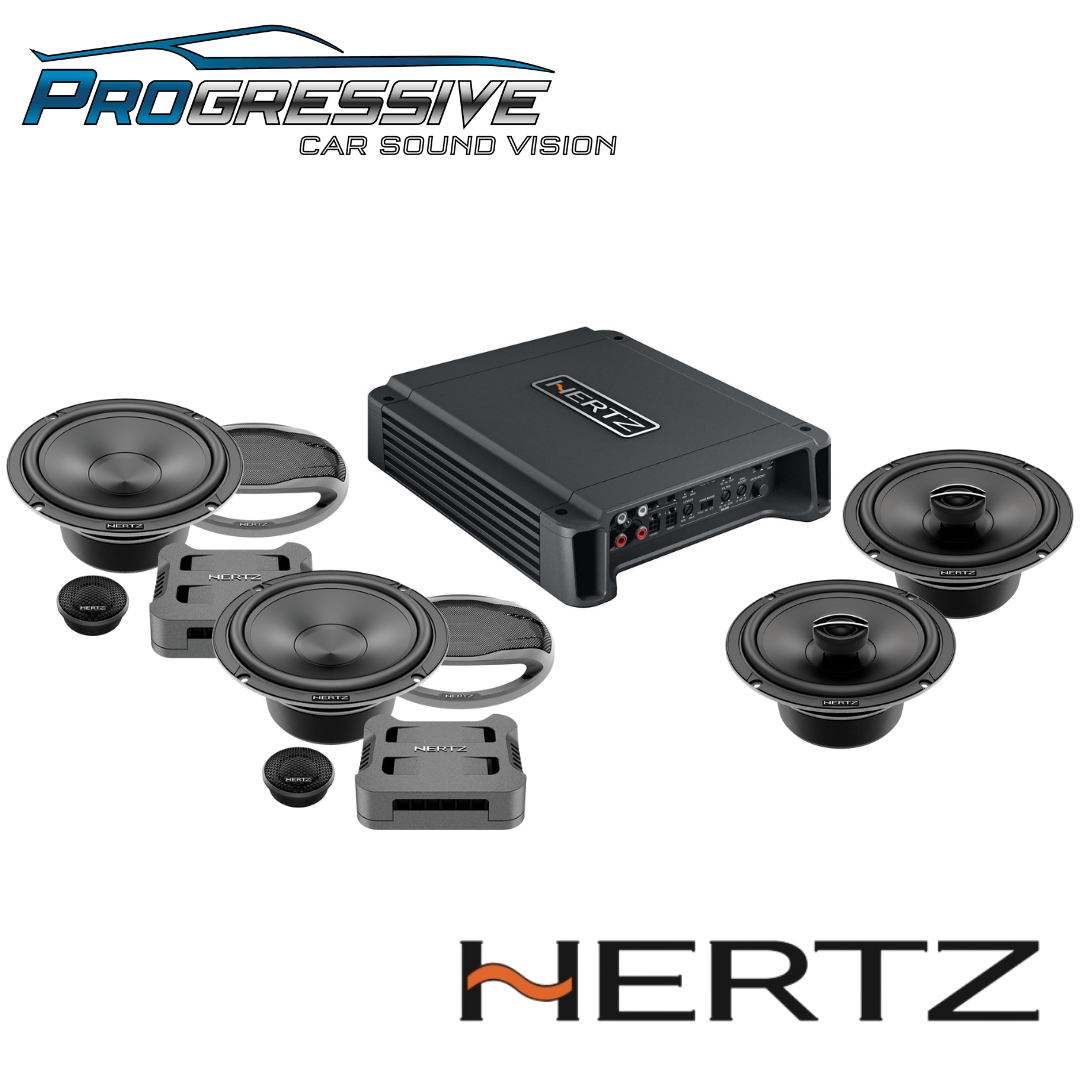

CENTO PRO 6.5" SPEAKER AND 4 CHANNEL AMP PACK

Availability: In stock

Collection: Top Brands

Sku: CPK165/CPX165/HCP4D

Brand: Hertz


PACK INCLUDES -

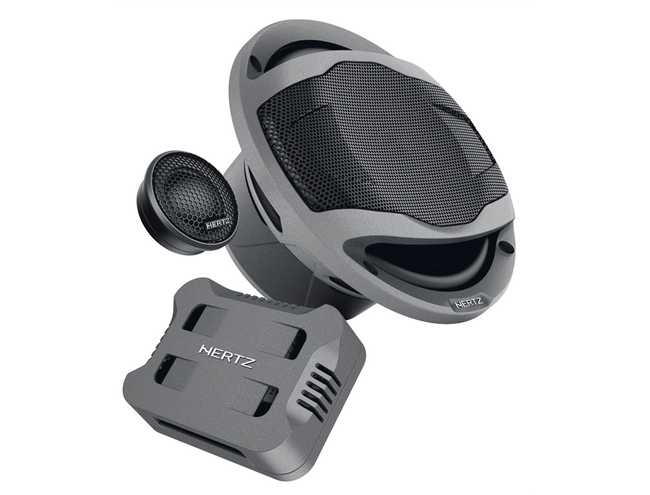

CPK 165

The Hertzaudio Cento Pro CPK 165 PRO car audio system includes the CP 165woofer and the CP 25 tweeter with Tetolon dome and 25 mm voice coil, features ensuring a very wide and linear frequency response. The CP 25 employs the “Center Tuning Duct” technology: the tunnel at the center of the powerful Neodymium magnetic circuit, ensures low-temperature air exchange between the dome and the rear loading chamber, perfectly tuning the acoustics. The resulting very low resonance frequency is also functional for the woofer crossover point, elevating the sound stage. The sophisticated design of the mobile group and suspensions of the CP 165 woofer, featuring a 60Hz calibrated resonance frequency, ensures a medium-low power with excellent punch, making listening to rich low frequency genres a unique experience. The basket is consistent with the family-feeling of the Mille line with the addition of damping and protective rubber. The cone material is inherited from the Mille Pro, as well as the suspension butyl rubber and the Tetolon fiber of the tweeter dome. These materials have excellent damping and lightness characteristics, producing a balanced sound without resonance peaks. The gift box includes the woofers grilles made of a combination of metallic mesh and high resistance ABS plastic frame. The combination of these two elements allows the user to customize the installation with a sophisticated and elegant design.



Component System
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 105
Power Handling - Peak W 315
Impedance Ohm 4
Tweeter diaphragm mm (in.) 29 (1.14)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 25 (1)
Sensitivity dB SPL 92,5
Frequency Response Hz 45 ÷ 22,5k
Crossover Cut off 2,8 kHz @ 12 dB Oct.
Crossover Type 2 Way Passive Crossover
Weight of one component - Woofer 1.07 (2.36)
Weight of one component - Tweeter kg (lb) 0.07 (0.15)
Weight of one component - Crossover kg (lb) 0,2 (0.44)

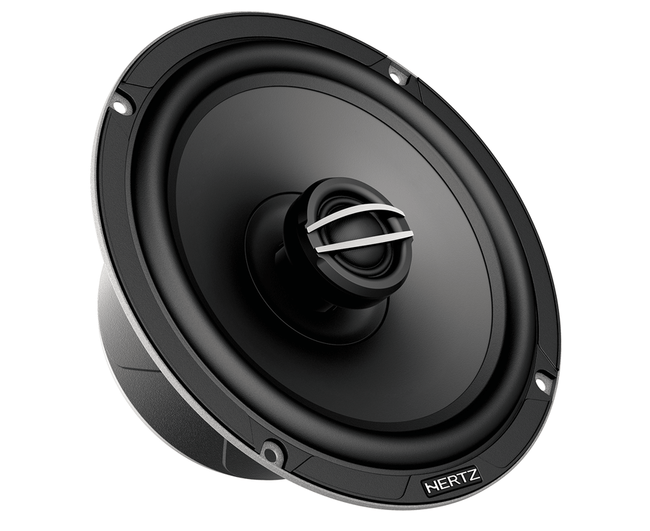

CPX 165

The CPX 165 car audiocoaxial provides the thrill of listening to the Hertz sound even when the vehicle does not allow the installation of a two-way kit. The Tetolon dome tweeter and Neodymium magnet is provided with off-axis dispersion features and exceptional frequency extension for a detailed, airy sound. Radial Venting System technology ensures unparalleled cooling of the coil thanks to the eight holes at the base of the engine that allow air exchange with the tweeter supportThis acts as a rear camera, sized for low Fs, to ensure a natural mid range and allow a low frequency crossover point with the woofer. The pressed-paper cone and the butyl rubber suspension offer an extended low frequency response and an impressive punch. The Mille-inspired design basket features a dampened and protective rubber coated magnet. The grille, available as optional, is made up of a durable high resistance ABS frame and metallic mesh protection.



Component Coaxials
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 95
Power Handling - Peak W 285
Impedance Ohm 4
Tweeter diaphragm mm (in.) 26 (1)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 20 (0.8)
Frequency Response Hz 45 ÷ 22k
Woofer Magnet size D x d x h mm (in.) 85 x 32 x 17 (3.35 x 1.26 x 0.67)
Tweeter Magnet size D x h mm (in.) 19 x 3 (0.75 x 0.12)
Weight of one speaker kg (lb.) 1.13 (2.49)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Pressed-paper cone
Dome Tetolon
Xmech mm (in.) ±6,9 (0.27)

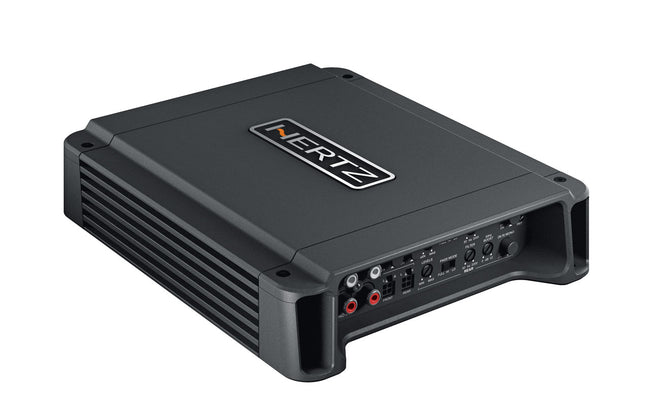

HCP 4D

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.


Channels 4 - 3 - 2
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 20 A
Idling current (power ON/OFF) 1.6 A / 0.04 mA
Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 22 A
Remote In: 7 ÷ 15 VDC - 1 mA
ART Automatic Remote Turn-On/Off with Speaker-In
AMPLIFIER STAGE
Distorsion - THD (100 Hz @ 4 Ω) 0.02 %
Bandwidth: 10 ÷ 60K Hz
S/N Ratio (A weighted @ 1 V) 100 dB
Damping factor (100 Hz @ 4 Ω): 200
Pre-In sensitivity 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@ 4 Ch: 2 Ω
@ 3 Ch: 2 Ω + 2 Ω + 4 Ω
@ 2 Ch: 4 Ω
Max size (mm / in.): 215 x 190 x 50 / 8.46 x 7.48 x 1.97
Weight (kg / lb.): 1.94 / 4.27
Adjustable Crossovers yes
Output Power (RMS) @ 14.4 VDC, THD 1%:
4 Ch: 75 W x 4 (4 Ω)
4 Ch: 130 W x 4 (2 Ω)
3 Ch: 75 W x 2 (4 Ω) + 260 W x 1 (4 Ω)
3 Ch: 130 W x 2 (2 Ω) + 260 W x 1 (4 Ω)
2 Ch: 260 W x 2 (4 Ω)
Output Power (RMS) @ 14.4 VDC, THD 10%:
4 Ch: 85 W x 4 (4 Ω)
4 Ch: 145 W x 4 (2 Ω)
3 Ch: 85 W x 2 (4 Ω) + 290 W x 1 (4 Ω)
3 Ch: 145 W x 2 (2 Ω) + 290 W x 1 (4 Ω)
2 Ch: 290 W x 2 (4 Ω)
CEA 2006-A Ratings:
RMS Power (4 Ω, ≤1 %THD + N, 14.4 V): 70 W x 4 Ch
S/N Ratio (ref. 1 W output): 80 dBA
Total Power RMS 1160 W



INPUTS : PRE IN / SPEAKER IN
Pre out FULL range (FRONT): Yes
FRONT Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
REAR Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct
Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct
FRONT Ch. MONO (on/off): Yes
REAR Ch. MONO (on/off): Yes
BOOST 50 Hz (adjust): (0 ÷ 12) dB
mm in
A 215 8.46
B 200 7.87
C 190 7.48
D 166 6.53
E 50 1.97

HCP 4D
