Call to Order
-10% Sale
$1,249.00
$1,397.00 You Save: $148.00 (10%)

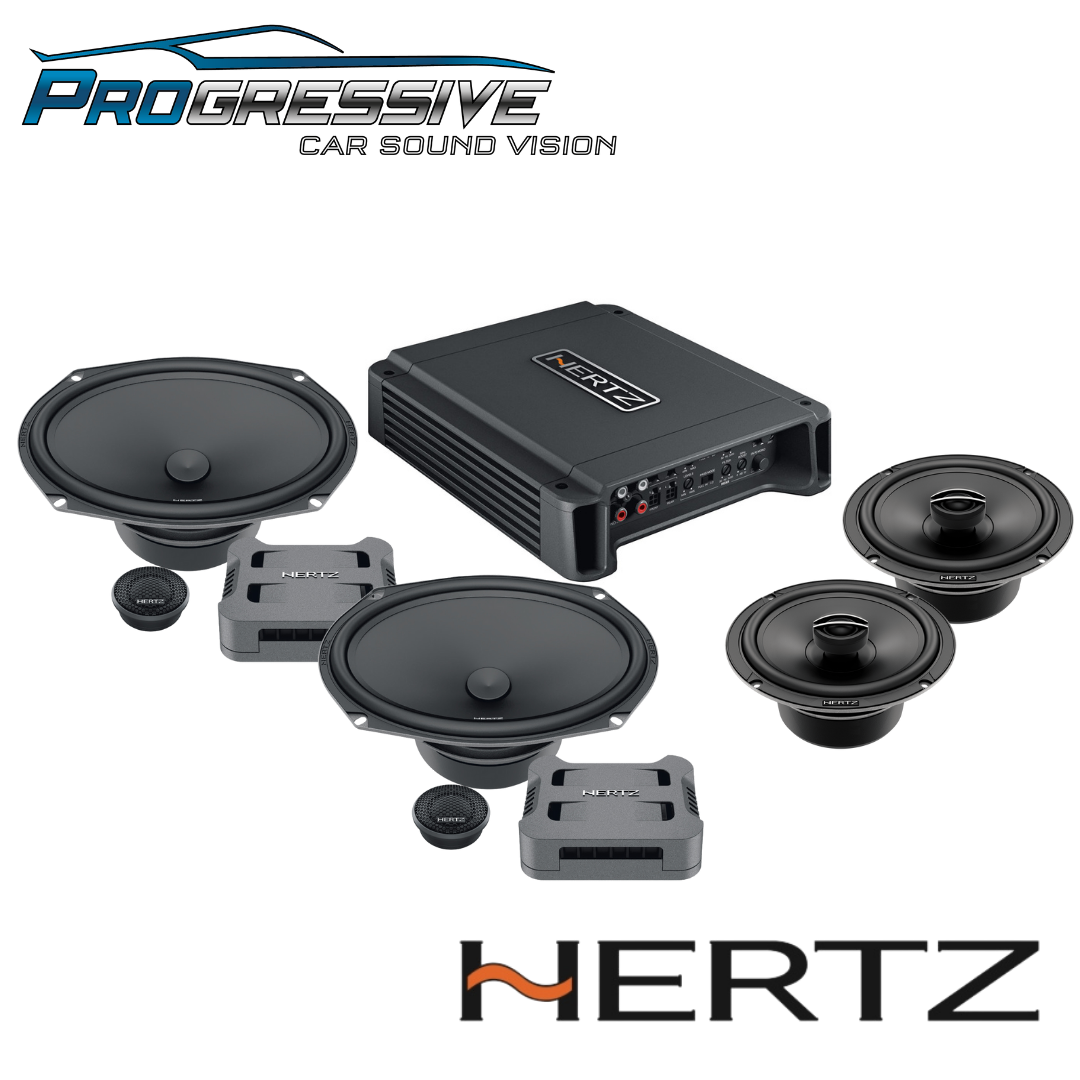

CENTO PRO 6X9" + 6.5" SPEAKER AND 4 CHANNEL AMP PACK

Availability: In stock

Collection: Top Brands

Sku: CPK690/CPX165/HCP4D

Brand: Hertz


PACK INCLUDES -

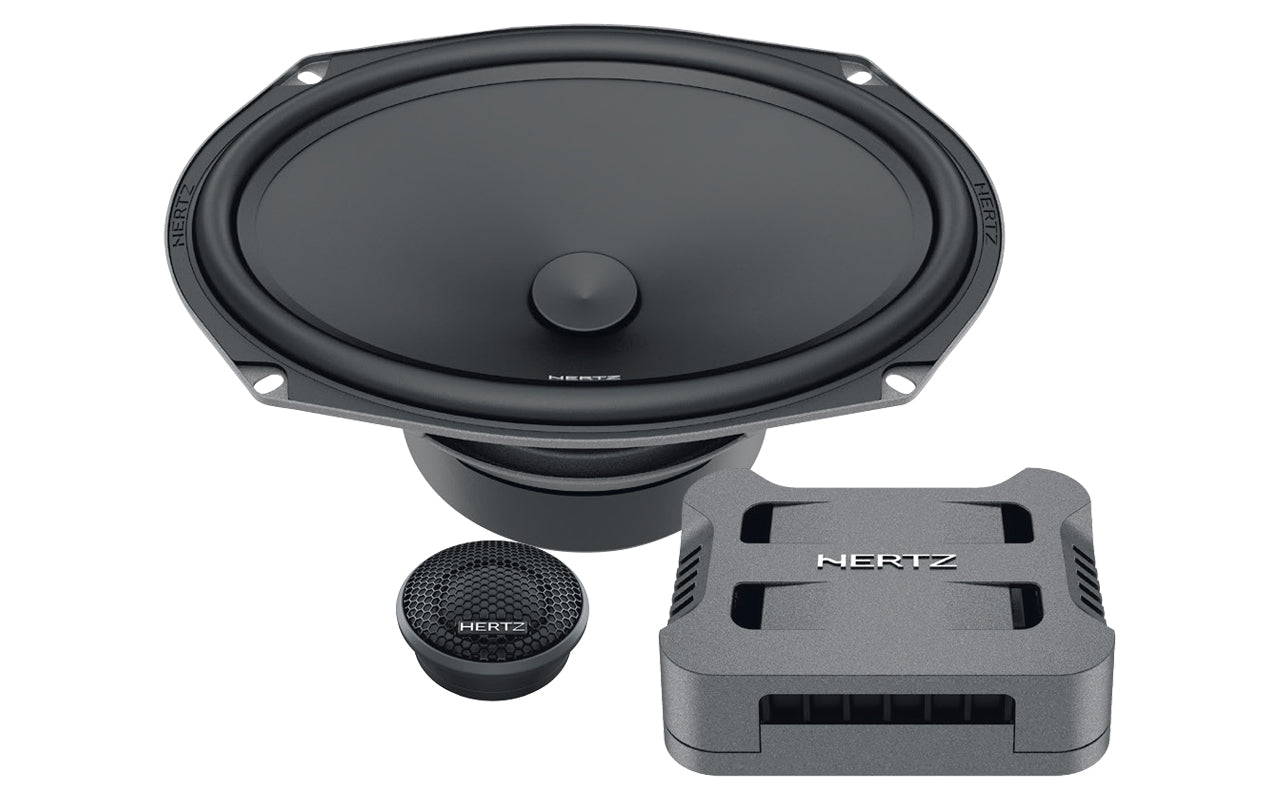

CPK 690

The latest addition to the Cento PRO line is the CPK 690 system equipped with an elliptical woofer to avail of the 6 x 9 door placements, which are particularly common in the North American market, such as for the models of Toyota and FORD groups. Like the other speakers of the Cento PRO line, the woofer cone is made of pressed paper, the most suitable material to obtain a linear and controlled emission even when the woofer is driven with very high power. All electroacoustic parameters have been optimized to obtain maximum performance with door installations; we therefore find a magnetic group and voice coil improved for an excellent power handling and a lower resonance frequency. The large emission area of the CP 690 increases the woofer efficiency and extends the response down to 35 Hz.  The crossover made with selected components, features a low-pass filter on the woofer with a 6 dB/oct. slope and 12 dB/oct. on the tweeter with three levels of attenuationCPK 690 is dedicated to the young enthusiast who wants a front row seat at their favourite concert while sitting comfortably behind the steering wheel.



Component System
Size mm (in.) (6 x 9)
Power Handling - Continuous W 120
Power Handling - Peak W 360
Impedance Ohm 4
Tweeter diaphragm mm (in.) 29 (1.14)
Woofer Voice Coil Ø mm (in.) 30,5 (1.2)
Tweeter Voice Coil Ø mm (in.) 25 (1)
Sensitivity dB SPL 92
Frequency Response Hz 35 ÷ 22,5k
Crossover Cut off LP 6 dB / Oct. - HP 12 dB / Oct.
Crossover Type 2 Way
Weight of one component - Woofer 1,69 (3.73)
Weight of one component - Tweeter kg (lb) 0,07 (0.15)
Weight of one component - Crossover kg (lb) 0,2 (0.44)

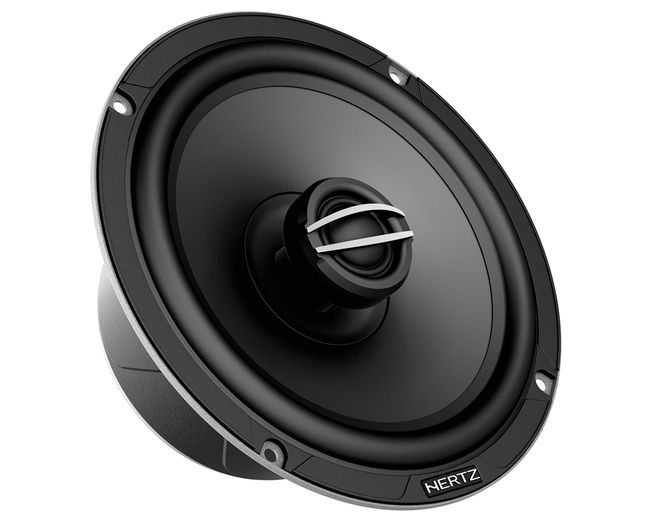

CPX 165

The CPX 165 car audiocoaxial provides the thrill of listening to the Hertz sound even when the vehicle does not allow the installation of a two-way kit. The Tetolon dome tweeter and Neodymium magnet is provided with off-axis dispersion features and exceptional frequency extension for a detailed, airy sound. Radial Venting System technology ensures unparalleled cooling of the coil thanks to the eight holes at the base of the engine that allow air exchange with the tweeter supportThis acts as a rear camera, sized for low Fs, to ensure a natural mid range and allow a low frequency crossover point with the woofer. The pressed-paper cone and the butyl rubber suspension offer an extended low frequency response and an impressive punch. The Mille-inspired design basket features a dampened and protective rubber coated magnet. The grille, available as optional, is made up of a durable high resistance ABS frame and metallic mesh protection.



Component Coaxials
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 95
Power Handling - Peak W 285
Impedance Ohm 4
Tweeter diaphragm mm (in.) 26 (1)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 20 (0.8)
Frequency Response Hz 45 ÷ 22k
Woofer Magnet size D x d x h mm (in.) 85 x 32 x 17 (3.35 x 1.26 x 0.67)
Tweeter Magnet size D x h mm (in.) 19 x 3 (0.75 x 0.12)
Weight of one speaker kg (lb.) 1.13 (2.49)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Pressed-paper cone
Dome Tetolon
Xmech mm (in.) ±6,9 (0.27)

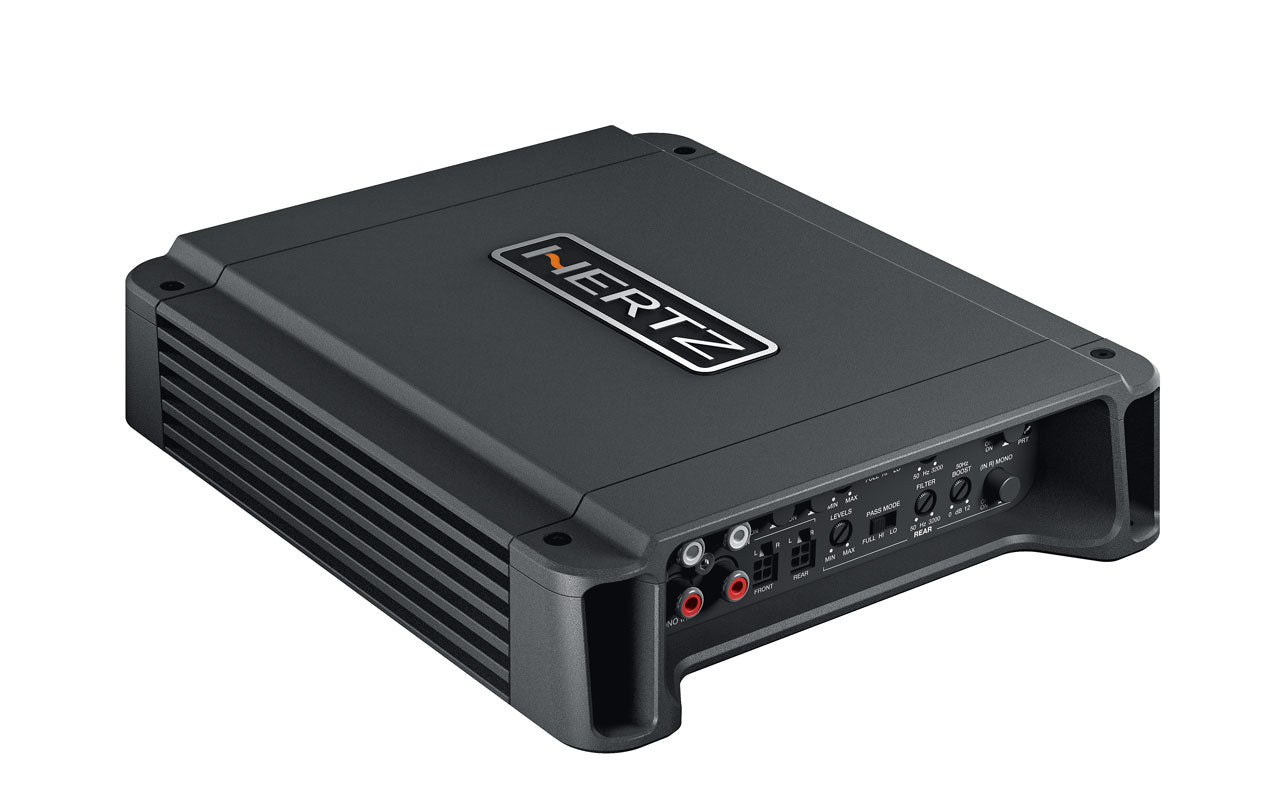

HCP 4D

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.


Channels 4 - 3 - 2
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 20 A
Idling current (power ON/OFF) 1.6 A / 0.04 mA
Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 22 A
Remote In: 7 ÷ 15 VDC - 1 mA
ART Automatic Remote Turn-On/Off with Speaker-In
AMPLIFIER STAGE
Distorsion - THD (100 Hz @ 4 Ω) 0.02 %
Bandwidth: 10 ÷ 60K Hz
S/N Ratio (A weighted @ 1 V) 100 dB
Damping factor (100 Hz @ 4 Ω): 200
Pre-In sensitivity 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@ 4 Ch: 2 Ω
@ 3 Ch: 2 Ω + 2 Ω + 4 Ω
@ 2 Ch: 4 Ω
Max size (mm / in.): 215 x 190 x 50 / 8.46 x 7.48 x 1.97
Weight (kg / lb.): 1.94 / 4.27
Adjustable Crossovers yes
Output Power (RMS) @ 14.4 VDC, THD 1%:
4 Ch: 75 W x 4 (4 Ω)
4 Ch: 130 W x 4 (2 Ω)
3 Ch: 75 W x 2 (4 Ω) + 260 W x 1 (4 Ω)
3 Ch: 130 W x 2 (2 Ω) + 260 W x 1 (4 Ω)
2 Ch: 260 W x 2 (4 Ω)
Output Power (RMS) @ 14.4 VDC, THD 10%:
4 Ch: 85 W x 4 (4 Ω)
4 Ch: 145 W x 4 (2 Ω)
3 Ch: 85 W x 2 (4 Ω) + 290 W x 1 (4 Ω)
3 Ch: 145 W x 2 (2 Ω) + 290 W x 1 (4 Ω)
2 Ch: 290 W x 2 (4 Ω)
CEA 2006-A Ratings:
RMS Power (4 Ω, ≤1 %THD + N, 14.4 V): 70 W x 4 Ch
S/N Ratio (ref. 1 W output): 80 dBA
Total Power RMS 1160 W



INPUTS : PRE IN / SPEAKER IN
Pre out FULL range (FRONT): Yes
FRONT Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
REAR Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct
Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct
FRONT Ch. MONO (on/off): Yes
REAR Ch. MONO (on/off): Yes
BOOST 50 Hz (adjust): (0 ÷ 12) dB
mm in
A 215 8.46
B 200 7.87
C 190 7.48
D 166 6.53
E 50 1.97

HCP 4D
