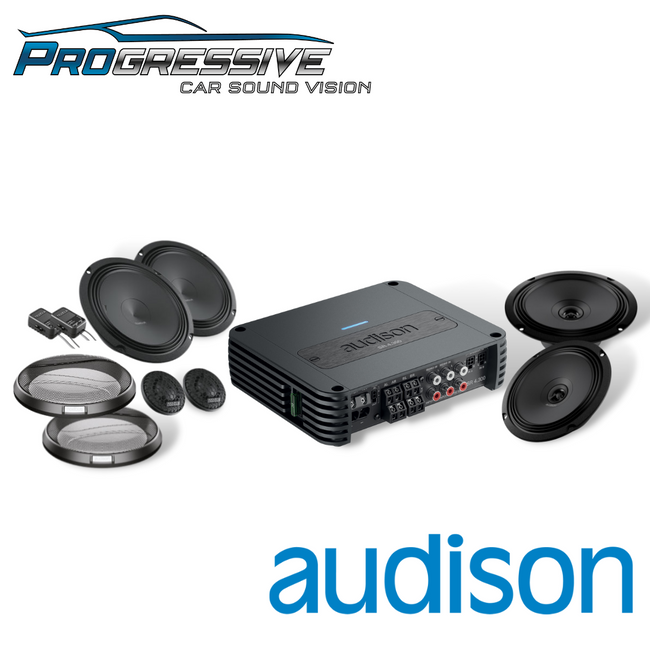

PRIMA SERIES 6.5" SPEAKER AND AMPLIFIER PACK

Availability: Call to Order

Collection: Top Brands

Sku: APK165/APX65/SR4300

Brand: AUDISON


THIS PRODUCT IS NOT AVAILABLE ONLINE.
PURCHASE AT STORE ONLY

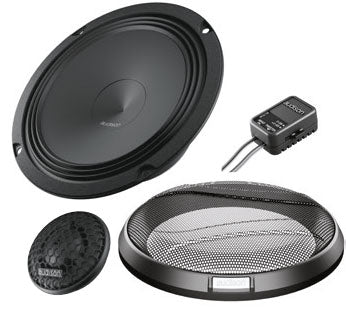

APK 165

Two way system features AP 1 tweeter and AP 6.5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.

To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

Technical Data

Comp 2 way System
Size 165 mm (6.5″) Woofer
26 mm (1″) Tweeter
46,5 x 37,5 x 20,1 mm (1.83″ x 1.47 x 0.8) Crossover
Power Handling 100 W Continuous Power
300 W Peak Power
Impedance 4 Ω
Frequency Response 60 – 20k Hz
Sensitivity 93,5 dB/Spl


APX 6.5

APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.

The 6.5″ cones surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.



Technical Data

Comp Two way coaxial
Size Woofer 165 mm (6,5″)
Tweeter diaphragm 24 mm (0.9″)
Power Handling 70 W Continuous Power
210 W Peak Power
Impedance 4 Ω
Frequency Response 60 ÷ 23k Hz
Sensitivity 94 dB/Spl
Magnet High density flux ferrite
Dome Water-repellent pressed paper

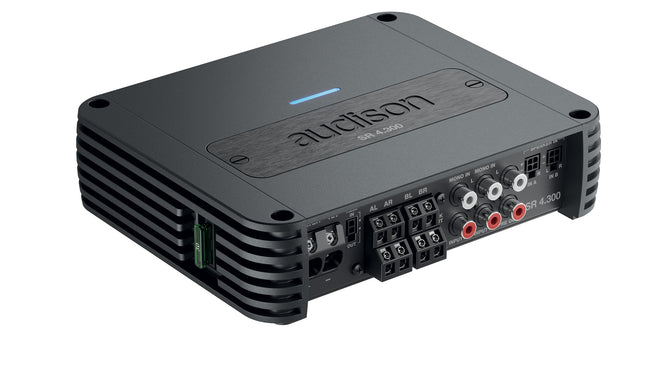

SR 4.300

4 CH AMPLIFIER WITH CROSSOVER

HIGH POWER IN A COMPACT SIZE

We are proud to present the renovated SR 4.300 (85 W x 4 @ 4Ω) introduced back in 1988 and constantly updated with the best technologies available.

Audison_ADT

Class D amplifiers are also called “switching amplifiers”, since their efficiencies are arrived at by rapid on and off switching of the output transistors. Audison Class D uses a much higher switching frequency than most other amplifiers. You might think the switching frequency for all Class D amps are the same, but Class D chipsets allow significant latitude in many design aspects, such as switching frequency and timing. Most companies use as low a switching frequency as possible – this makes the timing easier to manage, and allows the use of lower-precision components which cost less. ACD uses a switching frequency twice as fast as many other modern Class D amplifiers. Higher switching frequencies require incredibly precise timing, which require higher-tolerance components to be used in order to keep the timing pulses from overlapping (that causes catastrophic failure of the output transistor). Audison uses very high-tolerance component parts to keep the timing correct even during temperature extremes (temperature changes shift the values of analog components). To Audison, this is worth the cost, since the higher switching frequency of Audison Class D moves noise much farther away from the audible band.

Audison Class D also uses a steeper 4th-order analog lowpass filter, rather than the simpler 2nd-order lowpass filters usually used in competing designs. The steeper filter will keep noise much lower in amplitude – which is good for controlling EMI and for preventing infrasonic noise getting to the tweeters. It also keeps phase shift outside the audible range. The cost is higher – twice as many components are needed for a 4th order filter compared to the usual 2nd-order filter, and each output channel needs its own filter – but Audison determined through exhaustive listening testing that this design was the best-sounding approach.

EDGELESS DESIGN

As for the electronics design, the Audison style center has taken care of every aesthetic and functional detail, obtaining a compact amplifier made of extruded aluminium with rounded corners that ease the installation of the product in narrow spaces. Thanks to the generous heat sinks on the two short sides of the amplifiers, internal cooling fans are not necessary, which are often cause of noise and dust accumulation.

COMPLETE CONTROLS ON UPPER PANEL

As per tradition, the SR amplifiers confirm their vocation for versatility by including on all models a complete filter section, suitable for any type of audio system configuration. The controls, protected by a satin-finish aluminium panel, are located on the amplifier upper panel, to be easily reached from above even after the product has been installed. When the system includes an Audison bit processor, the filter section can be totally excluded.

Audison_USS

Thanks to the integration of Audison USS technology (Universal Speakers Simulator) in the high-level inputs, the SR amplifiers can also be appropriately connected to OEM sources featuring the “speaker load detection” function that monitor the presence of a low-impedance load to enable audio outputs.

LIMITLESS CONNECTIVITY

All models are equipped with high-level balanced inputs for connection to the OEM Head Unit speakers output and low RCA level for the after-market ones. When the high level input is used, the ART function (Automatic Remote Turn-On / Off) can be enabled to control the switching on of the amplifiers with the head unit switch-on button.

In addition, there is a remote IN / OUT socket to allow the control of multiple cascaded amplifiers switch on when required.

The SR 1.500, SR 4.300 and 4.500 models recreate the PRE-OUT signal by using the Speaker-IN input to interface it with OEM sources only equipped with amplified outputs, allowing the system expansion.

Power Output

CEA SPECIFICATION

OUTPUT POWER (RMS) @14.4 VDC, 1% THD: 75 W x 4 Ch
SN ratio (ref. 1 W output) 82 dBA
OUTPUT POWER (RMS) @14.4 VDC, 1% THD: POWER W RMS
4 85 x 4 (4Ω)
4 130 x 4 (2Ω)
3 80 x 2 (4Ω) + 250 W x 1 (4Ω)
3 130 x 2 (2Ω) + 260 x 1 (4Ω)
2 250 x 2 (4Ω)
