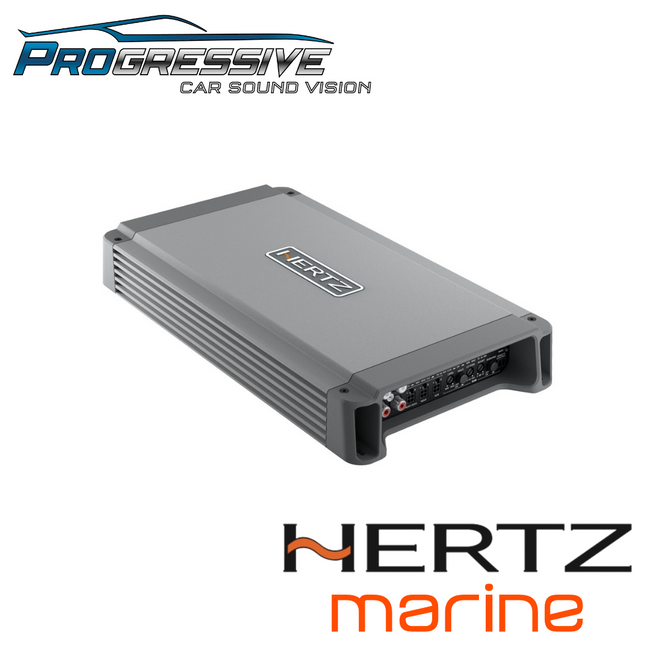

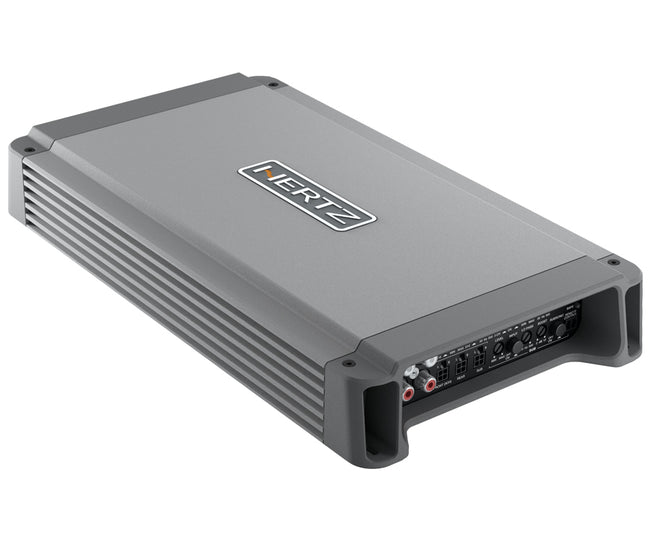

MARINE HCP 5MD 5 CHANNEL AMPLIFIER

Availability: Call to Order

Sku: HCP5MD

Brand: Hertz


HCP 5MDCh: 5 - 3 | 1500 W

lnputs: HCP 5MD  marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The  heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier. Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. More specifically HCP 5MD is suitable for a five channels system with subwoofer, a tree channel front + sub system using the front and rear built-in filters that also include a bass boost circuit and a subsonic filter.
General Specs
Channels 5 - 3
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 25 A
ldling current (power ON/OFF): 2 A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 30 A
Remote In: 7 ÷ 15 VDC - 1 mA
ART: Automatic Remote Turn-OniOff with Speaker-ln
AMPLIFIER STAGE
Distorsion - TliD (100Hz @ 4Ω): 0.02%
Bandwidth: 10 ÷ 50 kHz
Bandwidth: 10 ÷ 500 Hz
S/N Ratlo (A welghted @ 1 V): 100 dB
Damping factor (100Hz @ 4Ω) FRONT/REAR: 100
Damping factor (100Hz @ 4Ω) SUB: 250
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Speaker-ln sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@5Ch:
@3Ch:

2 Ω
4 Ω + 4 Ω + 2 Ω
Adjustable Crossovers yes
Output Power
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1%
5Ch 55 W x 4+160 W x 1 (4Ω)
5Ch 90 W x 4+ 280 W x 1 (2 Ω)
3Ch 180 W x 2 (4 Ω) +160 W x 1 (4 Ω)
3Ch 180 W x 2 (4 Ω) + 280 W x 1 (2 Ω)
OUTPUT POWER (RMS) @ 28.8 VDC, THD 10%
5Ch 65 W x 4 + 200 W x 1 (4Ω)
5Ch 105 W x 4 + 330 W x 1 (2 Ω)
3Ch 210 W x 2 (4 Ω) + 200 W x 1 (4 Ω)
3Ch 210 W x 2 (4 Ω) + 330 W x 1 (2 Ω)
CEA 2006-A RATINGS
RMS Power (4 Ω, ≤ 1 % THD+N,14.4 V): 50 W x 4 Ch + 150 W x 1 Ch
S/N Ratio (ref. 1 W output) (50 W Ch) 83 dBA
(150 W Ch) 85 dBA
Total Power RMS 1500 W
INPUTS / FILTERS
lnputs:
FRONT Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 5 kHz @ 12 dB/Oct
REAR Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 5 kHz @ 12 dB/Oct
Band-Pass: 50 ÷ 500 Hz (Hi) @ 12 dB/Oct
50 ÷ 5 kHz (Lo) @ 12 dB/Oct
SUB Ch. filter LO-PASS: 50 ÷ 500 Hz (Hi) @ 24 dB/Oct
SUBSONIC (on/off): 25 Hz @ 24 dB / Oct
BOOST 50 Hz (adjust): (0÷12) dB
Remote Volume Control: (-50 ÷ 6) dB
Physical Specs
Max size (mm/in): 345 x 190 x 50
13.58 x 7.48 x 1.97
Weight (kg/lb): 2.61 (5.75)
