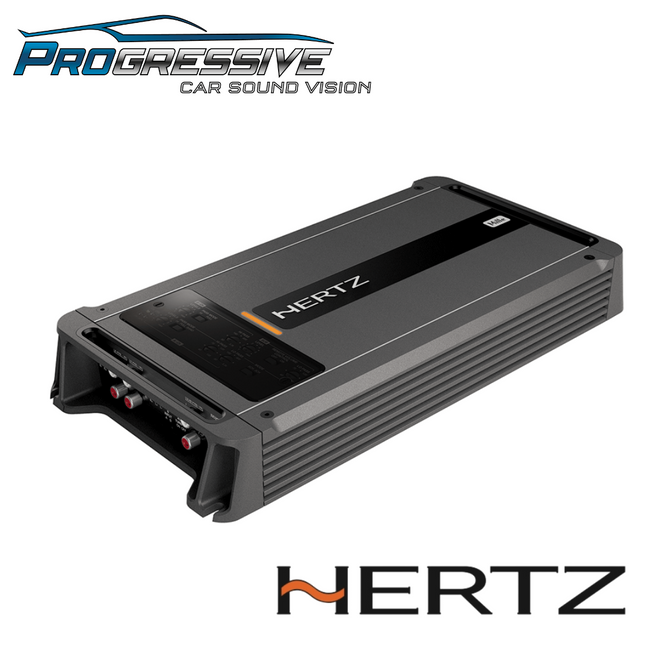

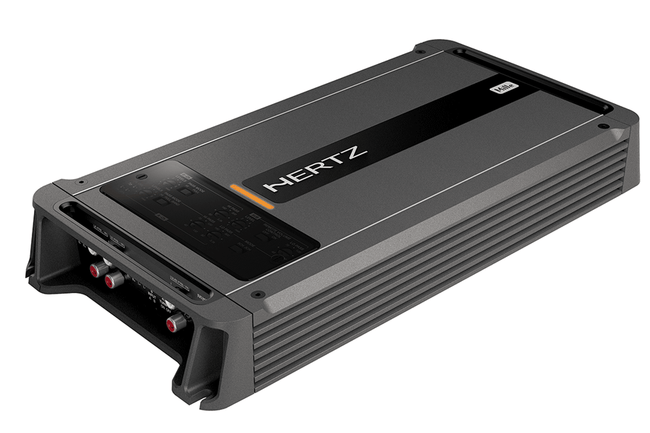

HERTZ MILLE PRO ML POWER5 5 CHANNEL AMPLIFIER
Availability: In stock
Have a question?
ML Power 5
D-CLASS FIVE CHANNEL AMPLIFIER
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.
Hertz Bass Management
The remote control HRC BM - Bass Management, optional for MLPower 1, provides the ability to adapt the subwoofer level (-20 / + 6 dB) to any personal preference and favorite music genre.
|Channel mode||5 - 3|
Output Power (RMS)
@ 14.4 VDC
|5 Ch 70 W x 4 + 380 W x 1 (4Ω)
5 Ch 100 W x 4 + 550 W x 1 (2Ω)
3 Ch 200 W x 2 (4Ω) + 380 W x 1 (4Ω)
3 Ch 200 W x 2 (4Ω) + 550 W x 1 (2Ω)
A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - B Ch: 80 ÷ 3.3k Hz @ 12 dB/Oct.
C Ch: 40 ÷ 500 Hz @ 24 dB/Oct.
A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.
Distortion - THD
(100Hz @ 4Ω)
(A weighted @ 1V)
|100 dB A & B Ch - 106 dB C Ch|
(100Hz @ 4Ω)
|50 A & B Ch - 90 C Ch|
Size W x D x H
|170 x 349 x 46.70 - (6.69' x 13.74' x 1.84')|
ADVANCED D-CLASS TECHNOLOGYEnsures pure listening pleasure while keeping a compact size with unmatched power efficiency.
LEDS STATUS DISPLAYIt monitors the amplifiers operating status in real time pointing out possible faults such as overheating, excessive loads on the outputs or short-circuits on cables or loudspeakers. This information allows the user to identify possible issues with the installation and to intervene before the amplifier goes into protection to prevent any damages.
HDP IN & ART(TM)The ML Power IN module features a Speaker In input (with balanced circuitry minimizing noise) for OEM head units and an RCA IN input for aftermarket sources. When the Speaker In is used, the ART™ function (Automatic Remote Turn On-Off) is enabled, managing the amplifier remote turn on to avoid unpleasant “bumps”.
ADVANCED HEATSINKThe heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.
