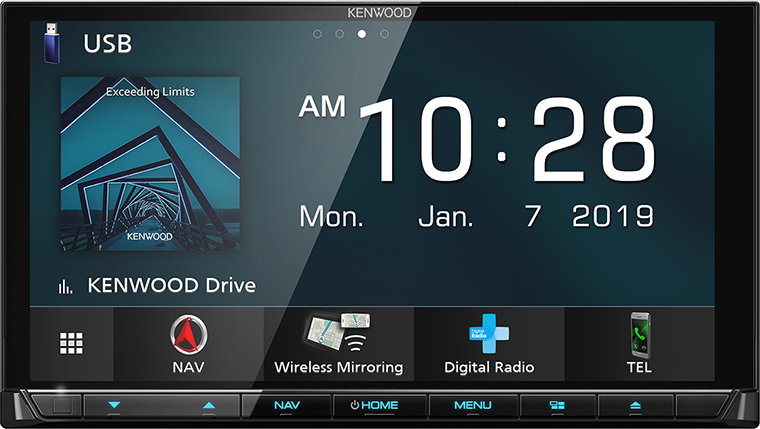

DNX9190DABS 6.8" AV MEDIA RECEIVER WITH NAVIGATION, APPLE CARPLAY & ANDROID AUTO
$1,897.00
$2,299.00
You Save: $402.00 (17%)
This product was viewed 192 times within last hour
Unfortunately, left 0 in stock
Order in the next to get it by Sat, May 24, 2025
| MonitorSection | Picture size | 6.75 inches(diagonal) wide | |
|---|---|---|---|
| W x H | 152.1 mm x 79.5 mm | ||
| Display system | AAS LCD panel | ||
| Drive system | TFT active matrix system | ||
| Number of pixels | 2,764,800 1280H x 720V x RGB |
||
| Effective pixels | 99.99% | ||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| DVDSection | D/A Converter | 24 / 32Bit | |
| Audio Decoder | Linear PCM Dolby Audio MP3 / WMA / AAC / WAV / FLAC / Vorbis |
||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | ||
| Wow & Flutter | Below Measurable Limit | ||
| Frequency response | 96k Sampling | 20 - 44,000 Hz | |
| 48k Sampling | 20 - 22,000 Hz | ||
| 44.1k Sampling | 20 - 20,000 Hz | ||
| Total harmonic distortion 1kHz | 0.010% | ||
| Signal to Noise ratio | 90.5dB (DVD-Video 96k) | ||
| Dynamic range | 89dB (DVD-Video 96k) | ||
| DISC Format | DVD-Video / VIDEO-CD / CD-DA | ||
| Quantifying bit number | 16 / 20 / 24bit | ||
| USB I/F Section |
USB Standard | USB2.0 High Speed | |
| File System | FAT 16/32, exFAT, NTFS | ||
| Maximum Power Supply Current | DC5V=1.5A | ||
| D/A Converter | 24/32Bit | ||
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | ||
| Wireless Mirroring Section |
Mode | Sink | |
| Copyright protection | HDCP2.2 | ||
| Touch Control | UIBC | ||
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac | |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | ||
| Channels | Auto(1-11ch) Auto(149,153,157,161ch) |
||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps / 11n: 300 Mbps / 11ac: 867 Mbps |
||
| Output Power | 2.4GHz/SISO | 11b:14dBm±2dB / 11g:13dBm±2dB / 11n(20MHz):12dBm±2dB |
|
| 5GHz/SISO | 11a:9dBm±2dB / 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB |
||
| 5GHz/MIMO | 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB |
||
| Bluetooth Section |
Technology | Bluetooth Ver5.0 | |
| Frequency | 2.402 – 2.480 GHz | ||
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | ||
| Maximum Communication range | Line of sight approx.10m(32.8ft) | ||
| Audio Codec | SBC / AAC | ||
| Multi Profile Support | Multi Profile | ||
| Profile | HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) |
||
| HDMI | Connector Type | Type A | |
| Input Resolution | VGA (640x480p @59.94Hz/60Hz) 480p (720x480p @59.94Hz/60Hz) 720p(1280x720p 59.94Hz/60Hz) |
||
| Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM | ||
| DSP Section |
Graphics equalizer | BAND | 13Band |
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | ||
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | ||
| 2Way X'Over | HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| 3Way X'Over | HIGH PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | |
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through |
||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Position | Front / Rear /Subwoofer Delay | 0 - 6.1m (0.01m Step) | |
| Gain | -8 to 0dB | ||
| Subwoofer Level | -50 to +10dB | ||
| FM | Frequency Range (Frequency step) |
87.5MHz - 108.0MHz (50kHz) |
|
| Usable sensitivity S/N30dB |
9.3dBf 0.8μV/75Ω |
||
| Quieting sensitivity DIN S/N 46dB |
15.2dBf 1.6μV / 75Ohms |
||
| Frequency response (±3.0dB) |
30Hz - 15kHz | ||
| S/N (dB) | 65dB (MONO) | ||
| Selectivity | Over 80dB (±400kHz) | ||
| Stereo separation | 45dB (1kHz) | ||
| AM | Frequency Range (Frequency step) |
531kHz - 1701kHz (9kHz) |
|
| Usable sensitivity | 28dBμ | ||
| DAB | Frequency Range | BAND III: 174.928MHz - 239.200MHz | |
| Sensitivity | -100dBm | ||
| S/N | 90dB | ||
| DAB Antenna Connector |
Connector type | SMB | |
| Output Voltage | 12V DC | ||
| Maximum Current | <100mA | ||
| Video | Color system of external video input | NTSC/PAL | |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms | ||
| External audio max input level (Mini jacks) | 2 V / 25 kOhms | ||
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms | ||
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms | ||
| Audio Output level (Mini jacks) | 0.9 V / 10 kOhms | ||
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 | |
| Typical Power Output (Front&Rear) | Full Bandwidth Power (at less than 1%THD) 22Wx4 |
||
| Output frequency band | 20 - 88,000Hz | ||
| Preout level (V) | 5V / 10kOhms | ||
| Preout impedance (Ω) | =< 300 Ohms | ||
| Speaker Impedance (Ω) | 4-8 Ohms | ||
| Navigation Section |
Receiver | High-sensitivity GNSS receiver | |
| Receiving frequency | GPS：1575.42MHz GLONASS：1598．0625～1605.375 (C/A code ) |
||
| Acquisition Times | Cold: 26 seconds(typ) | ||
| All satellites at -130dBm Without aiding |
|||
| Update Rate | 1/second, continuous | ||
| Accuracy | Position: < 2.0meters,CEP, at -130dBm | ||
| Accuracy | Velocity: 0.05meter/sec | ||
| Positioning Method | GPS/GLONASS | ||
| Antenna | External GNSS Antenna | ||
| General | Operating voltage | 12V DC Car Battery | |
| Maximum Current consumption | 15A | ||
| Installation Dimensions WxHxD | 178mm x 100mm x 160mm | ||
| Operational temperature range | -10°C to +60°C | ||
| Weight | Main unit | 2.5 kg | |
