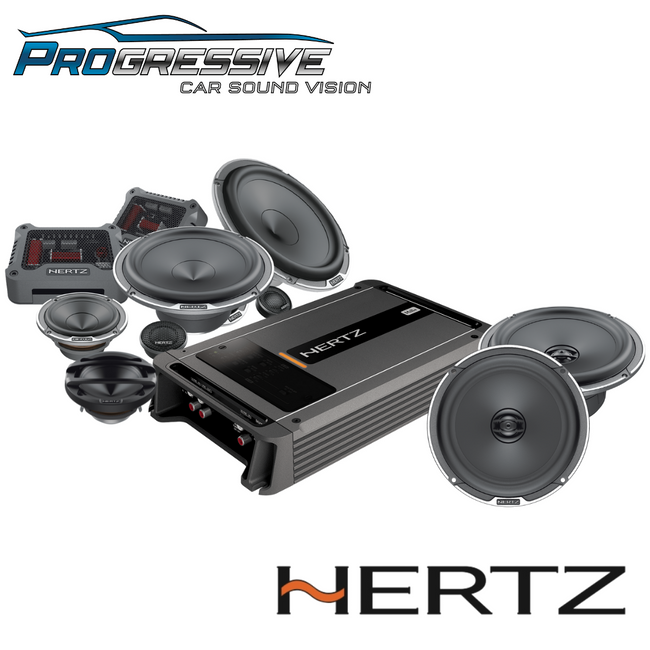

MILLE PRO 6.5" 3 WAY SPEAKER AND AMP PACK
PACK INCLUDES -

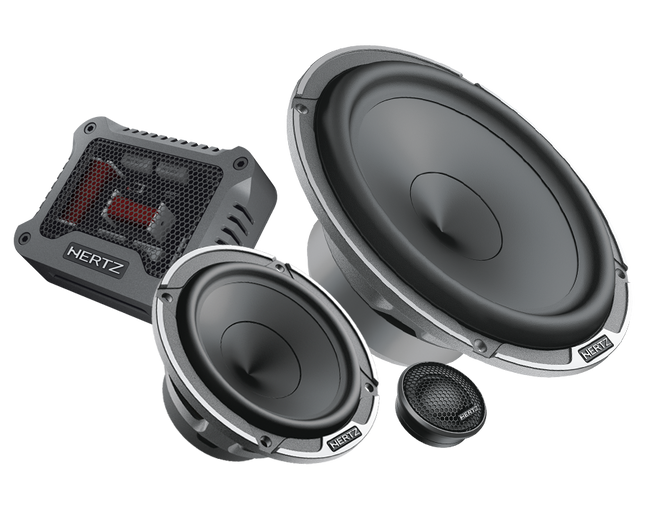

MPK 163.3
The three way MPK 163.3 car audio speakers system is dedicated to those who want the best: the MP 70.3 midrange featuring Neodymium double magnet inside the coil produces an enthralling mid range, perfect to combine with the powerful mid-low of the MP 165.3 woofer as well as with the detailed high range of the MP25.3 tweeter. The 20 mm coil of the MP 70.3 maximizes the dynamics; the V-cone® profile enhances off-axis dispersion and the Boundary Free Surround allows for a wider extension towards the low frequency range. The dedicated MPCX 3.3 crossover provides optimized crossover points to exploit the midrange remarkable extension using ultra-selected components
Component | System |
Size mm (in.) | 165 (6.5) |
Power Handling - Continuous W | 150 |
Power Handling - Peak W | 300 |
Impedance Ohm | 4 |
Tweeter diaphragm mm (in.) | 29 (1.14) |
Woofer Voice Coil Ø mm (in.) | 25 (1) |
Tweeter Voice Coil Ø mm (in.) | 25 (1) |
Sensitivity dB SPL | 92 |
Frequency Response Hz | 40 ÷ 22,5k |
Crossover Cut off | 450Hz - 5.5k Hz |
Crossover Type | 3 Way Passive Crossover |
Adjustment |
Tweeter level 0 / +2 dB |
Weight of one component - Woofer | 1.07 (2.36) |
Weight of one component - Tweeter kg (lb) | 0.07 (0.15) |
Weight of one component - Crossover kg (lb) |
0.43 (0.95) |

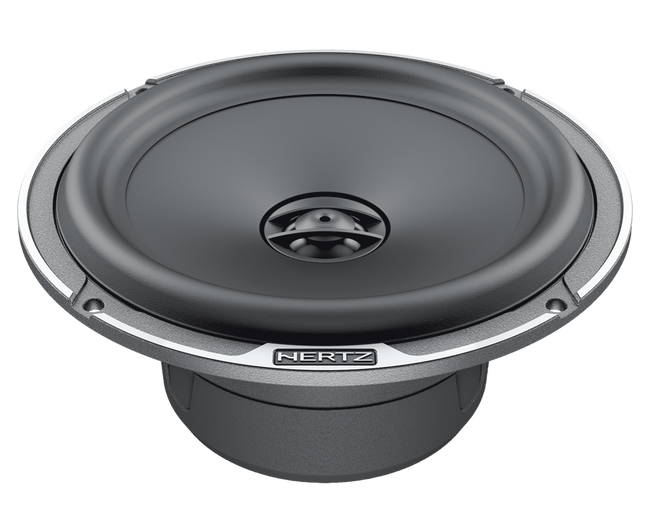

MPX 165.3
The coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.
Component | Coaxials |
Size mm (in.) | 165 (6.5) |
Power Handling - Continuous W | 100 |
Power Handling - Peak W | 200 |
Impedance Ohm | 4 |
Woofer Voice Coil Ø mm (in.) | 36 (1.42) |
Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
Frequency Response Hz | 45 ÷ 21,5k |
Woofer Magnet size D x d x h mm (in.) | 90 x 45 x 17 (3.54 x 1.77 x 0.67) |
Tweeter Magnet size D x h mm (in.) | 29.5 x 22 x 4 (1.16 x 0.87 x 0.16) |
Weight of one speaker kg (lb.) | 1.27 (2.8) |
Woofer Magnet | High density flux ferrite |
Tweeter Magnet | Neodymium |
Cone | Pressed-pulp cone with cotton fibers |
Dome | Tetolon |
Xmech mm (in.) | ±6 (0.24) |
ML Power 4
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The Hertzaudio car amplifier ML Power 4 (4 x 250 W 2 Ω)is the obvious choice for a top level front-rear Mille system.
Channels | 4 - 3 - 2 |
Power supply voltage: | 11÷15 VDC |
Idling current: | 1,5 A |
Idling current when off: | 0.04 mA |
Consumption @ 1Ω, 14.4 VDC (Max Musical Power) |
50 A |
Distorsion - THD (100 Hz @ 4Ω): | 0.08 % |
Bandwidth (-3 dB): | 5 ÷ 55k Hz |
S/N Ratio (A weighted @ 1 V) | 100 dB |
Damping factor (100 Hz @ 4Ω): | 80 |
Pre-In sensitivity: | 0.2 ÷ 5 V RMS |
Pre-In impedance: | 15 kΩ |
Speaker-In sensitivity: | 0.8 ÷ 20 V RMS |
Speaker-In impedance: | 470 Ω |
Load impedance: 4 Ch 3 Ch 2 Ch |
2Ω 2 x 2Ω ÷ 1 x 4Ω 4Ω |
Remote In: | 4 ÷ 15 VDC - 1 mA |
ART™: | Automatic Remote Turn-On/Off with Speaker-In |
Fuse: | 2 x 40 A |
Max size (mm/inches): | 170 x 289 x 46.70 / 6.69 x 11.38 x 1.84 |
Weight (kg/lb): | 2.45 / 5.4 |
Adjustable Crossovers | yes |
Inputs: | Pre IN / Speaker IN |
Outputs: | Pre OUT |
A Ch Filters: Full/Hi-Pass/Lo-Pass | 50 ÷ 5k Hz (2 range) @ 12 dB/Oct |
B Ch Filters: Full/Hi-Pass/Lo-Pass | 80 ÷ 3.3k Hz @ 12 dB/Oct |
CEA 2006-A RATINGS | |
RMS Power (4 Ω, ≤ 1 % THD+N, 14.4 V): | 120 W x 4Ch |
S/N Ratio (ref. 1 W output): | 80 dBA |
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%: | |
4 Ch 4 Ch 3 Ch 3 Ch 2 Ch |
150 W x 4 (4Ω) 250 W x 4 (2Ω) 150 W x 2 (4Ω) + 500 W x 1 (4Ω) 250 W x 2 (2Ω) + 500 W x 1 (4Ω) 500 W x 2 (4Ω) |
Total Power RMS | 1000 W |
mm | in | |
A | 289 | 11.38 |
B | 272 | 10.71 |
C | 170 | 6.69 |
D | 148 | 5.83 |
E | 46,7 | 1.84 |
