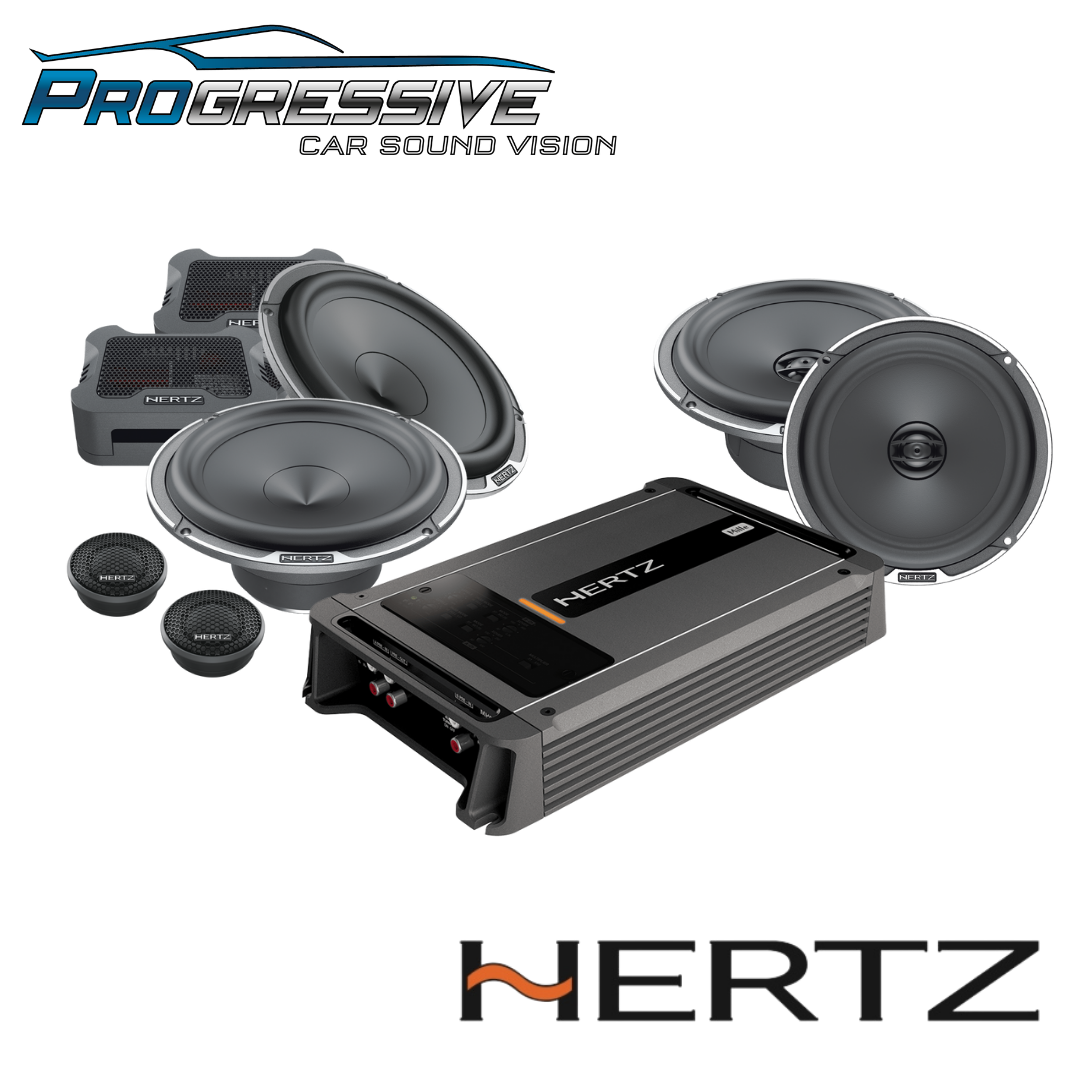

MILLE PRO 6.5" SPEAKER AND AMPLIFIER PACK
PACK INCLUDES -

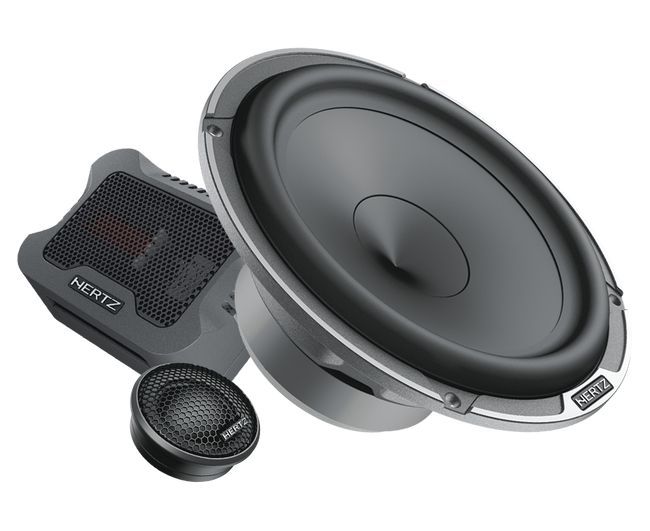

MPK 165.3
The MPK 165.3 car audio speakers system has been designed to ensure a wide low frequency response, even in cars with no space for a subwoofer. Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 woofer boast outstanding dispersion features and generates high SPL with compact dimensions. The dedicated crossover MPCX 2.3 has been designed to exploit the wide extension of the MP 165.3 woofers , ensuring a natural transition towards the MP 25.3 tweeter, for maximum natural acoustic emission. The 1mm low parasitic resistance copper filter coil of the woofer maximizes its efficiency. The MPCX 2.3 crossover features tweeter level (0/+2 dB) to calibrate the MP 25.3 acoustic emission level comparing it to the woofer one.
Component | System |
Size mm (in.) | 165 (6.5) |
Power Handling - Continuous W | 110 |
Power Handling - Peak W | 220 |
Impedance Ohm | 4 |
Tweeter diaphragm mm (in.) | 29 (1.14) |
Woofer Voice Coil Ø mm (in.) | 25 (1) |
Tweeter Voice Coil Ø mm (in.) | 25 (1) |
Sensitivity dB SPL | 92 |
Frequency Response Hz | 40 ÷ 22,5k |
Crossover Cut off | 3,5 kHz |
Crossover Type | 2 Way Passive Crossover |
Weight of one component - Woofer | 1.07 (2.36) |
Weight of one component - Tweeter kg (lb) | 0.07 (0.15) |
Weight of one component - Crossover kg (lb) | 0.16 (0.35) |
MPX 165.3
The coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.
Component | Coaxials |
Size mm (in.) | 165 (6.5) |
Power Handling - Continuous W | 100 |
Power Handling - Peak W | 200 |
Impedance Ohm | 4 |
Woofer Voice Coil Ø mm (in.) | 36 (1.42) |
Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
Frequency Response Hz | 45 ÷ 21,5k |
Woofer Magnet size D x d x h mm (in.) | 90 x 45 x 17 (3.54 x 1.77 x 0.67) |
Tweeter Magnet size D x h mm (in.) | 29.5 x 22 x 4 (1.16 x 0.87 x 0.16) |
Weight of one speaker kg (lb.) | 1.27 (2.8) |
Woofer Magnet | High density flux ferrite |
Tweeter Magnet | Neodymium |
Cone | Pressed-pulp cone with cotton fibers |
Dome | Tetolon |
Xmech mm (in.) | ±6 (0.24) |

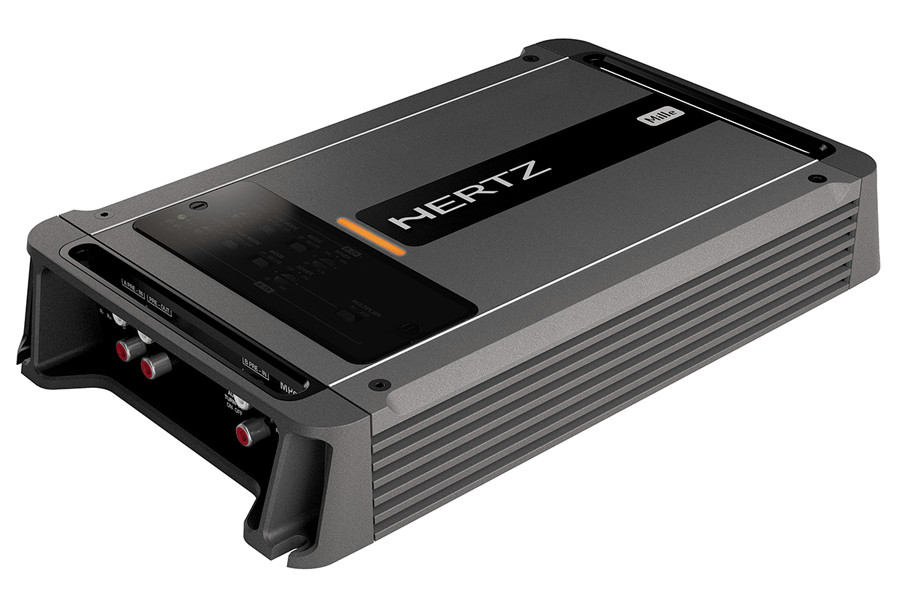

ML POWER 4
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The Hertzaudio car amplifier ML Power 4 (4 x 250 W 2 Ω)is the obvious choice for a top level front-rear Mille system.
Channels | 4 - 3 - 2 |
Power supply voltage: | 11÷15 VDC |
Idling current: | 1,5 A |
Idling current when off: | 0.04 mA |
Consumption @ 1Ω, 14.4 VDC (Max Musical Power) |
50 A |
Distorsion - THD (100 Hz @ 4Ω): | 0.08 % |
Bandwidth (-3 dB): | 5 ÷ 55k Hz |
S/N Ratio (A weighted @ 1 V) | 100 dB |
Damping factor (100 Hz @ 4Ω): | 80 |
Pre-In sensitivity: | 0.2 ÷ 5 V RMS |
Pre-In impedance: | 15 kΩ |
Speaker-In sensitivity: | 0.8 ÷ 20 V RMS |
Speaker-In impedance: | 470 Ω |
Load impedance: 4 Ch 3 Ch 2 Ch |
2Ω 2 x 2Ω ÷ 1 x 4Ω 4Ω |
Remote In: | 4 ÷ 15 VDC - 1 mA |
ART™: | Automatic Remote Turn-On/Off with Speaker-In |
Fuse: | 2 x 40 A |
Max size (mm/inches): | 170 x 289 x 46.70 / 6.69 x 11.38 x 1.84 |
Weight (kg/lb): | 2.45 / 5.4 |
Adjustable Crossovers | yes |
Inputs: | Pre IN / Speaker IN |
Outputs: | Pre OUT |
A Ch Filters: Full/Hi-Pass/Lo-Pass | 50 ÷ 5k Hz (2 range) @ 12 dB/Oct |
B Ch Filters: Full/Hi-Pass/Lo-Pass | 80 ÷ 3.3k Hz @ 12 dB/Oct |
RMS Power (4 Ω, ≤ 1 % THD+N, 14.4 V): | 120 W x 4Ch |
S/N Ratio (ref. 1 W output): | 80 dBA |
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%: | |
4 Ch 4 Ch 3 Ch 3 Ch 2 Ch |
150 W x 4 (4Ω) 250 W x 4 (2Ω) 150 W x 2 (4Ω) + 500 W x 1 (4Ω) 250 W x 2 (2Ω) + 500 W x 1 (4Ω) 500 W x 2 (4Ω) |
Total Power RMS | 1000 W |
mm | in | |
A | 289 | 11.38 |
B | 272 | 10.71 |
C | 170 | 6.69 |
D | 148 | 5.83 |
E | 46,7 | 1.84 |
