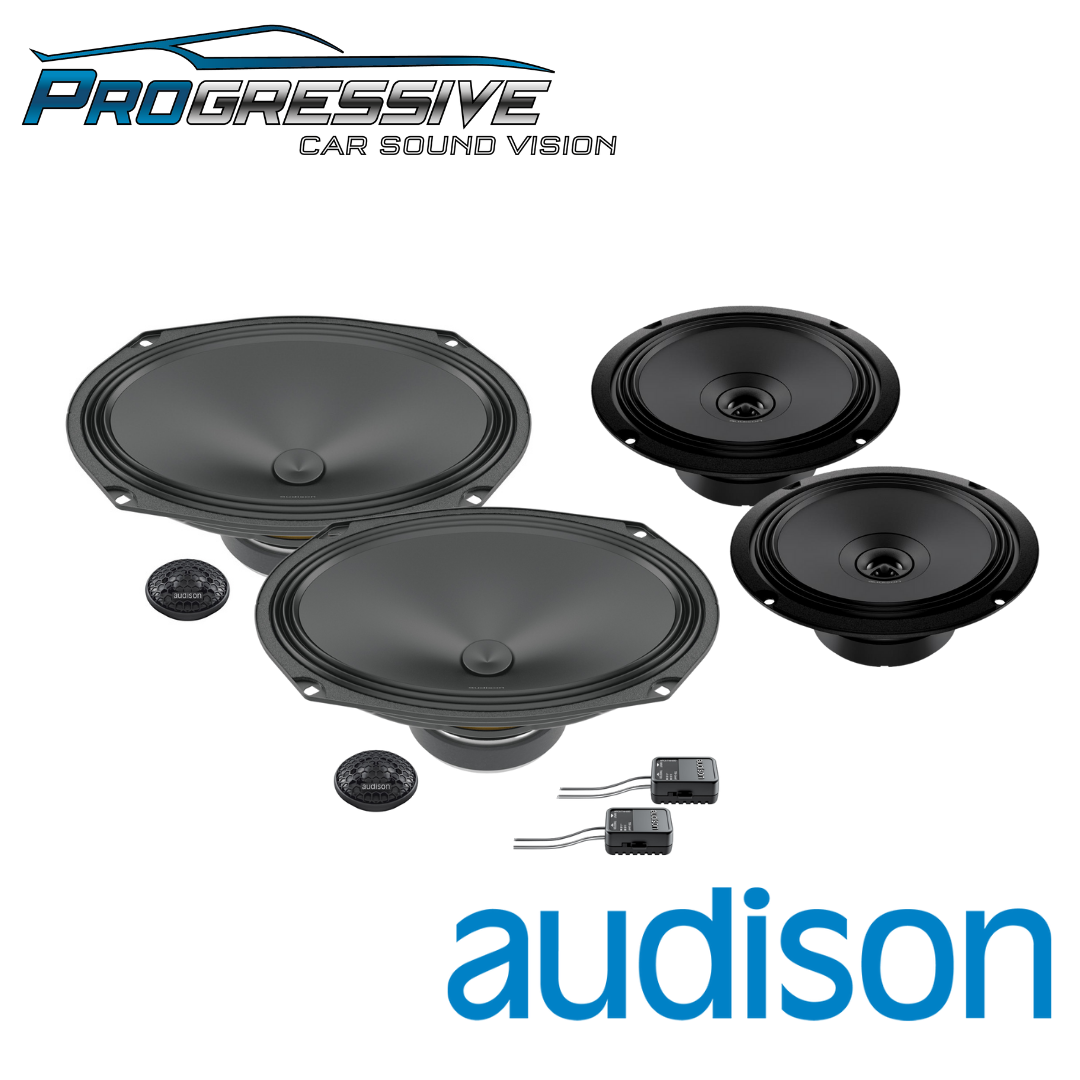

PRIMA SERIES 6x9 + 6.5" SPEAKER PACK

Availability: Call to Order

Collection: Top Brands

Sku: APK690/APX65

Brand: AUDISON


THIS PRODUCT IS NOT AVAILABLE ONLINE.
PURCHASE AT STORE ONLY

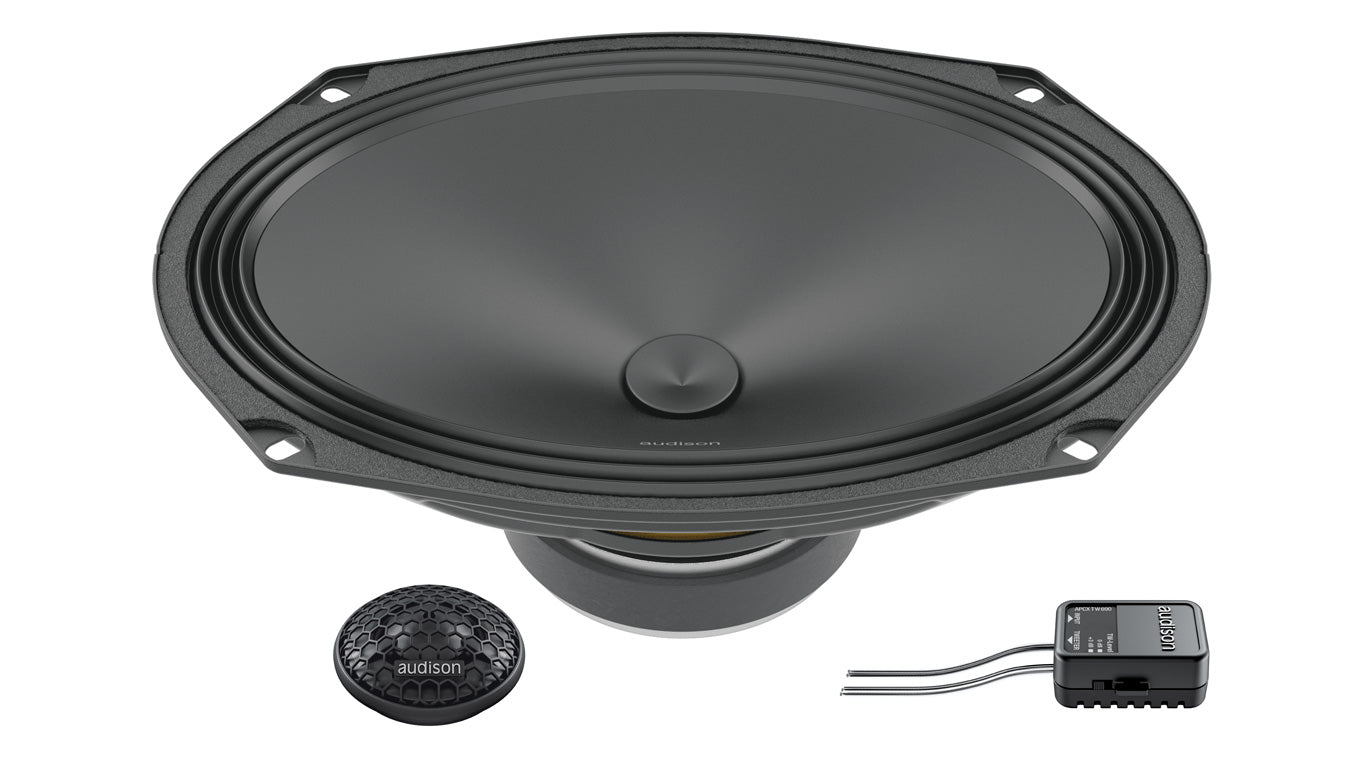

APK 690

2 WAY SYSTEM COMPONENTS

APK 690 systems are ideal for car models with doors equipped to house elliptical speakers, featuring 6×9 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 690. The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning.The R&D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation. The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients. The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.

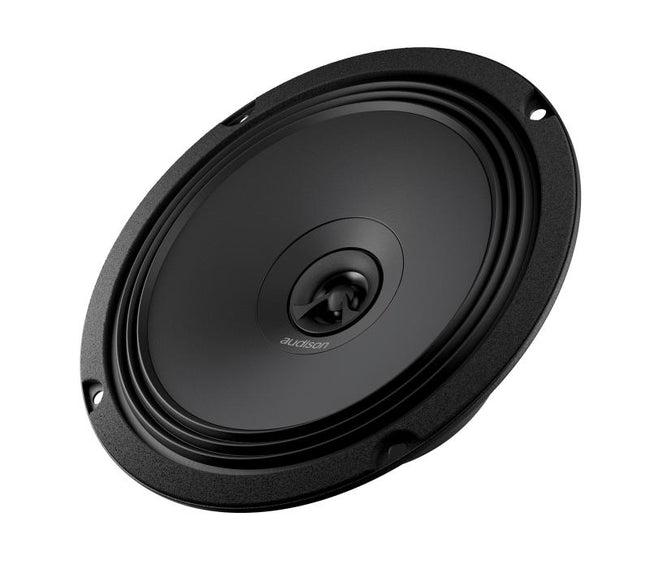

APX 6.5

APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.

The 6.5″ cones surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.



Technical Data

Comp Two way coaxial
Size Woofer 165 mm (6,5″)
Tweeter diaphragm 24 mm (0.9″)
Power Handling 70 W Continuous Power
210 W Peak Power
Impedance 4 Ω
Frequency Response 60 ÷ 23k Hz
Sensitivity 94 dB/Spl
Magnet High density flux ferrite
Dome Water-repellent pressed paper
