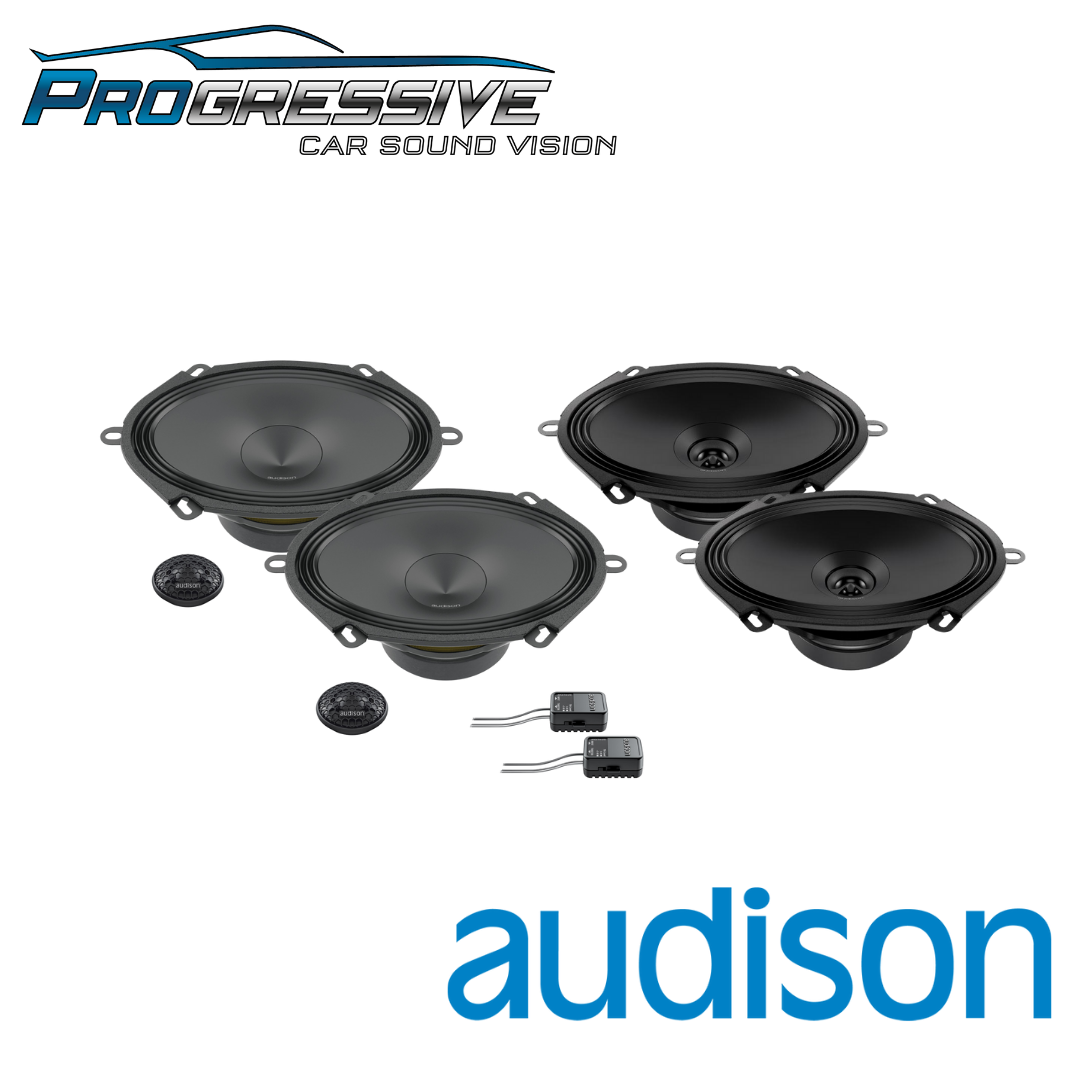

PRIMA SERIES 5x7" SPEAKER PACK
THIS PRODUCT IS NOT AVAILABLE ONLINE.
PURCHASE AT STORE ONLY.

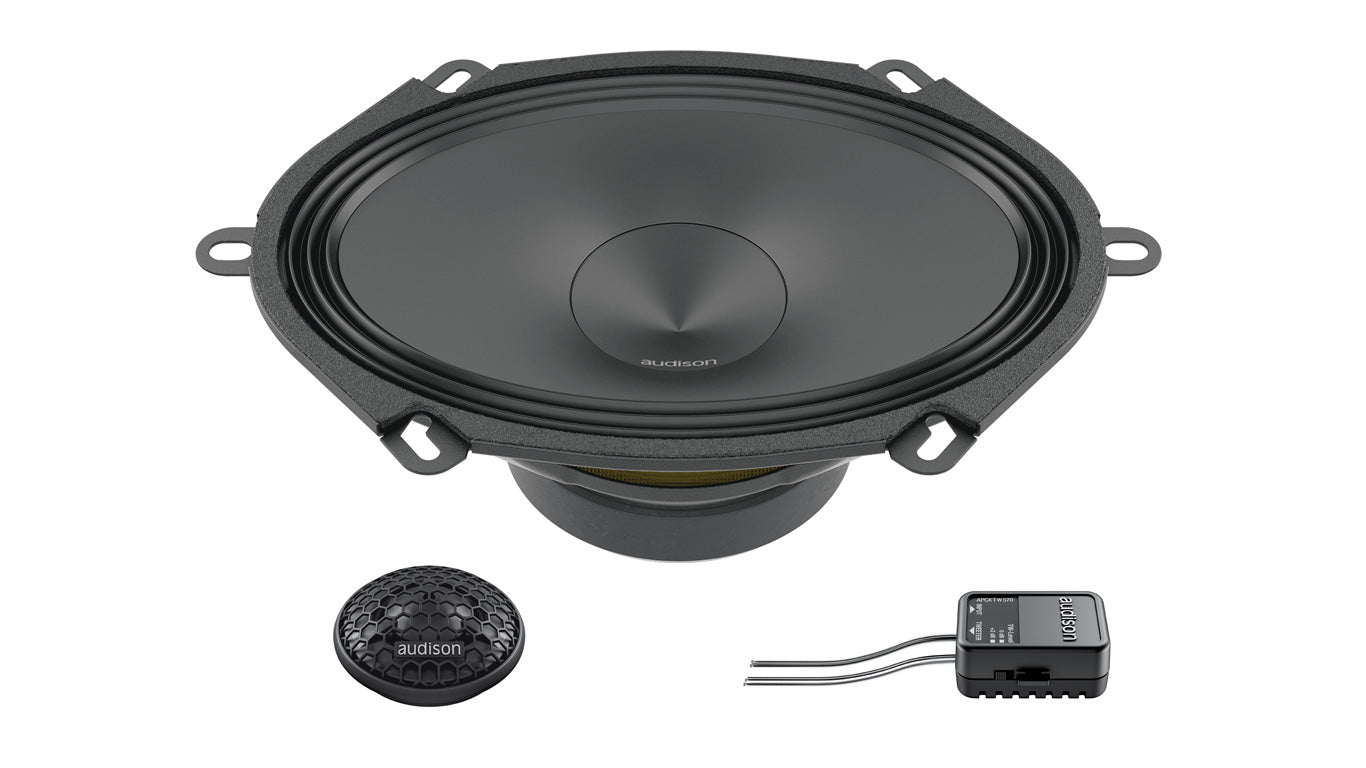

APK 570
2 WAY SYSTEM COMPONENTS
APK 570 systems is ideal for car models with doors equipped to house elliptical speakers featuring 5×7 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 570.
The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning.
The R&D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation.
The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier.
The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients.
The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.
Technical Data
| Comp | 2 way System |
| Size | 5 x 7 in. Woofer 26 mm (1 in.) Tweeter 46,5 x 37,5 x 20,1 mm (1.83 x 1.47 x 0.8 in.) Crossover |
| Power Handling | 100 W Continuous Power 300 W Peak Power |
| Impedance | 4 Ω |
| Frequency Response | 55 – 20k Hz |
| Sensitivity | 93,5 dB/Spl |

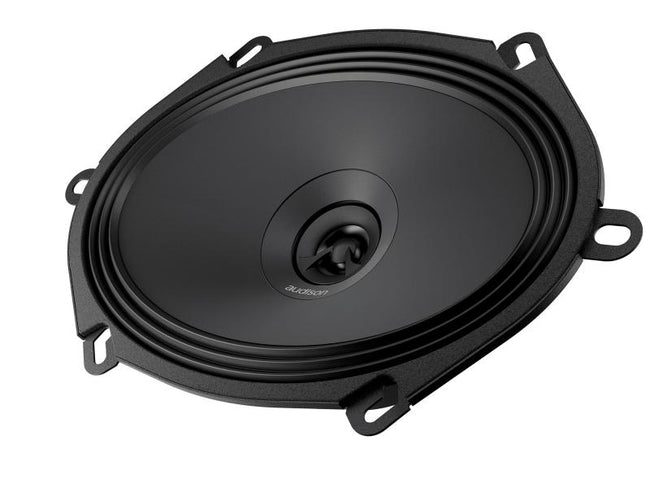

APX 570
APX 570 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.
The 5×7″ cones surround features an exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
| Comp | Two way coaxial |
| Size | Woofer (5″ x 7″) Tweeter diaphragm 24 mm (0.9″) |
| Power Handling | 70 W Continuous Power 210 W Peak Power |
| Impedance | 4 Ω |
| Frequency Response | 60 ÷ 23k Hz |
| Sensitivity | 93 dB/Spl |
| Magnet | High density flux ferrite |
| Dome | Water-repellent pressed paper |
