Woofer

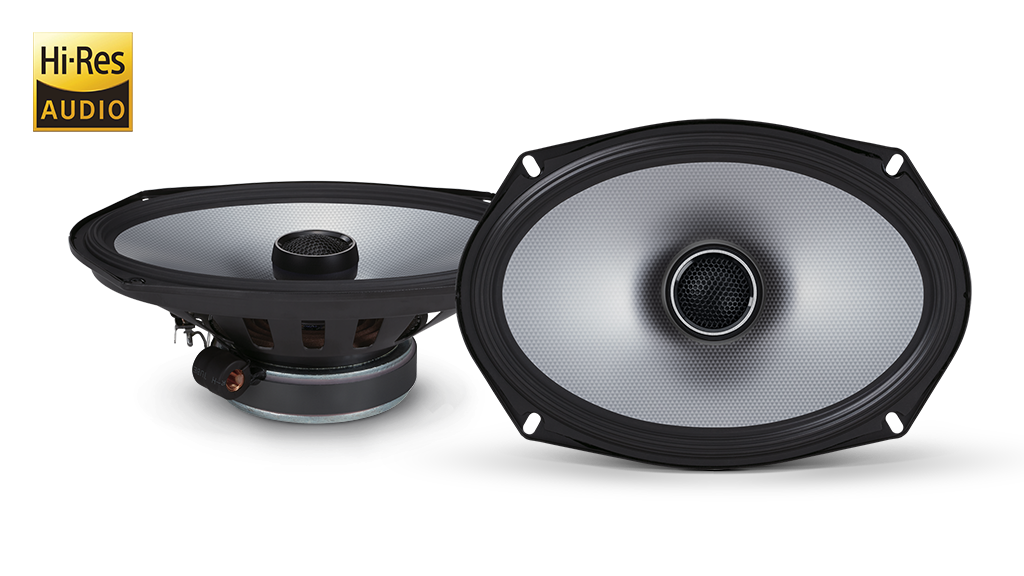

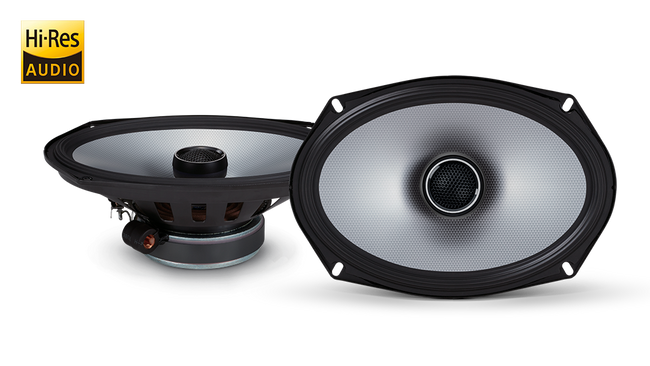

• 6×9″ (160cm x 240cm) Lightweight Glass Fiber Coaxial Speaker
• HAMR (High Amplitude Multi-Roll) Surround
• Large Voice Coil
• Magnet Material: Strontium Ferrite
• Grill sold separately: KTE-S69G

Tweeter

• 1″ Extended-Range Soft Dome Tweeter
• Magnet Material: Ferrite
• Tweeter Grill: Perforated Net

Crossover Network

• Woofer: Copper Air-Coiled Wound Inductor
• Tweeter: High Grade Audio Poly Capacitor

Power Handling

• Peak Power: 260 Watts
• RMS Power: 85 Watts (CTA-2031 Compliant)

Dimensions

• Frame 237 mm x 161mm
• Cutout Diameter: 242mm x 152mm
• Mounting Depth: 74.5 mm
• Mounting Height: 7.3 mm
• Magnet: 100.0 mm

General

• Frequency Range: 55 Hz – 40 kHz
• Impedance: 4 Ohms (DCR 3.7 ohms)
• Sensitivity: 90 dB SPL (1W @1m)
• Recommended Amplification: up to 85W RMS per channel
