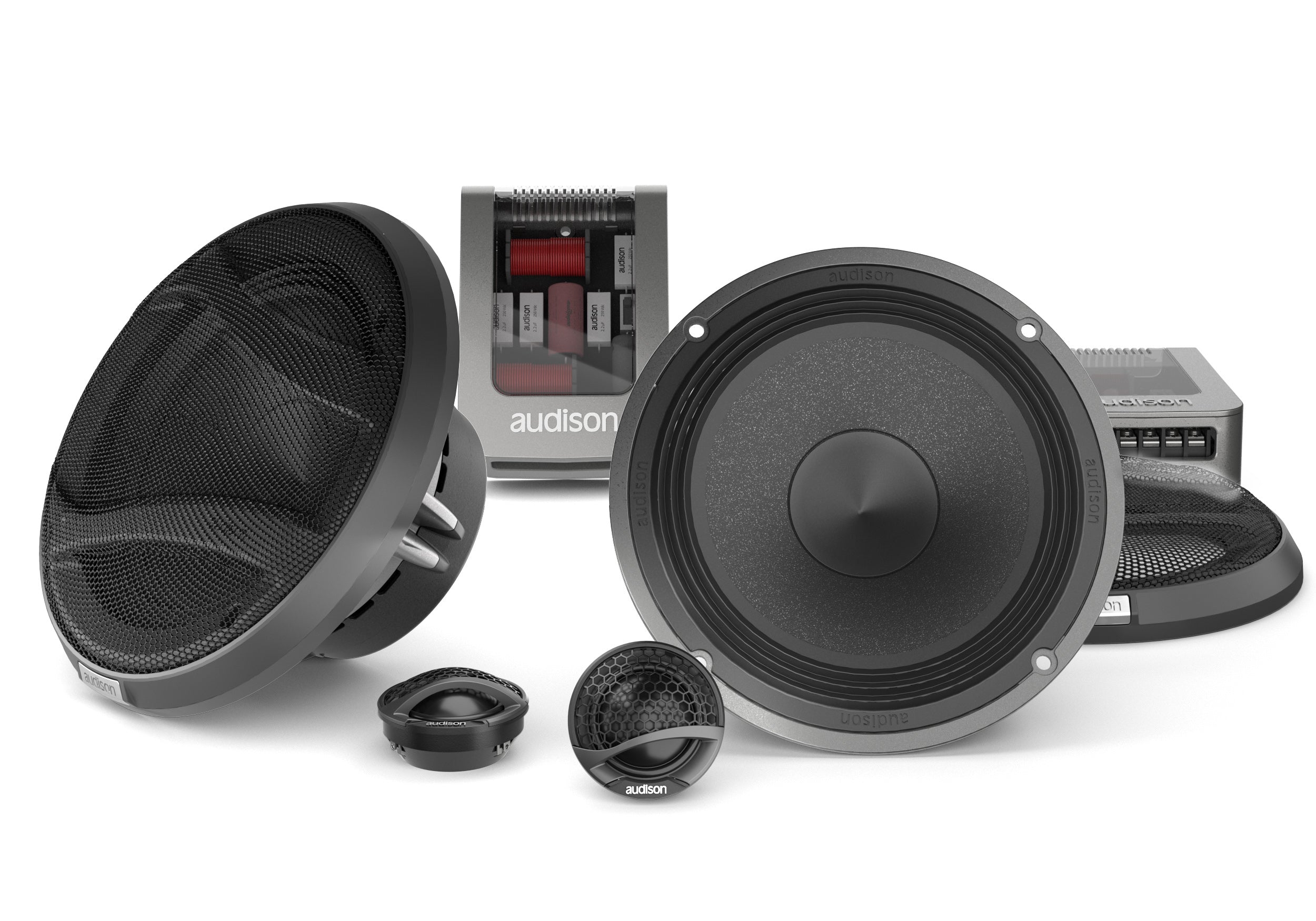

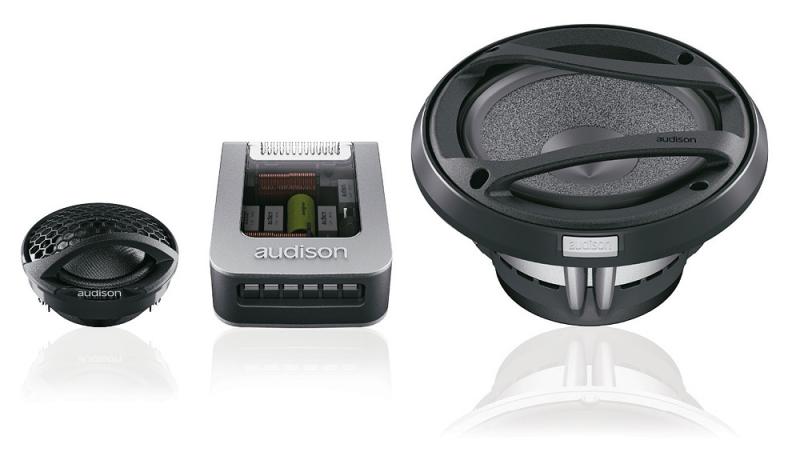

audison AV K6

Availability: Call to Order

Collection: 6.5” Speakers

Sku: avk6

Brand: AUDISON

Our Dealer Agreement stipulates that this item cannot be sold online – Please call for assistance or email info@progressivecarsv.com.au

The prestigious Eisa Award European In-Car Speaker System 2010-2011 was bestowed to the AV K6 and AV K5 kits, which gather and comprise the most advanced technologies developed for the Audison components, at the service of music.The whole R & amp;D laboratory's experience was poured into the design of these precious components, to create a synergy that can offer the highest quality sound in terms of bandwidth, dynamics of the musical message, naturalness and richness of details. The new reference for their own category.

Technical Specs LF

Woofer Size 165 mm (6.5 in)
Impedance 4 Ohm
Power Handling - Peak 250 W
Power Handling - Continuous 125 W
Frequency Response 50 ÷ 22k
Voice Coil Diameter 30 mm (1.18 in)
Magnet Size 90 x 40 x 15
Crossover Level Adjustment +2; 0; -2 dB

Technical Specs HF

Tweeter Size 28 mm (1.1 in)
Voice Coil Diameter 28 mm (1.18 in)

Electric-acoustic Specs LF

Re 3.5 Ohm
Fs 68 Hz
Mms 16.1 g
Cms 0.34
BL 5.5
Qms 7.84
Qts 0.74
Vas 8.2 l
Le 0.31 mH
Spl 91 dB
Xmax 3 mm (0.12 in)

Kit Tech Data

Crossover Low-Pass Lo/Hi-Pass 2.5 kHz @ 12/12 dB/Oct.
Cone Diameter 130 mm

General

Weight Woofer 1.2 kg
Weight Tweeter 0.07 kg

Features

  • TWEETER1 Tetolon dome, a combination of silk and cotton with
    proprietary damping treatment, provides low mass and
    resonance-free response up to ultrasonic frequencies.
  • CCAW (Copper Clad Aluminium Wire) voice coil wound on
    double layer, extremely lightweight and compact, resulting
    in a very high efficiency and a crisp, dynamic sound.
  • The annular geometry of the Rear Damping Chamber,
    together with the proprietary damping material, extends
    the frequency response to lower limits and reduces
    harmonic distortion.
  • High flux density Neodymium magnet, for very high
    efficiency and detailed sound.

WOOFER

  • The profile of the aerodynamic basket’s spokes along
    with the open-air design ensure drastic reduction of
    back-wave reflections.
  • The exclusive Butyl rubber Triple Wave surround
    profile provides full linearity as well as reliable
    performance under extreme conditions.
  • Extremely lightweight and compact, the CCAW (Copper
    Clad Aluminium Wire) voice coils wound on double layer
    provide very high efficiency and neat, dynamic sound.
  • Cotton-fibre pressed paper cone with treatment.
  • The Radial Venting System ensures high thermal
    capability, power handling and reliability
