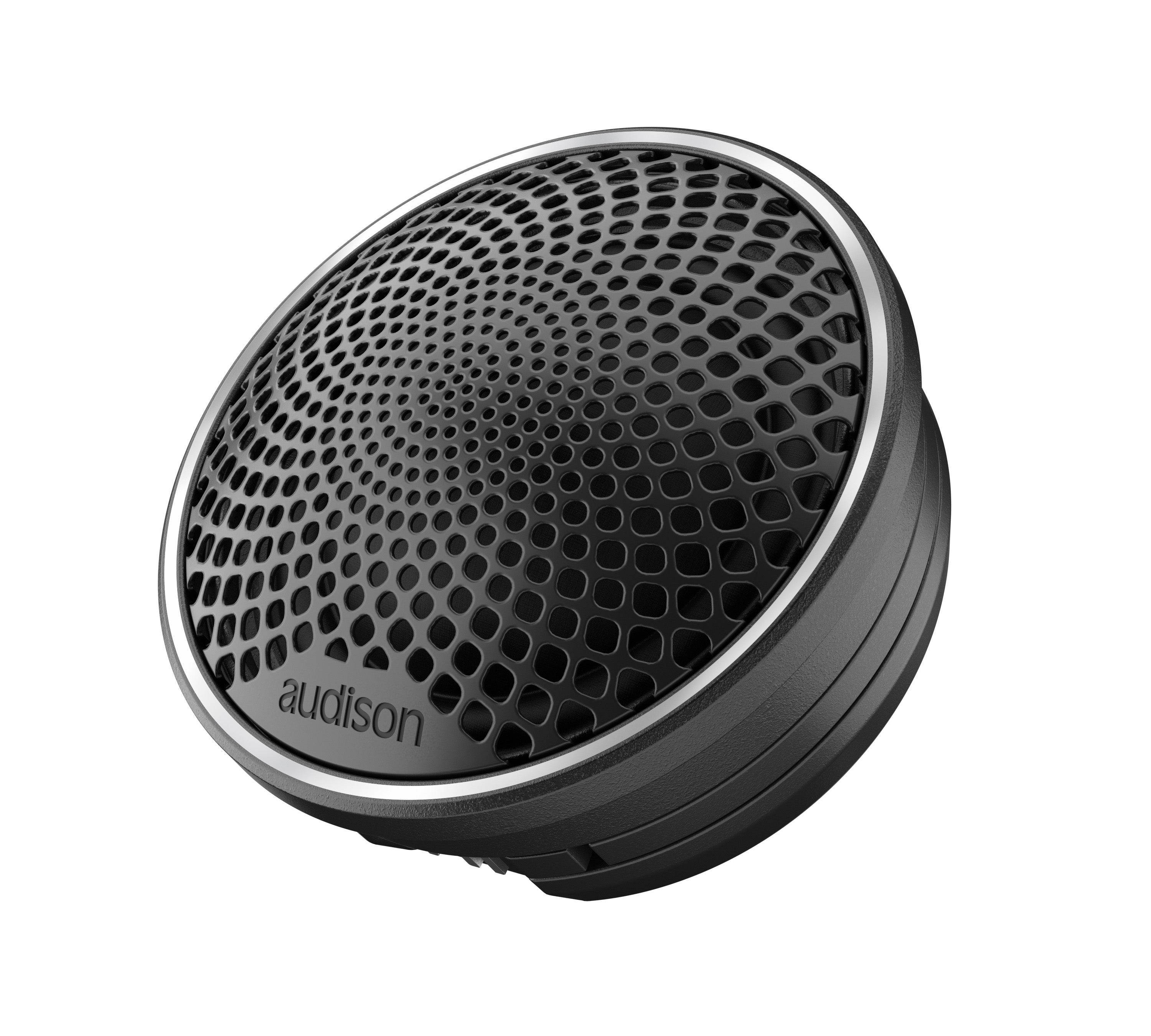

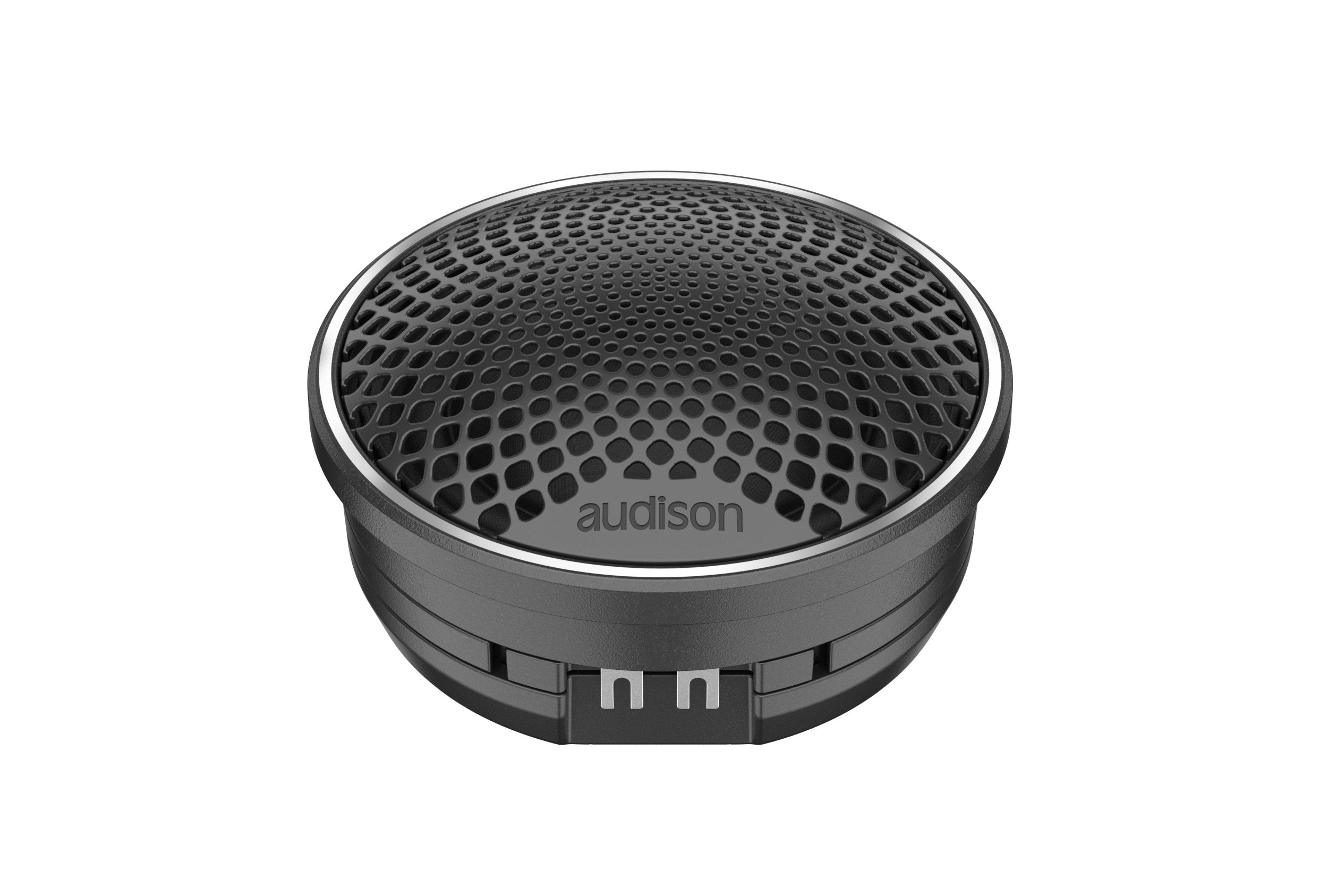

AV 1.0 II

• Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.
• Tetolon soft dome: Optimized through precise material characterization, laser vibrometer scanning, and advanced simulations, ensuring a smooth and extended response, offering warm and natural sound reproduction.
• 1” (25 mm) CCAW voice coil: Lightweight and stable, it eliminates musical transient compression, ensuring low distortion for clean and natural sound, even at high SPL level.
• Powerful neodymium magnet: Designed to provide superior dynamic response and minimal distortion across the frequency spectrum, improving sound clarity and precision.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
• AIF (Any Install Faceplate) Technology: Designed to ensure total installation flexibility and significantly reduce installation time, offering two faceplates and three mounting accessories for any configuration.
• FEM-optimized faceplates (Finite Element Method): Improve sound dispersion for a balanced and immersive listening experience from any angle.
• Mesh and spoke grilles: Both grilles are included to ensure perfect integration within the vehicle cabin, combining aesthetics and performance.
• eID technology: Provides tweeter traceability from production to the owner, guaranteeing authenticity and product security.

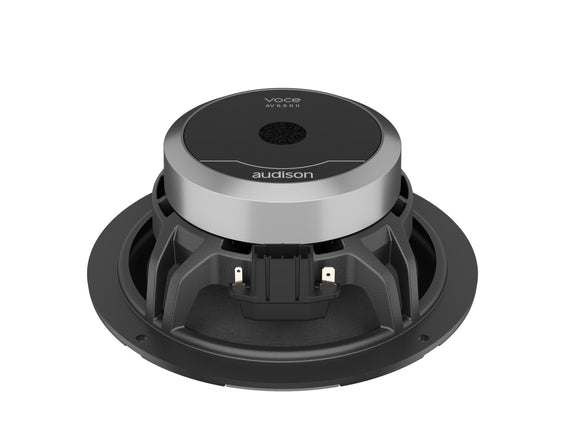

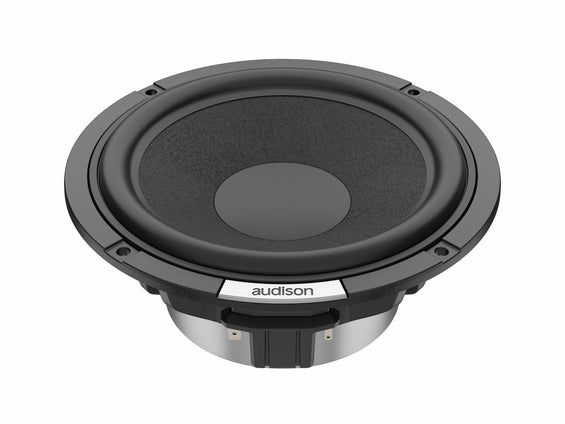

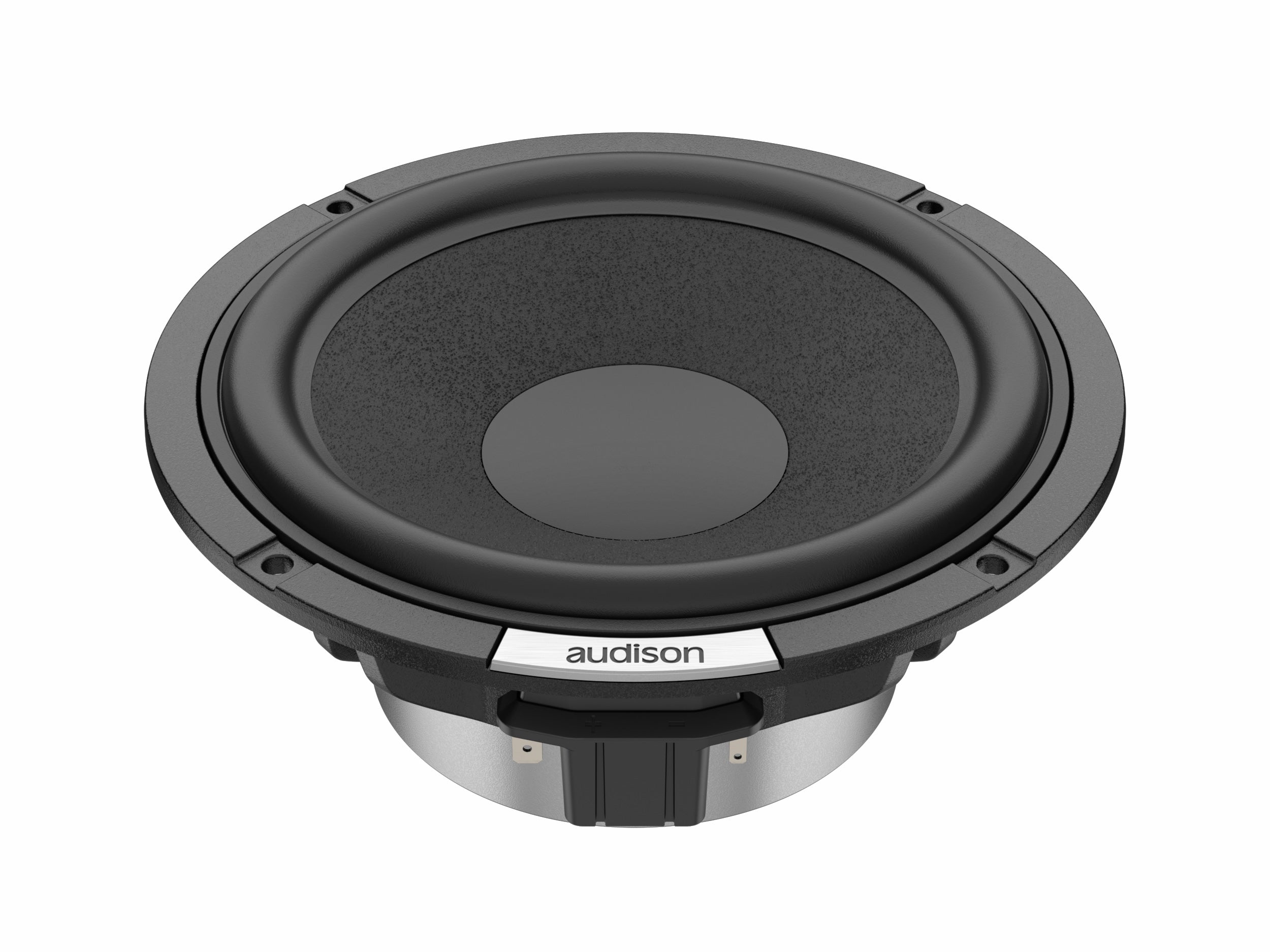

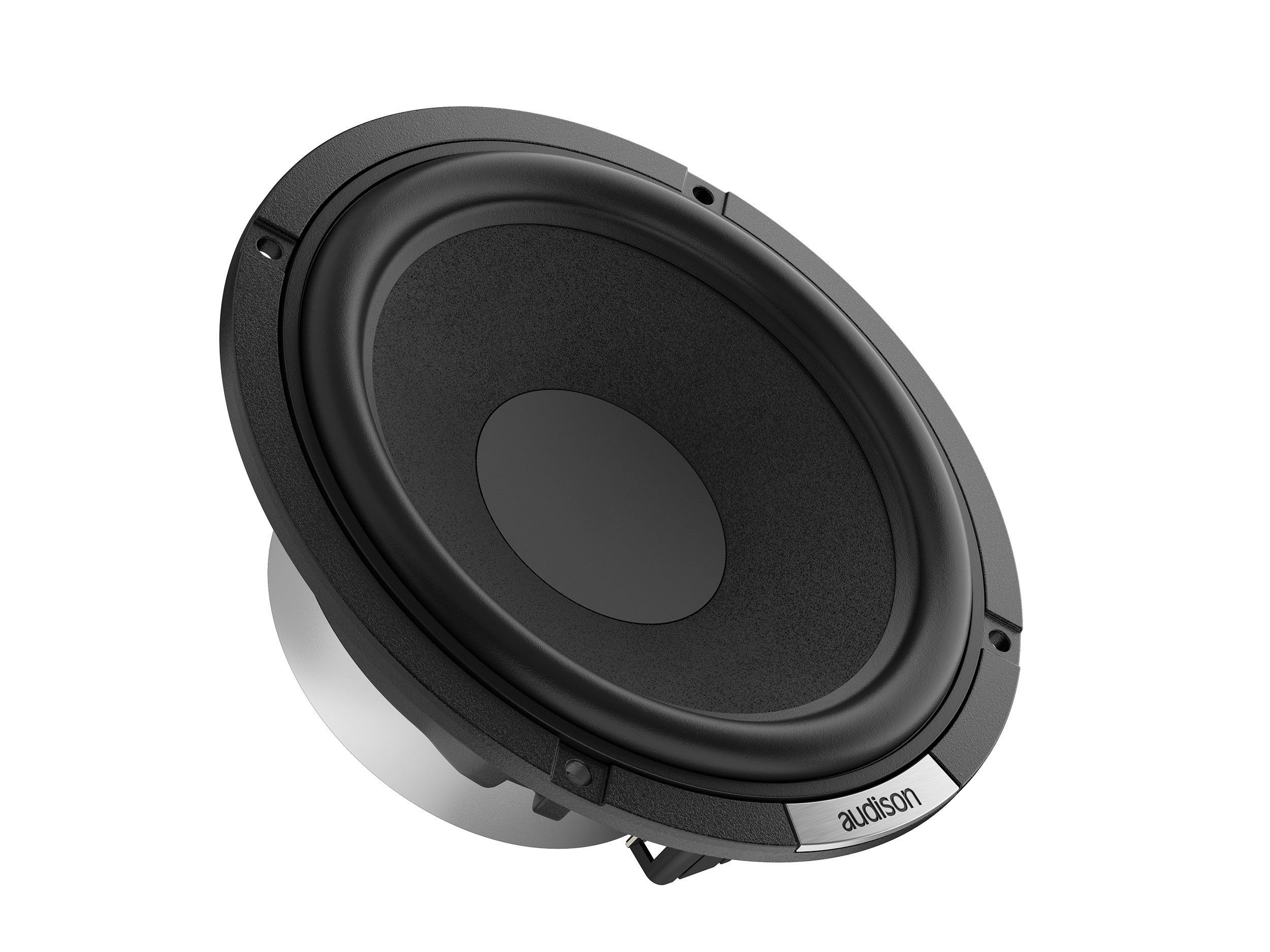

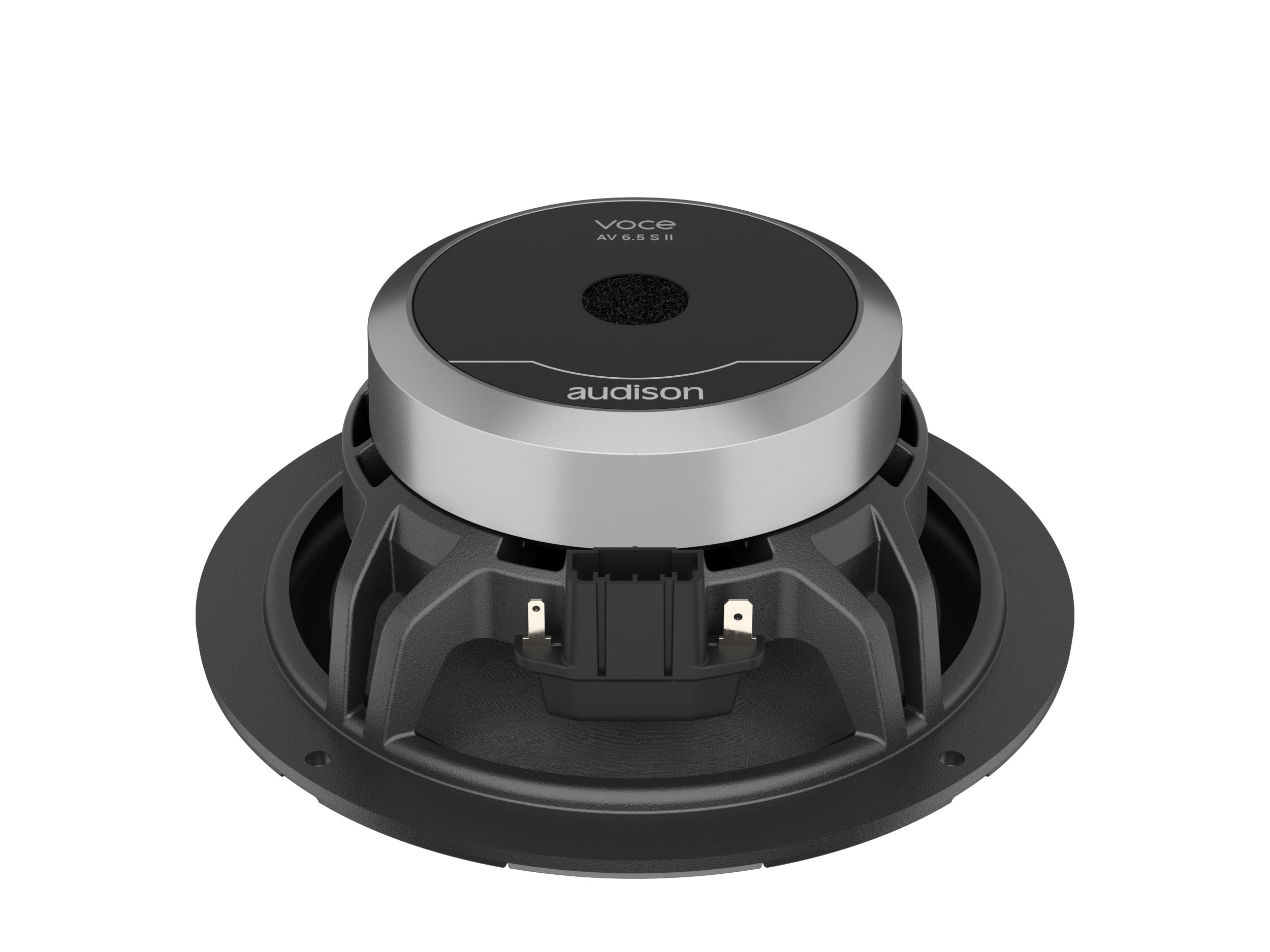

AV 6.5 S II

• 1.4” (36 mm) CCAW (Copper Clad Aluminum Wire) voice coil: Maximizes excursion capability and heat dissipation, allowing the driver to reach 100W RMS power, delivering powerful bass free from dynamic compression, even at high listening volumes.
• Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in in the motor.
• Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
• FEM-optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
• Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.
• Die-Cast Aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
• High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
• Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
• eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

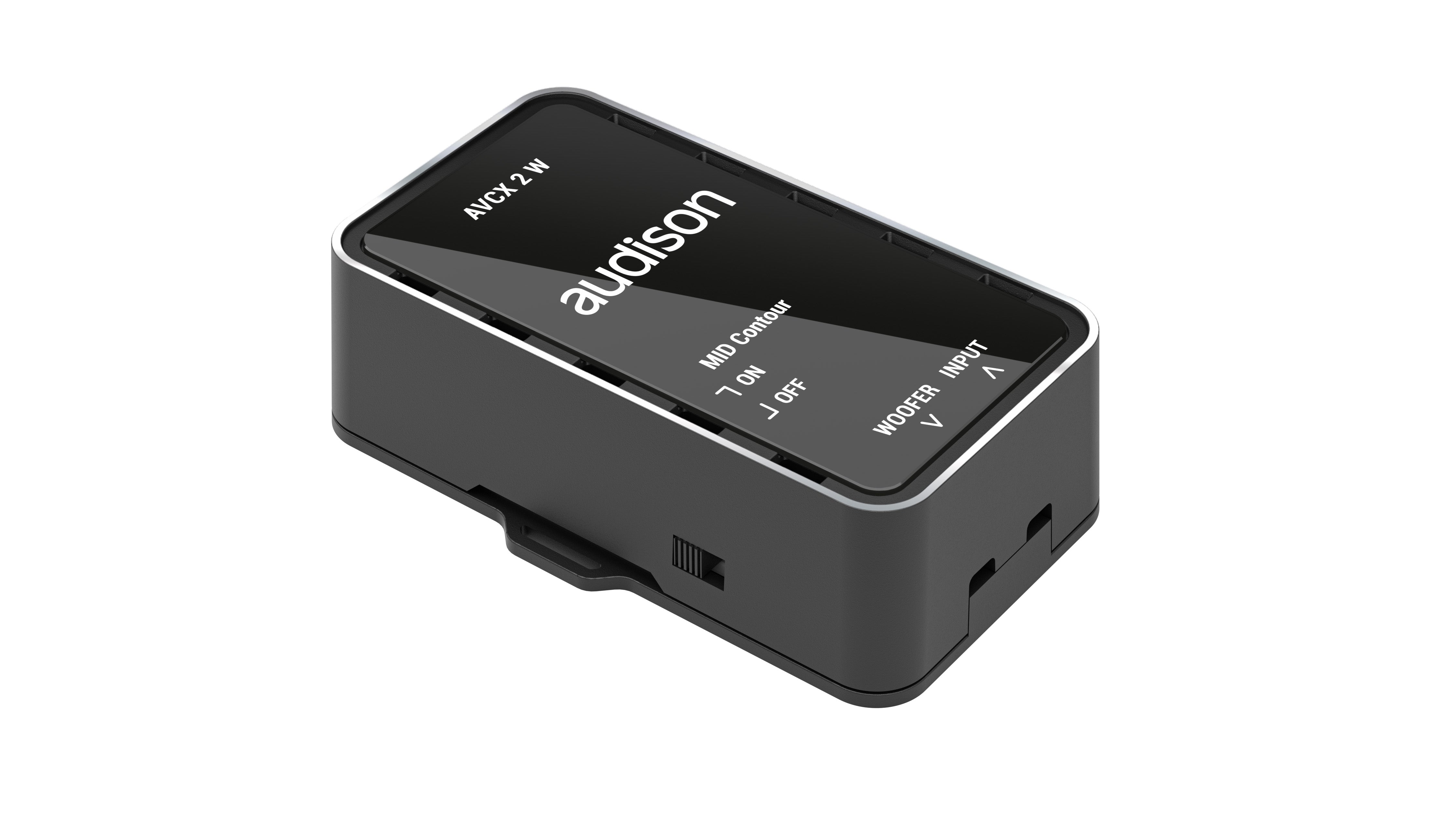

AVCX 2 W and AVCX 2 T

• Separate compact crossovers for tweeters and woofers: Allow bi-amplification of tweeter and woofer, reducing space requirements and simplifying wiring, making the installer’s job easier.
• Tweeter Level and Mid Contour Controls: Enable precise tuning to adapt the sound profile to vehicle acoustics and user preferences.
• Selected components: Featuring 160V bi-metalized polypropylene capacitors and 10W aluminum body low-inductance resistors, ensuring high power handling, durability, and distortion-free performance.
• Crossover Optimization: Fine-tuned through advanced simulations and extensive in-car listening sessions to achieve the perfect balance between the tweeter and woofer, guaranteeing seamless integration and a natural, harmonious listening experience.
• OEM-Style Connectors: Provide secure and efficient connections for quick and reliable installation.
