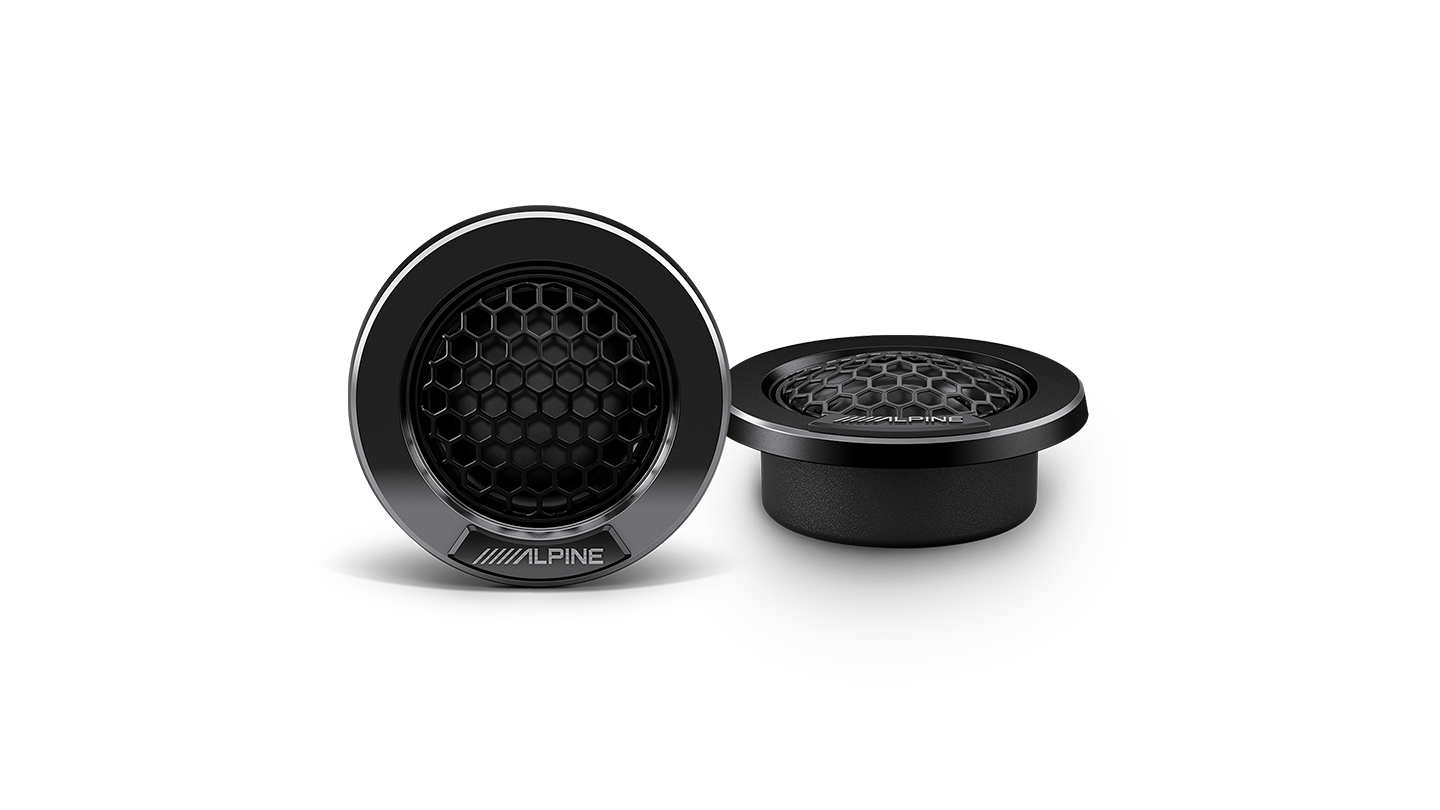

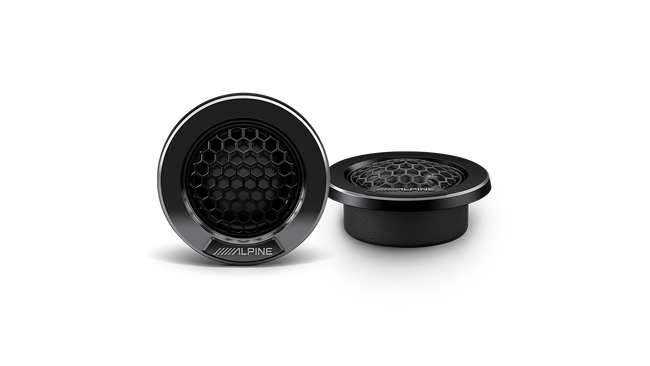

Tweeter

• Tweeter Type: 1″ Tetoron Soft Dome Tweeter
• Magnet Material: Neodymium Magnet
• Application Type: Surface Mount

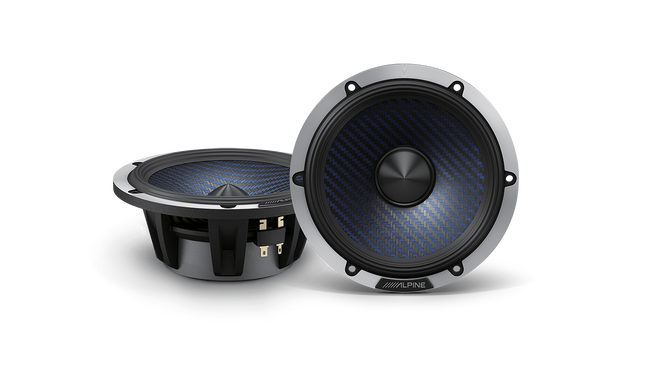

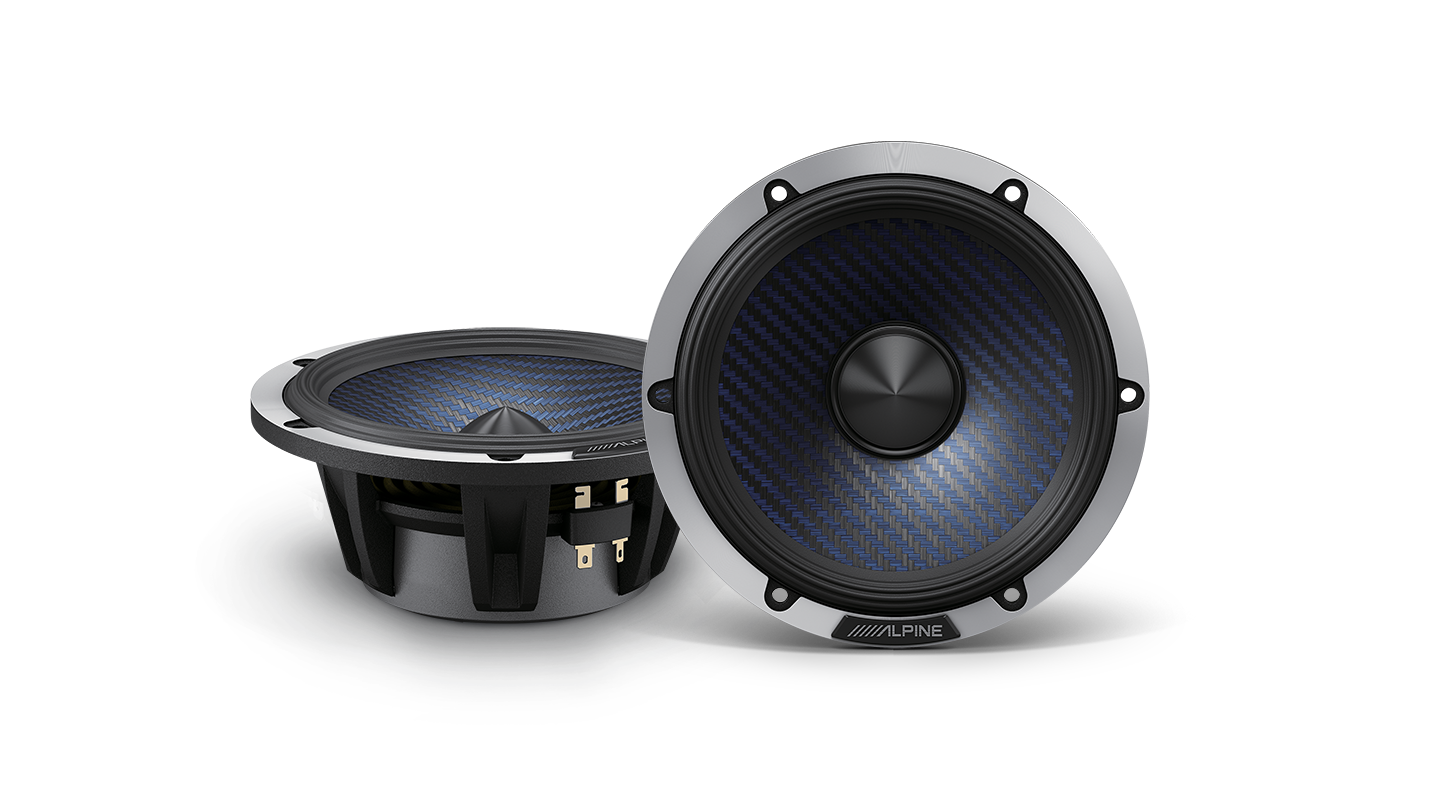

Woofer

• Cone Material: Woven Carbon Fibre Hybrid
• Magnet: Ultra High Density Radial Ring Magnet
• Frame: Cast Aluminium
• Surround: HAMR Multi-Roll
• Mounting: 6 Point
• Terminals: Gold Plated

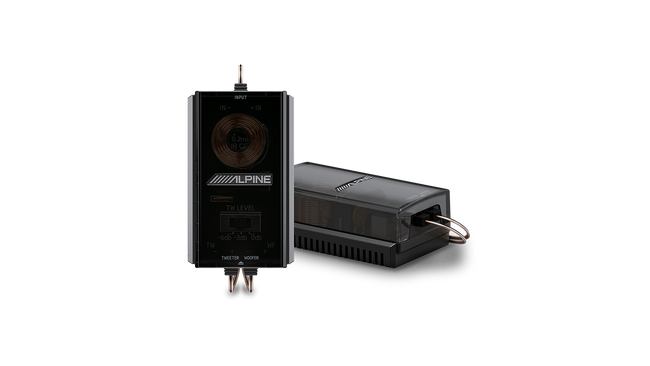

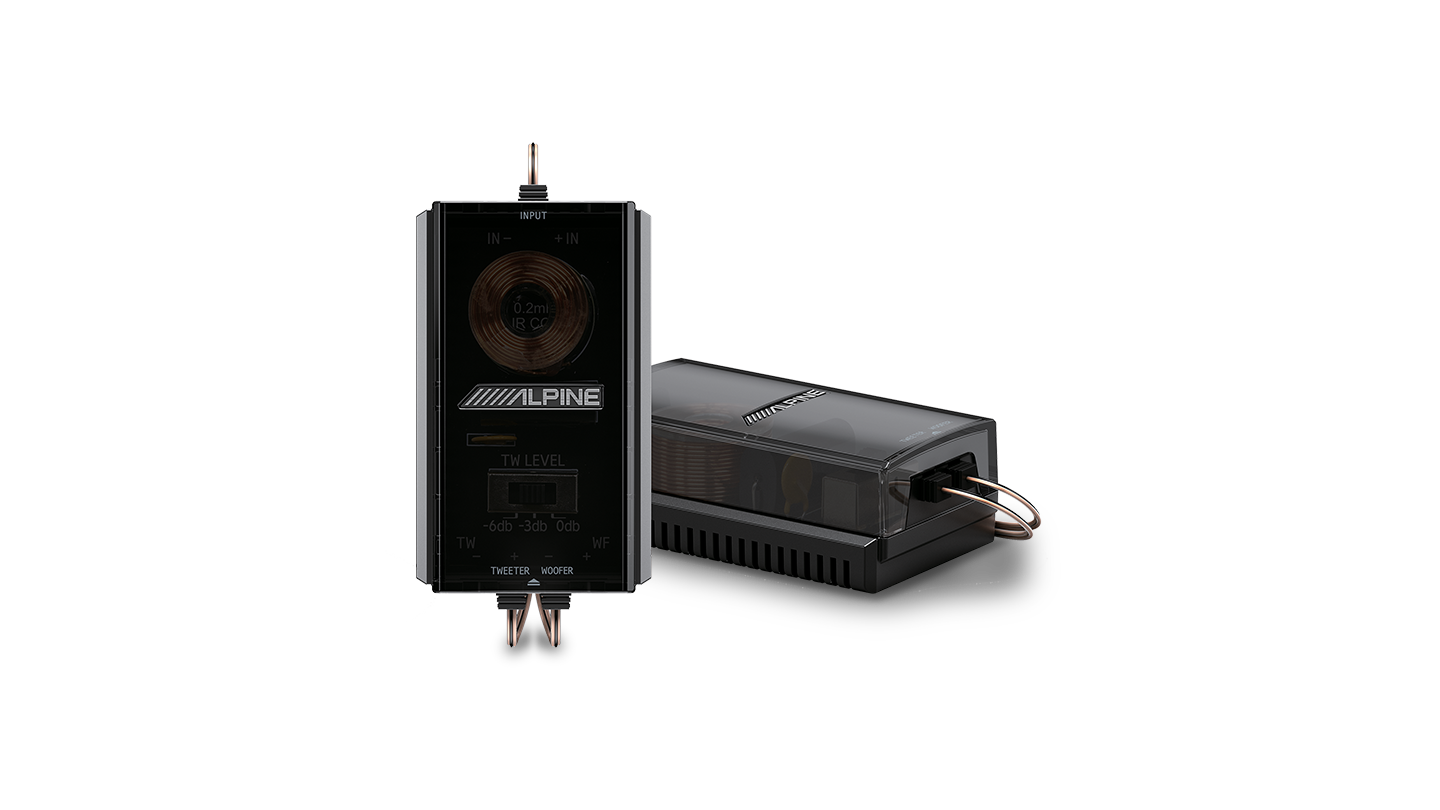

Passive Crossover Network

• Compact Design for Easy Installation
• Design: In-line 2 Way Network Design
• Tweeter Attenuation: 0dB, -3dB, -6dB
• High Grade Network Components
• Alpine Custom Specification Poly-Capacitors
• Air-Core Inductors

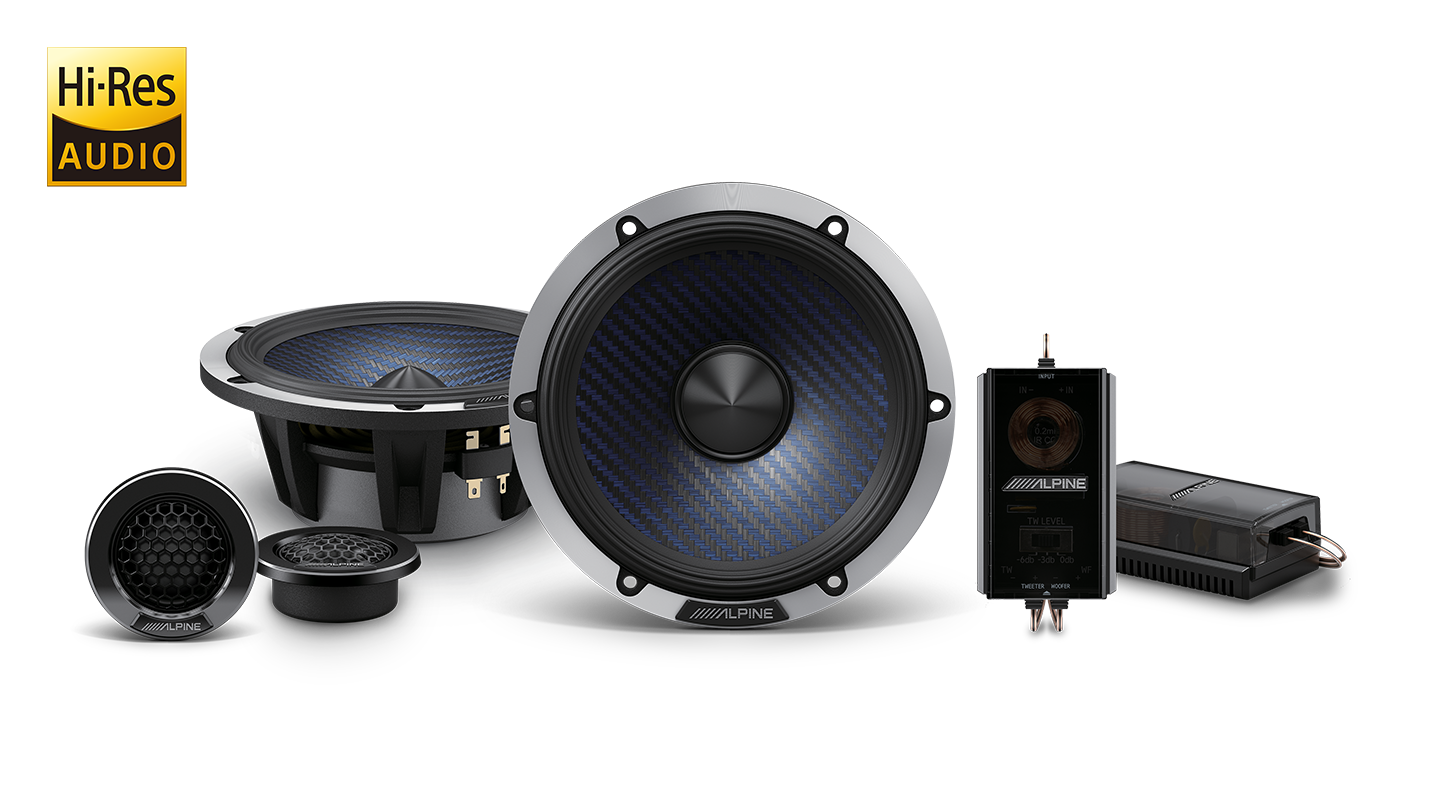

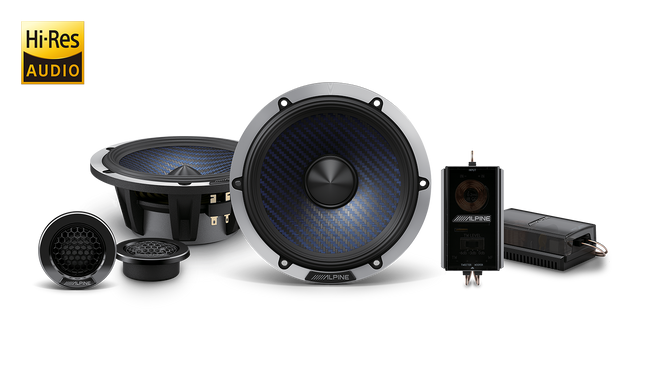

General

• Peak Power Handling: 240W
• RMS Power Handling: 50W
• Nominal Impedance: 4ohms
• Frequency Response: 60Hz – 40KHz
• In-Line 2-Way High Quality Crossover
• 1″ Tetoron Soft Dome Tweeter
• Woven Carbon Fibre Hybrid Woofer Diaphragm
• Woofer Cast Aluminium Frame
• Woofer Grille Optional (Pair): DP-65G

Dimensions

• Woofer Diameter : 165 mm
• Woofer Mounting Depth : 59 mm
• Woofer Cut-Out: 130.2mm
• Network Width : 51.9mm
• Network Height : 30.9mm
• Tweeter Diameter (Without Frame): 39mm
• Tweeter Depth (Without Frame): 20.1mm
• Tweeter Mounting Cup Diameter: 59mm
• Tweeter Mounting Cup Diameter Cut-Out: 43.6mm
• Tweeter Mounting Cup Depth: 15.8mm

Weight

• Woofer: 1240g
• Tweeter: 72g
• Crossover Network: 120g
