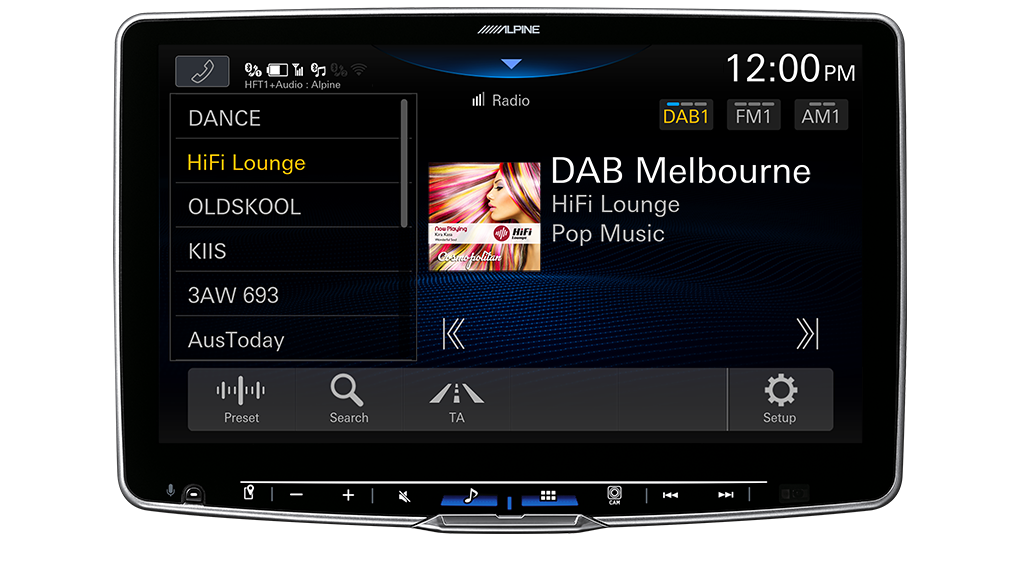

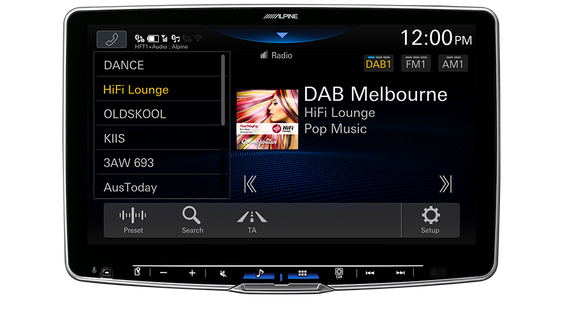

Radio / DAB Tuner

• Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
• Memory: Auto Memory
• Seek Mode: Local, DX, Pre-Set, Service
• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function

BLUETOOTH®

• Built-in BLUETOOTH® Module V4.2

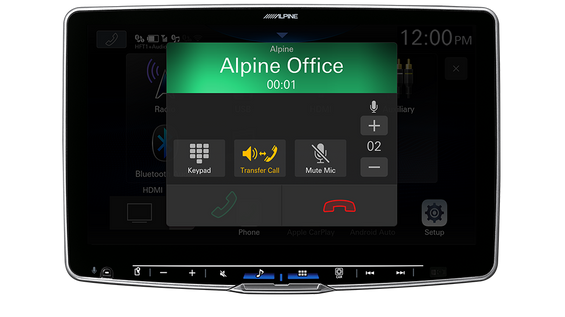

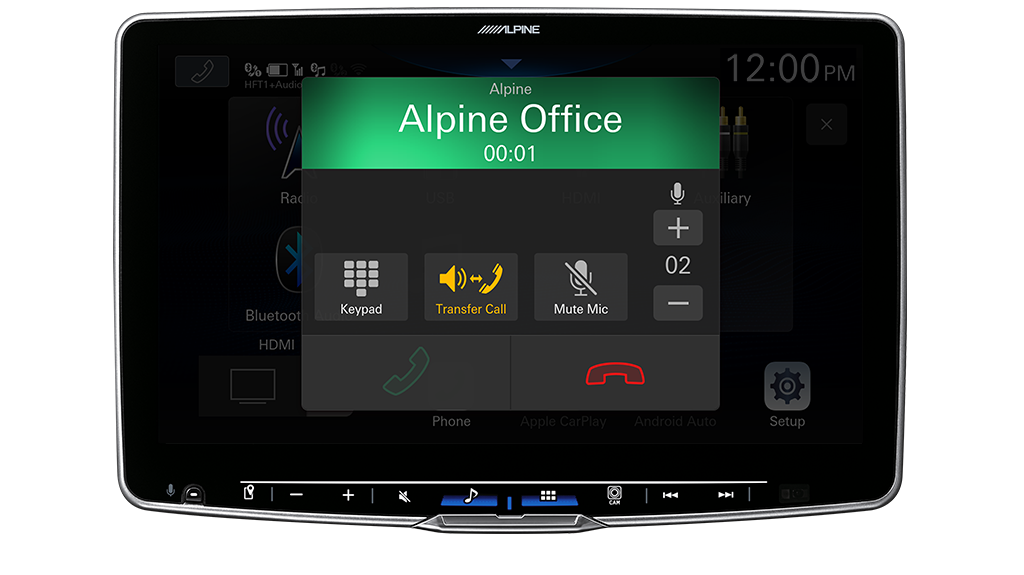

• HFP (Hands-Free Profile) Compatible
• A2DP (Advanced Audio Distribution Profile) Compatible
• AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Phone Book Synchronisation
• Speed Dial: 4 Preset Memory (per phone)
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Redial Function
• Speech Volume Level Adjustment: (Outgoing and Incoming)
• 24 Menu Languages
• Microphone Included

Works with iPhone®

• Compatible with iPhones featuring a lightning connector
• Various search functions and Album Artwork Display
• Battery Charging

Connectivity

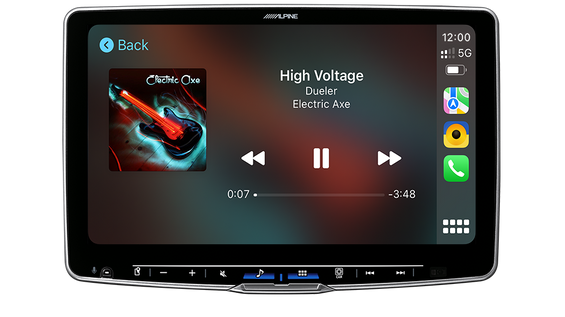

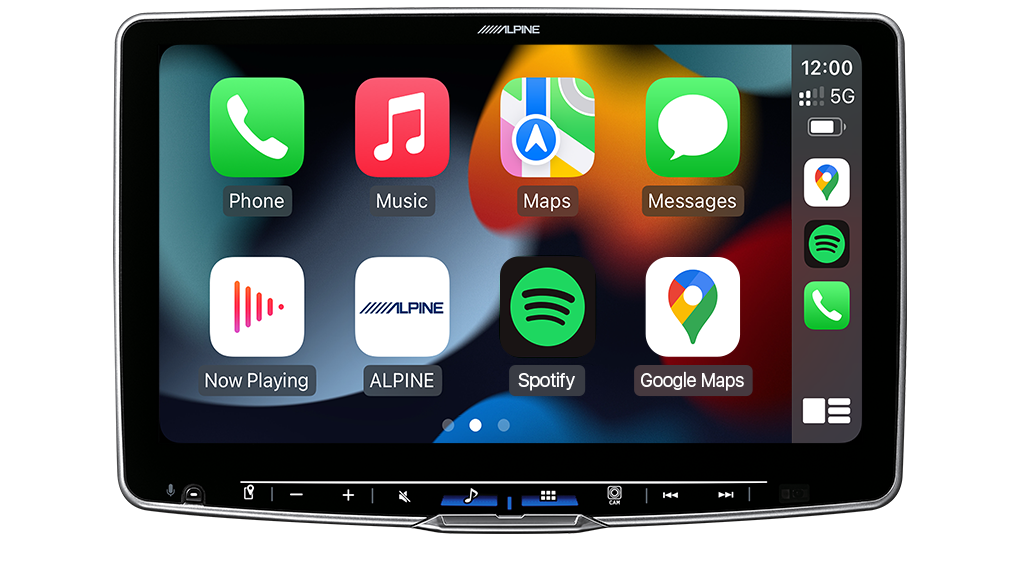

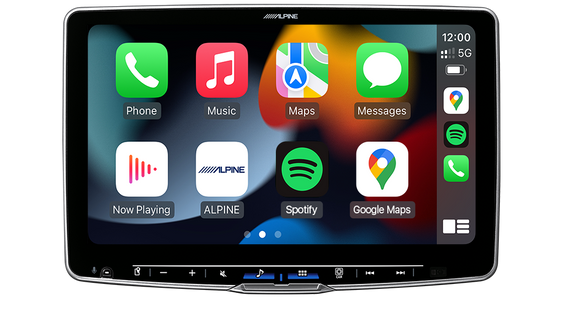

• Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)

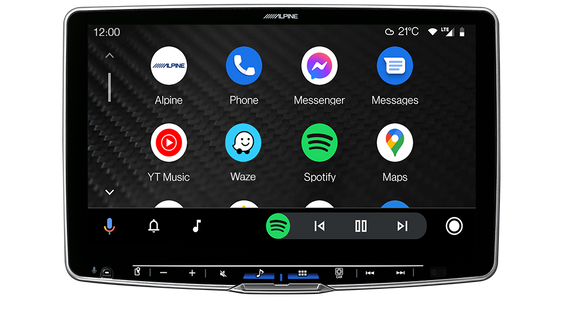

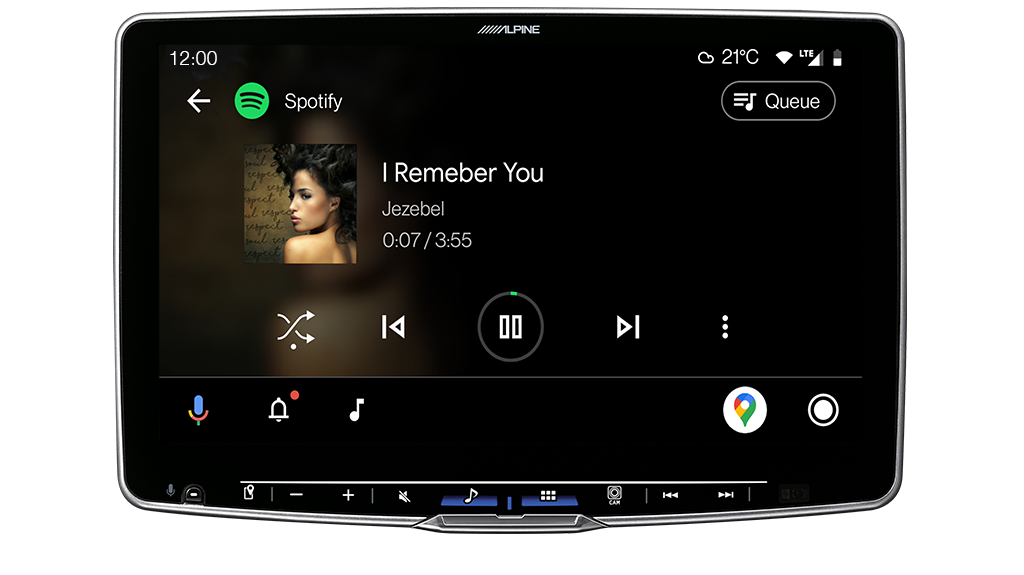

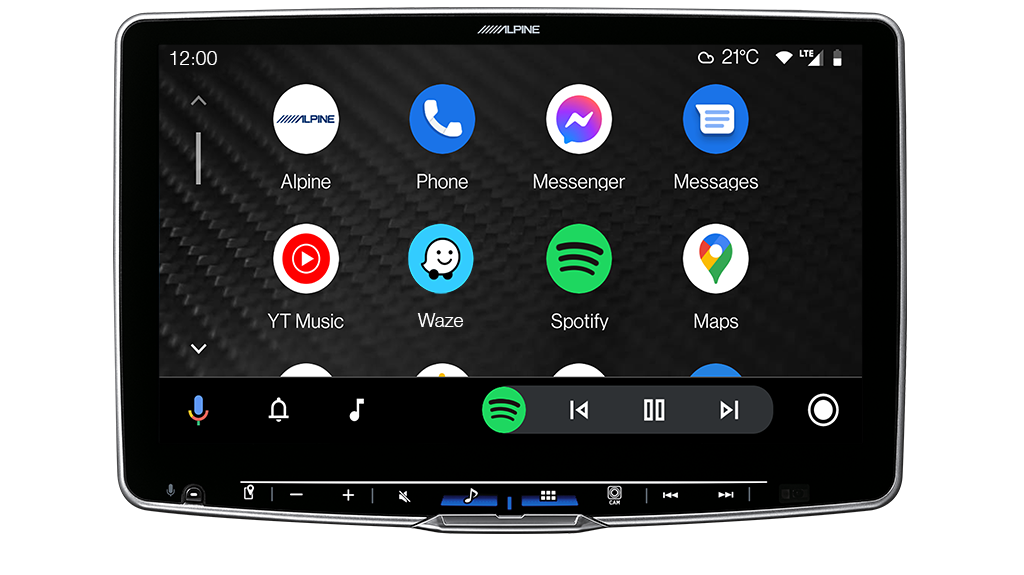

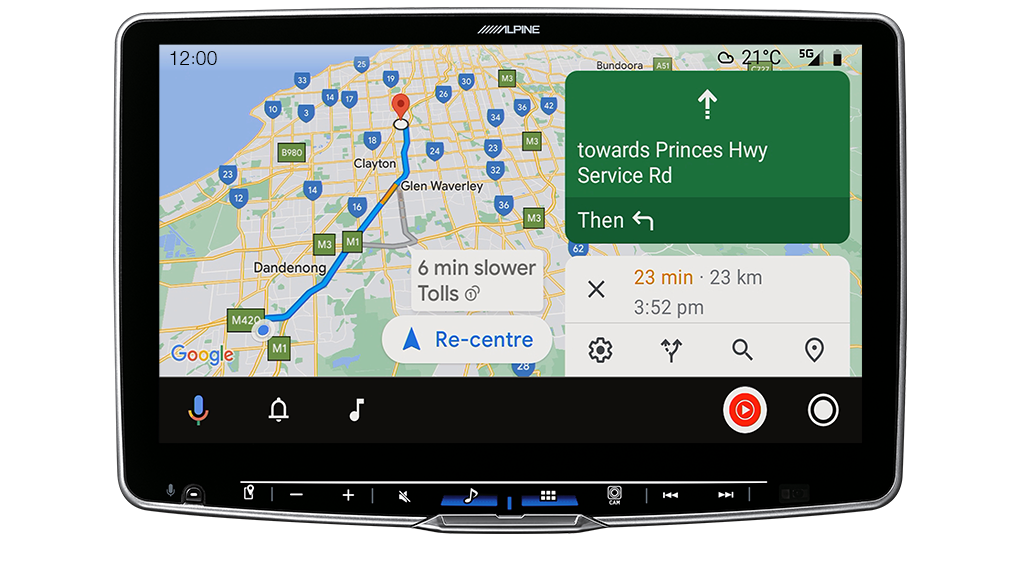

• Works with Android Auto wirelessly (requires Android Auto enabled handset) **Not all handsets supported and may require wired connection.

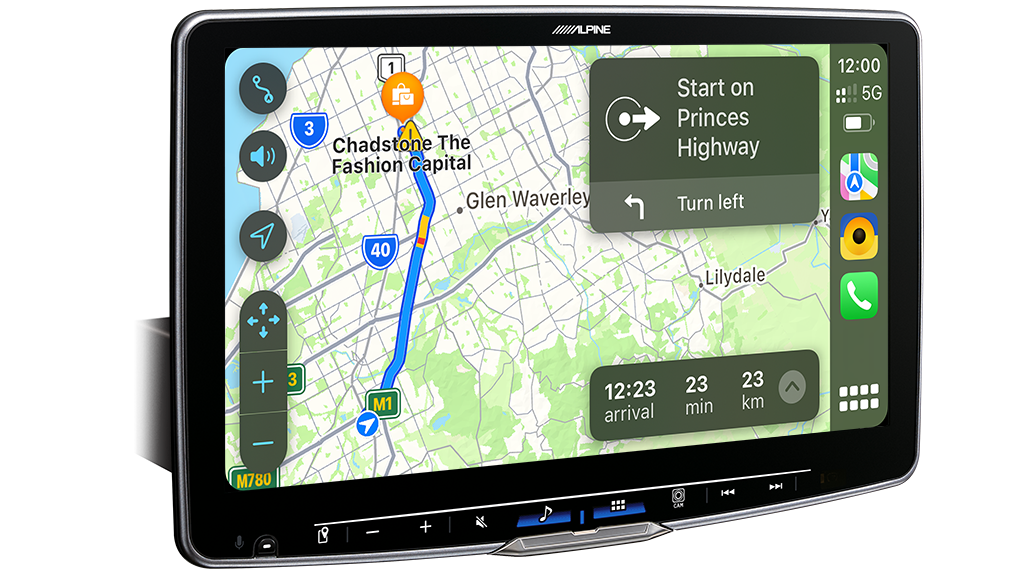

Navigation Function

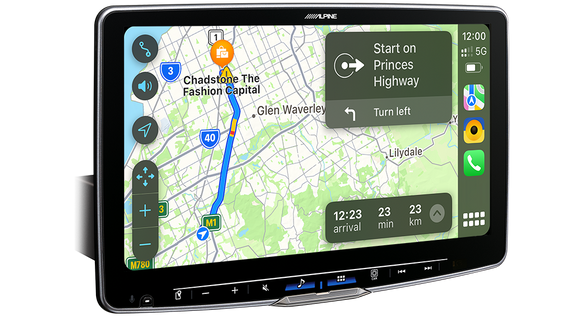

• Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
• Includes GPS / Glonass enabled navigation antenna

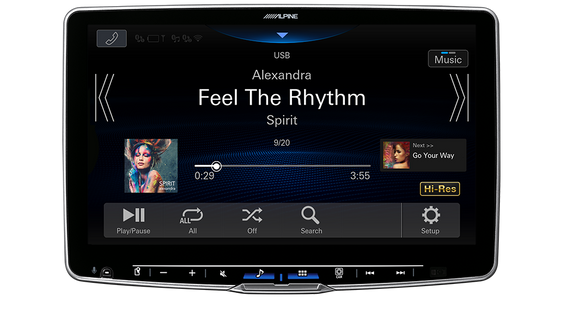

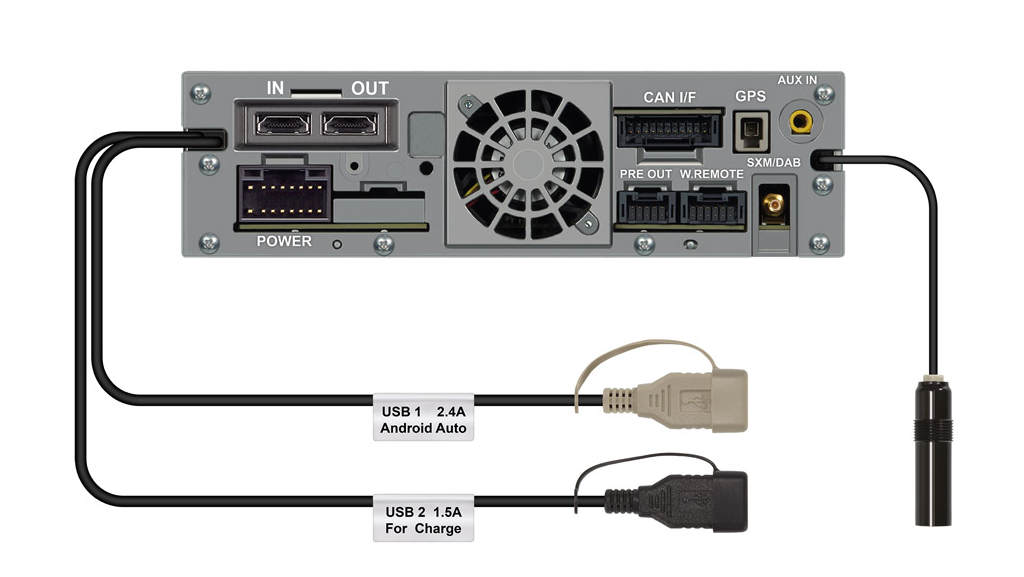

USB Media Connection

• 2x USB cable included
• USB port 1: data port / USB port 2: charging port

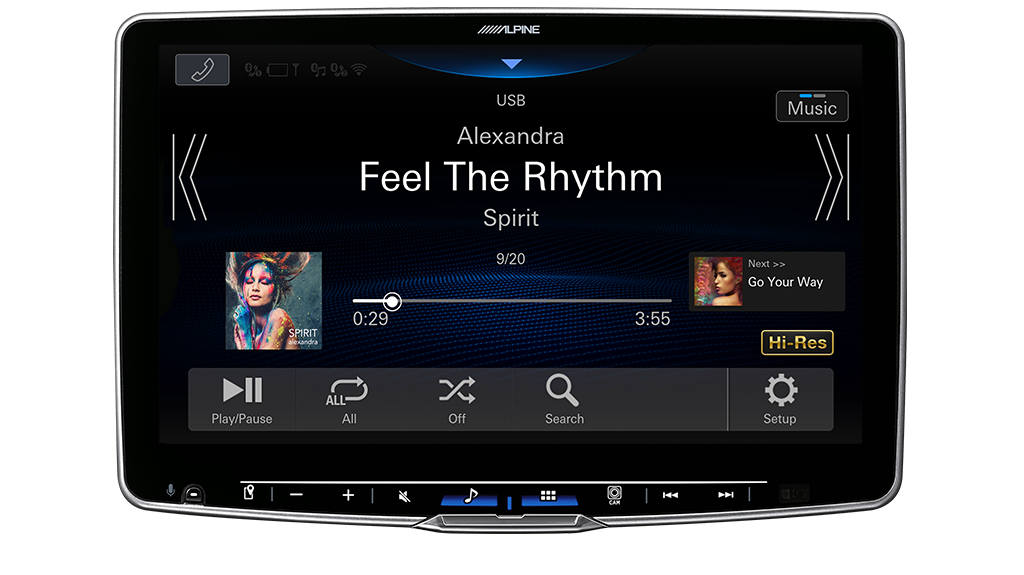

• Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
• Video Playback: MP4, MOV, FLV, MKV compatible
• Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
• Various search functions included

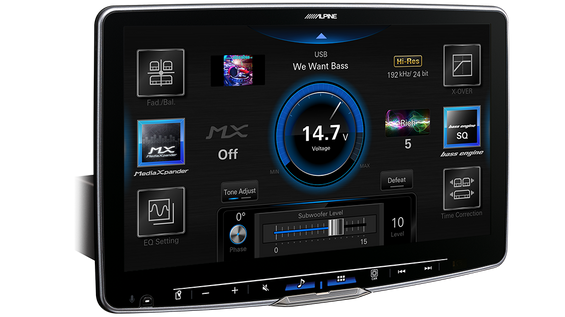

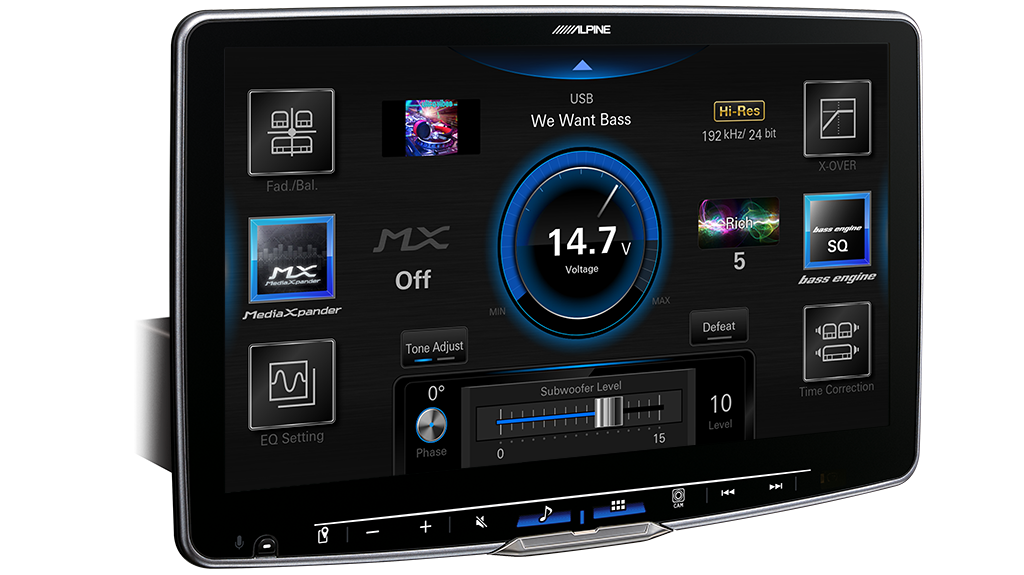

Sound Tuning

• Bass Engine SQ and Bass Engine PRO sound tuning
• Subwoofer Level Adjustment
• 4 V PreOut

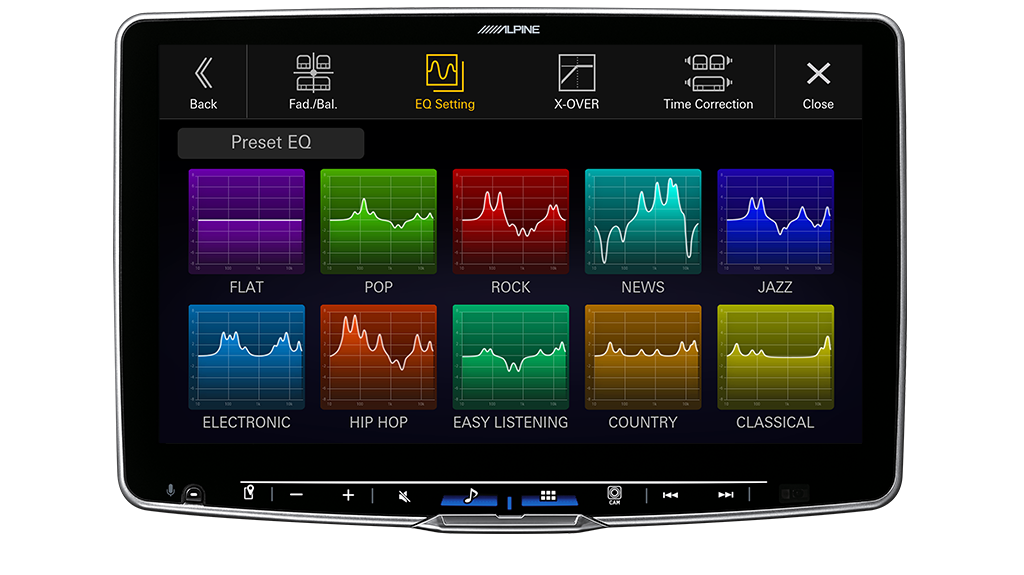

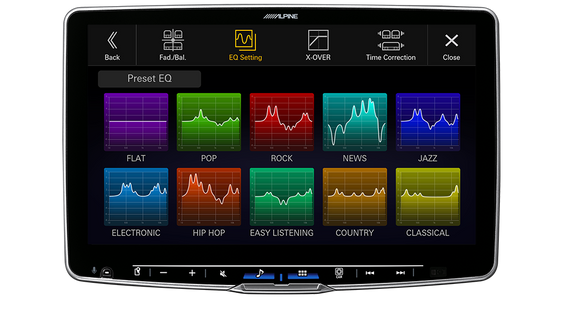

• 10 Equalizer PreSets

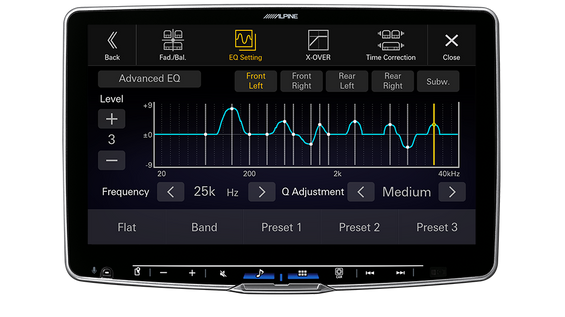

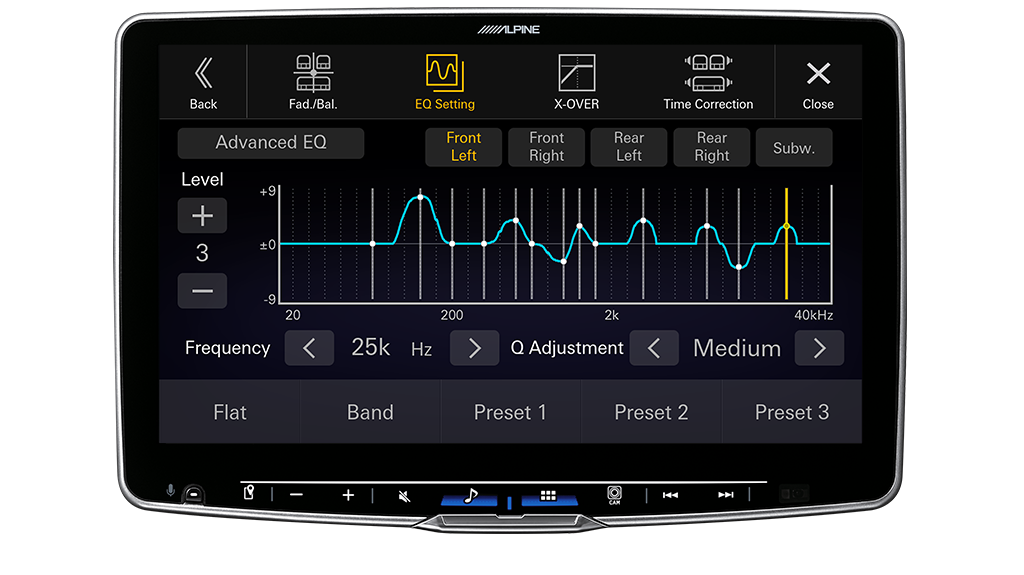

• 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
• 6-Channel Digital Time Correction
• 2-way Digital Crossover
• Independent Source Volume Level Setting

General

• 4x 50 Watts Class-D High Power Amplifier

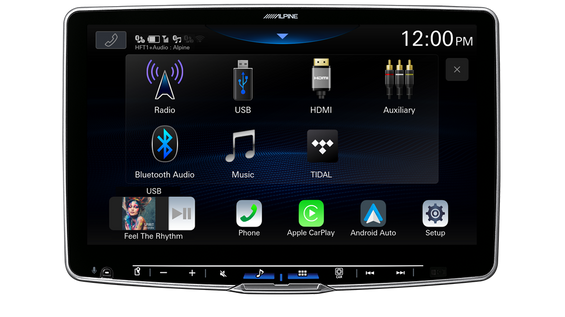

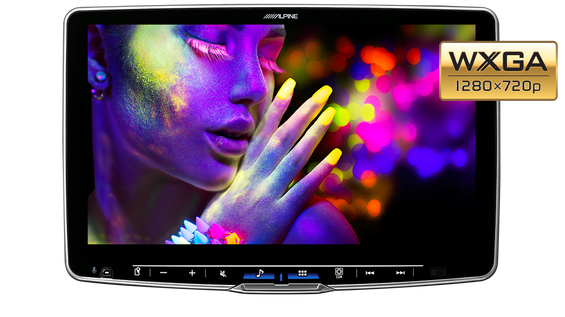

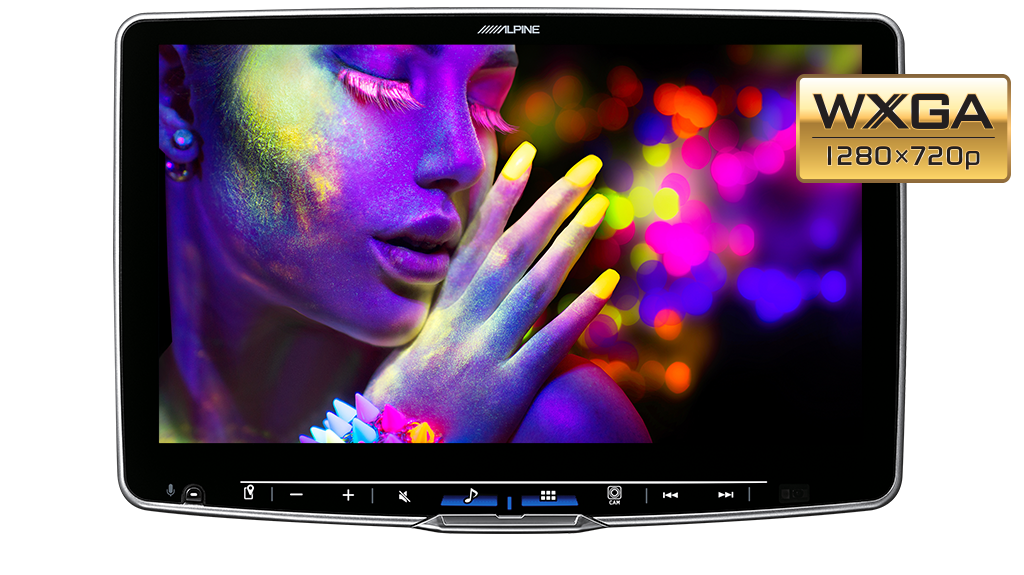

• 11-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
• Display angle adjustable after installation
• 3 PreOuts (4 V, Front / Rear / Subwoofer)
• 1 A/V AUX Input (3.5 mm micro jack)
• 1 HDMI input / 1 HDMI output
• 2 USB Ports (1x USB data port / 1x USB charging)
• Steering Wheel Remote Control Ready

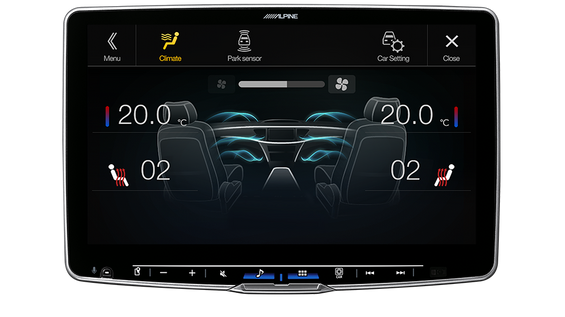

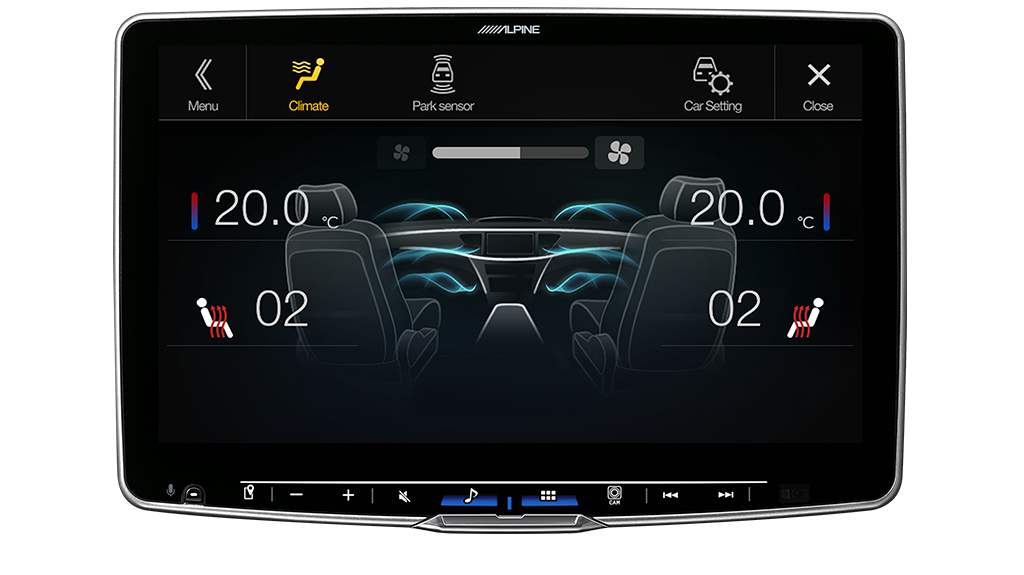

• Vehicle Display Interface Ready (UART connection)
• Remote Control Ready

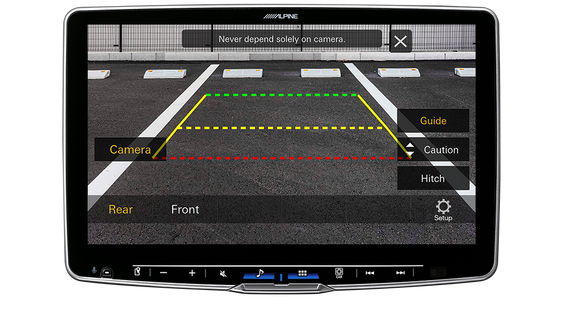

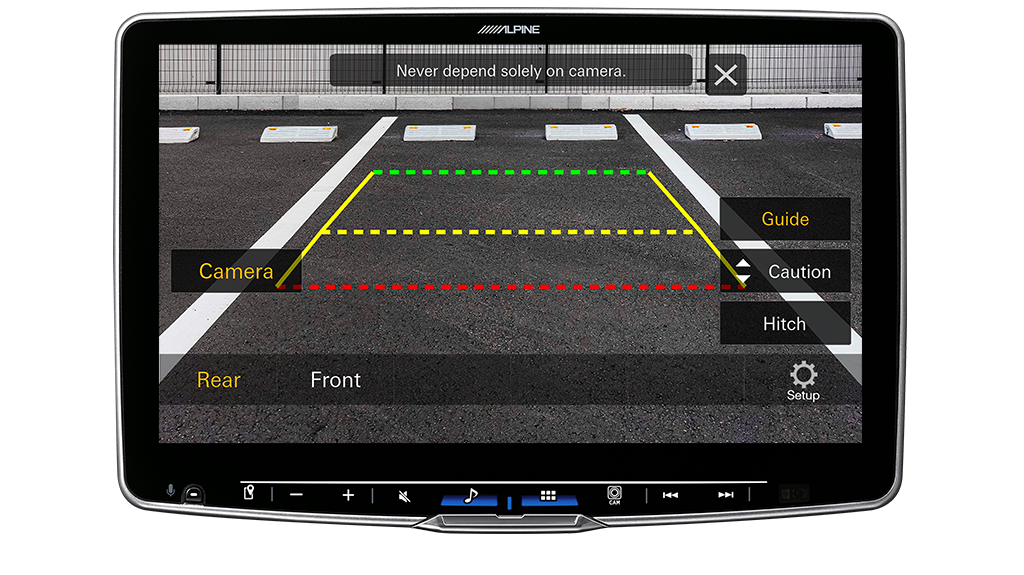

• 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
• Camera Distance Guides (adjustable)
• Live Contrast Adjustment
• Menu Language: 24 Languages
• Auto Dimmer
• Anti-theft security code
• Engine Start-Stop unaffected
• 3-Year Warranty when installed by Authorised Alpine Dealer qdz1

General

• Power Requirement – 14.4V DC (11-16V allowable)
• Operating Temperature – -20°C to +60°C
• Power Output – 50W x 4
• Maximum Current Consumption – 15A

Audio Output Level

• Preout (Front, Rear): 4V/10k ohms (max.)
• Preout (Subwoofer): 4V/10k ohms (max.)

Weight

• 2.3kg

Screen

• Screen Size: 11 inch Laminated WXGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 2,764,800 pixels (1280 x 720 x 3)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

FM Tuner

• Tuning Range – 87.5 -105MHz
• Mono Usable Sensitivity – 8.1 dBf (0.7μV/75 ohms)
• 50dB Quieting Sensitivity – 12dBf (1.1μV/75 ohms)
• Alternate Channel Selectivity – 80dB
• Signal-to-Noise Ratio – 65dB
• Stereo Seperation – 35dB

AM Tuner

• Tuning Range – 531-1701 kHz
• Usable Sensitivity – 25.1μV/28 dBf

DAB Tuner

• Tuning Range – 174 – 240 MHz
• Usable Sensitivity – -100dBm
• Signal-to-Noise Ratio – 90dB

USB (1)

• USB Requirements: USB 2.0
• Max. Power Consumption: 2,400 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32, exFAT
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.005%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 95 dB
• Channel Separation (at 1kHz): 90 dB

USB (2)

• USB Class: Charge Only
• Max. Power Consumption: 1,500 mA (CDP Support)

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V4.2 (2,402 – 2,480 MHz)
• Output Power: +4 dBm/2.51 mW Ave. (Power Class 2)
• HFP: HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

HDMI Section

• Input Format: 720p/480p/VGA
• Output Format: 720p/480p

GPS

• Reception Frequency 1575.42 +/- 1.023 MHz
• Reception Sensitivity (Search) -136dB max.

Wi-Fi

Frequency Ranges

• IEEE 802.11 b/g/n (2.4 GHz)
• IEEE 802.11 a/n/ac (5 GHz)

Channels

• 1 -13 ch (2.4 GHz)
• 149 – 165 ch (5GHz)

Security Protocols

• WPA3/WPA2-PSK (TKIP, AES)

Dimensions

• Din Size: 1DIN chassis and 11” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: 178 x 50 x 149.6mm
• Display Size (W x H x D) mm: 268.9 x 178 x 54.7 qdz2
