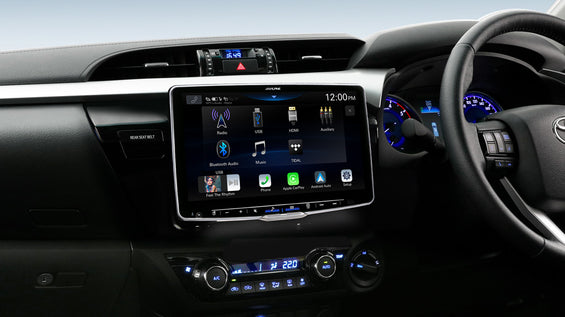

Halo11 11” High-Res Audio Receiver with Wireless Apple CarPlay / Wireless Android Auto / HDMI / USB / Dual Camera / Bluetooth / Hi-Res Audio Wireless / LDAC / DAB+ Suitable for Toyota Hilux N80 1st & 2nd Gen (2015-2020)

• Features

  Radio / DAB Tuner

  • Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
  • Memory: Auto Memory
  • Seek Mode: Local, DX, Pre-Set, Service
  • RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

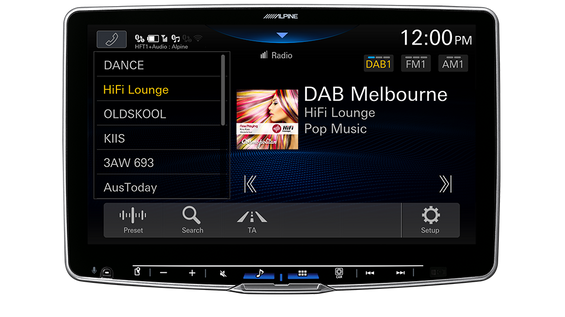

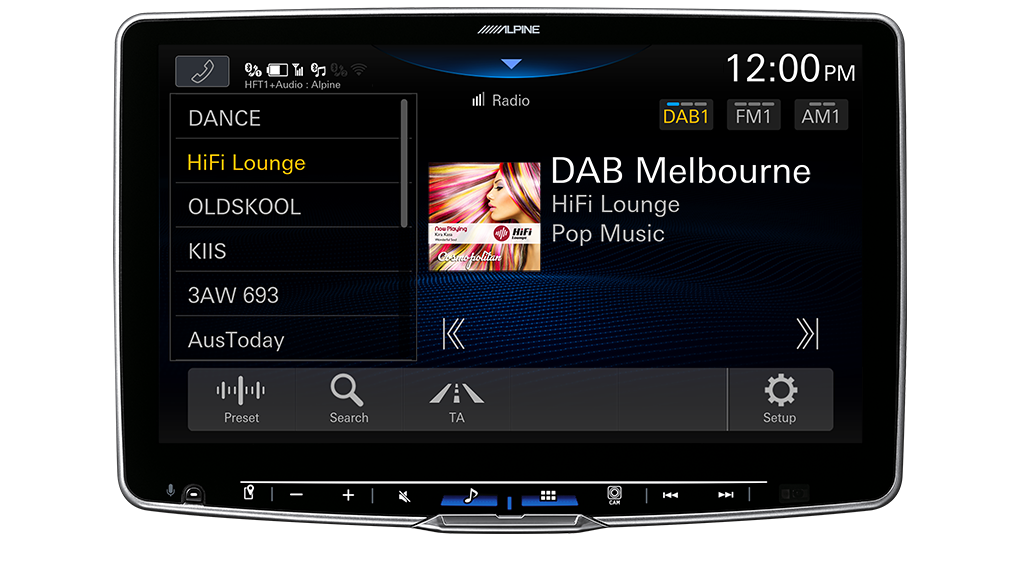

  • DAB+/DMB Supported
  • DAB+ Slideshow Service
  • DLS (Dynamic Label Service)
  • DAB Service Following
  • RDS Fallback (where available)
  • Auto Ensemble/Service Memory
  • Service Search Function
  • PTY Search Function
  • Alphabet Search Function

  BLUETOOTH®

  • Built-in BLUETOOTH® Module V4.2

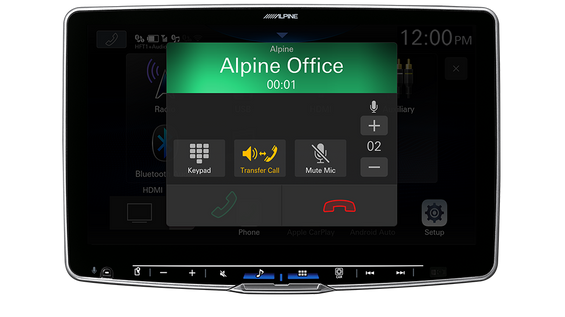

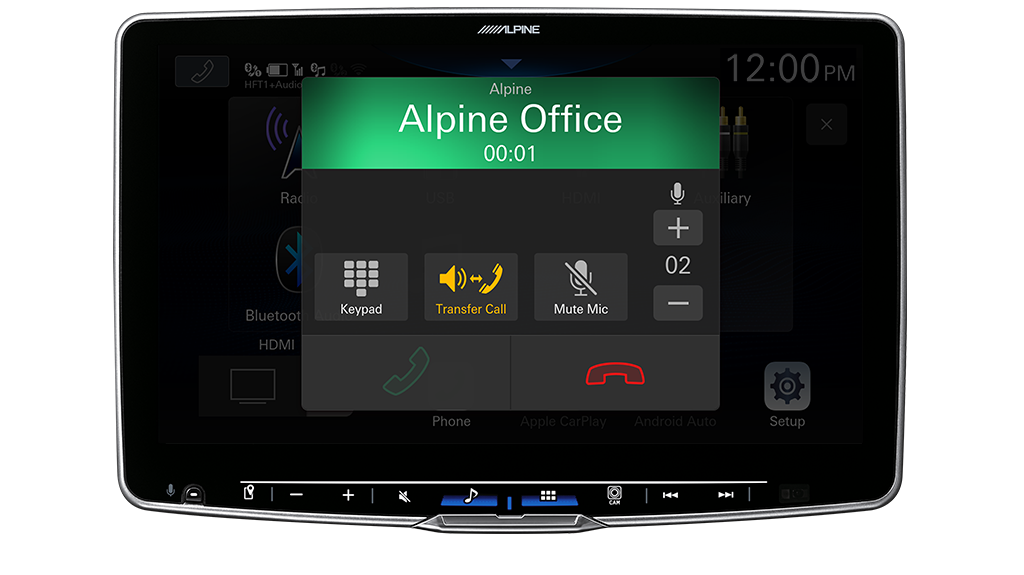

  • HFP (Hands-Free Profile) Compatible
  • A2DP (Advanced Audio Distribution Profile) Compatible
  • AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
  • Phone Book Synchronisation
  • Speed Dial: 4 Preset Memory (per phone)
  • Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
  • Redial Function
  • Speech Volume Level Adjustment: (Outgoing and Incoming)
  • 24 Menu Languages
  • Microphone Included

  Works with iPhone®

  • Compatible with iPhones featuring a lightning connector
  • Various search functions and Album Artwork Display
  • Battery Charging

  Connectivity

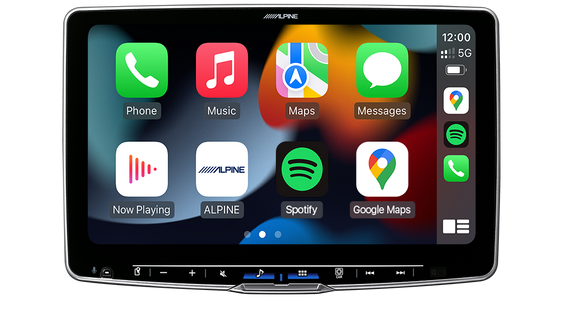

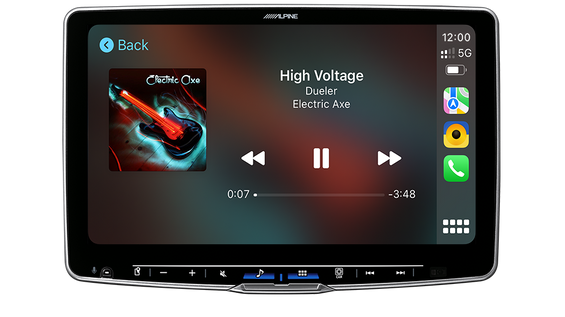

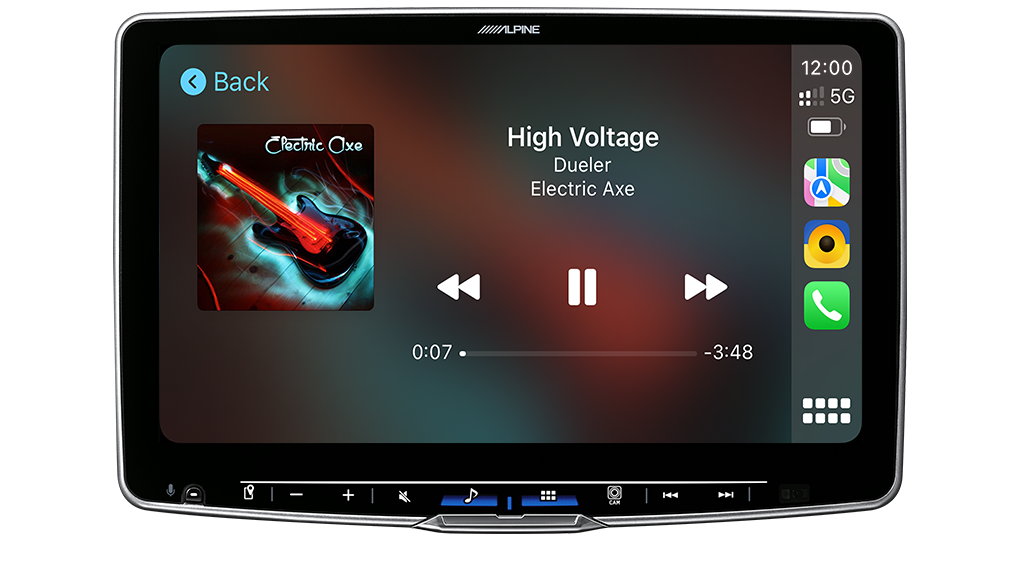

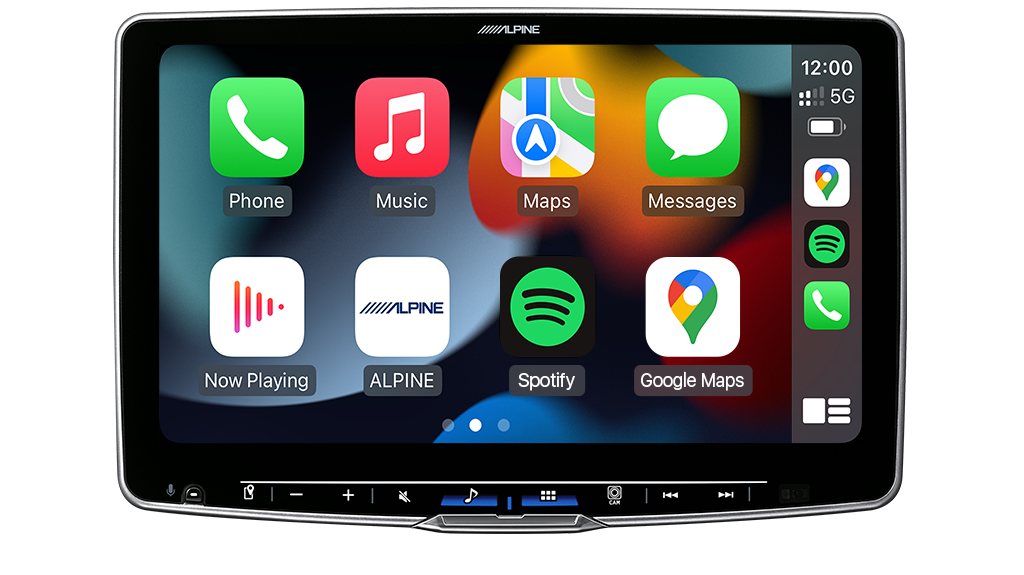

  • Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)

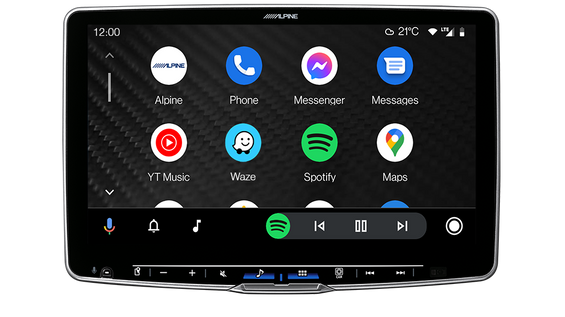

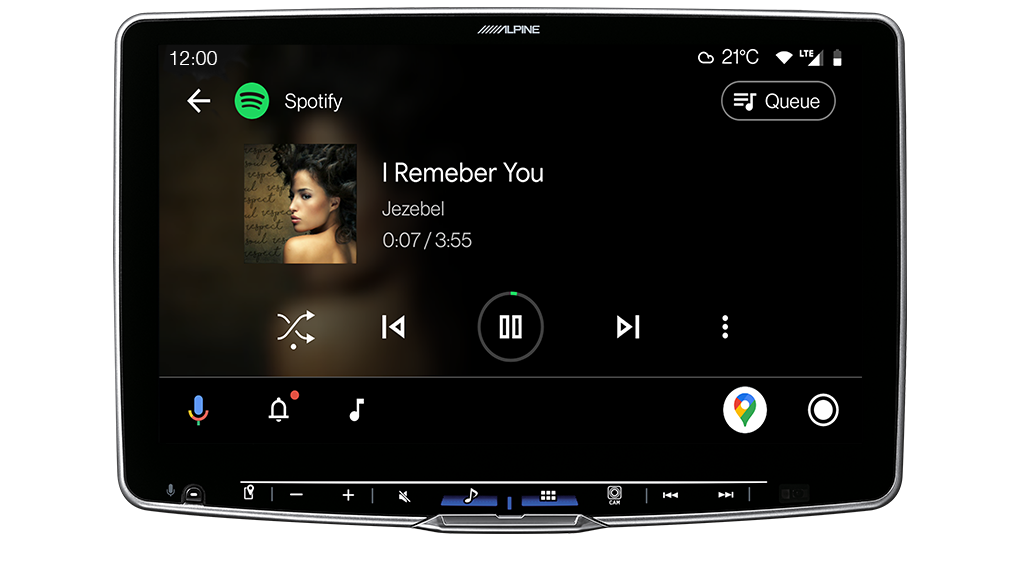

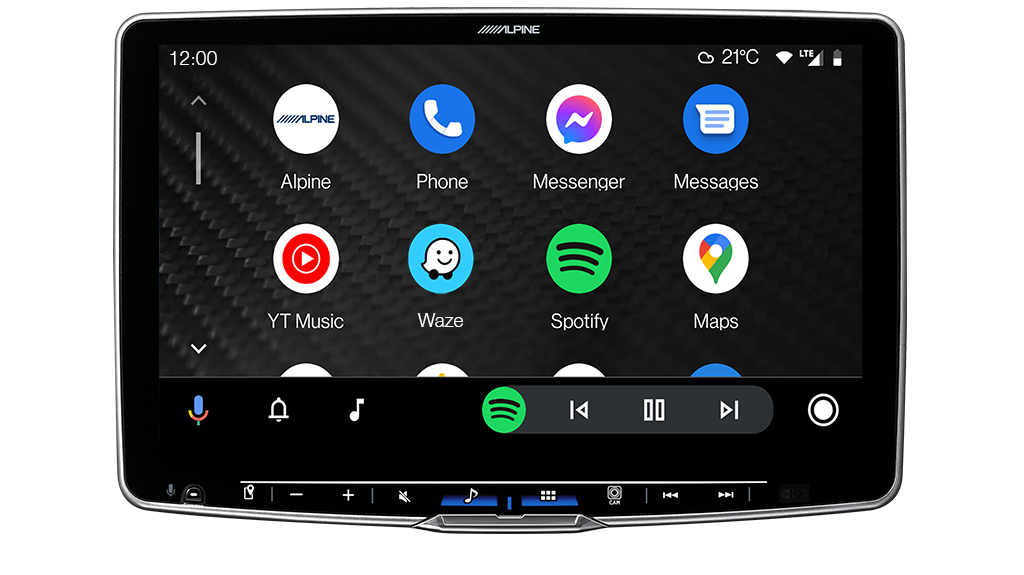

  • Works with Android Auto wirelessly (requires Android Auto enabled handset) **Not all handsets supported and may require wired connection.

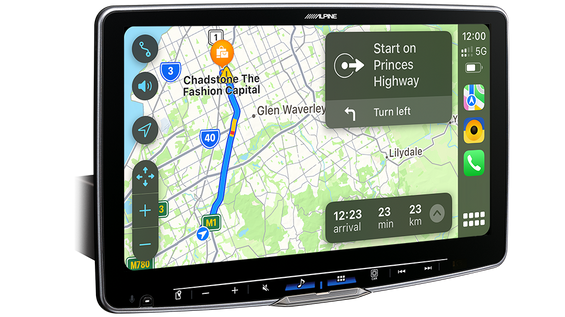

  Navigation Function

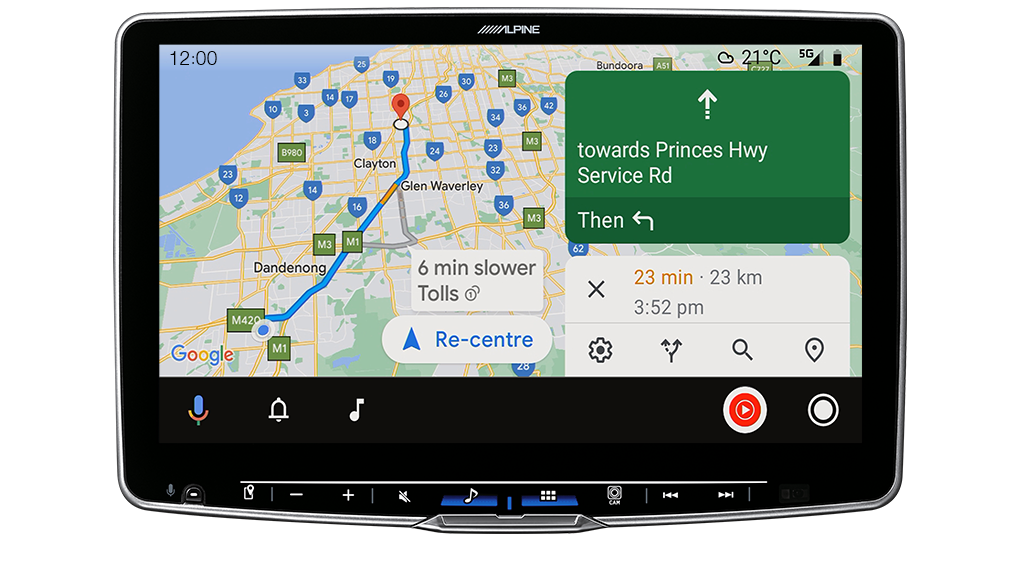

  • Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
  • Includes GPS / Glonass enabled navigation antenna

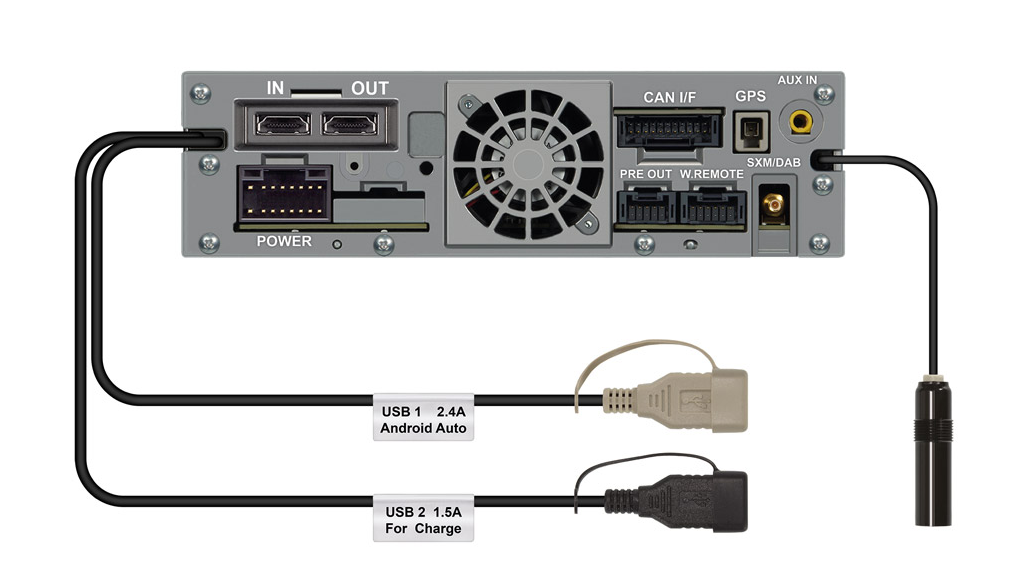

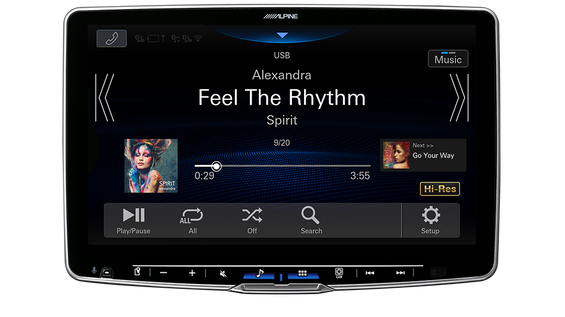

  USB Media Connection

  • 2x USB cable included
  • USB port 1: data port / USB port 2: charging port

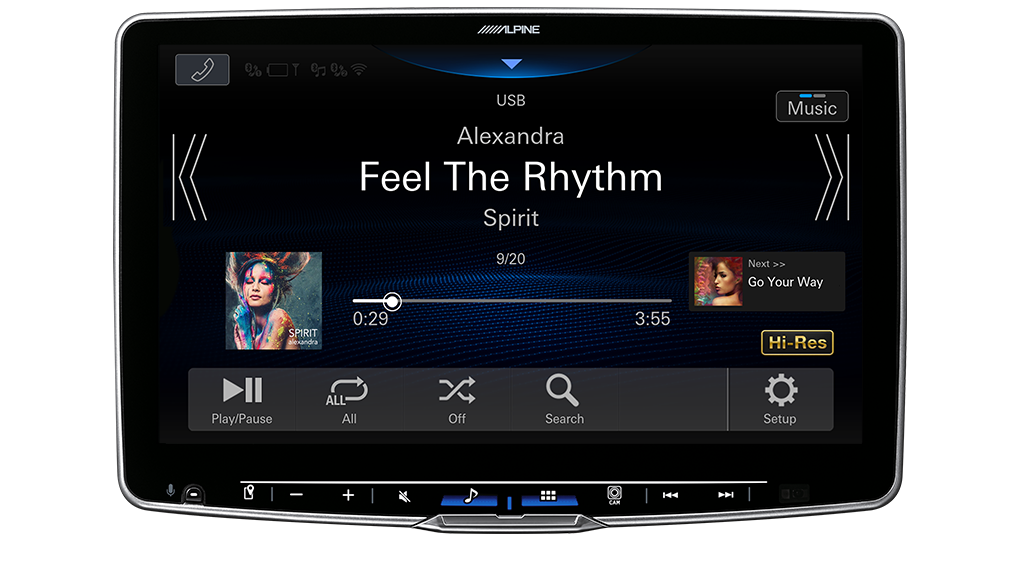

  • Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
  • Video Playback: MP4, MOV, FLV, MKV compatible
  • Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
  • Various search functions included

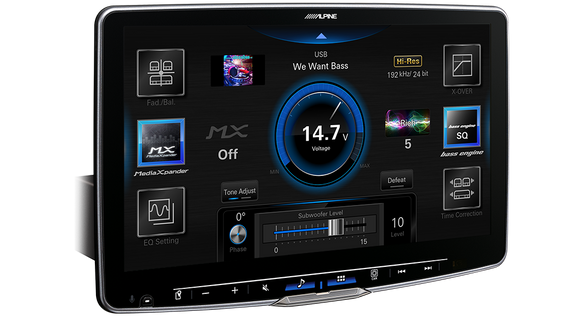

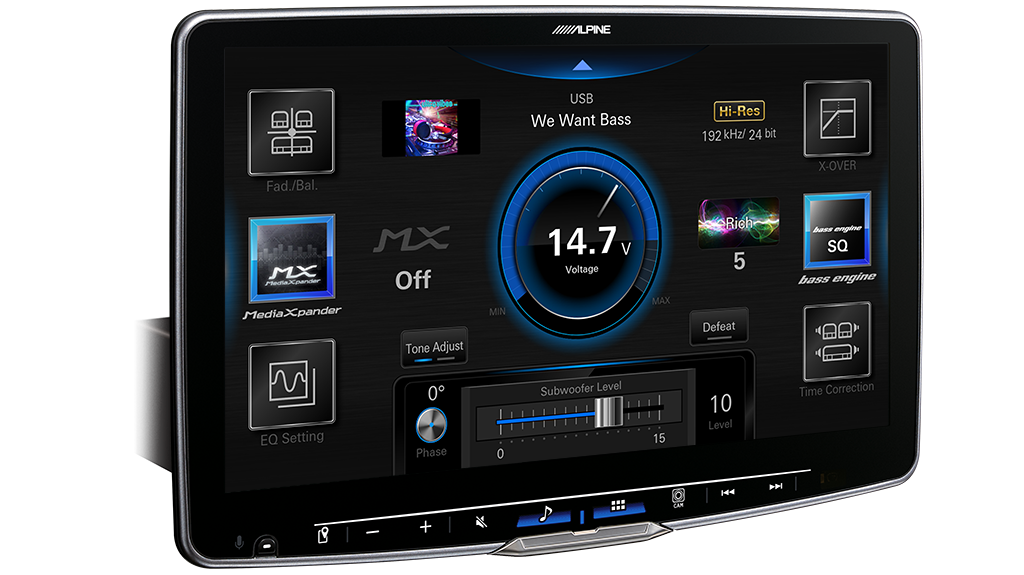

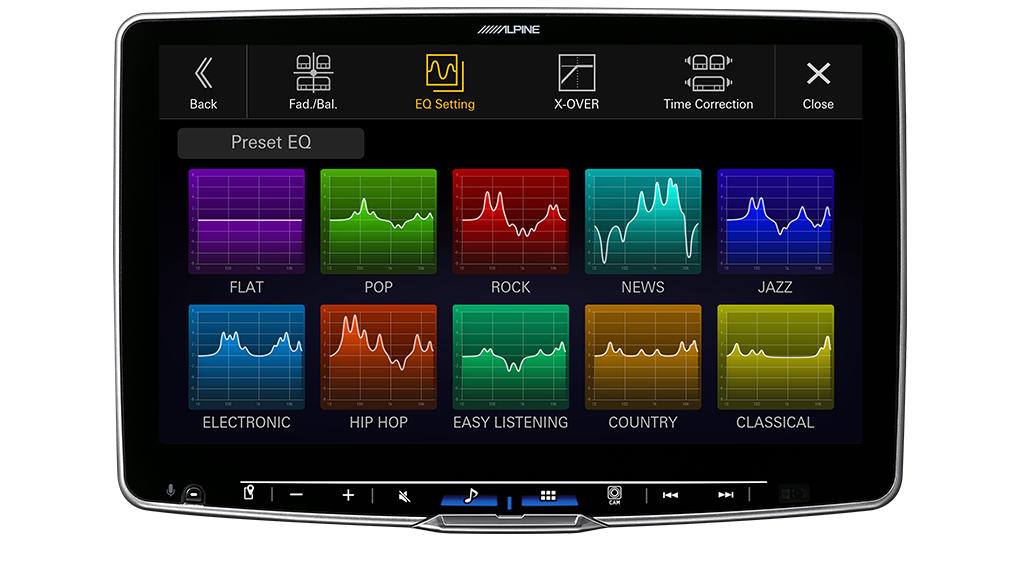

  Sound Tuning

  • Bass Engine SQ and Bass Engine PRO sound tuning
  • Subwoofer Level Adjustment
  • 4 V PreOut

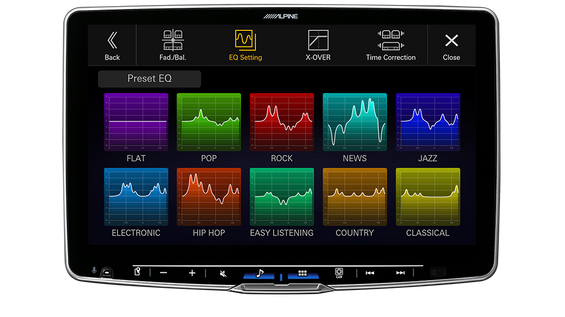

  • 10 Equalizer PreSets

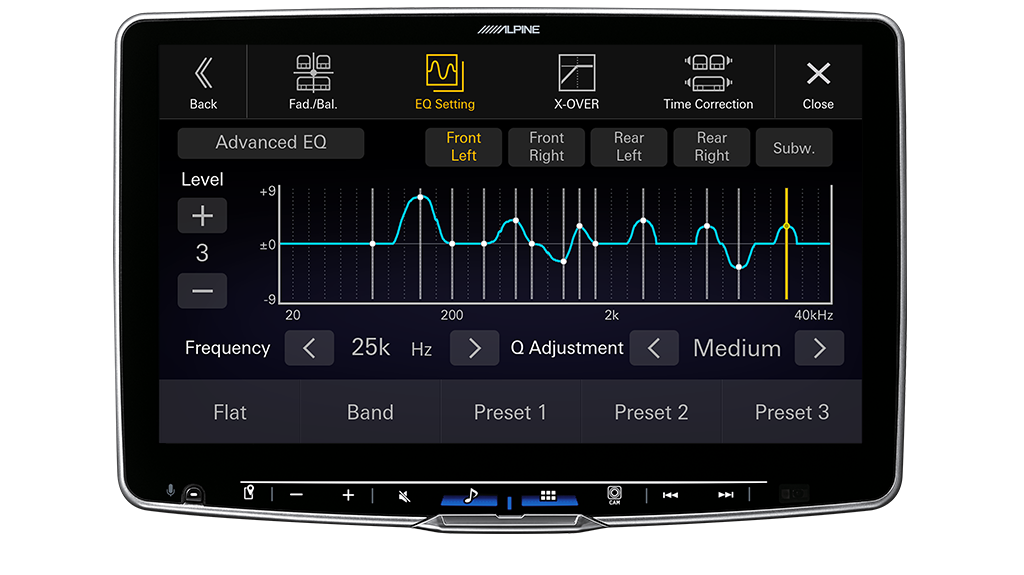

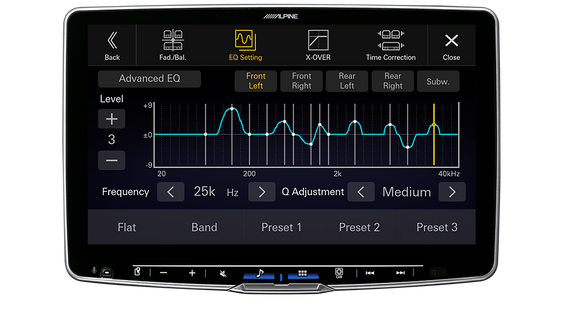

  • 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
  • 6-Channel Digital Time Correction
  • 2-way Digital Crossover
  • Independent Source Volume Level Setting

  General

  • 4x 50 Watts Class-D High Power Amplifier

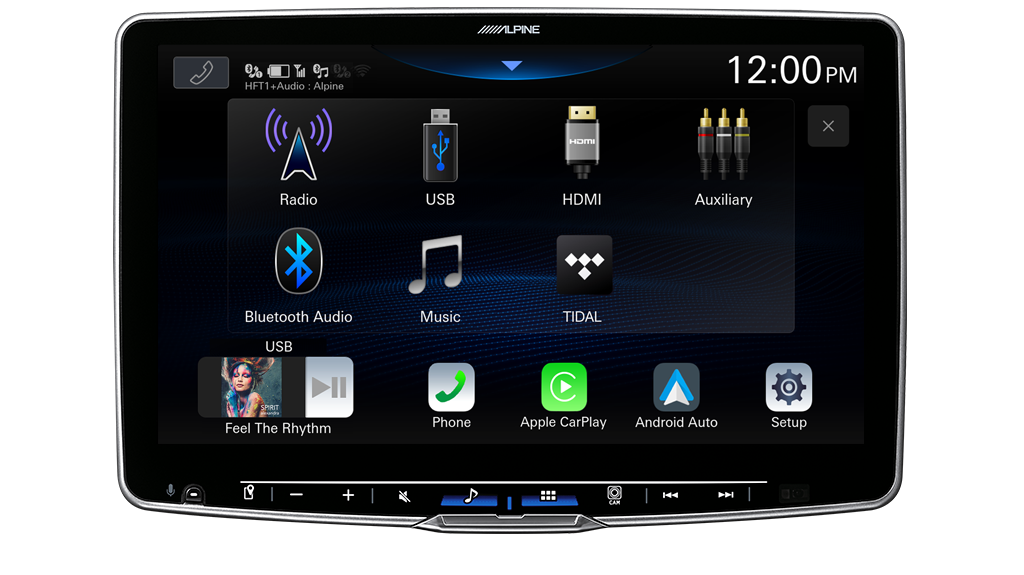

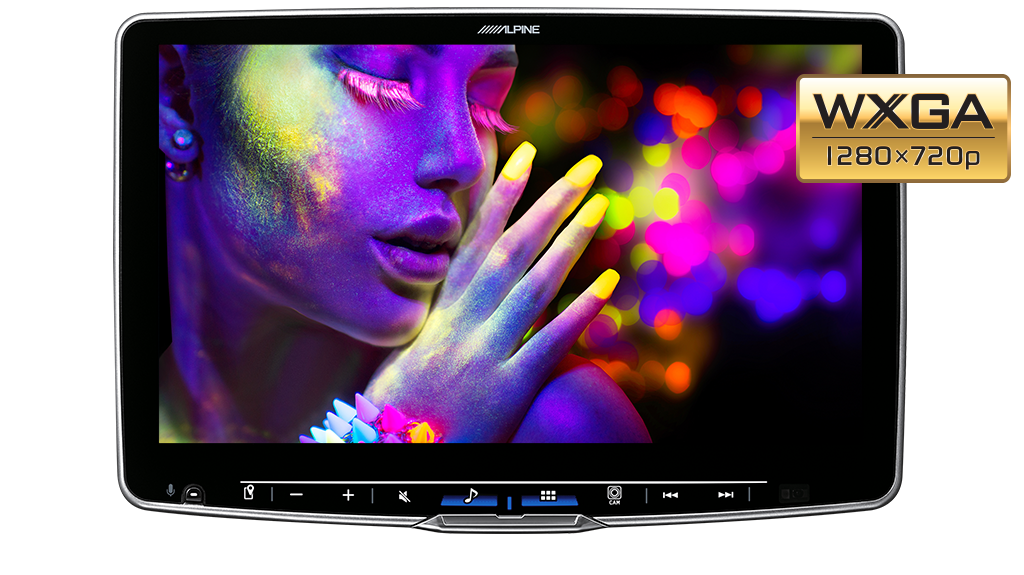

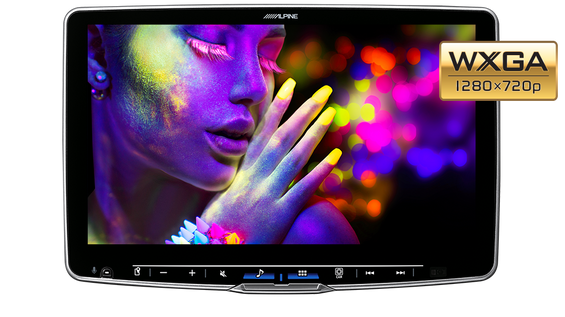

  • 11-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
  • Display angle adjustable after installation
  • 3 PreOuts (4 V, Front / Rear / Subwoofer)
  • 1 A/V AUX Input (3.5 mm micro jack)
  • 1 HDMI input / 1 HDMI output
  • 2 USB Ports (1x USB data port / 1x USB charging)
  • Steering Wheel Remote Control Ready

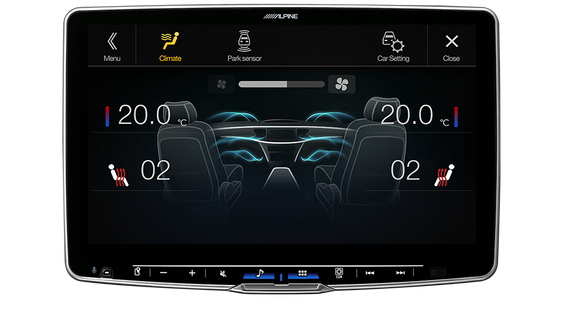

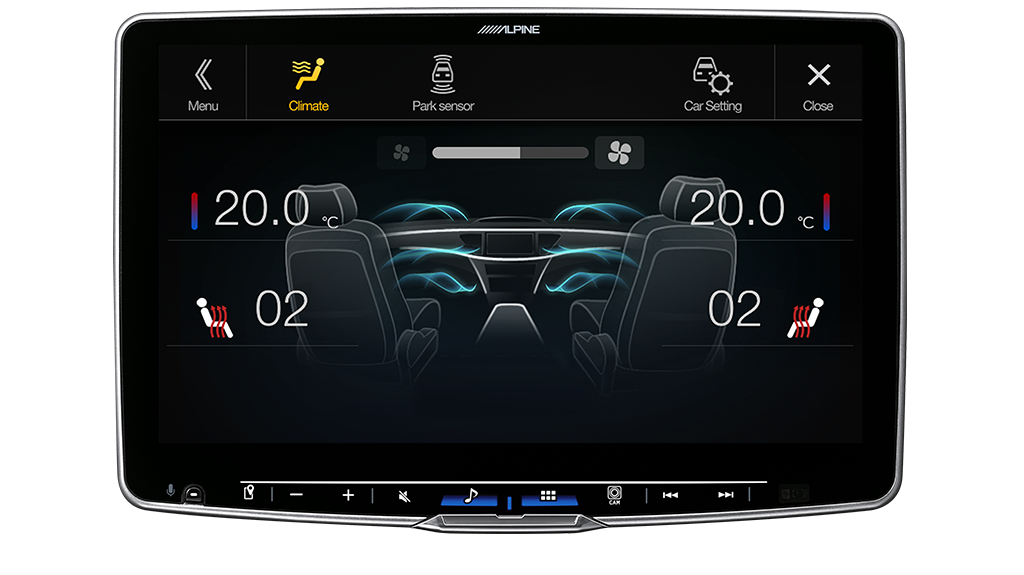

  • Vehicle Display Interface Ready (UART connection)
  • Remote Control Ready

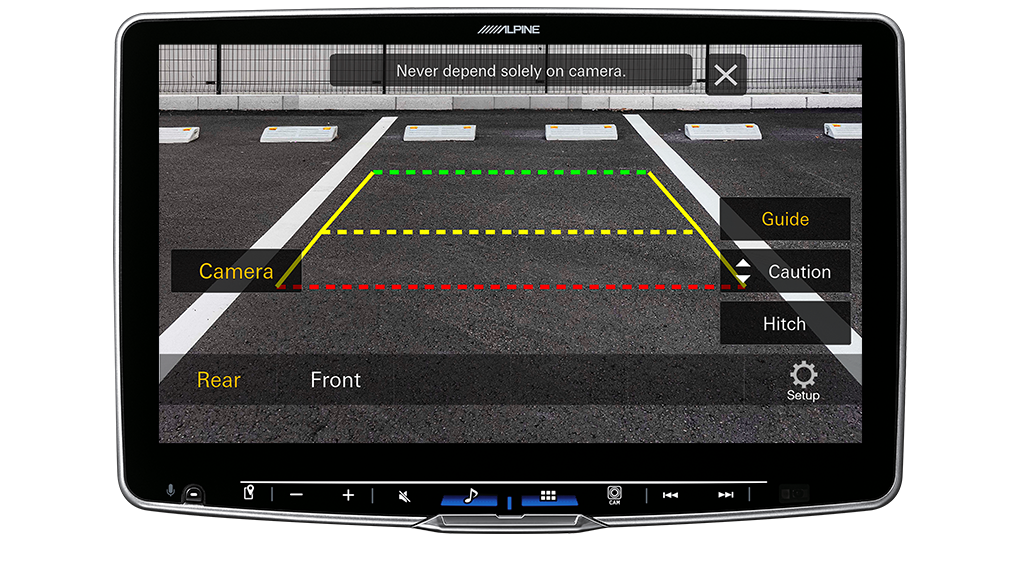

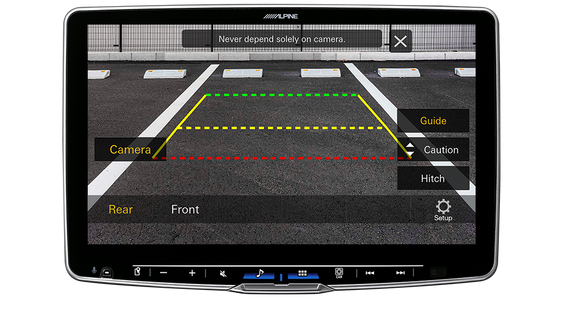

  • 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
  • Camera Distance Guides (adjustable)
  • Live Contrast Adjustment
  • Menu Language: 24 Languages
  • Auto Dimmer
  • Anti-theft security code
  • Engine Start-Stop unaffected
  • 3-Year Warranty when installed by Authorised Alpine Dealer

• Specifications

  General

  • Power Requirement – 14.4V DC (11-16V allowable)
  • Operating Temperature – -20°C to +60°C
  • Power Output – 50W x 4
  • Maximum Current Consumption – 15A

  Audio Output Level

  • Preout (Front, Rear): 4V/10k ohms (max.)
  • Preout (Subwoofer): 4V/10k ohms (max.)

  Weight

  • 2.3kg

  Screen

  • Screen Size: 11 inch Laminated WXGA
  • LCD Type: Transparent Type TN LCD
  • Operation System: TFT Active Matrix
  • Number of Picture Elements: 2,764,800 pixels (1280 x 720 x 3)
  • Illumination System: White LED Backlighting
  • Effective Number of Picture Elements: 99.99%
  • Colour System: NTSC, PAL

  FM Tuner

  • Tuning Range – 87.5 -105MHz
  • Mono Usable Sensitivity – 8.1 dBf (0.7μV/75 ohms)
  • 50dB Quieting Sensitivity – 12dBf (1.1μV/75 ohms)
  • Alternate Channel Selectivity – 80dB
  • Signal-to-Noise Ratio – 65dB
  • Stereo Seperation – 35dB

  AM Tuner

  • Tuning Range – 531-1701 kHz
  • Usable Sensitivity – 25.1μV/28 dBf

  DAB Tuner

  • Tuning Range – 174 – 240 MHz
  • Usable Sensitivity – -100dBm
  • Signal-to-Noise Ratio – 90dB

  USB (1)

  • USB Requirements: USB 2.0
  • Max. Power Consumption: 2,400 mA (CDP Support)
  • USB Class: Mass Storage Class, Play From Device
  • File System: FAT 16/32, exFAT
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: ACC-LC format ′′.m4a′′ file
  • FLAC Decoding
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
  • Total Harmonic Distortion (at 1kHz): 0.005%
  • DynamicRange(at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 95 dB
  • Channel Separation (at 1kHz): 90 dB

  USB (2)

  • USB Class: Charge Only
  • Max. Power Consumption: 1,500 mA (CDP Support)

  BLUETOOTH®

  • BLUETOOTH® Version: Bluetooth V4.2 (2,402 – 2,480 MHz)
  • Output Power: +4 dBm/2.51 mW Ave. (Power Class 2)
  • HFP: HFP (Hands Free Profile)
  • OPP (Object Push Profile)
  • PBAP (Phone Book Access Profile)
  • HSP (Head Set Profile)
  • A2DP: A2DP (Advanced Audio Distribution Profile)
  • AVRCP: AVRCP (Audio/Video Remote Control Profile)
  • SPP (Serial Port Profile)

  HDMI Section

  • Input Format: 720p/480p/VGA
  • Output Format: 720p/480p

  GPS

  • Reception Frequency 1575.42 +/- 1.023 MHz
  • Reception Sensitivity (Search) -136dB max.

  Wi-Fi

  Frequency Ranges

  • IEEE 802.11 b/g/n (2.4 GHz)
  • IEEE 802.11 a/n/ac (5 GHz)

  Channels

  • 1 -13 ch (2.4 GHz)
  • 149 – 165 ch (5GHz)

  Security Protocols

  • WPA3/WPA2-PSK (TKIP, AES)

  Dimensions

  • Din Size: 1DIN chassis and 9” Capacitive Touch Screen
  • Chassis Size (W x H x D) mm: 178 x 50 x 149.6mm
  • Display Size (W x H x D) mm: 268.9 x 178 x 54.7
