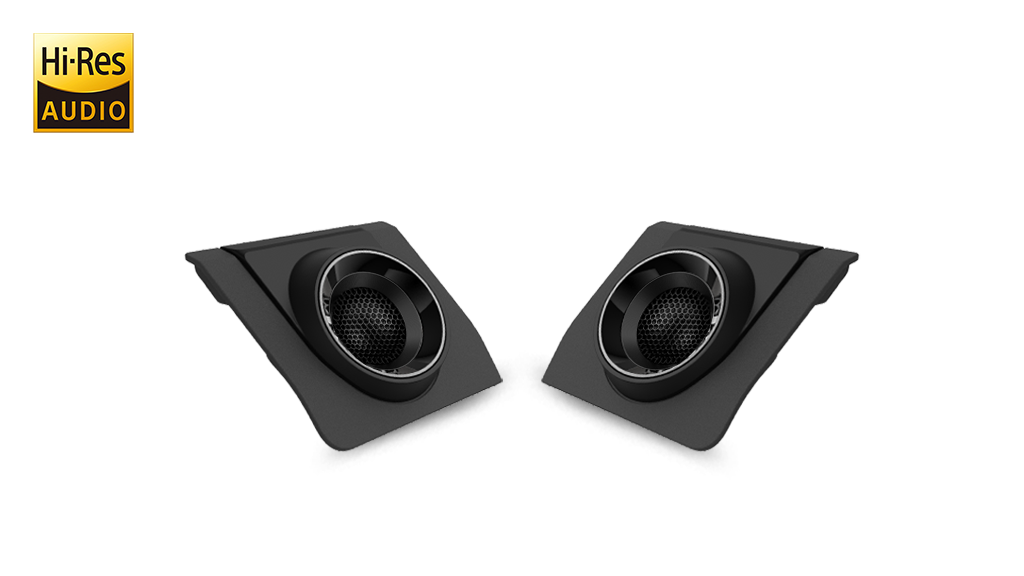

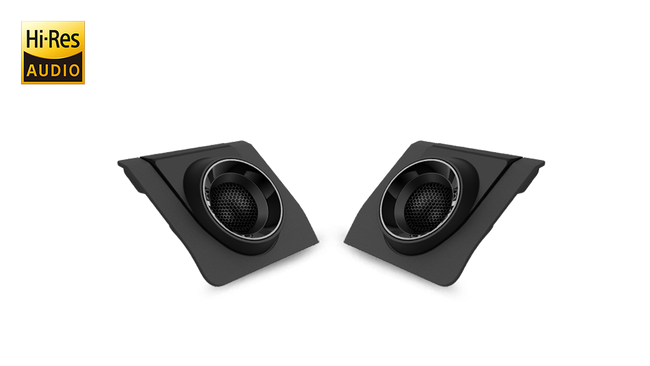

Front Tweeter (Component)

• 1″ Extended-Range Soft Dome
• Magnet Material: Ferrite
• Application Type: External/Swivel Tweeter Mounting Kit
• Flush mount and Collapsable for OEM fit.
• Grill: Perforated Net

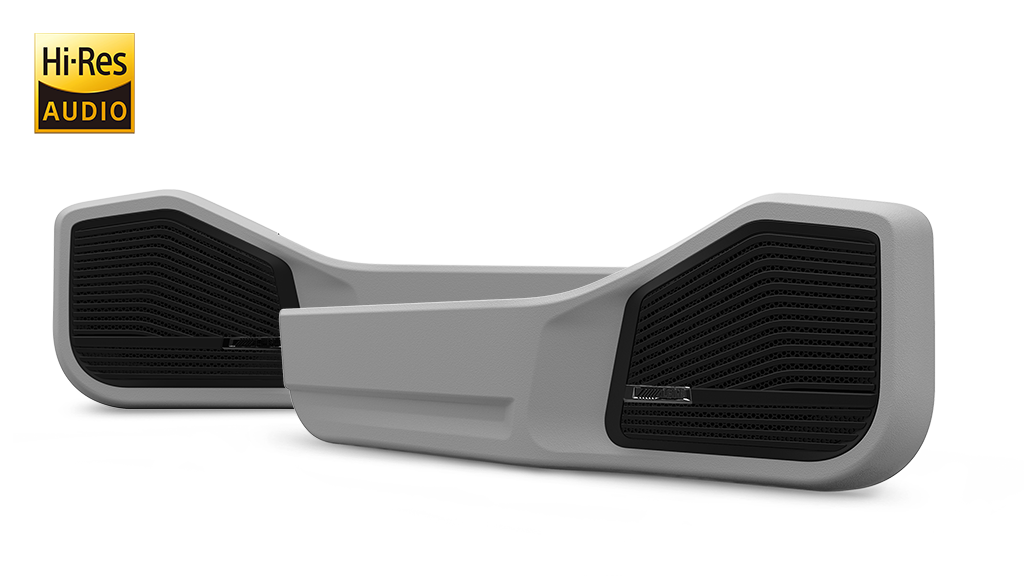

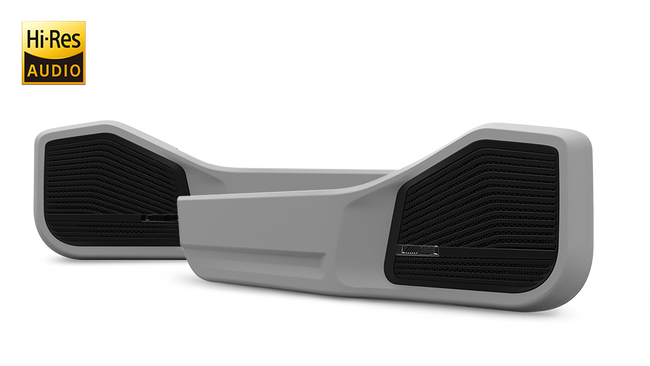

Front Woofer (Component)

• 6×9″ (160cm x 240cm) Lightweight Glass Fiber Composite Speaker
• HAMR (High Amplitude Multi-Roll) Surround
• Large 35mm Voice Coil
• Magnet Material: Strontium Ferrite

Crossover Network

• Woofer: Copper Air-Coiled Wound Inductor
• Tweeter: High Grade Audio Poly Capacitor

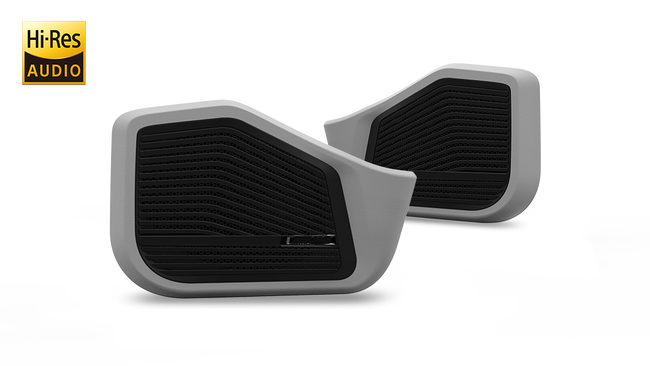

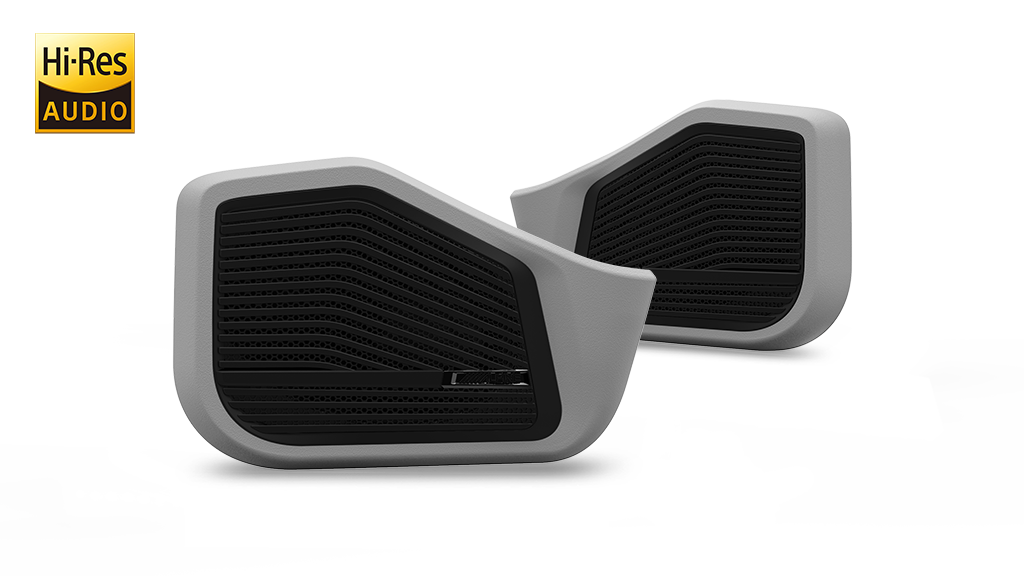

Rear Woofer (Coaxial)

• 6×9″ (160cm x 240cm) Lightweight Glass Fiber Coaxial Speaker
• HAMR (High Amplitude Multi-Roll) Surround
• Large Voice Coil
• Magnet Material: Strontium Ferrite
• Grill sold separately: KTE-S69G

Rear Tweeter (Coaxial)

• 1″ Extended-Range Soft Dome Tweeter
• Magnet Material: Ferrite
• Tweeter Grill: Perforated Net

Crossover Network

• Woofer: Copper Air-Coiled Wound Inductor
• Tweeter: High Grade Audio Poly Capacitor

Power Handling (Component – Front)

• Peak Power: 260 Watts
• RMS Power: 85 Watts (CTA-2031 Compliant)

Dimensions Woofer (Component – Front)

• Frame 237 mm x 161mm
• Cutout Diameter: 242mm x 152mm
• Mounting Depth: 74.5 mm
• Mounting Height: 7.3 mm
• Magnet: 100.0 mm

Dimensions Tweeter (Component – Front)

• Frame: 58mm
• Mounting Diameter: 51mm
• Mounting Depth: 17.6mm
• Height: 25.6 mm

Power Handling (Coaxial – Rear)

• Peak Power: 260 Watts
• RMS Power: 85 Watts (CTA-2031 Compliant)

Dimensions (Coaxial – Rear)

• Frame 237 mm x 161mm
• Cutout Diameter: 242mm x 152mm
• Mounting Depth: 74.5 mm
• Mounting Height: 7.3 mm
• Magnet: 100.0 mm
