Tweeter

• Tweeter Type: 1” (2.5cm) Ring Radiator Tweeter
• Voice Coil Type: Dual Gap for optimum linearity and clarity
• Magnet Material: Neodymium Magnet
• Swivel Application allowing the sound to be focused for the best in-car sound performance

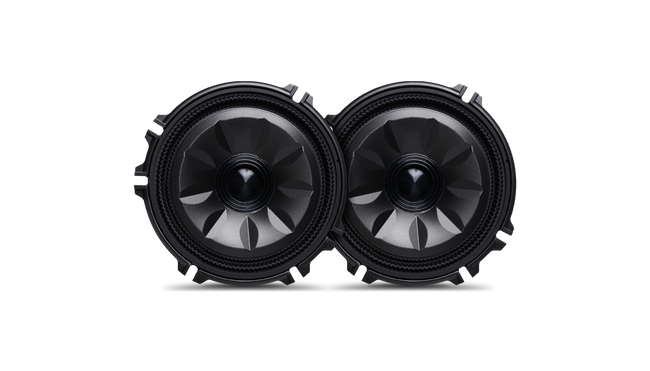

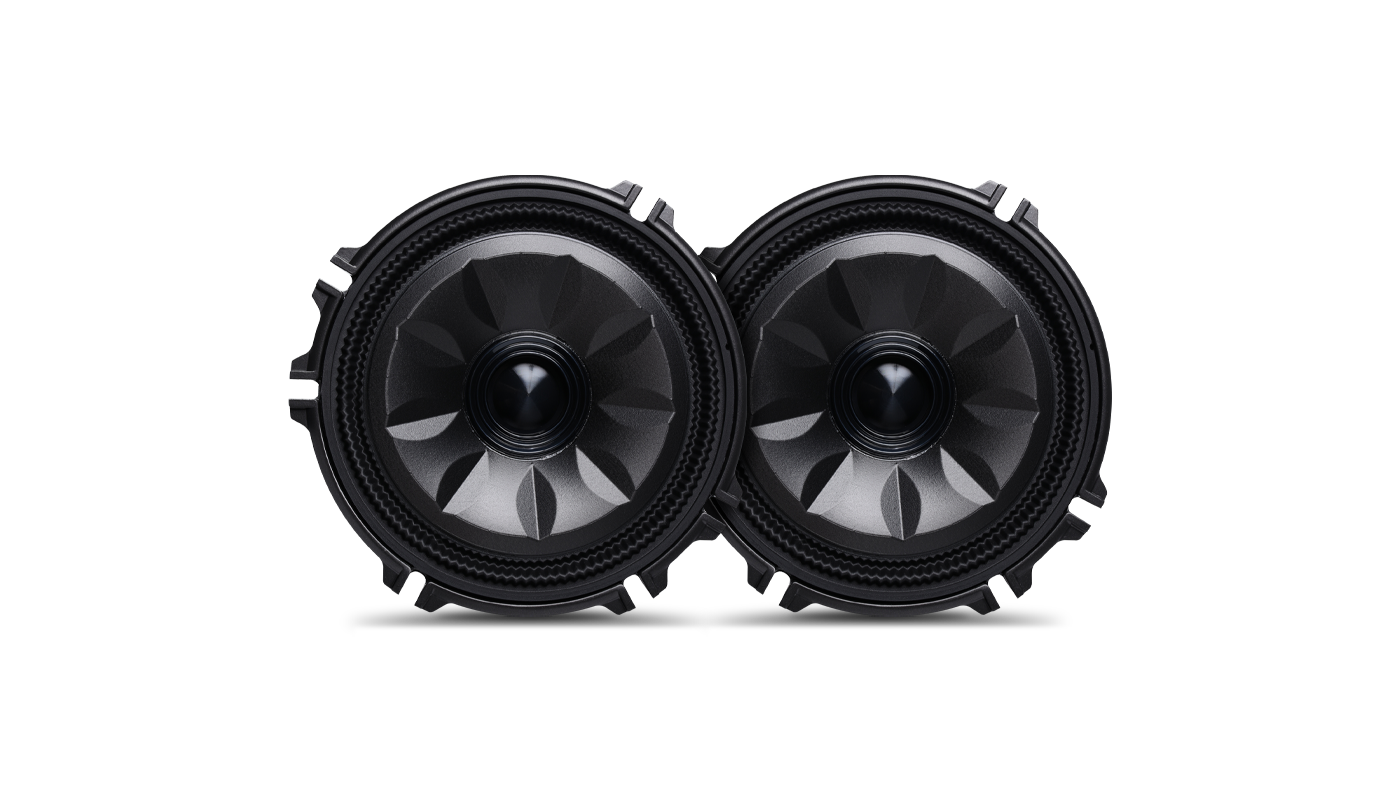

Woofer

• Cone Material: Hybrid Multi Layer Cone
• Motor Technology: Linear Drive Technology
• Surround: HAMR Surround
• Voice Coil Type: Dual Gap Voice Coil for optimum linearity and clarity
• Magnet: Ultra High Density Neodymium Magnet
• DX Ring: DX Ring
• Wave Guide: Wave Guide
• Mounting: Shallow Mounting Design
• Mounting Adapters: Mounting Adapter Kit Included
• Design: Bi-Amp Ready Design

General

• Peak Power Handling: 300W
• RMS Power Handling: 100W
• Nominal Impedance: 4ohms
• Frequency Response: 65Hz-40kHz

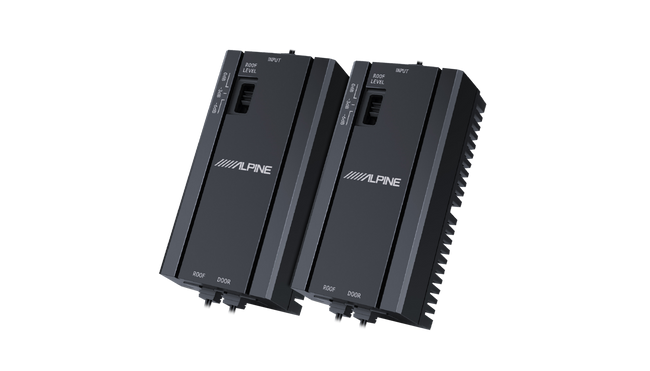

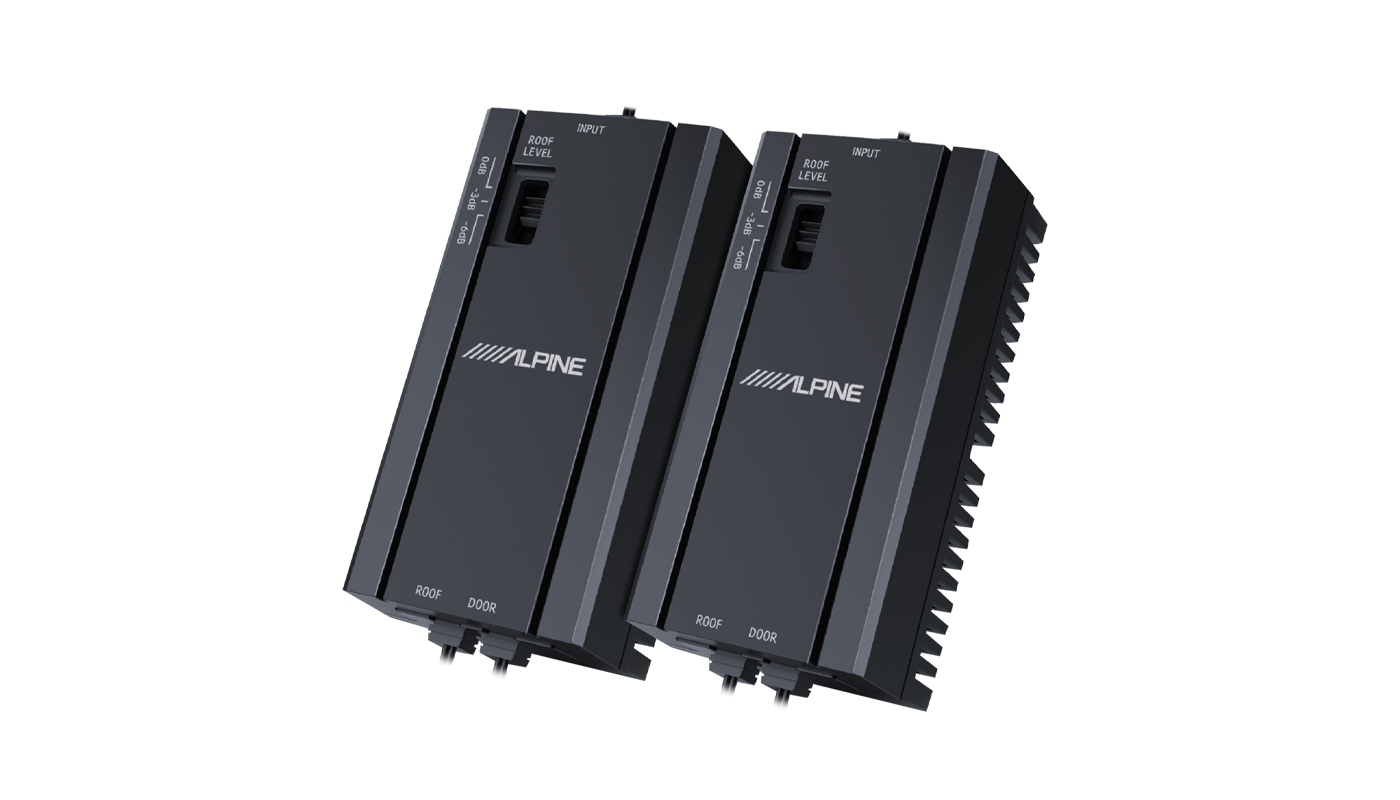

• In-Line High Quality Crossover
• 59mm Mounting Depth
• Swivel Tweeters
• Neodymium Magnet
• Multi-layer Hybrid Cone
• Dual Gap Voice Coil
• All-New Design Circuit for Precision Response

Dimensions (Front)

• Woofer Diameter (mm): 165mm
• Woofer Diameter (in): 6×9″
• Woofer Mounting Diameter (mm): 160mm H 240 W

Dimensions (Rear)

• Woofer Diameter (mm): 165mm
• Woofer Diameter (in): 6-1/2″
• Woofer Mounting Diameter (mm): 176mm
• Woofer Mounting Diameter (in): 6-15/16″
• Woofer Mounting Depth (mm): 59mm
• Woofer Mounting Depth (in): 2-3/8″
