Tuning Software

• Sound Tuning with PC App Control
• Sound Tuning with iPhone App (must be iPhone 10 or newer)
• Matrix input summing

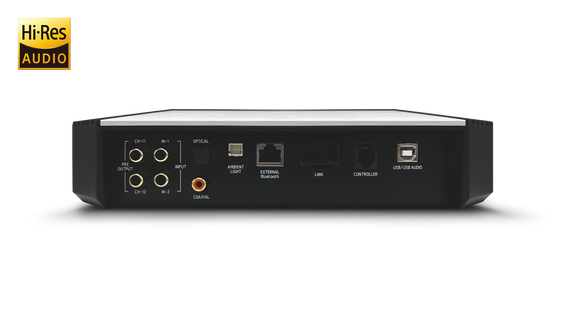

Inputs

• 12 Ch Hi-Level / 2-Ch RCA Input / 2-Ch RCA Preout
• HD Bluetooth / Optical / Coaxial, USB

Outputs

• 10 Ch Hi-Level / 2 Ch RCA

Output Signal Gain

• Range: Silent, -60dB~+6dB

Output Signal Equaliser

• Type: Parametric equalisation, Graphic equalisation
• Frequency: 20Hz~40kHz, resolution 1Hz
• Q value (slope or gradient): 0.404~28.852
• Gain: -12.0dB~+12.0dB, resolution 0.1dB~0.5dB~1.0dB

Output Signal Frequency Divider

• Multi-Order High Pass and Low Pass Filters per Output Channel
• Filter type: Link-Ril, Butter-W, Bessel
• Crossover point: 20Hz~40kHz resolution 1Hz
• Filter slope (slope): -6dB/Oct~-48dB/Oct

Output Phase

• Normal phase or reverse phase (0-360deg)

Output Delay

• 0.000~20.000ms, 0~692cm, 0~273 inch

Dynamic Range

• ≥100dB

Signal-to-Noise Ratio (RCA)

• ≥101dB

Noise Floor

• High level CH1~CH6: 95uVrms

• CH7-CH10: 48uVrms

• CH11-CH12: 135uVrms

• RCA: 5.8uVrms

Channel Separation

• ≥80dB

Total Harmonic Distortion

• ≤0.01%

Input Voltage

• High level: 30Vpp

• RCA: 6.5Vpp

Output Voltage

• High level: CH1~CH6: 40Vpp, CH7~CH10: 28Vpp,CH11~CH12: 58Vpp:

• RCA: 6.5Vpp

Rated Power

• CH1~CH6: 50W, CH7~CH10: 25W, CH11~CH12: 100W (4Ω, 14.4V, 1kHz, 10%THD)

  Connection CH11~CH12: 1CH×200W(2Ω, 14.4V, 1kHz, 10%THD)

• 850W RMS Total Power

Maximum Power

• CH1~CH6: 100W，CH7~CH10: 50W， CH11~CH12: 200W (4Ω, 14.4V, 1kHz, 10%THD) Connection CH11~CH12: 1CH×400W (2Ω, 14.4V, 1kHz, 10%THD)

I/O Sensitivity (RCA)

• 1:1 (without power amplification)

Frequency response

• 20Hz~40kHz

System Sampling Rate

• 96kHz/24Bit

Input Resistance

• High level: 18Ω

• RCA: 15kΩ

Output Resistance

• 51Ω

Operating Voltage

• 9~17V

Quiescent Current

• ≤3mA (while off)

Standby Power Consumption

• ≤0.1W

REM Start Input

• High level (H1-/H1+), ACC optional

REM Start Output

• 12V (0.2A)

Boot Time

• 10s

Use Ambient Temperature

• -20~70degC

Storage Temperature

• -40~85degC

Dimension

• 263mm x 262mm x 58mm

Weight

• 4.7kg
