alpine S2-SB10V

Call to Order

$449.95

alpine S2-SB10V

Inform me when the item arrives

Ask about this product

Full Description
Reviews

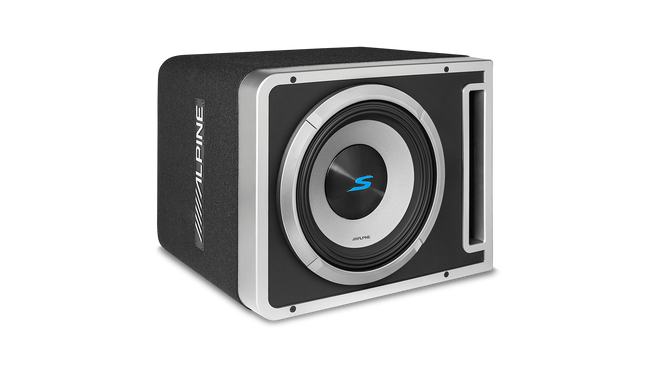

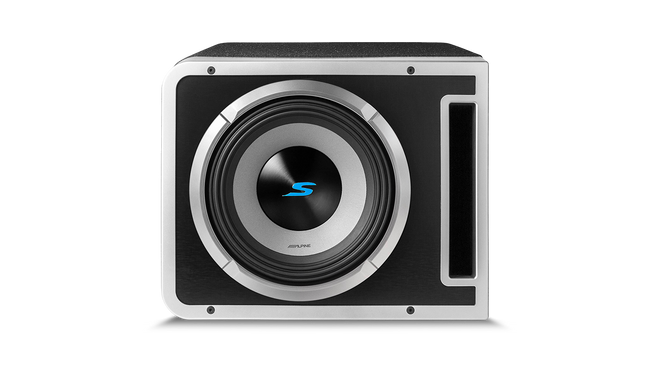

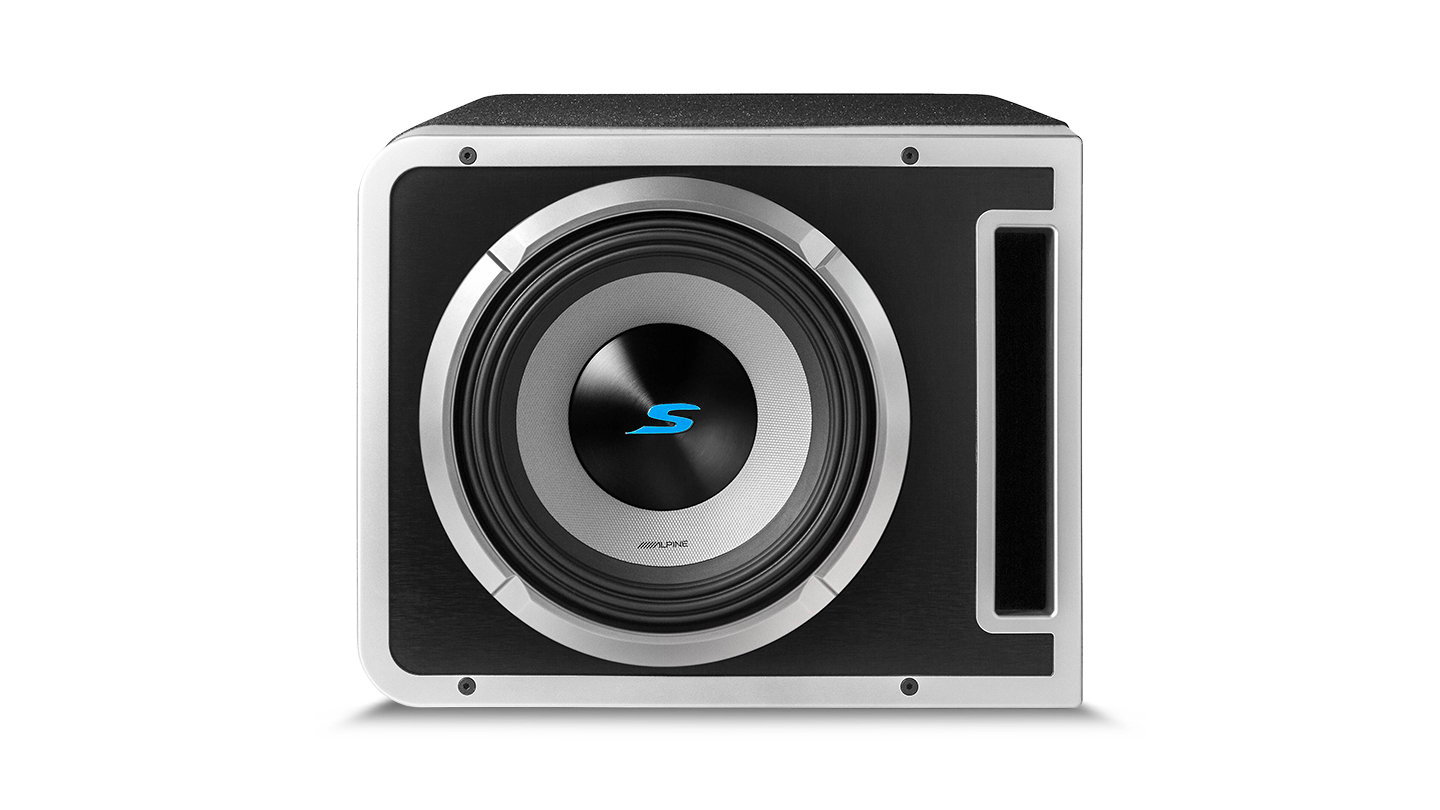

S2-Series 10″ Halo Subwoofer with ProLink™

Features

Includes Preloaded S2-W10D2 10” S-Series Subwoofer
Ground-breaking Alpine Halo Design
ProLink™ Ported Enclosure Design
USA Designed for Optimal Bass and Sound Quality Performance
CARB compliant 3/4-inch MDF construction
Premium Black Carpet
Silver Alpine Embossed Side Logo Badge
Brushed Aluminium Finished Metallic Front Baffle

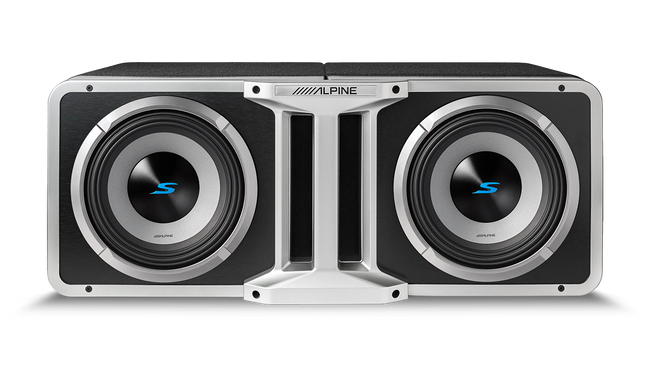

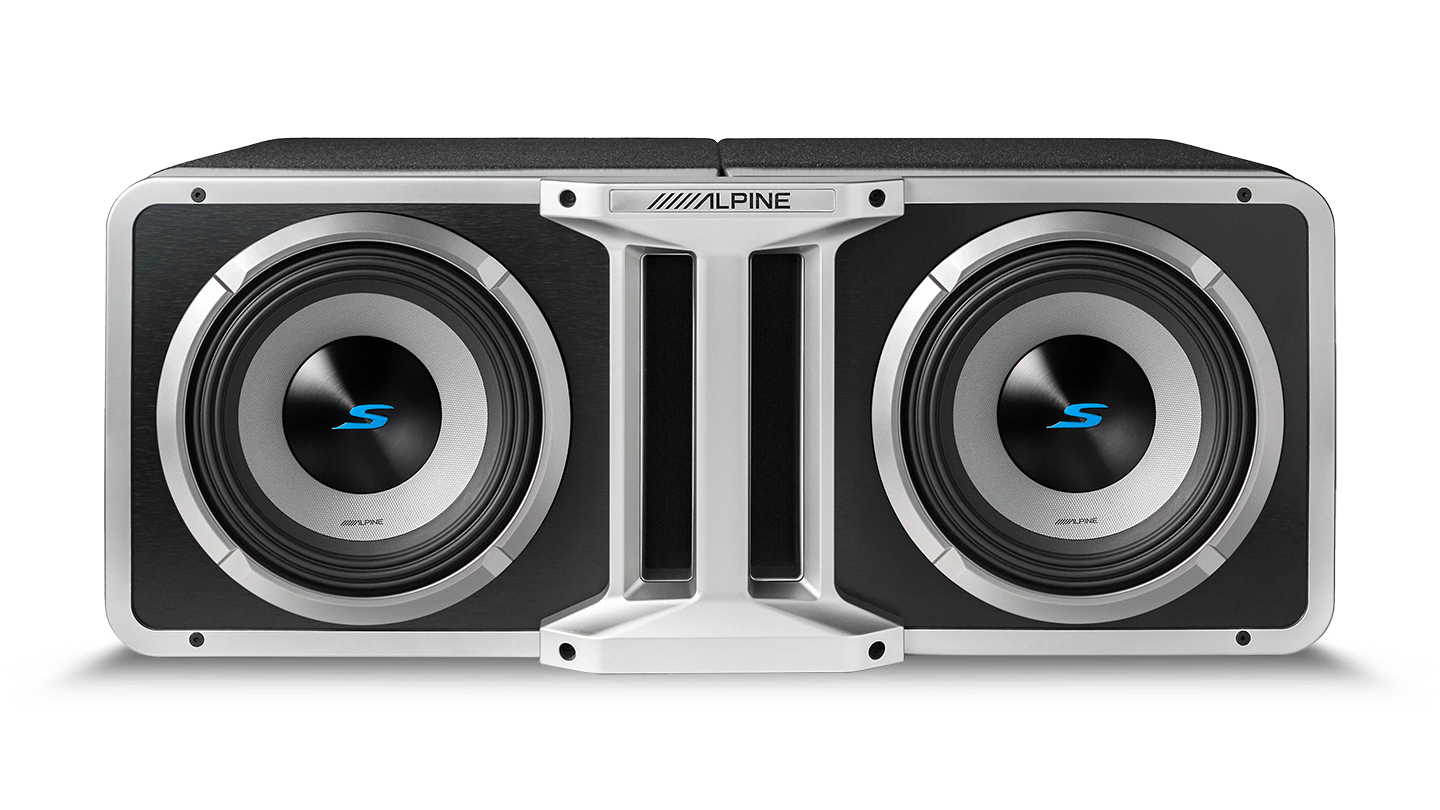

KTX-H10 Linking Kit Ready
KTE-10G.2 Mesh Grille Ready

Specifications

Peak Power Handling: 1800W
RMS Power Handling: 600W
High-Excursion Overhung Voice Coil Configuration
65mm Voice Coil 5-Layer DVC Winding on Aluminium Former
Stacked High-Grade Strontium Ferrite Magnets
High-Strength Steel Frame
Progressive Spider with Reinforced Layer Tinsel Leads
Perimeter Venting with Airflow Management System
Optimised Dual Flare Pole Vent
Concealed Mount Gasket
Reinforced Parabolic Cone Structure (Pulp/Kevlar & PP/Mica/Talc Dust Cap)
High-Amplitude Multi-Roll (HAMR) Surround
Dimensions: 16” W x 12.6825” H x 14.5” D
Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with S2-A60M)
12 Gauge OFC Speaker Box Wire

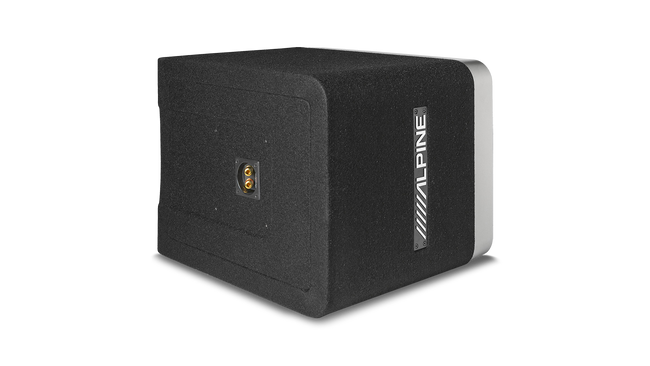

Binding Post Terminal Cup
Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
Nominal Impedance: 4Ω+4Ω Dual Voice Coil
2Ω Impedance Loading: (4Ω+4Ω Parallel Circuit)
Frequency Response: 28Hz-200Hz
Vented Enclosure Tuning Frequency: 36Hz
Sensitivity 84dB
