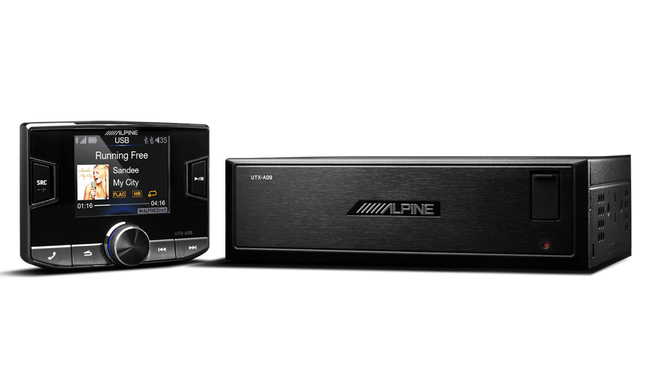

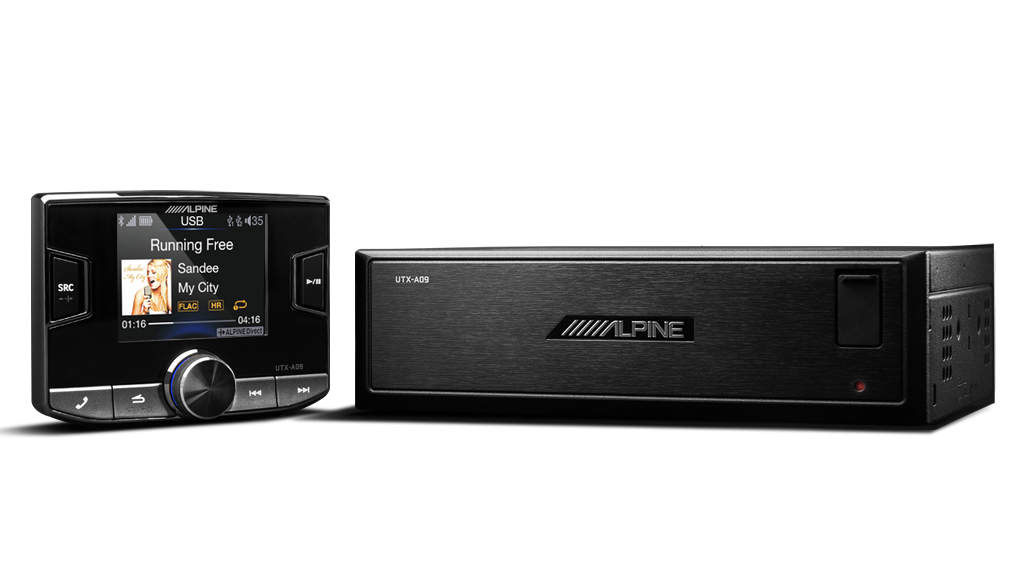

alpine UTX-A09 PRO
Have a question?
Hi-Res Audio Digital Media AM/FM Receiver with Bluetooth and Dual USB
Features
- Memory Presets: Preset Stations (18 Total; 12 Stations for each band FM and AM
- Memory: Auto Memory
- Built-in BLUETOOTH® Module
- HFP (Hands-Free Profile) Compatible
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Connection: SSP (Simple Secure Pairing) Supported
- Phone Book: Phone Book Synchronisation
- Speed Dial: 4 Preset Memory (per phone)
- Multiple Phone Number Registration: 4 Phone Numbers can be stored for one name
- Device Name Display
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Signal Strength Indicator
- Battery Level Indicator
- Microphone Included
- Music Playback
- Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook / iTunes Radio
- Repeat
- USB Connection: USB Extension Cable Included
- Music Playback: FLAC/MP3/WMA/AAC/WAV/APE compatible
- File / Folder Name Search
- Folder Up / Down
- Repeat
- Bass Engine SQ
- Subwoofer Level Adjustment
- Subwoofer Phase Select
- 4V High Voltage PreOut
- Equaliser: Flat (Initial Setting), Pops, Rock, News, Jazz, Hip Hop, Easy Listening, Country, Classical, Customise
- Dual HD EQ (9-band Parametric Equaliser front/rear)
- 6 Channel Digital Time Correction
- Digital Crossover Setting
- MediaXpander HD
- Easy, Step-by-Step Sound Customisation
- Alpine TuneIt App ready
- Power Output: 4 x 22 W Power Amplifier
- 3 PreOuts (4V)
- AUX-In: 1 AUX Input (3.5mm micro jack)
- Aux Input Navi Mix Level Adjustment (0~12)
- Steering Wheel Remote Control Function (via optional steering wheel interface)
- Remote Control Ready (Optional)
- Menu Language: 2 Languages, English / Chinese (Initial Setting)
- Auto Dimmer
- Power Antenna Lead
Tuner
BLUETOOTH®
Made for iPod® / iPhone®
USB Media Connection
Sound Tuning
General
Specifications
- Tuning Range: 87.5 – 108.0 MHz
- Mono Usable Sensitivity: 15.8 dBf (1.7 µV / 75 ohms S/N: 30dB)
- Signal-to-Noise Ratio: 60 dB
- Tuning Range: 531 – 1,602 kHz
- Sensitivity: 32 µV (S/N: 20dB)
- Signal-to-Noise Ratio: 50 dB
- USB Requirements: USB 2.0
- Max. Power Consumption (Rear USB): 1 A
- File System: FAT 16/32, exFAT
- Signal-to-Noise Ratio: 95 dB
- Max. number of songs that can be played back (Total number of songs in front and rear USB): 10,000
- MP3 Decoding: MPEG AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: AAC-LC format “.m4a” file
- WAV Decoding: Waveform sound file
- FLAC Decoding: Free Lossless Audio Codec
- APE Decoding: Monkey’s audio
- BLUETOOTH® Version: Bluetooth V4.0
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Power Output: 22W x 4 (1kHz, 5% THD, 4 Ω load, 2ch test)
- Bass: ±9.1 dB at 100 Hz
- Treble: ±9.1 dB at 10 kHz
- Weight: 0.8 kg
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- High PassFilter: 1 k / 1.2 k /1.6 k / 2 k / 2.5 k / 3.2 k /4 k / 5 k (Initial Setting) / 6.3 k / 8 k / 10 k / 12.5 k / 16 k / 20 k (Hz)
- High PassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- Mid High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 / 315 / 400 / 500 / 630 / 800 / 1 k / 1.2 k /1.6 k / 2 k / 2.5 k / 3.2 k /4 k / 5 k (Initial Setting) / 6.3 k / 8 k / 10 k / 12.5 k / 16 k / 20 k (Hz)
- Mid High Pass Filter (Slope): Off / -6 / -12 oct.
- Mid High Pass Filter (Gain): -12 to 0 dB
- Low/Mid Low Pass Filter*: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 / 315 / 400 / 500 (Initial Setting) / 630 / 800 (Hz)
- Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 (Initial Setting) / 100 / 125 / 160 / 200 (Hz)
- Low Pass Filter (Slope): Flat**/ -6 / -12 oct.
- Low Pass Filter (Gain): -12 to 0 dB
- Time Correction: 0.0 – 9.9ms (0.1ms step)
- Parametric Equalizer (Band 1): 20 – 100 Hz (63 Hz)
- Parametric Equalizer (Band 2): 63 – 315 Hz (125 Hz)
- Parametric Equalizer (Band 3): 125 – 500 Hz (250 Hz)
- Parametric Equalizer (Band 4): 250 – 1k Hz (500 Hz)
- Parametric Equalizer (Band 5): 500 – 2k Hz (1 kHz)
- Parametric Equalizer (Band 6): 1k – 4k Hz (2 kHz)
- Parametric Equalizer (Band 7): 2k – 7.2k Hz (4 kHz)
- Parametric Equalizer (Band 8): 5.8k – 12k Hz (8 kHz)
- Parametric Equalizer (Band 9): 9k – 20k Hz (16 kHz)
- Parametric Equalizer (Gain): 0 to +15
- Width: 178 mm
- Height: 50 mm
- Depth: 146 mm
- Width: 95 mm
- Height: 69 mm
- Depth: 20 mm
FM Tuner
AM Tuner
USB
BLUETOOTH®
General
Sound Tuning
* The cut-off frequency setting of MID LOW should not be more than that of MID HIGH.
** In the 3-way mode, HIGH does not correspond to FLAT.
Headunit Size

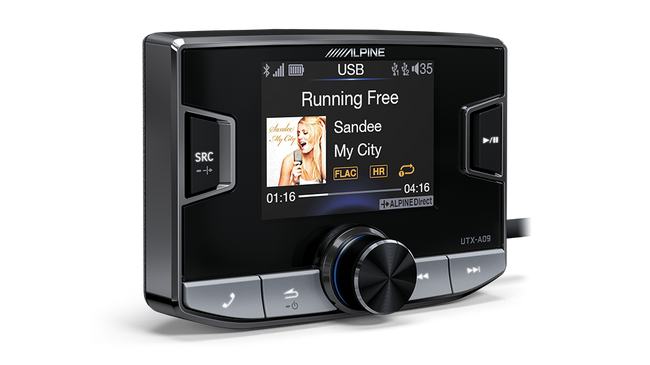

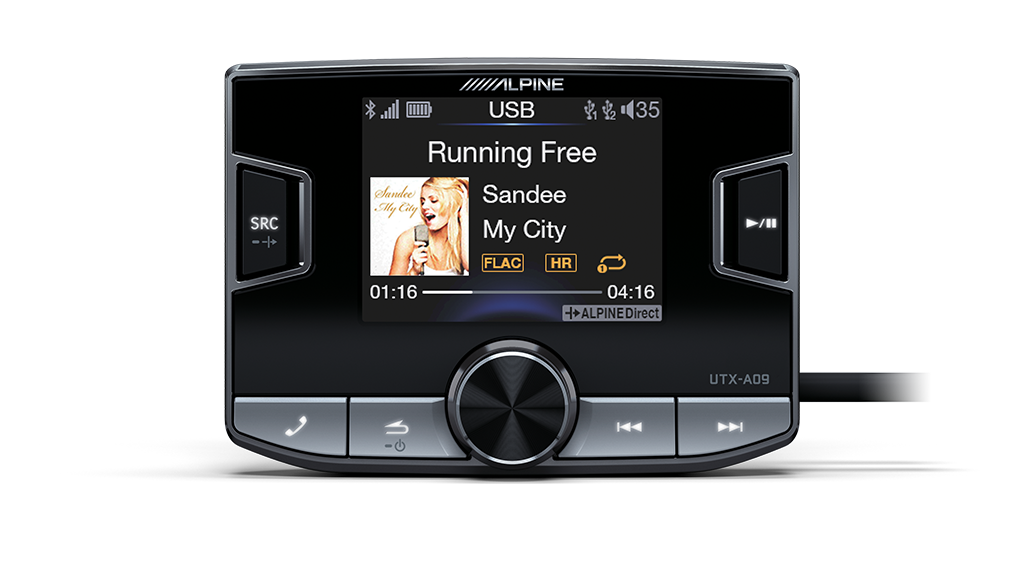

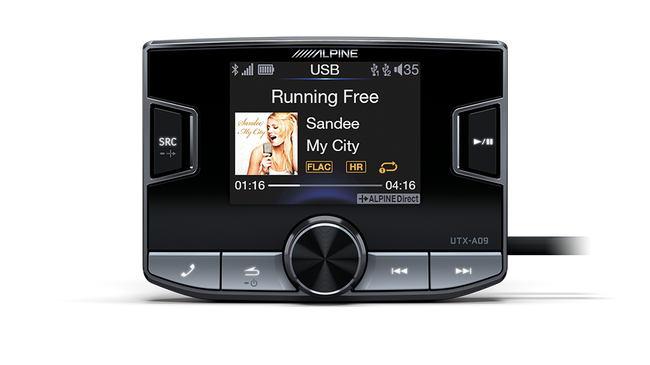

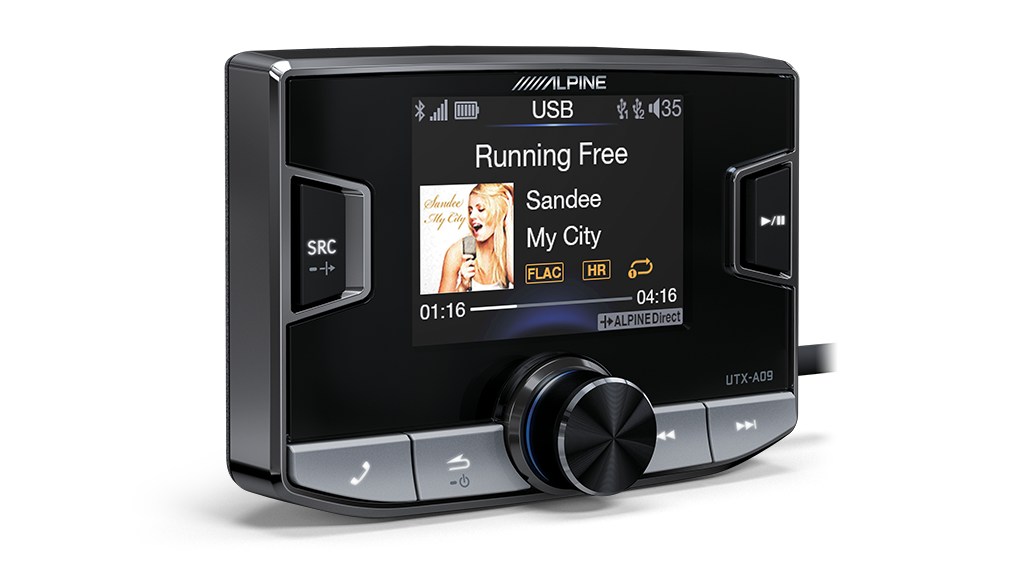

Controller Size
Please note: Due to continuous product improvement, specifications and design are subject to change without notice.
