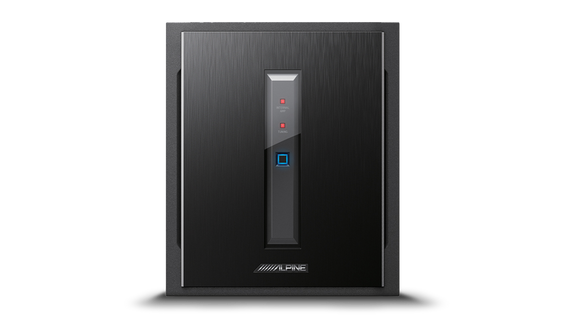

alpine PXE-X800

Name: alpine PXE-X800
Brand: ALPINE
SKU: PXE-X800RUX
Price: 999.95 AUD
Availability: OutOfStock

Title:

Call to Order

**Compact 12-Channel Digital Audio Processor / 8-Channel Digital High-Power Amplifier**

Technical Specifications

? **Features**

**Frequency response**
- $20\text{Hz} – 20\text{KHz}/ 1\text{Hz step}$
**Inputs**
- 12-channel RCA audio
- Built-in AMP
- Slope $6/12/18/24/30/36/42/48\text{ dB}$
- Optical/ Coaxial
**Outputs**
- $4 \text{ x } 25\text{W}$ (Rated power)
- $4 \text{ x } 50\text{W}$ (Max power)
**Sound & Tuning**
- 31 Bands parametric EQ
- 31 Bands graphic EQ
- Time correction (up to $20\text{ms/ ch}$)
- AptX Bluetooth lossless format
**Dimension**
- $228.2\text{mm x } 194.5\text{mm x } 45\text{mm}$

? **Specifications**

**Dynamic range:** $\ge 100\text{dB}$
**SNR (RCA):** $\ge 110\text{dB}$
**Background noise:** High level: $93.3\mu\text{Vrms}$; RCA?$8\mu\text{Vrms}$
**Channel resolution:** $\ge 80\text{dB}$
**THD:** $\le 0.05\%$
**Input voltage:** High level: $30\text{Vpp}$; RCA?$5\text{Vpp}$
**Output voltage:** High level $\text{CH}1 \sim \text{CH}4: 40\text{ Vpp}$, high level $\text{CH}5 \sim \text{CH}8: 28\text{ Vpp}$; $\text{RCA}: 8\text{ Vpp}$
**Rated power:** $\text{CH}1 \sim \text{CH}4?50\text{W}?\text{CH}5 \sim \text{CH}8?25\text{W } (4\Omega, 14.4\text{V}, 1\text{kHz}, 10\%\text{THD})$
**Maximum power:** $\text{CH}1 \sim \text{CH}4?100\text{W}?\text{CH}5 \sim \text{CH}8?50\text{W } (4\Omega, 14.4\text{V}, 1\text{kHz}, 10\%\text{THD})$
**Input / output sensitivity (RCA):** $1:1.23$ (no power amplification)
**System sampling rate:** $48\text{kHz}/24\text{bit}$
**Input impedance:** High level: $51\Omega$; RCA?$20\text{k}\Omega$
**Output impedance:** $51\Omega$
**Operating voltage:** $9 \sim 16\text{V}$
**Quiescent current:** $\le 3\text{mA}$ (in off state)
**Stand-by power consumption:** $\le 0.1\text{W}$
**REM startup input:** High level ($\text{H}1-/\text{H}1+$), ACC selectable
**REM startup output:** $12\text{V} (0.2\text{A})$
**Uptime:** $10\text{s}$
**Operating ambient temperature:** $-20 \sim 60^\circ\text{C}$
**Storage temperature:** $-40 \sim 85^\circ\text{C}$

? **Manuals & Updates**

Owners Manual
