Install

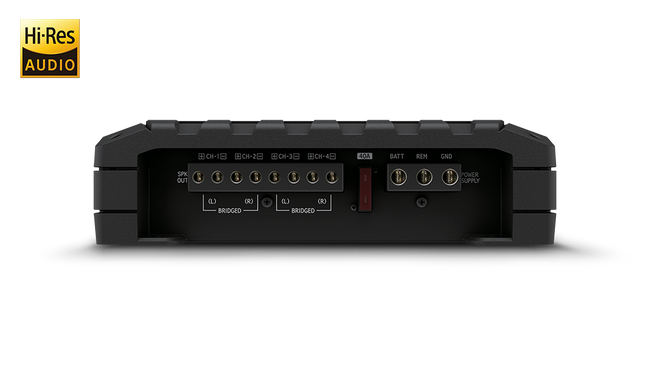

• Terminal Layout: Two-sided
• Included terminal covers
• Screw terminals (for speaker and power cables)

General

• Class-D Amplification (Digital)
• Hi-Res Audio Certified
• Channel Design: 4/3/2 Channel

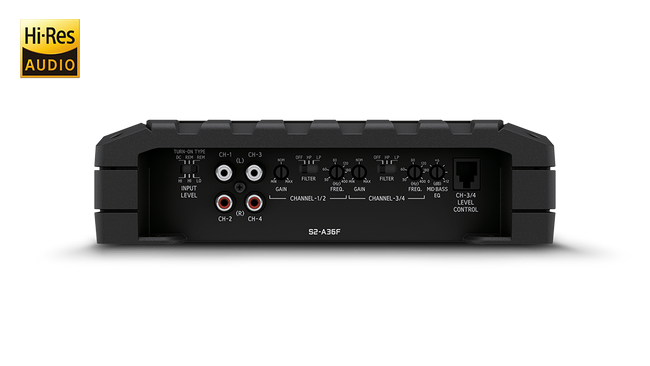

• Side panel controls
• Thermal Management Control

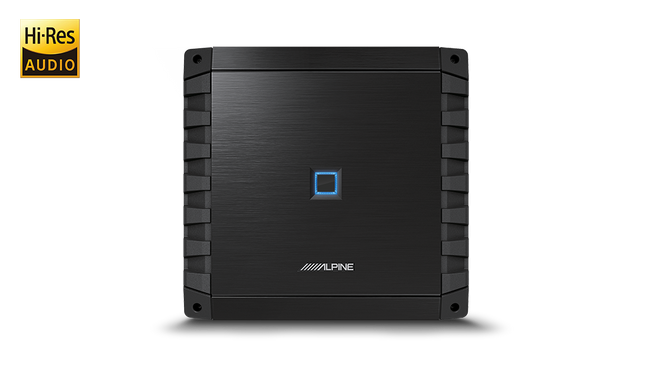

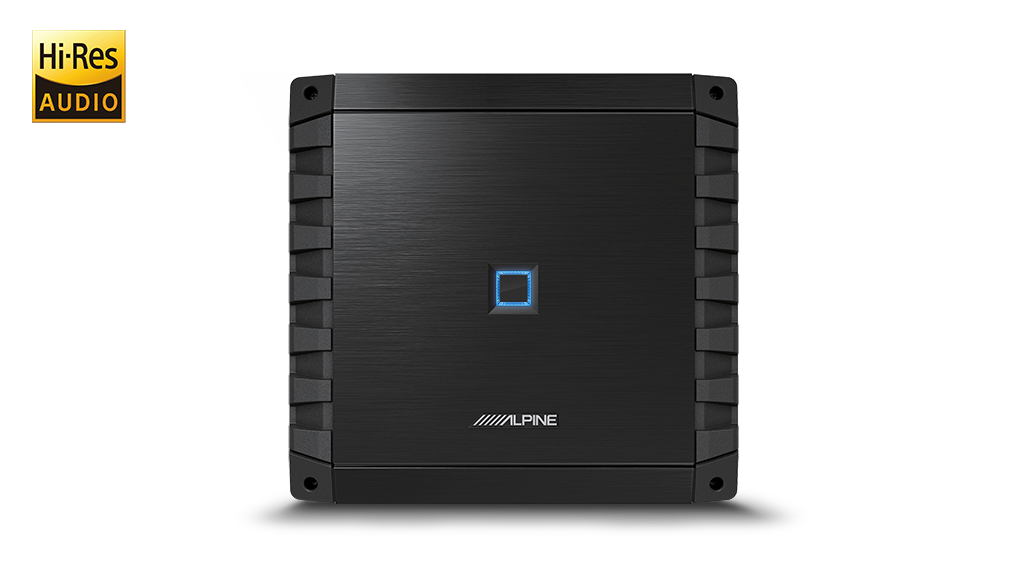

• Top Mounted LED Power/Status Indicator
• Speaker Level Input
• 3 turn-on modes (DC HI, Remote HI, Remote LO)
• Crossover: Variable Low-pass Filter (LPF) and High-Pass Filter (HPF),
• Adjustable Gain Control
• Mid-Bass EQ
• Remote Bass Control (RUX-KNOB2) Ready (for channel 3+4 in bridged mode only)

RMS Power Ratings

• Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 90W
• Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 60W
• Bridged, 4 Ohms, 14.4V: 2 x 180W

Sound Tuning

• Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )
• Mid-Bass EQ (0 to +12dB)

General

• Power Requirements: 14.4 V.DC (9 – 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5V – 10V / Low: 0.2V – 4.0V
• High Level Input with automatic power on
• Cable size: Power Cable AWG 4, SPK Cable AWG 8
• Frequency Response: 10Hz – 40kHz
• THD+N (@ 10W into 4 Ohms): <0.03%
• Damping Factor: >100
• Weight: 2.2kg

Dimensions

• Heat Sink (WxHxD) mm: 220 x 57 x 210
