Install

• Terminal Layout: Two-sided
• Included terminal covers

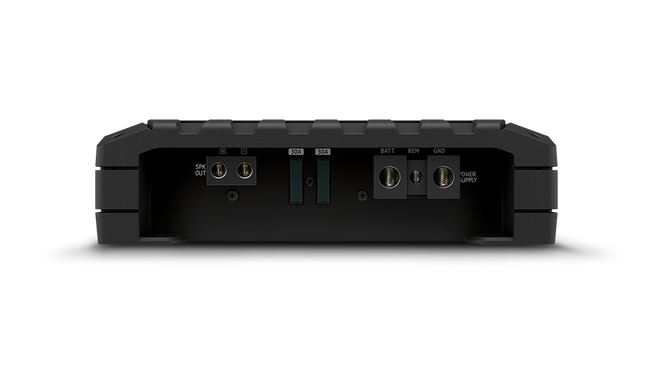

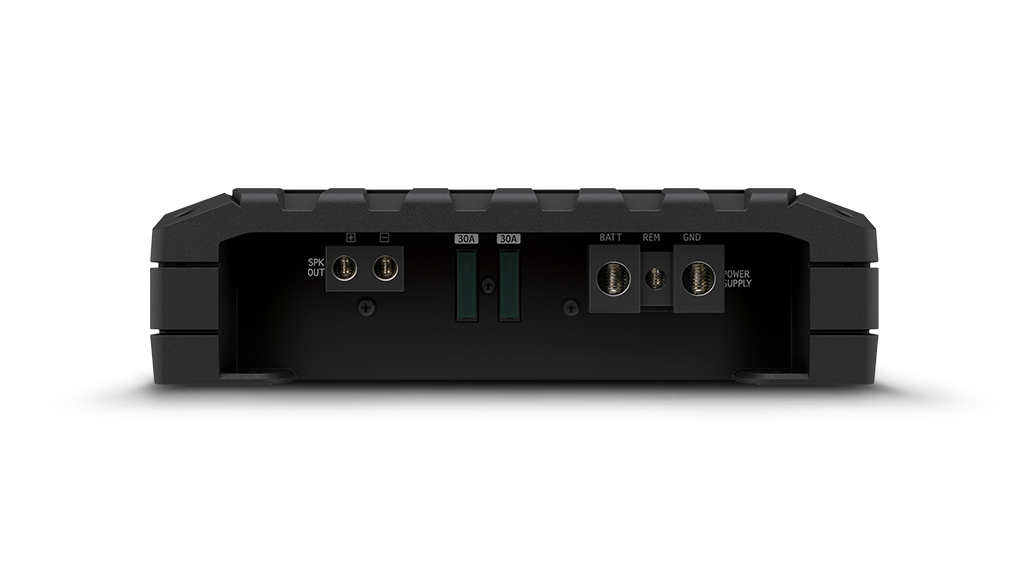

• Screw terminals (for speaker and power cables)

General

• Class-D Amplification (Digital)
• Channel Design: Mono Channel

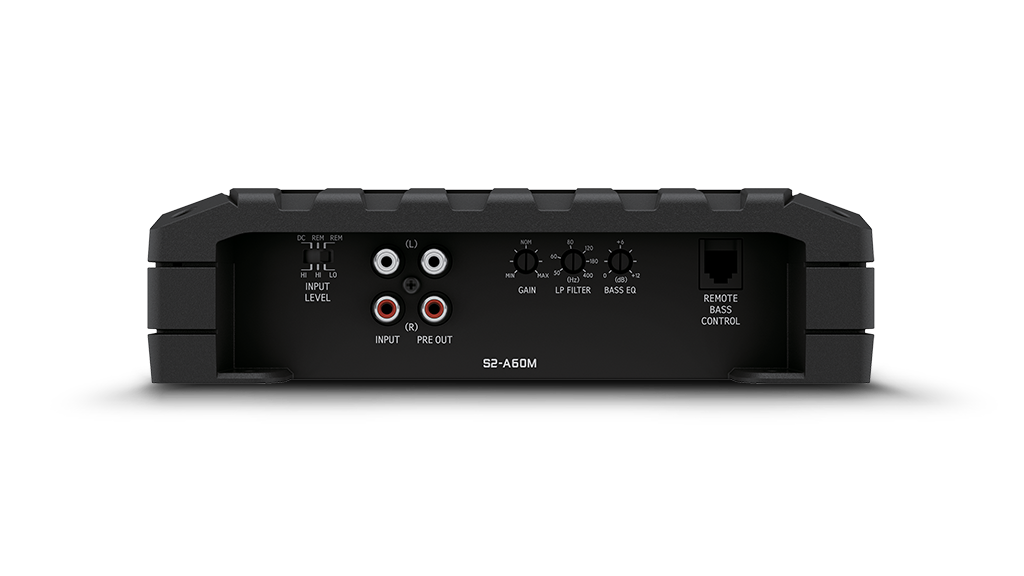

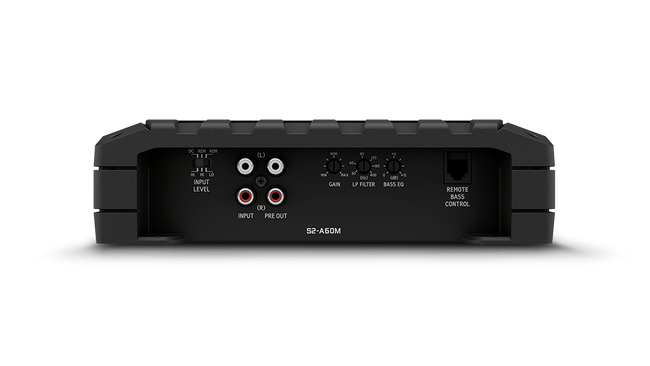

• Side panel controls
• Thermal Management Control

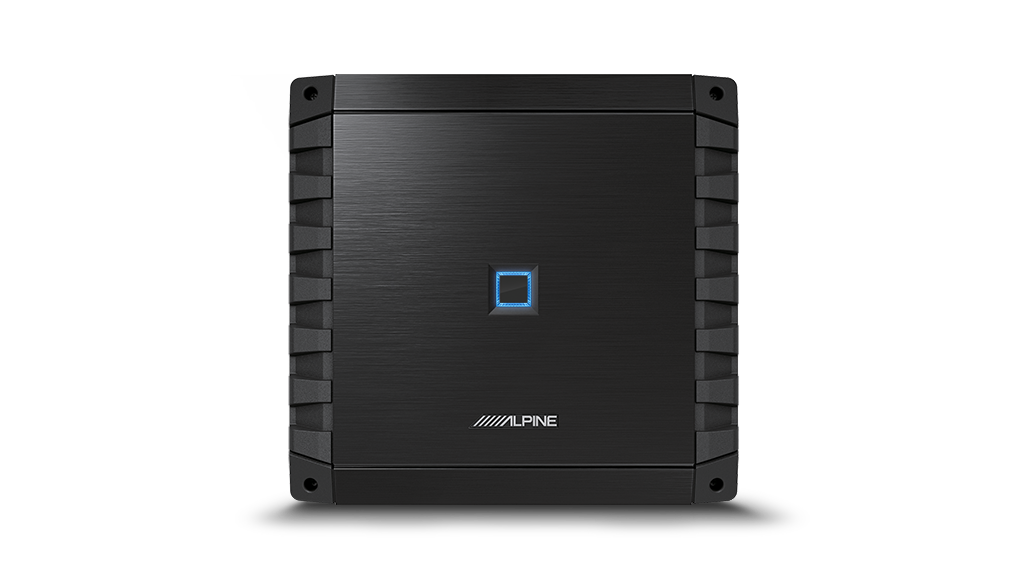

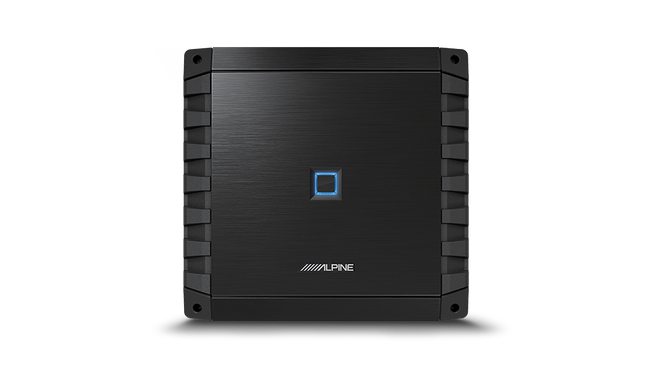

• Top Mounted LED Power/Status Indicator
• Speaker Level Input
• 3 turn-on modes (DC HI, Remote HI, Remote LO)
• Input Channel Selector Switch for Subwoofer
• Crossover: Variable Low-pass Filter (LPF)
• Adjustable Gain Control
• Bass EQ
• Remote Bass Control (RUX-KNOB2) Ready

RMS Power Ratings

• Per Channel into 1 Ohms, 14.4V (≤1%THD+N): 1 x 600W
• Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 600W
• Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 330W

Sound Tuning

• Crossover: Variable LPF: 50-400Hz (-24dB/oct)
• Bass EQ (+12dB)

General

• Power Requirements: 14.4 V.DC (9 – 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5V – 10V / Low: 0.2V – 4.0V
• High Level Input with automatic power on
• Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz – 400Hz
• THD+N (@ 10W into 4 Ohms): <0.03%
• Damping Factor: >1000
• Weight: 2.2kg

Dimensions

• Heat Sink (WxHxD) mm: 220 x 57 x 210
